Page 3665 of 4462
TURN SIGNAL AND HAZARD WARNING LAMPS LT-103
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
BCM connector Terminal
Ground Continuity
M4 49
Ye s
52
PKIB3545E
Page 3666 of 4462

LT-104
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Functions (BCM)NKS002XL
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “FLASHER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is selected, all the items will be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
Display Item List
ACTIVE TEST
Operation Procedure
1. Touch “FLASHER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “OFF” deactivates the operation.
Display Item List
BCM diagnosis part Diagnosis mode Description
FLASHER DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending driving signal to them.
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects items and monitors them.
Monitor item Contents
IGN ON SW “ON/OFF” Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from ignition switch signal.
HAZARD SW “ON/OFF” Displays “Hazard ON (ON)/Hazard OFF (OFF)” status, determined from hazard switch signal.
TURN SIGNAL R “ON/OFF” Displays “Turn right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn left (ON)/Other (OFF)” status, determined from lighting switch signal.
BRAKE SW “ON/OFF” Displays “Stop lamp switch ON (ON)/Stop lamp switch OFF (OFF)” status, determined from stop lamp
switch signal.
Test item Description
FLASHER Turn signal lamp (right or left) can be operated by any ON-OFF operations.

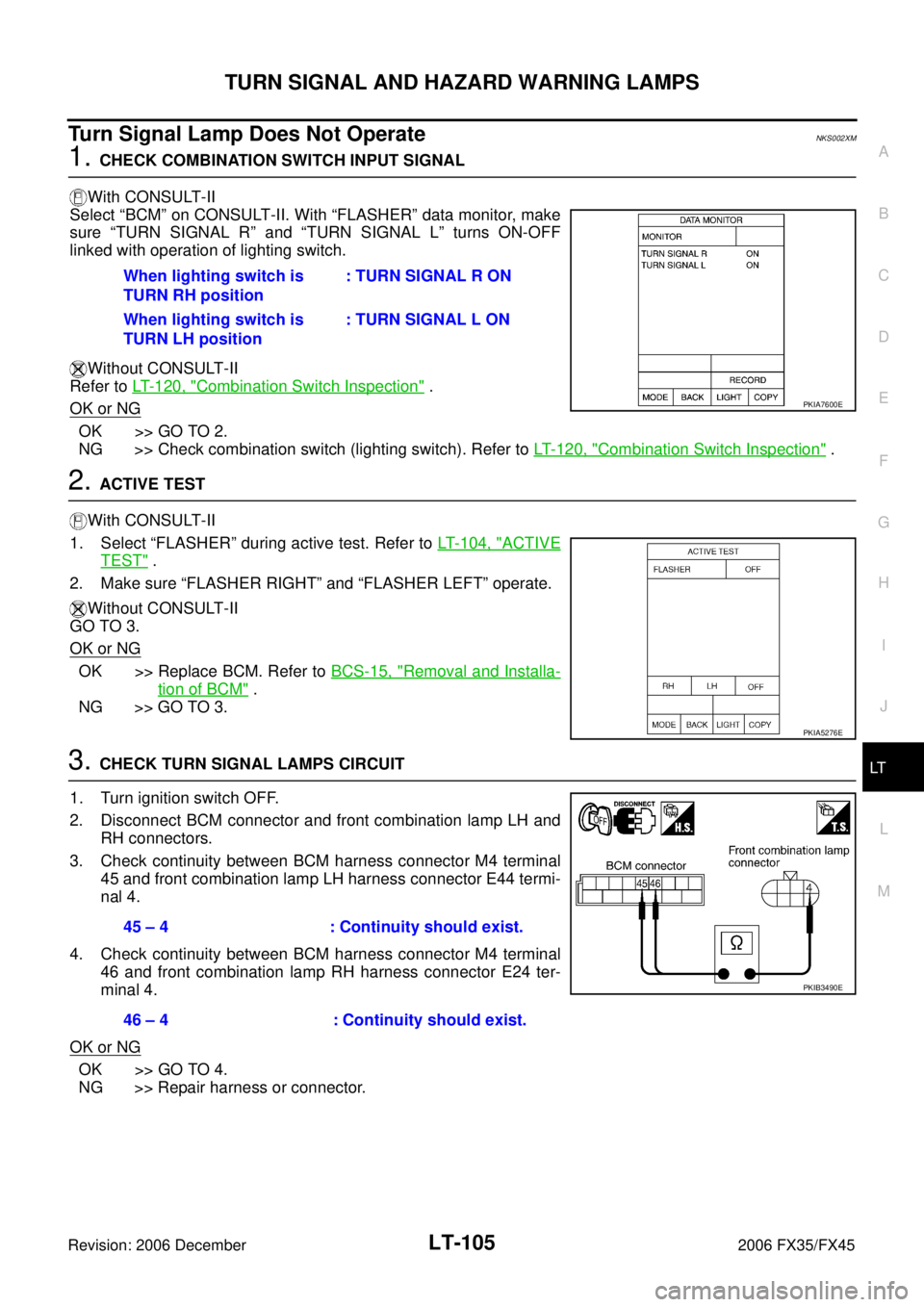

Page 3667 of 4462

TURN SIGNAL AND HAZARD WARNING LAMPS LT-105
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
Turn Signal Lamp Does Not OperateNKS002XM
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “FLASHER” data monitor, make
sure “TURN SIGNAL R” and “TURN SIGNAL L” turns ON-OFF
linked with operation of lighting switch.
Without CONSULT-II
Refer to LT- 1 2 0 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (lighting switch). Refer to LT- 1 2 0 , "
Combination Switch Inspection" .
2. ACTIVE TEST
With CONSULT-II
1. Select “FLASHER” during active test. Refer to LT- 1 0 4 , "
ACTIVE
TEST" .
2. Make sure “FLASHER RIGHT” and “FLASHER LEFT” operate.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.
3. CHECK TURN SIGNAL LAMPS CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front combination lamp LH and RH connectors.
3. Check continuity between BCM harness connector M4 terminal 45 and front combination lamp LH harness connector E44 termi-
nal 4.
4. Check continuity between BCM harness connector M4 terminal 46 and front combination lamp RH harness connector E24 ter-
minal 4.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector. When lighting switch is
TURN RH position : TURN SIGNAL R ON
When lighting switch is
TURN LH position : TURN SIGNAL L ON
PKIA7600E
PKIA5276E
45 – 4 : Continuity should exist.
46 – 4 : Continuity should exist.
PKIB3490E
Page 3668 of 4462

LT-106
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
4. CHECK GROUND
1. Check continuity between front combination lamp LH harness connector E44 terminal 8 and ground.
2. Check continuity between front combination lamp RH harness connector E24 terminal 8 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK TURN SIGNAL LAMPS SHORT CIRCUIT
1. Disconnect rear combination lamp unit connector.
2. Check continuity (short circuit) between front combination lamp LH harness connector E44 terminal 4 and ground.
3. Check continuity (short circuit) between front combination lamp RH harness connector E24 terminal 4 and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK BULB
Check bulb standard of each turn signal lamp is correct.
OK or NG
OK >> Replace BCM if turn signal lamps does not work after setting the connector again. Refer to BCS-
15, "Removal and Installation of BCM" .
NG >> Replace turn signal lamp bulb.
Rear Turn Signal Lamp Does Not OperateNKS002XN
1. CHECK TAIL LAMPS AND STOP LAMPS
Make sure tail lamps and stop lamps is illuminated.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3. 8 – Ground : Continuity should exist.
8 – Ground : Continuity should exist.
PKIA5218E
4 – Ground : Continuity should not exist.
4 – Ground : Continuity should not exist.
PKIA5219E
Page 3669 of 4462

TURN SIGNAL AND HAZARD WARNING LAMPS LT-107
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
2. CHECK TURN SIGNAL LAMPS CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M4 terminal 45 and rear combination lamp control unit harness connector
B65 terminal 4.
3. Check continuity between BCM harness connector M4 terminal 46 and rear combination lamp control unit harness connector
B65 terminal 5.
OK or NG
OK >> Replace rear combination lamp control unit.
NG >> Repair harness or connector.
3. CHECK POWER SUPPLY CIRCUIT
1. Disconnect rear combination lamp control unit connector.
2. Check voltage between rear combination lamp control unit har- ness connector B65 terminal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK GROUND CIRCUIT
Check continuity between rear combination lamp control unit har-
ness connector B65 terminal 7 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector. 45 – 4 : Continuity should exist.
46 – 5 : Continuity should exist.
PKIB3493E
1 – Ground : Battery voltage.
SKIA5907E
7 – Ground : Continuity should exist.
SKIA5908E
Page 3670 of 4462

LT-108
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
5. CHECK REAR COMBINATION LAMPS CIRCUIT
1. Disconnect rear combination lamp RH and LH connectors.
2. Check continuity between rear combination lamp control unit harness connector B65 terminal 11 and rear combination lamp
LH harness connector B57 terminal 3.
3. Check continuity between rear combination lamp control unit harness connector B65 terminal 10 and rear combination lamp
LH harness connector B57 terminal 4.
4. Check continuity between rear combination lamp control unit harness connector B65 terminal 9 and rear combination lamp RH harness connector B219 terminal 3.
5. Check continuity between rear combination lamp control unit harness connector B65 terminal 8 and rear combination lamp RH harness connector B219 terminal 4.
OK or NG
OK >> Replace rear combination lamp control unit or rear combination lamp, and then check if turn signal lamps is illuminated.
NG >> Repair harness or connector.
Hazard Warning Lamp Does Not Operate But Turn Signal Lamp OperateNKS002XO
1. CHECK BULB
Make sure bulb standard of each turn signal lamp is correct.
OK or NG
OK >> GO TO 2.
NG >> Replace bulb. 11 – 3 : Continuity should exist.
10 – 4 : Continuity should exist.
9 – 3 : Continuity should exist.
8 – 4 : Continuity should exist.
SKIA5910E

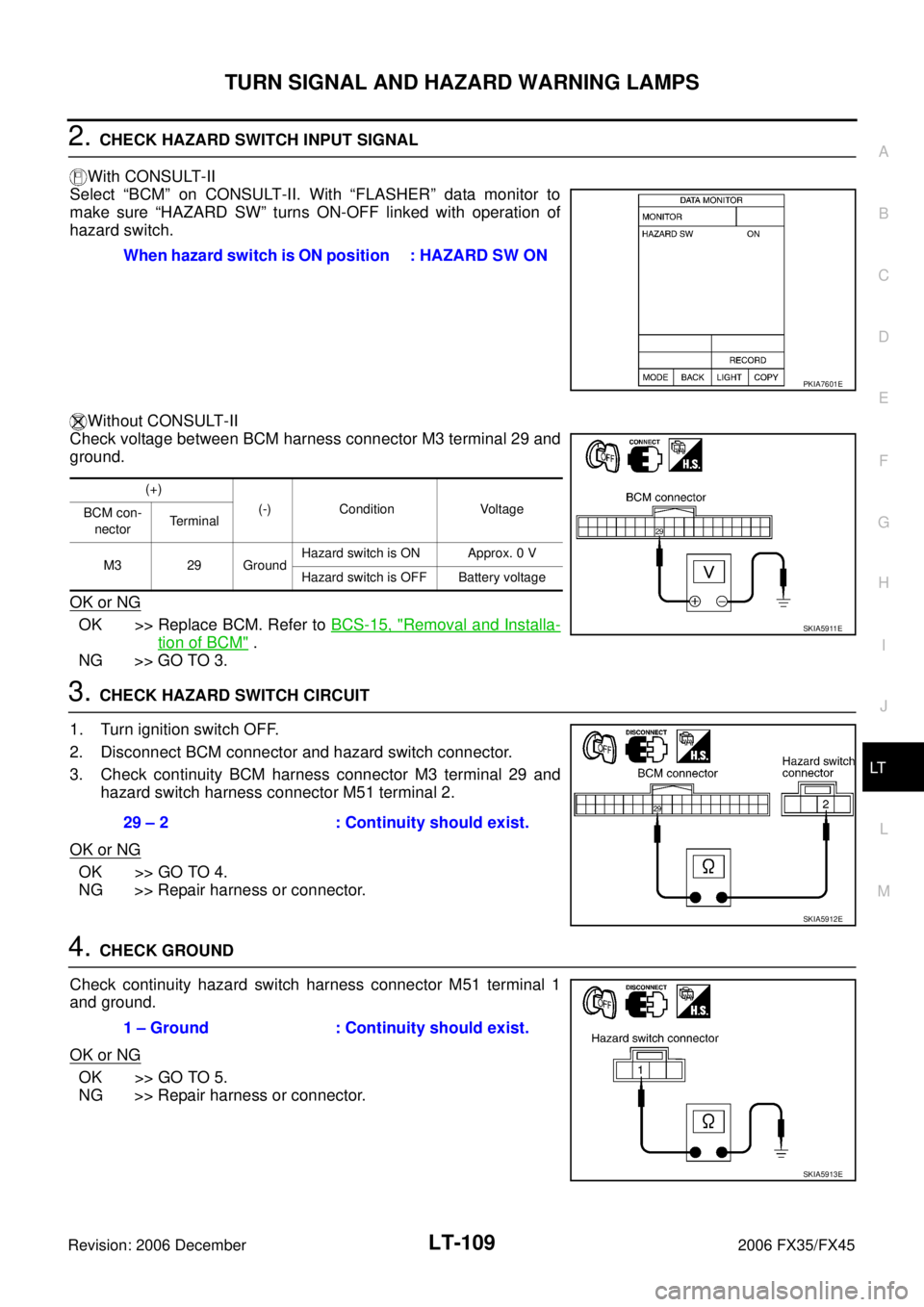

Page 3671 of 4462

TURN SIGNAL AND HAZARD WARNING LAMPS LT-109
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
2. CHECK HAZARD SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “FLASHER” data monitor to
make sure “HAZARD SW” turns ON-OFF linked with operation of
hazard switch.
Without CONSULT-II
Check voltage between BCM harness connector M3 terminal 29 and
ground.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.
3. CHECK HAZARD SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and hazard switch connector.
3. Check continuity BCM harness connector M3 terminal 29 and hazard switch harness connector M51 terminal 2.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK GROUND
Check continuity hazard switch harness connector M51 terminal 1
and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector. When hazard switch is ON position : HAZARD SW ON
PKIA7601E
(+)
(-) Condition Voltage
BCM con-
nector Te r m i n a l
M3 29 Ground Hazard switch is ON Approx. 0 V
Hazard switch is OFF Battery voltage
SKIA5911E
29 – 2 : Continuity should exist.
SKIA5912E
1 – Ground : Continuity should exist.
SKIA5913E

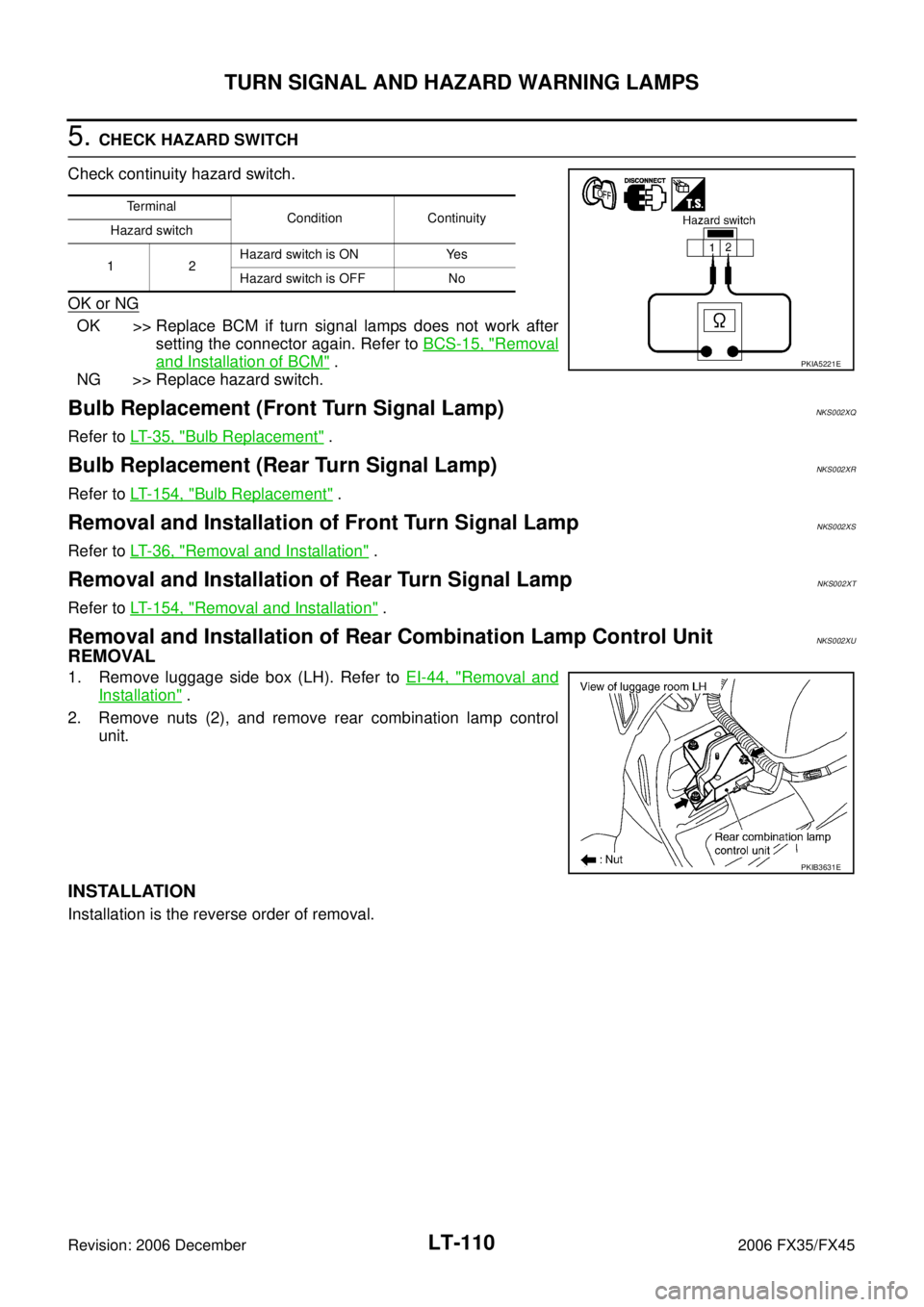

Page 3672 of 4462

LT-110
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
5. CHECK HAZARD SWITCH
Check continuity hazard switch.
OK or NG
OK >> Replace BCM if turn signal lamps does not work after setting the connector again. Refer to BCS-15, "
Removal
and Installation of BCM" .
NG >> Replace hazard switch.
Bulb Replacement (Front Turn Signal Lamp)NKS002XQ
Refer to LT- 3 5 , "Bulb Replacement" .
Bulb Replacement (Rear Turn Signal Lamp)NKS002XR
Refer to LT- 1 5 4 , "Bulb Replacement" .
Removal and Installation of Front Turn Signal LampNKS002XS
Refer to LT- 3 6 , "Removal and Installation" .
Removal and Installation of Rear Turn Signal Lamp NKS002XT
Refer to LT- 1 5 4 , "Removal and Installation" .
Removal and Installation of Rear Combination Lamp Control UnitNKS002XU
REMOVAL
1. Remove luggage side box (LH). Refer to EI-44, "Removal and
Installation" .
2. Remove nuts (2), and remove rear combination lamp control unit.
INSTALLATION
Installation is the reverse order of removal.
Terminal Condition Continuity
Hazard switch
12 Hazard switch is ON Yes
Hazard switch is OFF No
PKIA5221E
PKIB3631E
