Page 4201 of 4462

AUTOMATIC DRIVE POSITIONER SE-63
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
2. CHECK MIRROR SENSOR INSPECTION
With CONSULT-II
Make sure “ON” is displayed on “MIR/SE RH R–L, MIR/SE RH U–D” in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC position.
2. Check voltage between door mirror (passenger side) connector and ground.
OK or NG
OK >> Passenger side mirror sensor circuit is OK.
NG >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mirror (passenger side) connector.
2. Check continuity between automatic drive positioner control unit connector M50 terminal 33, 41 and door mirror (passenger side)
connector D32 terminal 1, 9.
3. Check continuity between automatic drive positioner control unit connector M50 terminals 33, 41 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror (pas- senger side).
Monitor item
[OPERATION or UNIT] Contents
MIR/SE RH R–L “V” Voltage output from RH door mirror sensor
(LH/RH) is displayed.
MIR/SE RH U–D “V” Voltage output from RH door mirror sensor
(UP/DOWN) is displayed.
PIIA0197E
Con-
nector Terminals (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
D32 2 (LG)
Ground When motor is
UP or DOWN
operation Changes between
3 (close to perk) –
1 (close to valley)
10 (P) When motor is
LEFT or RIGHT
operation Changes between
1 (close to left edge) – 3 (close to right edge)
PIIB8585E
33 (G/W) – 1 (BR) : Continuity should exist.
41 (B/Y) – 9 (G) : Continuity should exist.
33 (G/W) – Ground : Continuity should not exist.
41 (B/Y) – Ground : Continuity should not exist.
PIIB8586E
Page 4202 of 4462

SE-64
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45
4. CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector M49 terminal 5, 21 and door mirror (passenger side)
connector D32 terminal 2, 10.
2. Check continuity between automatic drive positioner control unit connector M49 terminal 5, 21 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror (pas-
senger side).
Check Steering and Door Mirror Sensor Power Supply and Ground CircuitNIS001VI
1. CHECK STEERING AND DOOR MIRROR SENSOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector M50 terminal 33 and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace automatic drive positioner control unit.
2. CHECK STEERING AND DOOR MIRROR SENSOR GROUND CIRCUIT
Check continuity between automatic drive positioner control unit
connector M50 terminal 41 and ground.
OK or NG
OK >>GO TO 3. (Door mirror sensor)
GO TO 4. (Steering sensor)
NG >> Replace automatic drive positioner control unit. 5 (OR) – 2 (LG) : Continuity should exist.
21 (G/Y) – 10 (P) : Continuity should exist.
5 (OR) – Ground : Continuity should not exist.
21 (G/Y) – Ground : Continuity should not exist.
PIIB8587E
33 (G/W) – Ground : Approx. 5V
PIIA4778E
41 (B/Y) – Ground : Continuity should exist.
PIIA4779E
Page 4203 of 4462

AUTOMATIC DRIVE POSITIONER SE-65
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

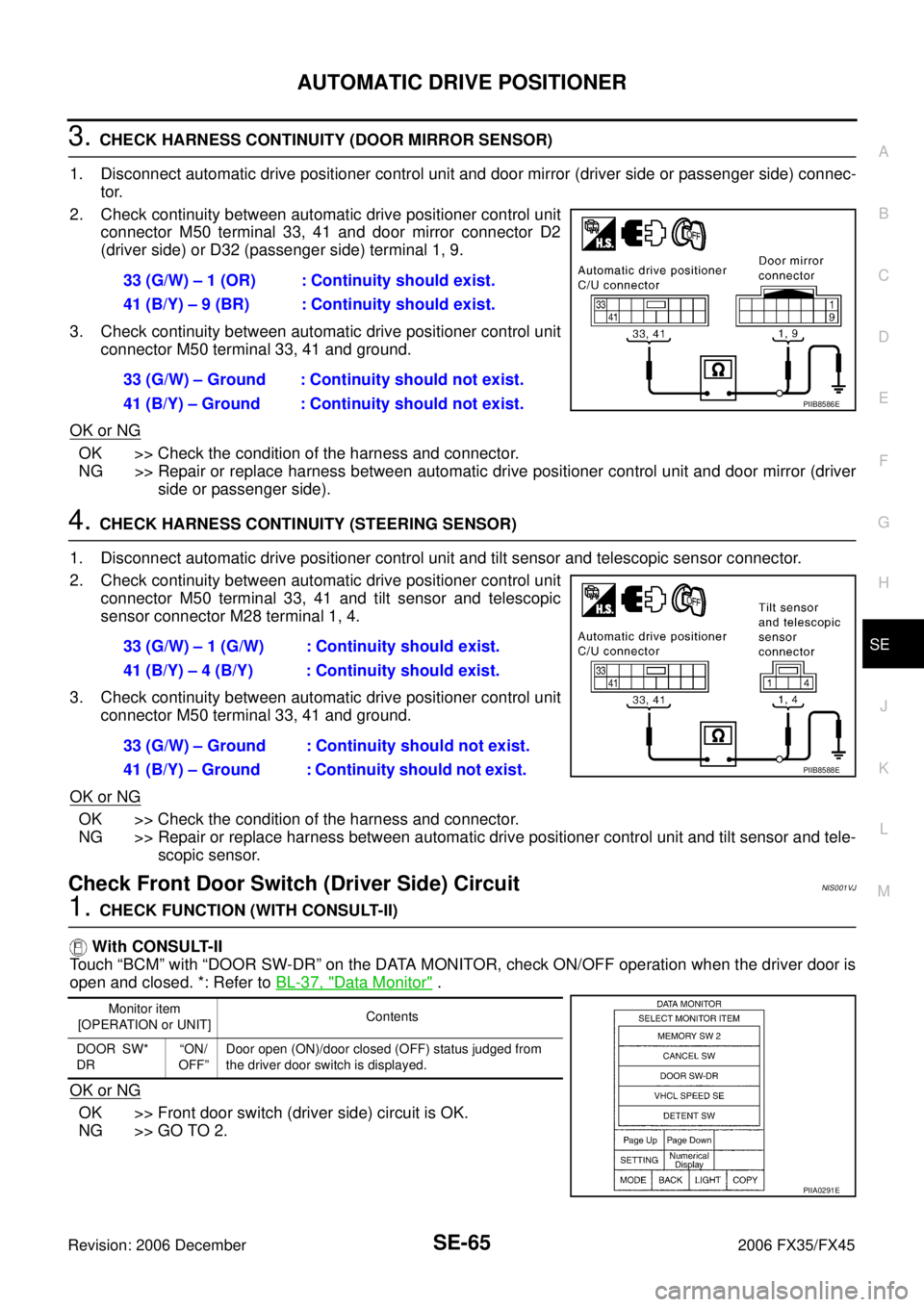

3. CHECK HARNESS CONTINUITY (DOOR MIRROR SENSOR)
1. Disconnect automatic drive positioner control unit and door mirror (driver side or passenger side) connec- tor.
2. Check continuity between automatic drive positioner control unit connector M50 terminal 33, 41 and door mirror connector D2
(driver side) or D32 (passenger side) terminal 1, 9.
3. Check continuity between automatic drive positioner control unit connector M50 terminal 33, 41 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror (driver side or passenger side).
4. CHECK HARNESS CONTINUITY (STEERING SENSOR)
1. Disconnect automatic drive positioner control unit and tilt sensor and telescopic sensor connector.
2. Check continuity between automatic drive positioner control unit connector M50 terminal 33, 41 and tilt sensor and telescopic
sensor connector M28 terminal 1, 4.
3. Check continuity between automatic drive positioner control unit connector M50 terminal 33, 41 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between automatic drive positioner control unit and tilt sensor and tele- scopic sensor.
Check Front Door Switch (Driver Side) CircuitNIS001VJ
1. CHECK FUNCTION (WITH CONSULT-II)
With CONSULT-II
Touch “BCM” with “DOOR SW-DR” on the DATA MONITOR, check ON/OFF operation when the driver door is
open and closed. *: Refer to BL-37, "
Data Monitor" .
OK or NG
OK >> Front door switch (driver side) circuit is OK.
NG >> GO TO 2. 33 (G/W) – 1 (OR) : Continuity should exist.
41 (B/Y) – 9 (BR) : Continuity should exist.
33 (G/W) – Ground : Continuity should not exist.
41 (B/Y) – Ground : Continuity should not exist.
PIIB8586E
33 (G/W) – 1 (G/W) : Continuity should exist.
41 (B/Y) – 4 (B/Y) : Continuity should exist.
33 (G/W) – Ground : Continuity should not exist.
41 (B/Y) – Ground : Continuity should not exist.
PIIB8588E
Monitor item
[OPERATION or UNIT] Contents
DOOR SW*
DR “ON/
OFF” Door open (ON)/door closed (OFF) status judged from
the driver door switch is displayed.
PIIA0291E
Page 4204 of 4462
SE-66
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45
2. CHECK FRONT DOOR SWITCH (DRIVER SIDE)
1. Turn ignition switch OFF.
2. Disconnect front door switch connector.
3. Check continuity between front door switch connector and ground part of door switch.
OK or NG
OK >> GO TO 3.
NG >> Replace front door switch (driver side).
3. CHECK FRONT DOOR (DRIVER SIDE) HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector B14 terminal 62 and front door switch connector B26 terminal 1.
3. Check continuity between BCM connector B14 terminal 62 and ground.
OK or NG
OK >> Front door switch (driver side) circuit is OK.
NG >> Repair or replace harness between BCM and front door switch (driver side).
Terminals Door switch Continuity
1 Ground part of
door switch Pushed No
Released Yes
PIIA5091E
62 (W) – 1 (W) : Continuity should exist.
62 (W) – Ground : Continuity should not exist.
PIIA5090E
Page 4205 of 4462

AUTOMATIC DRIVE POSITIONER SE-67
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
Check Sliding Switch CircuitNIS001VK
1. CHECK FUNCTION
With CONSULT-II
With “SLIDE SW-FR, SLIDE SW-RR” on the DATA MONITOR, operate the sliding switch to check ON/OFF
operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Sliding switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Sliding switch circuit is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch connector.
2. Check continuity between driver seat control unit connector B152 terminals 24, 37 and power seat switch connector B175
terminals 24, 37.
3. Check continuity between driver seat control unit connector B152 terminals 24, 37 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and power seat switch.
Monitor item
[OPERATION or UNIT] Contents
SLIDE SW – FR “ON/
OFF” ON/OFF status judged from the sliding switch
(FR) signal is displayed.
SLIDE SW – RR “ON/
OFF” ON/OFF status judged from the sliding switch
(RR) signal is displayed.
PIIA0313E
Connector Te r m i n a l s
(Wire color) Sliding switch condition Voltage (V)
(Approx.)
(+) (-)
B152 24 (L/R)
Ground FORWARD 0
Other than above Battery voltage
37 (W) BACKWARD 0
Other than above Battery voltage
PIIA6711E
24 (L/R) – 24 (L/R) : Continuity should exist.
37 (W) – 37 (W) : Continuity should exist.
24 (L/R) – Ground : Continuity should not exist.
37 (W) – Ground : Continuity should not exist.
PIIB8589E
Page 4206 of 4462

SE-68
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45
3. CHECK SLIDING SWITCH
Sliding switch operate, check continuity between power seat switch connector B175 terminal 24, 27 and 61B.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch.
Check Reclining SwitchNIS001VL
1. CHECK FUNCTION
With CONSULT-II
With “RECLINING SW-FR, RECLINING SW-RR” on the DATA MONITOR, operate the reclining switch to
check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Reclining switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Reclining switch circuit is OK.
NG >> GO TO 2.
Connector Terminal Sliding switch condition Continuity
B175 24
61B FORWARD Yes
Other than above No
37 BACKWARD Yes
Other than above No
PIIB8590E
Monitor item
[OPERATION or UNIT] Contents
RECLN SW – FR “ON/
OFF” ON/OFF status judged from the reclining switch
(FR) signal is displayed.
RECLN SW – RR “ON/
OFF” ON/OFF status judged from the reclining switch
(RR) signal is displayed.
PIIA0313E
Connector Te r m i n a l s
(Wire color) Reclining switch
condition Voltage (V)
(Approx.)
(+) (–)
B152 25 (L/OR)
Ground FORWARD 0
Other than above Battery voltage
38 (LG/B) BACKWARD 0
Other than above Battery voltage
PIIA6095E
Page 4207 of 4462

AUTOMATIC DRIVE POSITIONER SE-69
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
2. CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch connector.
2. Check continuity between driver seat control unit connector B152 terminals 25, 38 and power seat switch connector B175
terminals 25, 38.
3. Check continuity between driver seat control unit connector B152 terminals 25, 38 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and power seat switch.
3. CHECK RECLINING SWITCH
Reclining switch operate, check continuity between power seat switch connector B175 terminal 25, 38 and
61B.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch. 25 (L/OR) – 25 (L/OR) : Continuity should exist.
38 (LG/B) – 38 (LG/B) : Continuity should exist.
25 (LO/R) – Ground : Continuity should not exist.
38 (LG/B) – Ground : Continuity should not exist.
PIIB8591E
Connector Terminal Reclining switch condition Continuity
B175 25
61B FORWARD Yes
Other than above No
38 BACKWARD Yes
Other than above No
PIIB8592E
Page 4208 of 4462

SE-70
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45
Check Front Lifting Switch CircuitNIS001VM
1. CHECK FUNCTION
With CONSULT-II
With “LIFT FR SW-UP, LIFT FR SW-DN” on the DATA MONITOR, operate the front lifting switch to check ON/
OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Front lifting switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Front lifting switch circuit is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch connector.
2. Check continuity between driver seat control unit connector B152 terminals 26, 39 and power seat switch connector B175
terminals 26, 39.
3. Check continuity between driver seat control unit connector B152 terminals 26, 39 and ground
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control unit and power seat switch.
Monitor item
[OPERATION or UNIT] Contents
LIFT FR SW – DN “ON/
OFF” ON/OFF status judged from the FR lifter switch
(DOWN) signal is displayed.
LIFT RR SW – UP “ON/
OFF” ON/OFF status judged from the RR lifter switch
(UP) signal is displayed.
PIIA0323E
Connector Terminals
(Wire color) Front lifting switch
condition Voltage (V)
(Approx.)
(+) (–)
B152 26 (L/P)
Ground UP 0
Other than above Battery voltage
39 (L/G) DOWN 0
Other than above Battery voltage
PIIA6097E
26 (L/P) – 26 (L/P) : Continuity should exist.
39 (L/G) – 39 (L/G) : Continuity should exist.
26 (L/P) – Ground : Continuity should not exist.
39 (L/G) – Ground : Continuity should not exist.
PIIB8593E
