Page 3889 of 4462
GROUND PG-37
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45

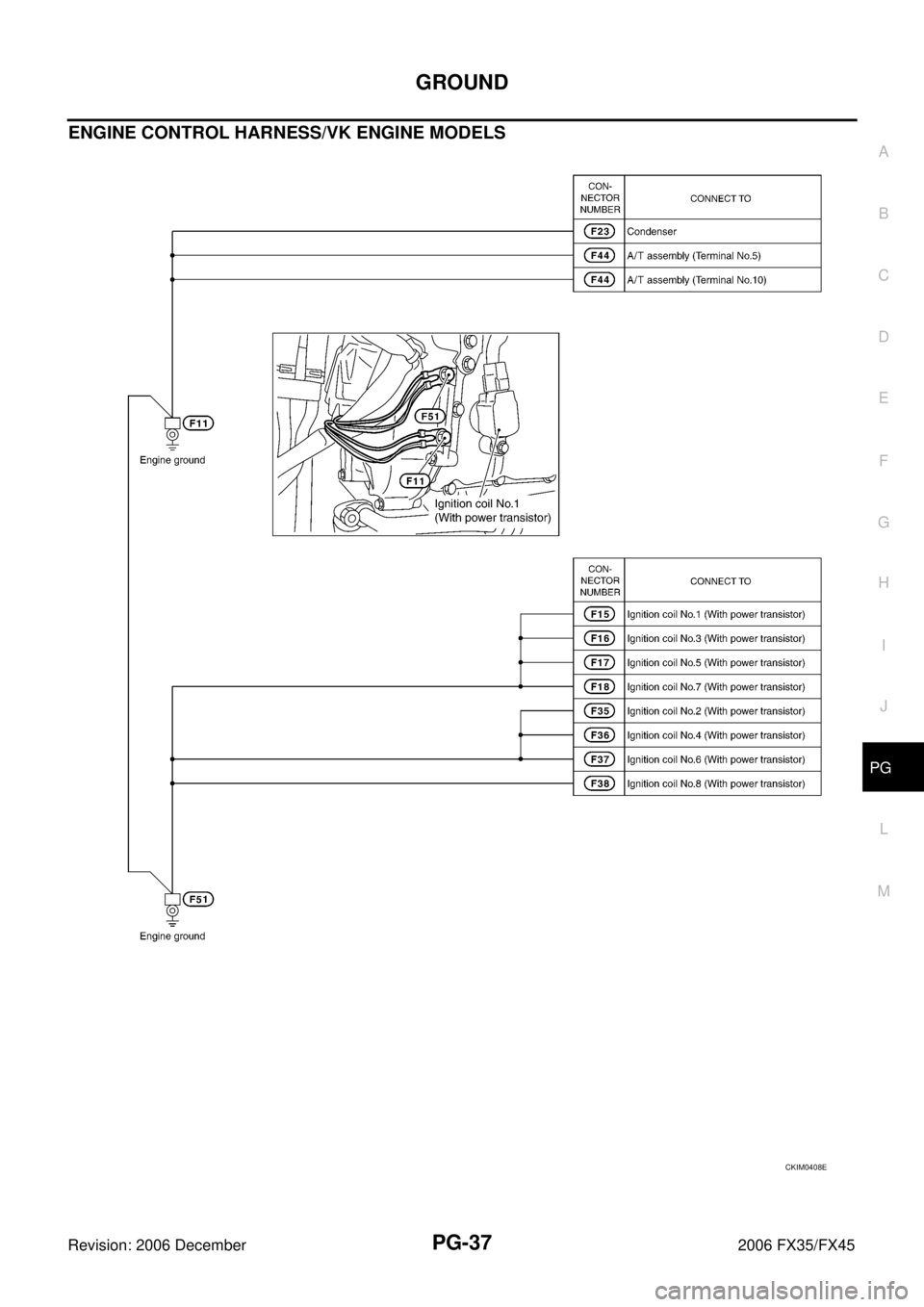

ENGINE CONTROL HARNESS/VK ENGINE MODELS
CKIM0408E
Page 3890 of 4462
PG-38
GROUND
Revision: 2006 December 2006 FX35/FX45

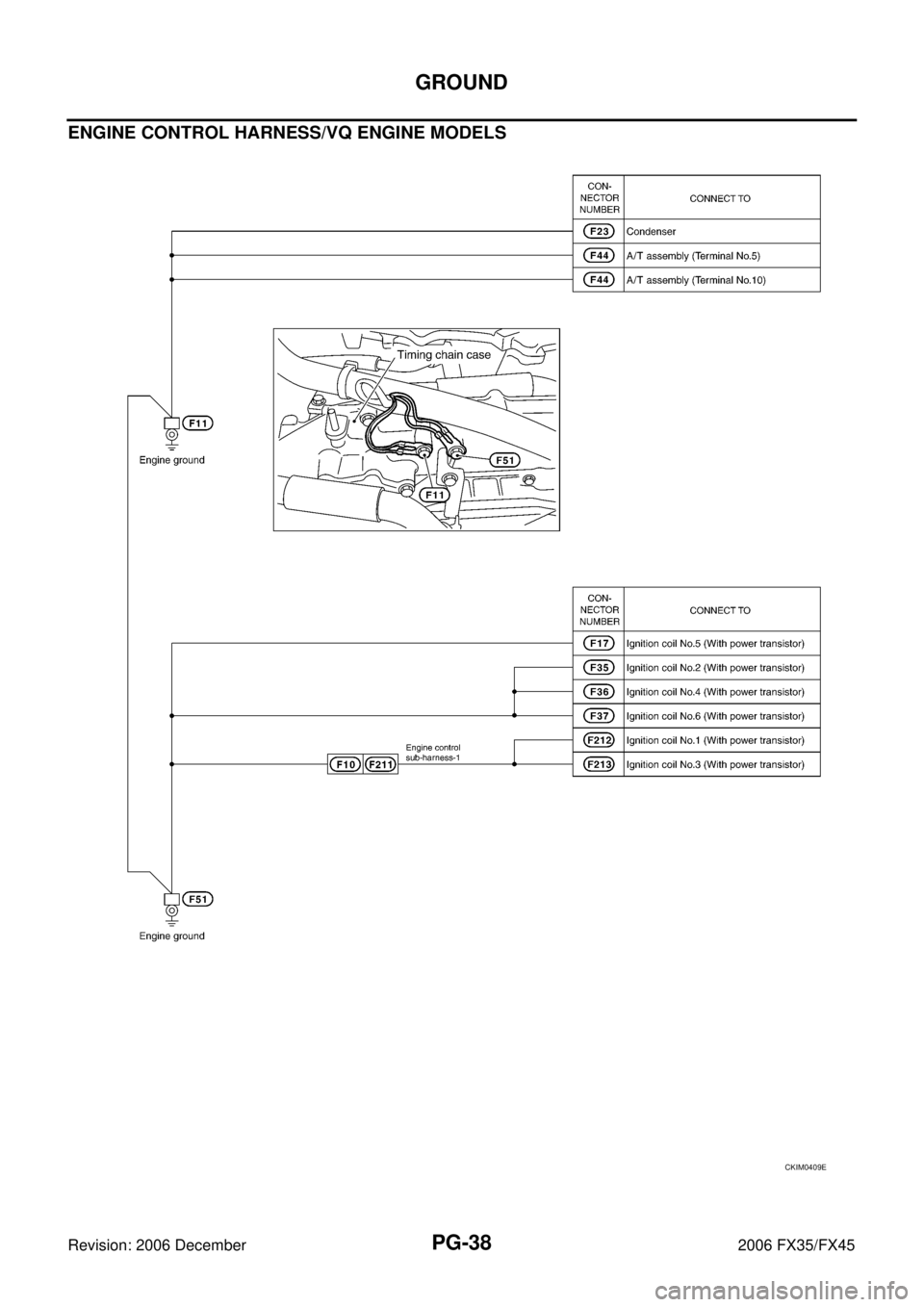

ENGINE CONTROL HARNESS/VQ ENGINE MODELS
CKIM0409E
Page 3891 of 4462
GROUND PG-39
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45
BODY HARNESS
CKIM0643E
Page 3892 of 4462
PG-40
GROUND
Revision: 2006 December 2006 FX35/FX45

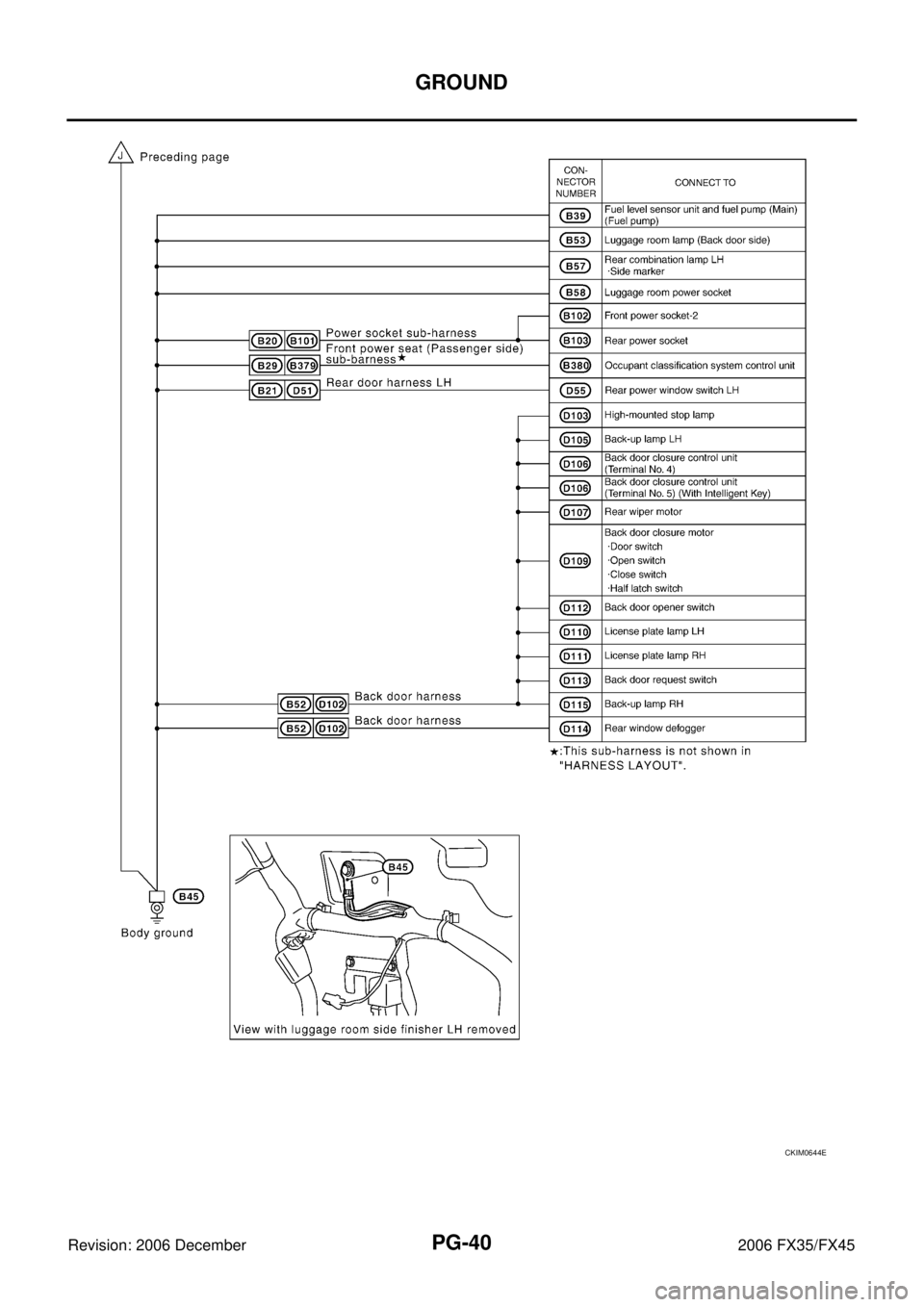

CKIM0644E
Page 3893 of 4462
GROUND PG-41
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45
CKIM0209E
Page 3894 of 4462
PG-42
GROUND
Revision: 2006 December 2006 FX35/FX45

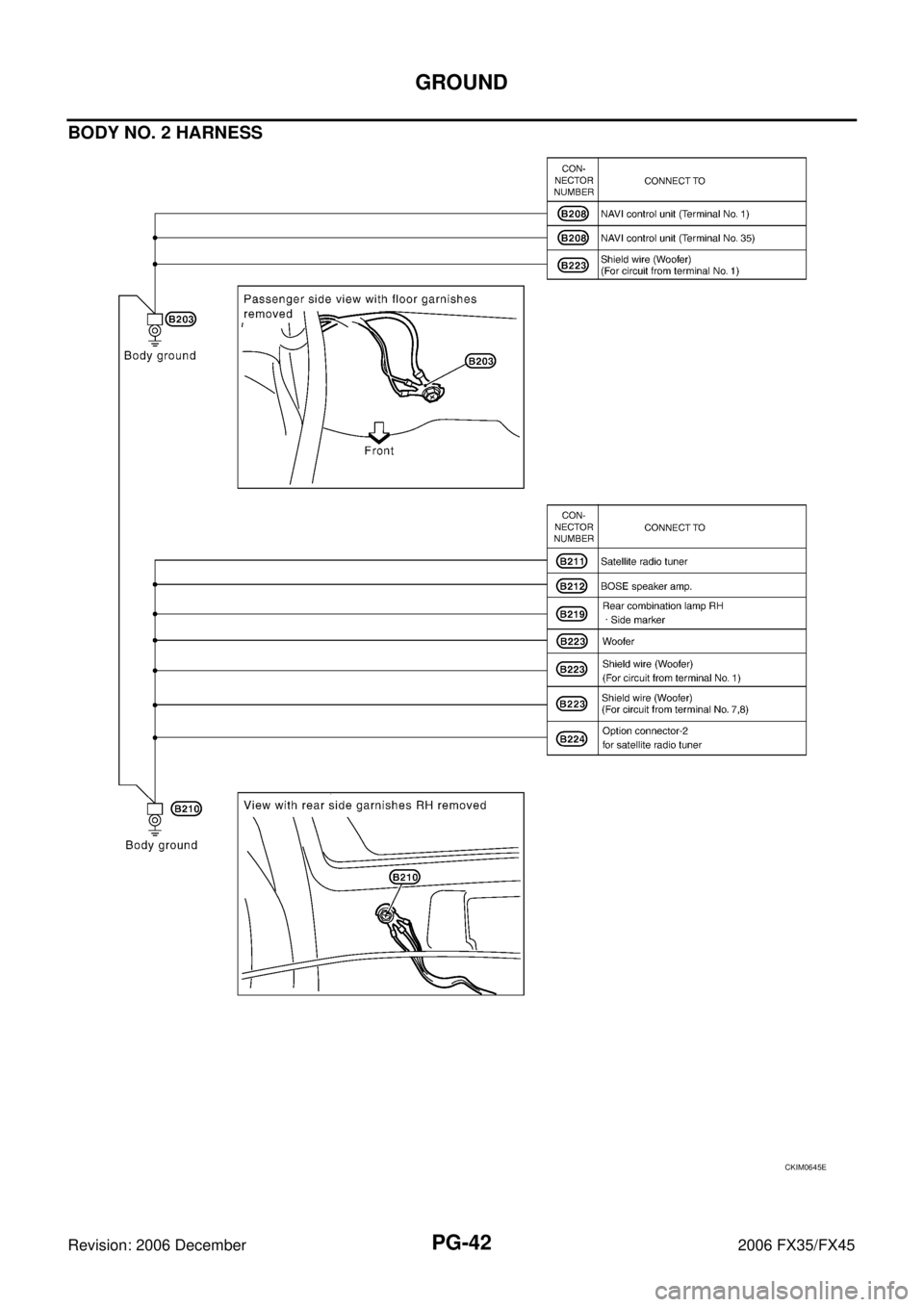

BODY NO. 2 HARNESS
CKIM0645E
Page 3895 of 4462
GROUND PG-43
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45

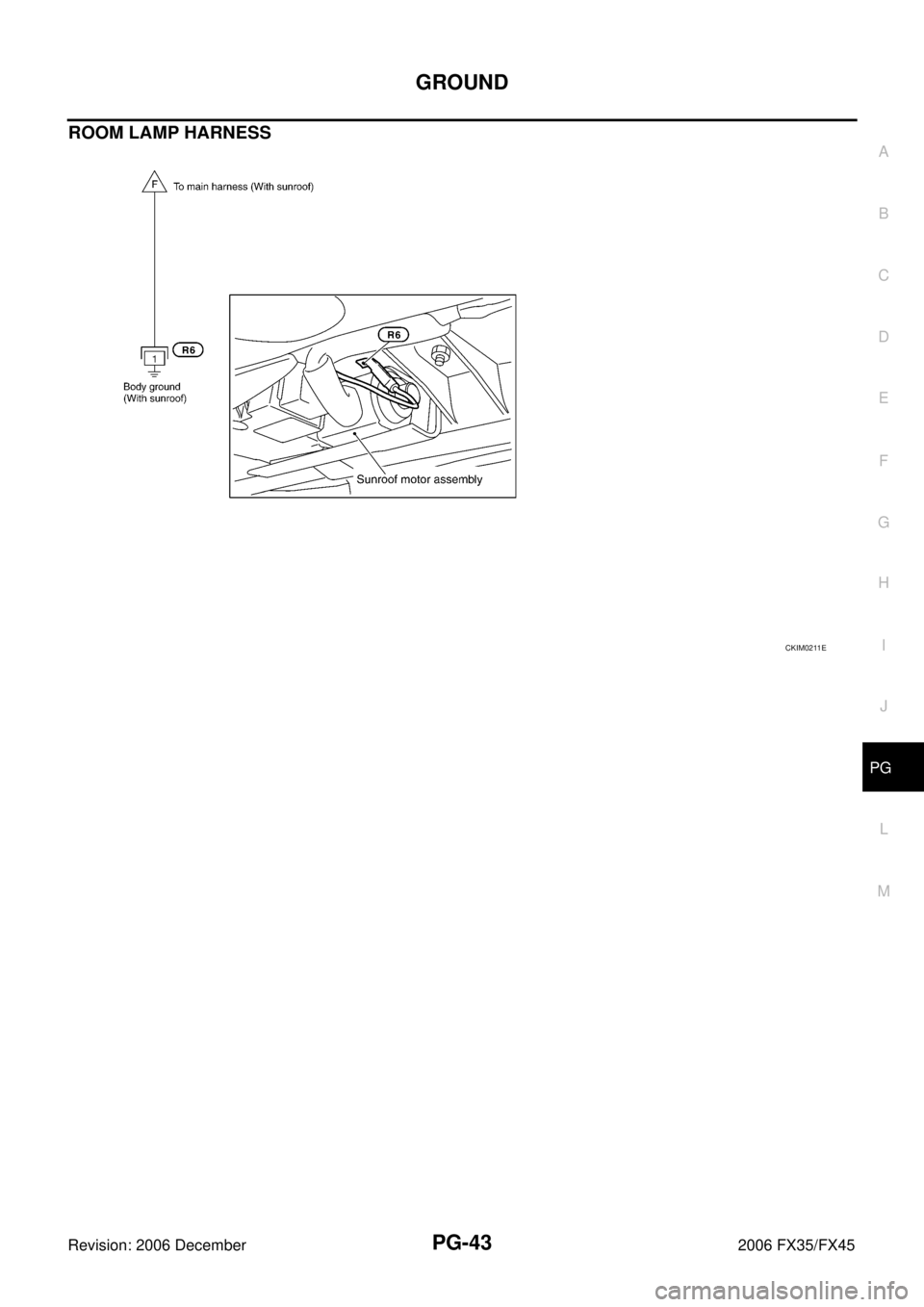

ROOM LAMP HARNESS
CKIM0211E
Page 3896 of 4462
PG-44
HARNESS
Revision: 2006 December 2006 FX35/FX45
HARNESS PFP:00011
Harness Layout NKS003GN
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the figures:
Main Harness
Engine Room Harness (Engine Compartment)
Engine Control Harness
Body Harness
To Use the Grid Reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the figure, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

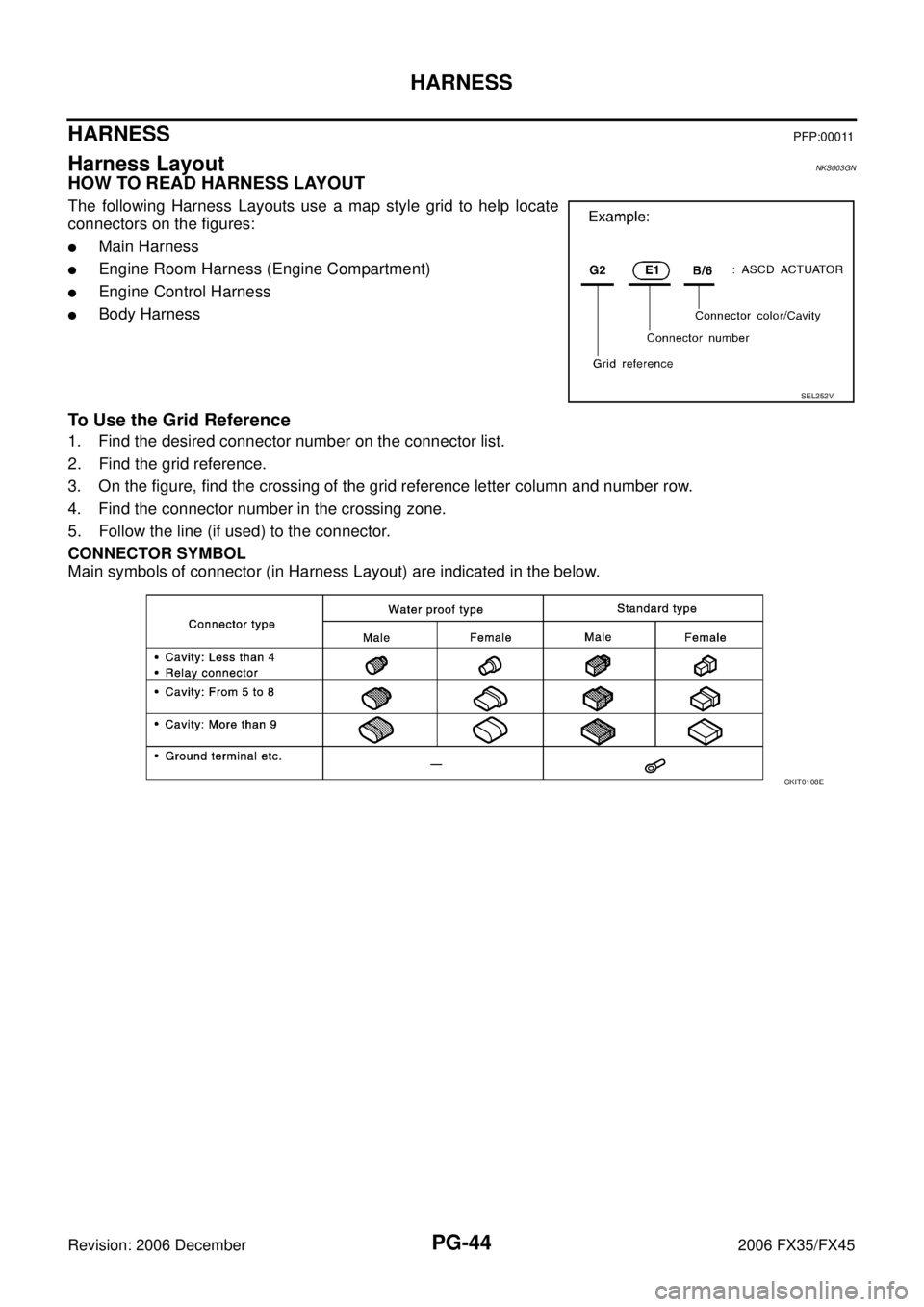

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
CKIT0108E
