Page 4361 of 4462

INFINITI FX35 2006 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS) TF-59
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 December 2006 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsNDS000AP
A

Page 4362 of 4462

INFINITI FX35 2006 Service Manual TF-60
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 December 2006 FX35/FX45

Page 4363 of 4462

INFINITI FX35 2006 Service Manual WT-1
ROAD WHEELS & TIRES
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION WT
A
B
WT
Revision: 2006 December 2006 FX35/FX45
ROAD WHEELS & TIRES
PRECAUTIONS ................................

WT-1
ROAD WHEELS & TIRES
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION WT
A
B
WT
Revision: 2006 December 2006 FX35/FX45
ROAD WHEELS & TIRES
PRECAUTIONS ..................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions ......................................................... ..... 3
Service Notice or Precautions ............................. ..... 4
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 5
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 6
NVH Troubleshooting Chart ................................ ..... 6
ROAD WHEEL ....................................................... ..... 7
Inspection ............................................................ ..... 7
ALUMINUM WHEEL ........................................ ..... 7
STEEL WHEEL ................................................ ..... 7
ROAD WHEEL TIRE ASSEMBLY ......................... ..... 8
Balancing Wheels (Bonding Weight Type) .......... ..... 8
REMOVAL ........................................................ ..... 8
WHEEL BALANCE ADJUSTMENT ................. ..... 8
Tire Rotation ........................................................ ..... 9
LOW TIRE PRESSURE WARNING SYSTEM ....... ... 10
System Components ........................................... ... 10
System Description ............................................. ... 10
TRANSMITTER ................................................ ... 10
REMOTE KEYLESS ENTRY RECEIVER ........ ... 10
BCM (BODY CONTROL MODULE) ................. .... 11
LOW TIRE PRESSURE WARNING LAMP ...... .... 11
DISPLAY UNIT ................................................. .... 11
CAN COMMUNICATION ....................................... ... 12
System Description ............................................. ... 12
TROUBLE DIAGNOSES ....................................... ... 13
Schematic ........................................................... ... 13
Wiring Diagram — T/WARN — ........................... ... 14
Control Unit Input/Output Signal Standard .......... ... 17
ID Registration Procedure ................................... ... 18
ID REGISTRATION WITH ACTIVATION TOOL ... 18
ID REGISTRATION WITHOUT ACTIVATION
TOOL ............................................................... ... 19
Transmitter Wake Up Operation .......................... ... 20 WITH ACTIVATION TOOL ...............................
... 20
Self-Diagnosis ..................................................... ... 21
DESCRIPTION ................................................. ... 21
FUNCTION ....................................................... ... 21
LOW TIRE PRESSURE WARNING LAMP DIAG-
NOSTIC CHART ............................................... ... 21
CONSULT-II Function .......................................... ... 22
FUNCTION ....................................................... ... 22
CONSULT-II SETTING PROCEDURE ............. ... 22
WORK SUPPORT MODE ................................ ... 23
SELF-DIAGNOSTIC RESULTS MODE ............ ... 23
DATA MONITOR MODE ................................... ... 24
ACTIVE TEST MODE ...................................... ... 24
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ................................................... ... 27
INTRODUCTION .............................................. ... 27
WORK FLOW ................................................... ... 27
Preliminary Check ............................................... ... 28
Malfunction Code/Symptom Chart ....................... ... 29
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ..................................................................... ... 30
Inspection 1: Transmitter or Control Unit (BCM) .. ... 30
MALFUNCTION CODE NO. 21, 22, 23 OR 24 ... 30
Inspection 2: Transmitter - 1 ................................ ... 30
MALFUNCTION CODE NO. 31, 32, 33, 34, 41,
42, 43, 44, 45, 46, 47 OR 48 ............................ ... 30
Inspection 3: Transmitter - 2 ................................ ... 31
MALFUNCTION CODE NO. 35, 36, 37 OR 38 ... 31
Inspection 4: Vehicle Speed Signal ..................... ... 32
MALFUNCTION CODE NO. 52 ........................ ... 32
TROUBLE DIAGNOSIS FOR SYMPTOMS ........... ... 33
Inspection 1: Warning Lamp Does Not Come On
When Ignition Switch Is Turned On ..................... ... 33
Inspection 2: Warning Lamp Stays On When Ignition
Switch Is Turned On ............................................ ... 33
Inspection 3: Warning Lamp Blinks When Ignition
Switch Is Turned On ............................................ ... 35
Inspection 4: Turn Signal Lamp Blinks When Ignition
Switch Is Turned On ............................................ ... 36
Inspection 5: ID Registration Can Not Be Completed ... 36

Page 4364 of 4462

INFINITI FX35 2006 Service Manual WT-2Revision: 2006 December 2006 FX35/FX45
REMOVAL AND INSTALLATION ..........................
... 37
Transmitter ........................................................... ... 37
REMOVAL .....

Page 4365 of 4462

INFINITI FX35 2006 Service Manual PRECAUTIONS WT-3
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT

PRECAUTIONS WT-3
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NES000LR
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
PrecautionsNES000LS

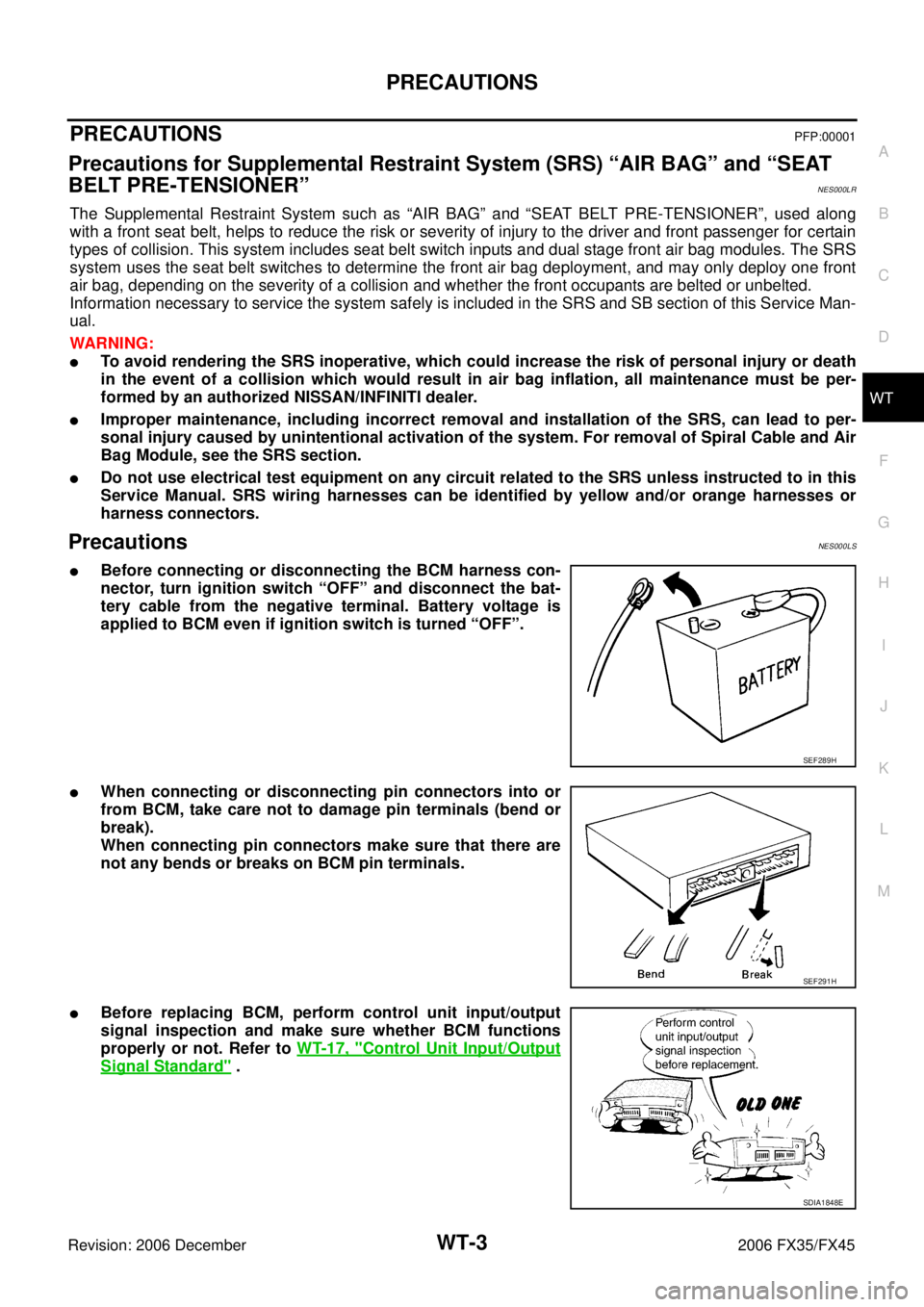

Before connecting or disconnecting the BCM harness con-
nector, turn ignition switch “OFF” and disconnect the bat-
tery cable from the negative terminal. Battery voltage is
applied to BCM even if ignition switch is turned “OFF”.
When connecting or disconnecting pin connectors into or
from BCM, take care not to damage pin terminals (bend or
break).
When connecting pin connectors make sure that there are
not any bends or breaks on BCM pin terminals.
Before replacing BCM, perform control unit input/output
signal inspection and make sure whether BCM functions
properly or not. Refer to WT-17, "
Control Unit Input/Output
Signal Standard" .
SEF289H
SEF291H
SDIA1848E

Page 4366 of 4462

INFINITI FX35 2006 Service Manual WT-4
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
Service Notice or PrecautionsNES000LT
Low tire pressure warning lamp flashes 1min, then turns ON when occurring any malfunction except low
tir

Page 4367 of 4462

INFINITI FX35 2006 Service Manual PREPARATION WT-5
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNES000GJ
The actual shapes of Kent-Moore tools may differ from

Page 4368 of 4462

INFINITI FX35 2006 Service Manual WT-6
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2006 December 2006 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartNES000GL
Use the
