INFINITI FX35 2006 Service Manual MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D E
F
G H
I
J
K
M
SECTION MA
A
B
MA
Revision: 2006 December 2006 FX35/FX45
MAINTENANCE
PREPARATION ...............................................

MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D E
F
G H
I
J
K
M
SECTION MA
A
B
MA
Revision: 2006 December 2006 FX35/FX45
MAINTENANCE
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
GENERAL MAINTENANCE .................................. ..... 4
Explanation of General Maintenance .................. ..... 4
PERIODIC MAINTENANCE .................................. ..... 7
Introduction of Periodic Maintenance .................. ..... 7
Schedule 1 .......................................................... ..... 8
EMISSION CONTROL SYSTEM MAINTE-
NANCE ............................................................. ..... 8
CHASSIS AND BODY MAINTENANCE .......... ..... 9
Schedule 2 .......................................................... ... 10
EMISSION COMTROL SYSTEM MAINTE-
NANCE ............................................................. ... 10
CHASSIS AND BODY MAINTENANCE .......... .... 11
RECOMMENDED FLUIDS AND LUBRICANTS ... ... 12
Fluids and Lubricants .......................................... ... 12
SAE Viscosity Number ........................................ ... 13
GASOLINE ENGINE OIL ................................. ... 13
Anti-Freeze Coolant Mixture Ratio ...................... ... 13
ENGINE MAINTENANCE (VQ35DE ENGINE) ...... ... 14
Checking Drive Belts ........................................... ... 14
Drive Belts Tension Adjustment .......................... ... 14
ALTERNATOR AND POWER STEERING OIL
PUMP BELT ..................................................... ... 15
A/C COMPRESSOR BELT .............................. ... 15
Changing Engine Coolant ................................... ... 15
DRAINING ENGINE COOLANT ...................... ... 15
REFILLING ENGINE COOLANT ..................... ... 16
FLUSHING COOLING SYSTEM ...................... ... 17
Checking Fuel Lines ............................................ ... 17
Changing Air Cleaner Filter ................................. ... 18
VISCOUS PAPER TYPE .................................. ... 18
Changing Engine Oil ........................................... ... 18
Changing Oil Filter .............................................. ... 19
REMOVAL ........................................................ ... 19
INSTALLATION ................................................ ... 19
INSPECTION AFTER INSTALLATION ............ ... 20
Changing Spark Plugs (Platinum-Tipped Type) .. ... 20
REMOVAL ........................................................ ... 20 INSPECTION AFTER REMOVAL ....................
... 20
INSTALLATION ................................................ ... 21
Checking EVAP Vapor Lines ............................... ... 21
ENGINE MAINTENANCE (VK45DE ENGINE) ...... ... 22
Checking Drive Belts ........................................... ... 22
Tension Adjustment ............................................. ... 22
Changing Engine Coolant .................................... ... 22
DRAINING ENGINE COOLANT ....................... ... 23
REFILLING ENGINE COOLANT ...................... ... 23
FLUSHING COOLING SYSTEM ...................... ... 24
Checking Fuel Lines ............................................ ... 25
Changing Air Cleaner Filter ................................. ... 25
VISCOUS PAPER TYPE .................................. ... 25
Changing Engine Oil ............................................ ... 25
Changing Oil Filter ............................................... ... 26
REMOVAL ........................................................ ... 26
INSTALLATION ................................................ ... 26
INSPECTION AFTER INSTALLATION ............. ... 27
Changing Spark Plugs (Platinum-Tipped Type) ... ... 27
REMOVAL ........................................................ ... 27
INSPECTION AFTER REMOVAL .................... ... 27
INSTALLATION ................................................ ... 28
Checking EVAP Vapor Lines ............................... ... 28
CHASSIS AND BODY MAINTENANCE ................ ... 29
Checking Exhaust System ................................... ... 29
Checking A/T Fluid .............................................. ... 29
Changing A/T Fluid .............................................. ... 31
Checking Transfer Fluid ...................................... ... 31
Changing Transfer Fluid ...................................... ... 32
Checking Propeller Shaft ..................................... ... 32
Checking Differential Gear Oil ............................. ... 32
Changing Differential Gear Oil ............................. ... 33
Balancing Wheels (Bonding Weight Type) .......... ... 33
REMOVAL ........................................................ ... 33
WHEEL BALANCE ADJUSTMENT .................. ... 33
Tire Rotation ........................................................ ... 35
Checking Brake Fluid Level and Leaks ............... ... 35
Checking Brake Lines and Cables ...................... ... 35
Changing Brake Fluid .......................................... ... 35
Checking Disc Brake ........................................... ... 36

Page 3802 of 4462

INFINITI FX35 2006 Service Manual MA-2Revision: 2006 December 2006 FX35/FX45 ROTOR .............................................................
... 36
CALIPER .......................................................... ... 36
PAD

Page 3803 of 4462

INFINITI FX35 2006 Service Manual PREPARATION MA-3
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002

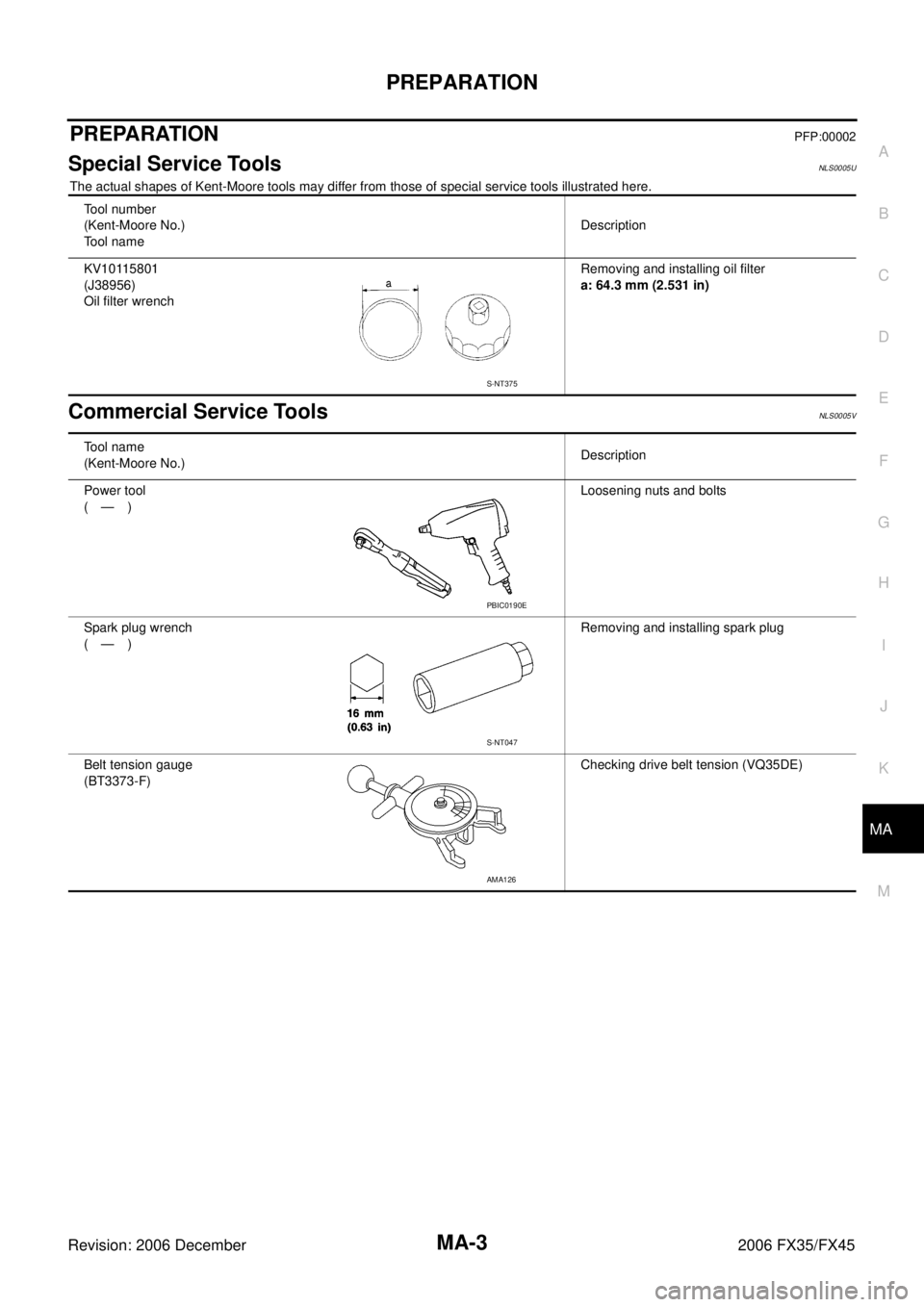

Special Service ToolsNLS0005U
