Page 2761 of 4462

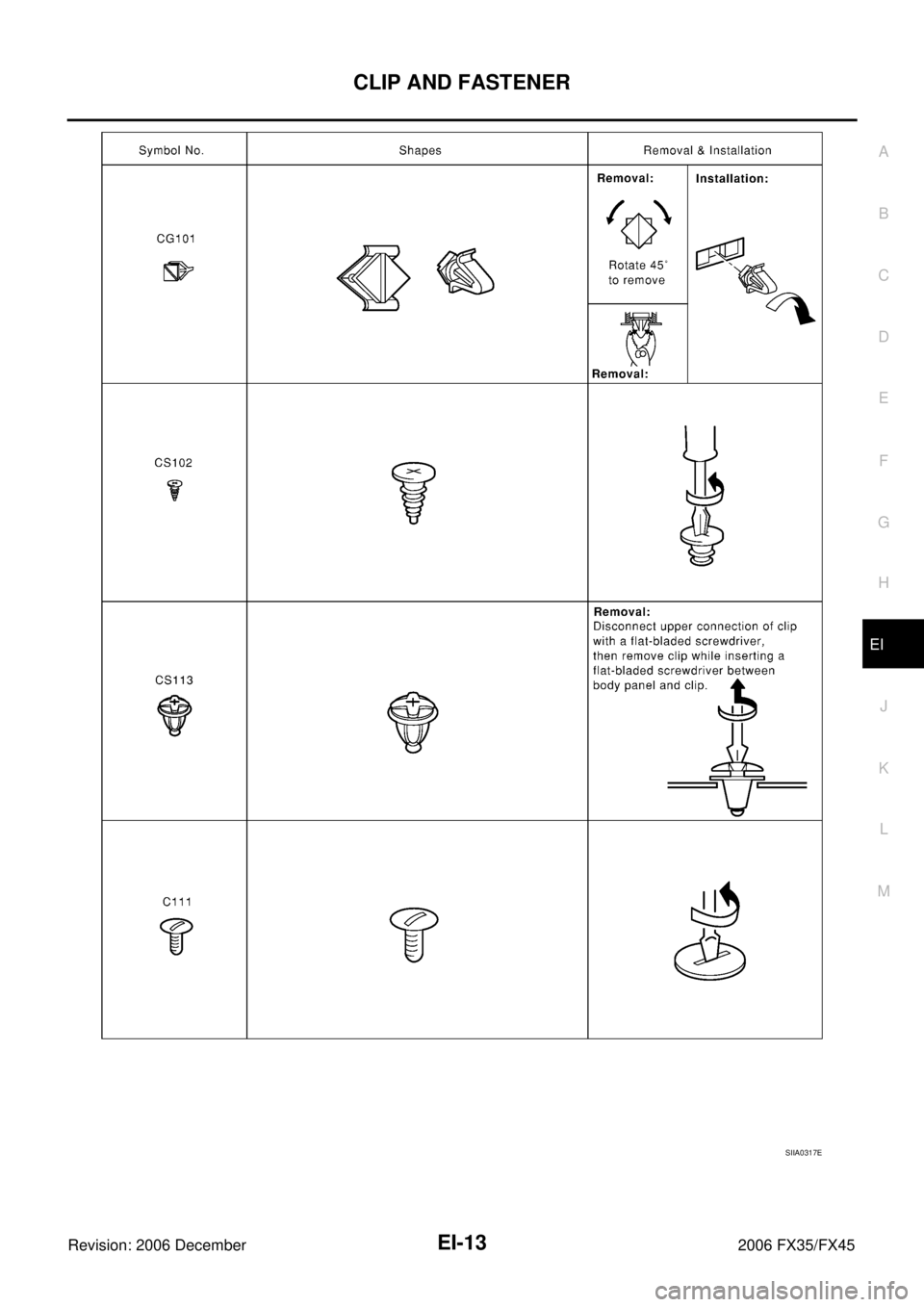

INFINITI FX35 2006 Service Manual CLIP AND FASTENER EI-13 C D E F G H J K L M A B EI Revision: 2006 December 2006 FX35/FX45 SIIA0317E

Page 2762 of 4462

INFINITI FX35 2006 Service Manual EI-14 FRONT BUMPER Revision: 2006 December 2006 FX35/FX45 FRONT BUMPERPFP:F2022 Removal and InstallationNIS001TO PIIA4330E

Page 2763 of 4462

INFINITI FX35 2006 Service Manual FRONT BUMPER EI-15 C D E F G H J K L M A B EI Revision: 2006 December 2006 FX35/FX45 CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent co

Page 2764 of 4462

INFINITI FX35 2006 Service Manual EI-16 FRONT BUMPER Revision: 2006 December 2006 FX35/FX45 12. Remove nuts of bumper stay, and remove bumper stay. Remove nuts with power tool. 13. Remove nuts of front bumper guard bar, and remove fr

Page 2765 of 4462

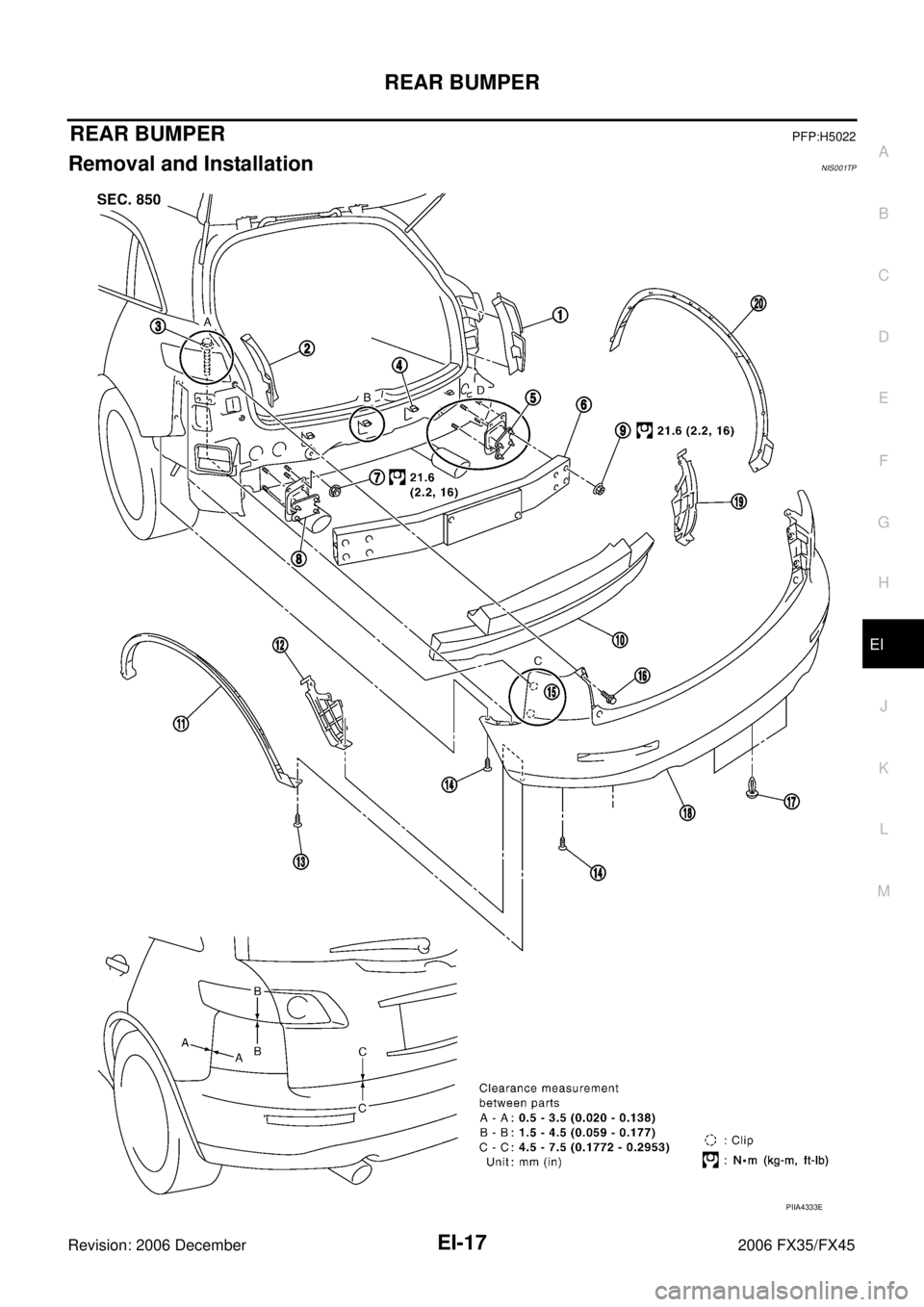

INFINITI FX35 2006 Service Manual REAR BUMPER EI-17 C D E F G H J K L M A B EI Revision: 2006 December 2006 FX35/FX45 REAR BUMPERPFP:H5022 Removal and InstallationNIS001TP PIIA4333E

Page 2766 of 4462

INFINITI FX35 2006 Service Manual EI-18 REAR BUMPER Revision: 2006 December 2006 FX35/FX45 CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil. REMOVAL 1. Remove bumper

Page 2767 of 4462

INFINITI FX35 2006 Service Manual REAR BUMPER EI-19 C D E F G H J K L M A B EI Revision: 2006 December 2006 FX35/FX45 8. Remove bumper fascia assembly. CAUTION: When removing bumper fascia, 2 workers are required so as t

Page 2768 of 4462

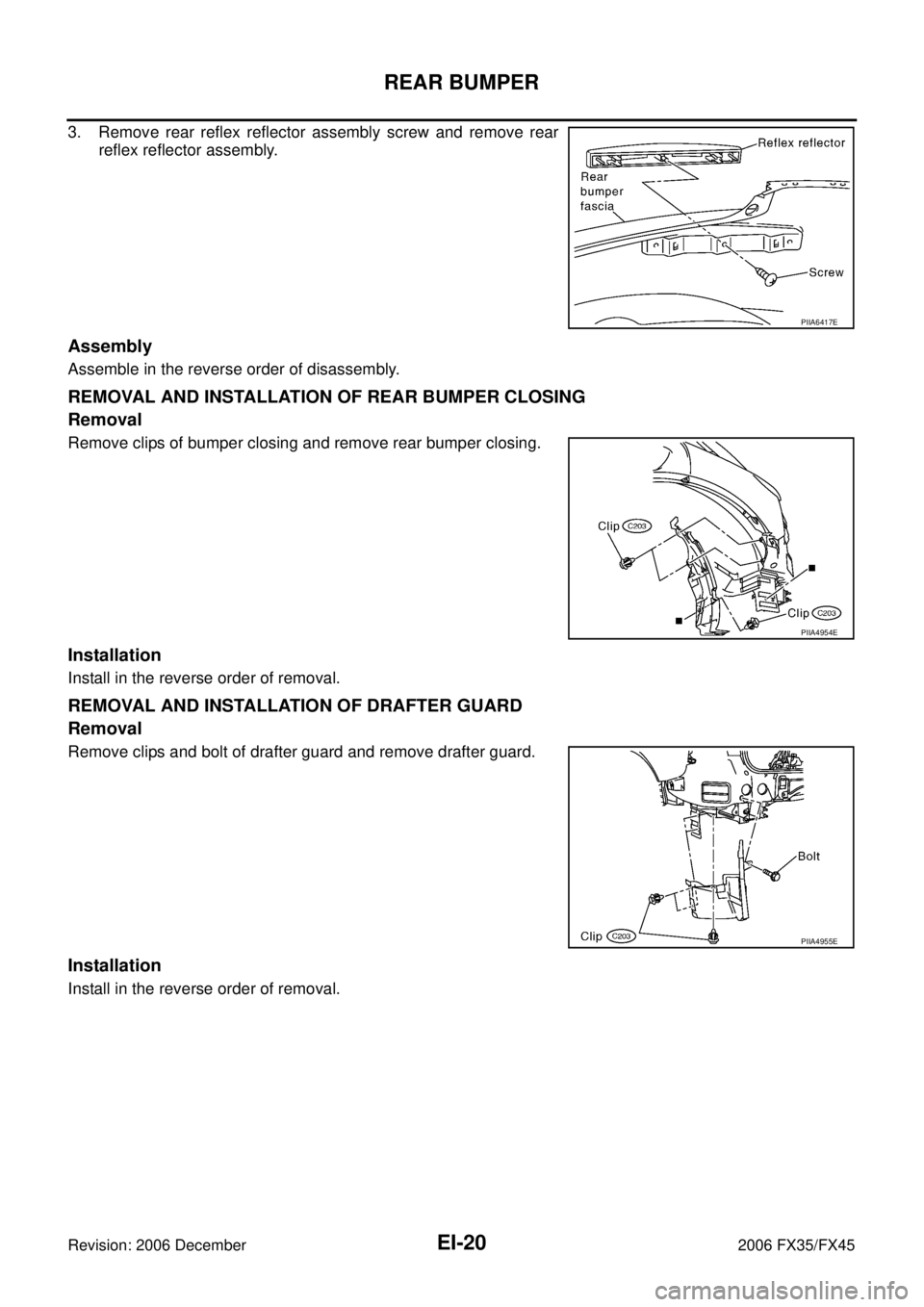

INFINITI FX35 2006 Service Manual EI-20 REAR BUMPER Revision: 2006 December 2006 FX35/FX45 3. Remove rear reflex reflector assembly screw and remove rear reflex reflector assembly. Assembly Assemble in the reverse order of disassembly
