REAR WIPER AND WASHER SYSTEM WW-47
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
4. During the operation check, touching “OFF” deactivates the operation.
Display Item List
Rear Wiper Does Not OperateNKS0033A
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “RR WIPER ON”, turn ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT- 1 2 0 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (wiper switch). Refer to LT-
120, "Combination Switch Inspection" .
2. ACTIVE TEST
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT SYSTEM” screen.
2. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “REAR WIPER” on “SELECT TEST ITEM” screen.
4. Confirm that rear wiper operates normally.
Without CONSULT-ll
GO TO 3.
Does rear wiper operate normally?
YES >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NO >> GO TO 3.
3. CHECK BCM

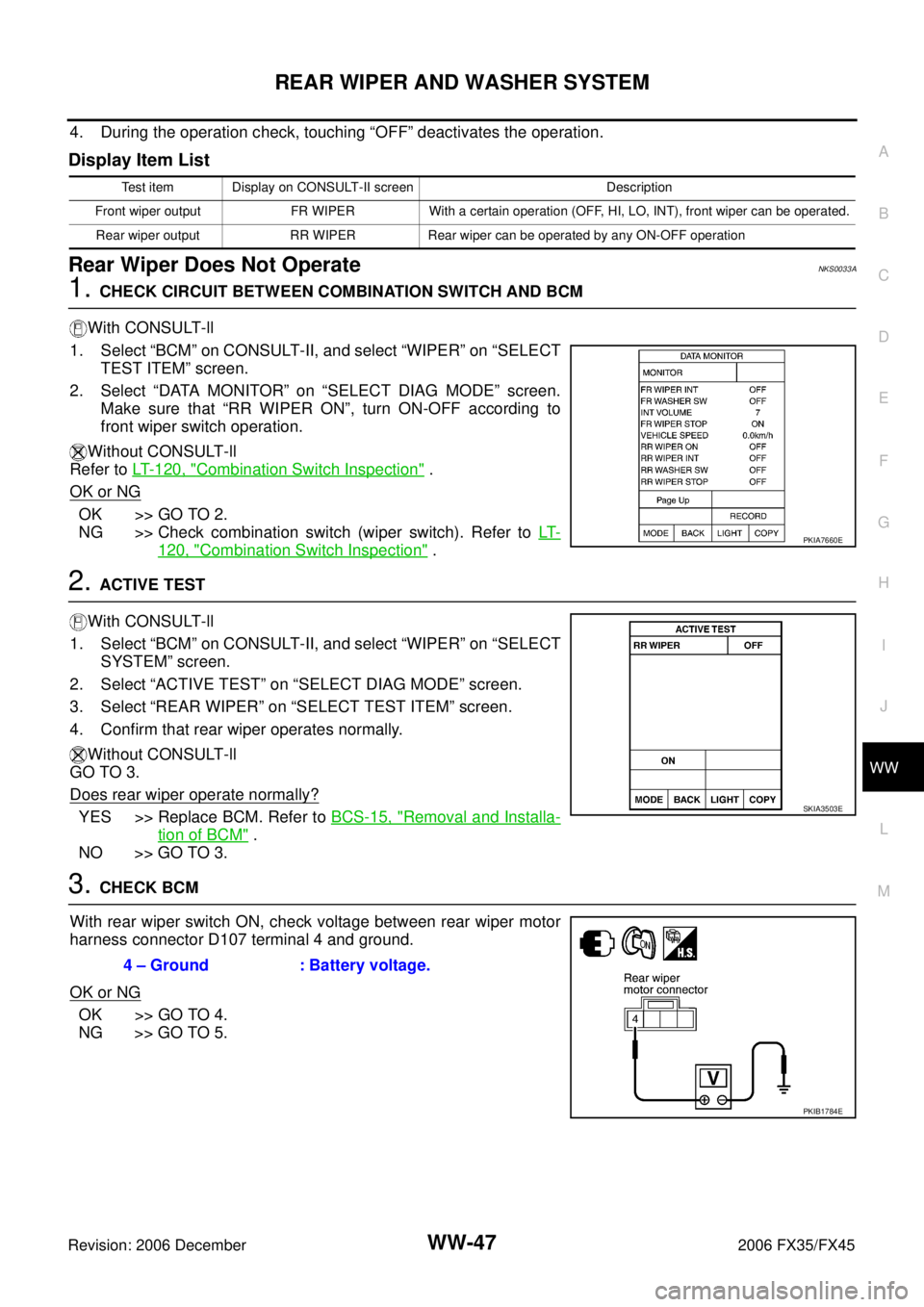

With rear wiper switch ON, check voltage between rear wiper motor
harness connector D107 terminal 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
Test item Display on CONSULT-II screen Description
Front wiper output FR WIPER With a certain operation (OFF, HI, LO, INT), front wiper can be operated. Rear wiper output RR WIPER Rear wiper can be operated by any ON-OFF operation
PKIA7660E
SKIA3503E
4 – Ground : Battery voltage.
PKIB1784E
Page 4450 of 4462

WW-48
REAR WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
4. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear wiper motor connector.

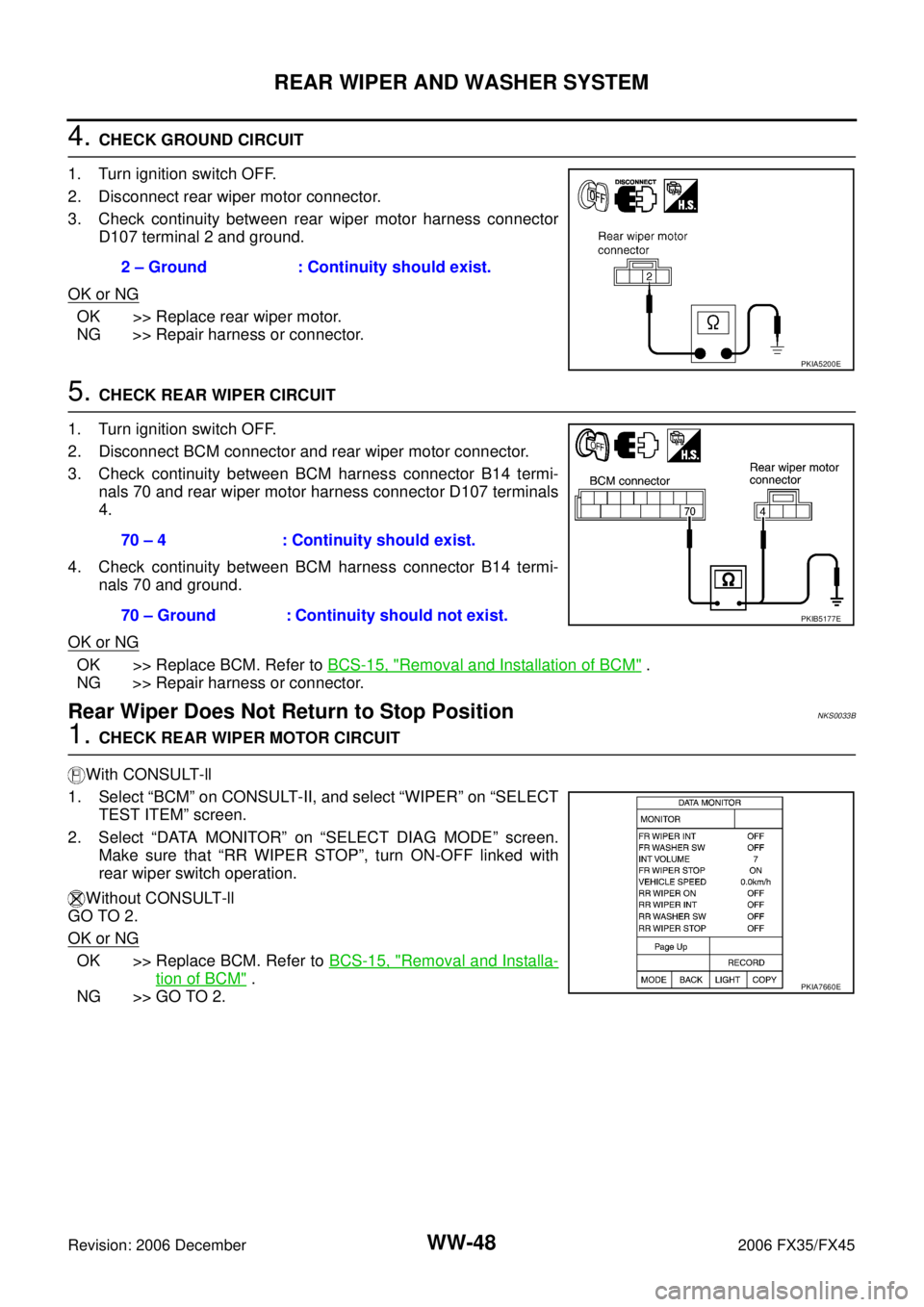

3. Check continuity between rear wiper motor harness connector D107 terminal 2 and ground.
OK or NG
OK >> Replace rear wiper motor.
NG >> Repair harness or connector.
5. CHECK REAR WIPER CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector B14 termi- nals 70 and rear wiper motor harness connector D107 terminals
4.
4. Check continuity between BCM harness connector B14 termi- nals 70 and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installation of BCM" .
NG >> Repair harness or connector.
Rear Wiper Does Not Return to Stop PositionNKS0033B
1. CHECK REAR WIPER MOTOR CIRCUIT
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “RR WIPER STOP”, turn ON-OFF linked with
rear wiper switch operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> GO TO 2. 2 – Ground : Continuity should exist.
PKIA5200E
70 – 4 : Continuity should exist.
70 – Ground : Continuity should not exist.
PKIB5177E
PKIA7660E
Page 4451 of 4462

REAR WIPER AND WASHER SYSTEM WW-49
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
2. CHECK REAR WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector B14 terminal 59 and rear wiper motor harness connector D107 terminal 3.
4. Check continuity between BCM harness connector B14 terminal 59 and ground.
5. Check continuity between rear wiper motor harness connector D107 terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK REAR WIPER MOTOR SIGNAL
1. Connect BCM connector and rear wiper motor connector.
2. Turn ignition switch ON.
3. Check voltage between rear wiper motor harness connector ter- minal and ground while rear wiper motor is stopped and while it
is operating.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installation of BCM" .
NG >> Replace rear wiper motor.
Only Rear Wiper ON Does Not OperateNKS0033C
Refer to LT- 1 2 0 , "Combination Switch Inspection" , and inspect it.
Only Rear Wiper INT Does Not OperateNKS0033D
Refer to LT- 1 2 0 , "Combination Switch Inspection" , and inspect it.
Wiper Does Not Wipe When Rear Washer OperatesNKS0033E
Refer to LT- 1 2 0 , "Combination Switch Inspection" , and inspect it.
59 – 3 : Continuity should exist.
59 – Ground : Continuity should not exist.
PKIB6491E
2 – Ground : Continuity should exist.
PKIA5200E
(+) (-) Condition Voltage
Rear wiper
motor Connector Terminal
D107 3 Ground Wiper stopped Battery voltage
Wiper operating Approx. 0 V
PKIA5203E
Page 4452 of 4462
WW-50
REAR WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
Rear Wipers Do Not StopNKS0033F
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “RR WIPER INT”, “RR WIPER ON”, and “RR
WASHER SW” turn ON-OFF according to wiper switch opera-
tion.
Without CONSULT-ll
Refer to LT- 1 2 0 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch). Refer to LT- 1 2 0 , "
Combination Switch Inspection" .
PKIA7660E
Page 4453 of 4462

REAR WIPER AND WASHER SYSTEM WW-51
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
Removal and Installation of Rear Wiper Arm, Adjustment of Wiper Arms Stop
Location
NKS0033G
REMOVAL
1. Operate wiper motor, and stop it at the auto stop position.
2. Remove cover wiper arm.
3. Remove wiper arm nut, and remove wiper arm from vehicle.
INSTALLATION
1. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it “OFF” (auto stop).
2. Lift the blade up and then set it down onto glass surface to set the blade center to clearance “L” immediately before tightening
nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor and then turn it “OFF”.
4. Ensure that wiper blades stop within clearance “L”.
Tighten wiper arm nuts to specified torque.
5. Installation is the reverse order of removal.
Removal and Installation of Rear Wiper Motor NKS0033H
Clearance “L” : 45 – 60 mm (1.77 - 2.36 in)
Rear wiper arm nut : 5.0 N·m (0.51 kg-m, 44 in-lb)
PKIB3565E

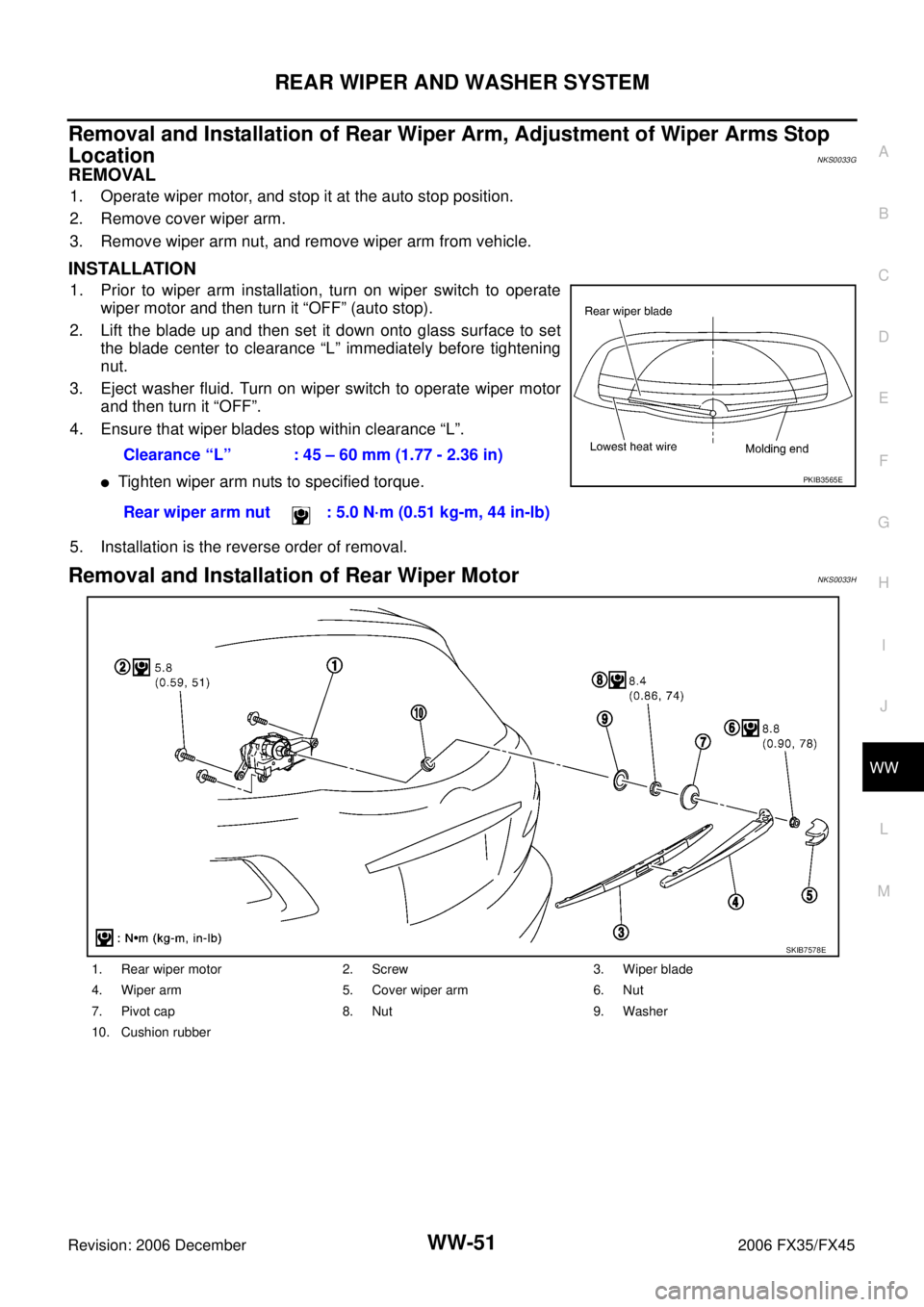

1. Rear wiper motor 2. Screw 3. Wiper blade
4. Wiper arm 5. Cover wiper arm 6. Nut
7. Pivot cap 8. Nut 9. Washer
10. Cushion rubber
SKIB7578E
Page 4454 of 4462

WW-52
REAR WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
REMOVAL

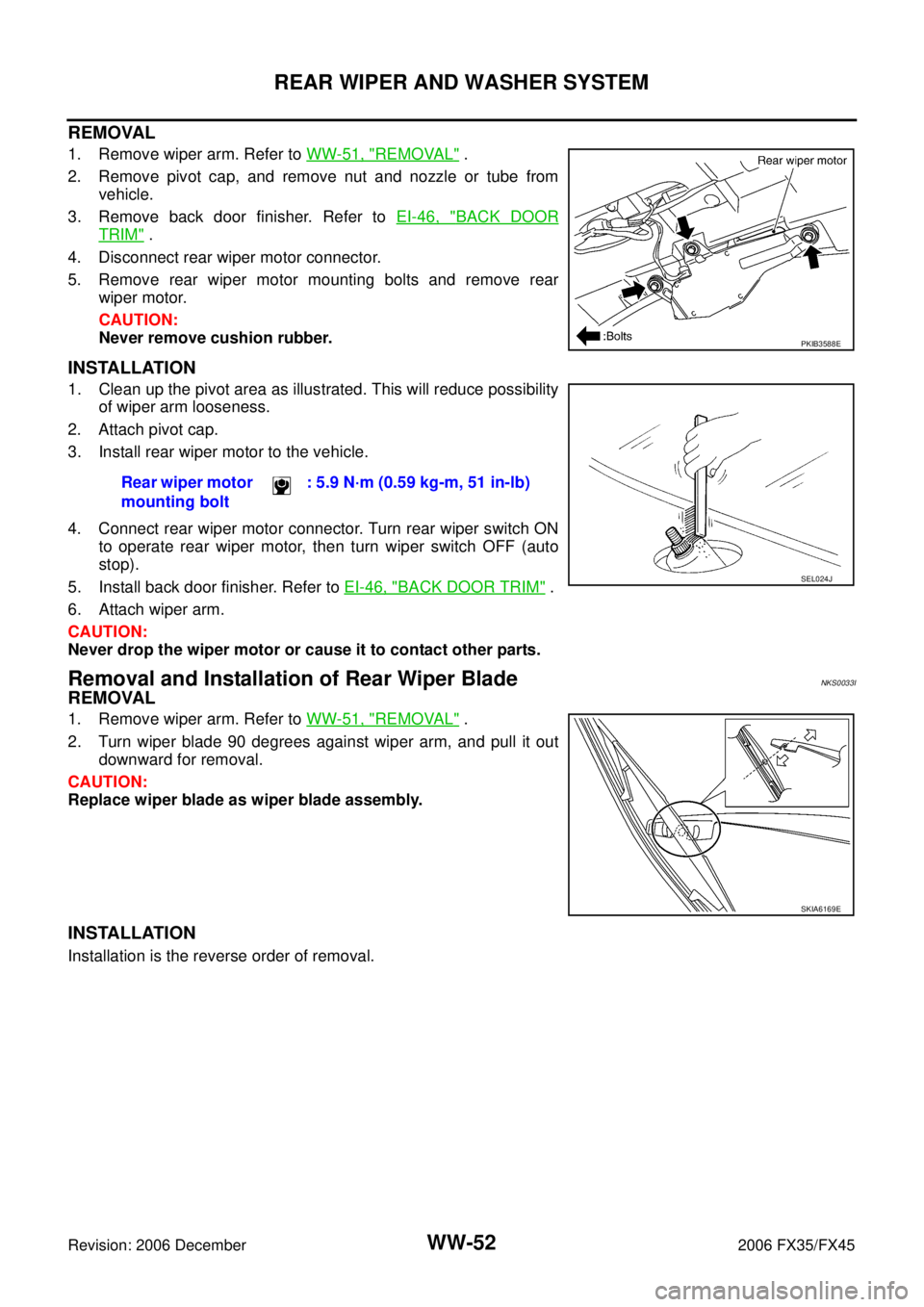

1. Remove wiper arm. Refer to WW-51, "REMOVAL" .
2. Remove pivot cap, and remove nut and nozzle or tube from vehicle.
3. Remove back door finisher. Refer to EI-46, "
BACK DOOR
TRIM" .
4. Disconnect rear wiper motor connector.
5. Remove rear wiper motor mounting bolts and remove rear wiper motor.
CAUTION:
Never remove cushion rubber.
INSTALLATION
1. Clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.
2. Attach pivot cap.
3. Install rear wiper motor to the vehicle.
4. Connect rear wiper motor connector. Turn rear wiper switch ON to operate rear wiper motor, then turn wiper switch OFF (auto
stop).
5. Install back door finisher. Refer to EI-46, "
BACK DOOR TRIM" .
6. Attach wiper arm.
CAUTION:
Never drop the wiper motor or cause it to contact other parts.
Removal and Installation of Rear Wiper BladeNKS0033I
REMOVAL
1. Remove wiper arm. Refer to WW-51, "REMOVAL" .
2. Turn wiper blade 90 degrees against wiper arm, and pull it out downward for removal.
CAUTION:
Replace wiper blade as wiper blade assembly.
INSTALLATION
Installation is the reverse order of removal.
PKIB3588E
Rear wiper motor
mounting bolt : 5.9 N·m (0.59 kg-m, 51 in-lb)
SEL024J
SKIA6169E
Page 4455 of 4462
REAR WIPER AND WASHER SYSTEM WW-53
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
Washer Nozzle AdjustmentNKS0033J

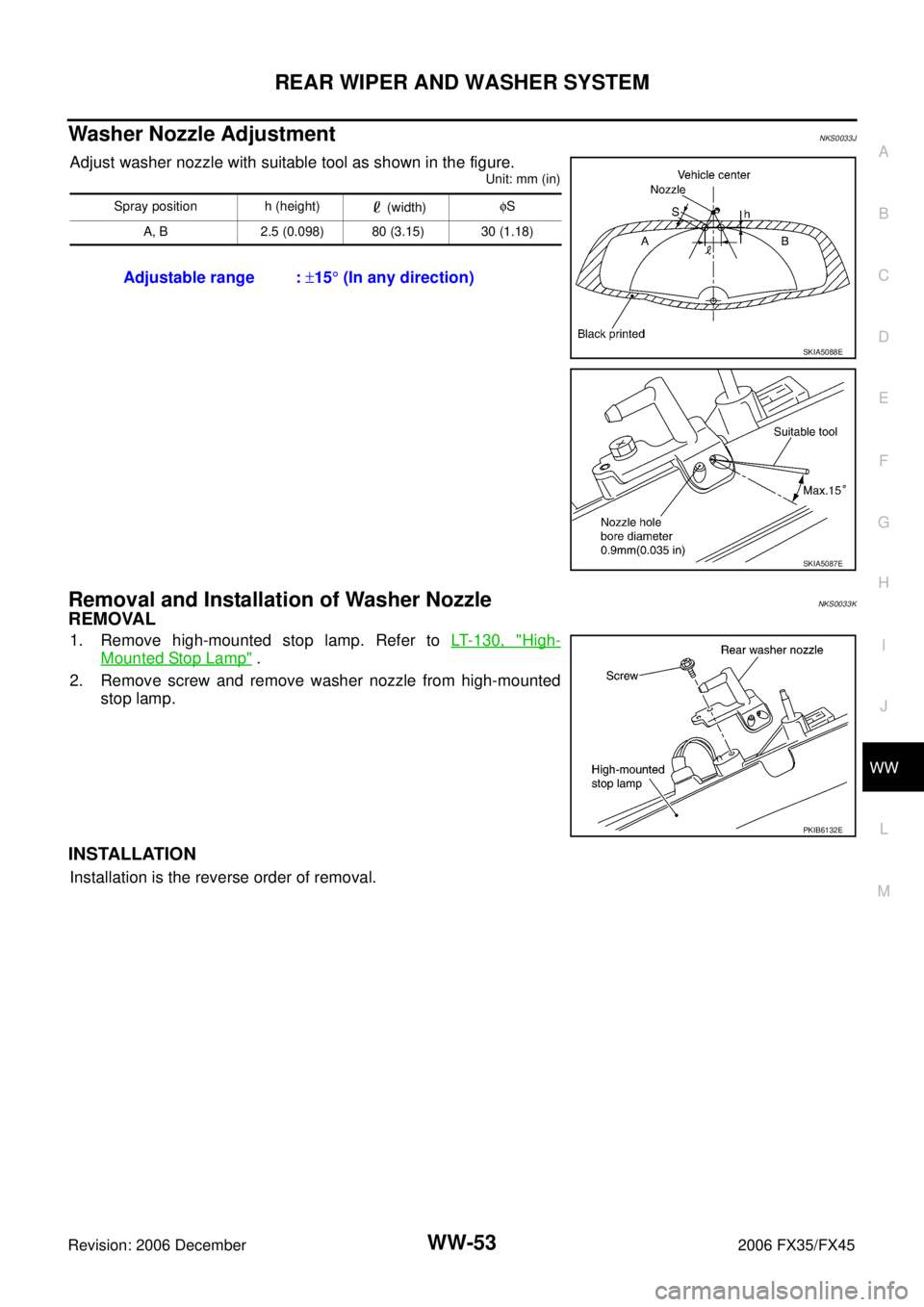

Adjust washer nozzle with suitable tool as shown in the figure.
Unit: mm (in)
Removal and Installation of Washer NozzleNKS0033K
REMOVAL
1. Remove high-mounted stop lamp. Refer to LT- 1 3 0 , "High-
Mounted Stop Lamp" .
2. Remove screw and remove washer nozzle from high-mounted stop lamp.
INSTALLATION
Installation is the reverse order of removal.
Spray position h (height) (width) φ
S
A, B 2.5 (0.098) 80 (3.15) 30 (1.18)
Adjustable range : ±15 ° (In any direction)
SKIA5088E
SKIA5087E
PKIB6132E
Page 4456 of 4462
WW-54
REAR WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
Washer Tube LayoutNKS0033L
Check ValveNKS0033M

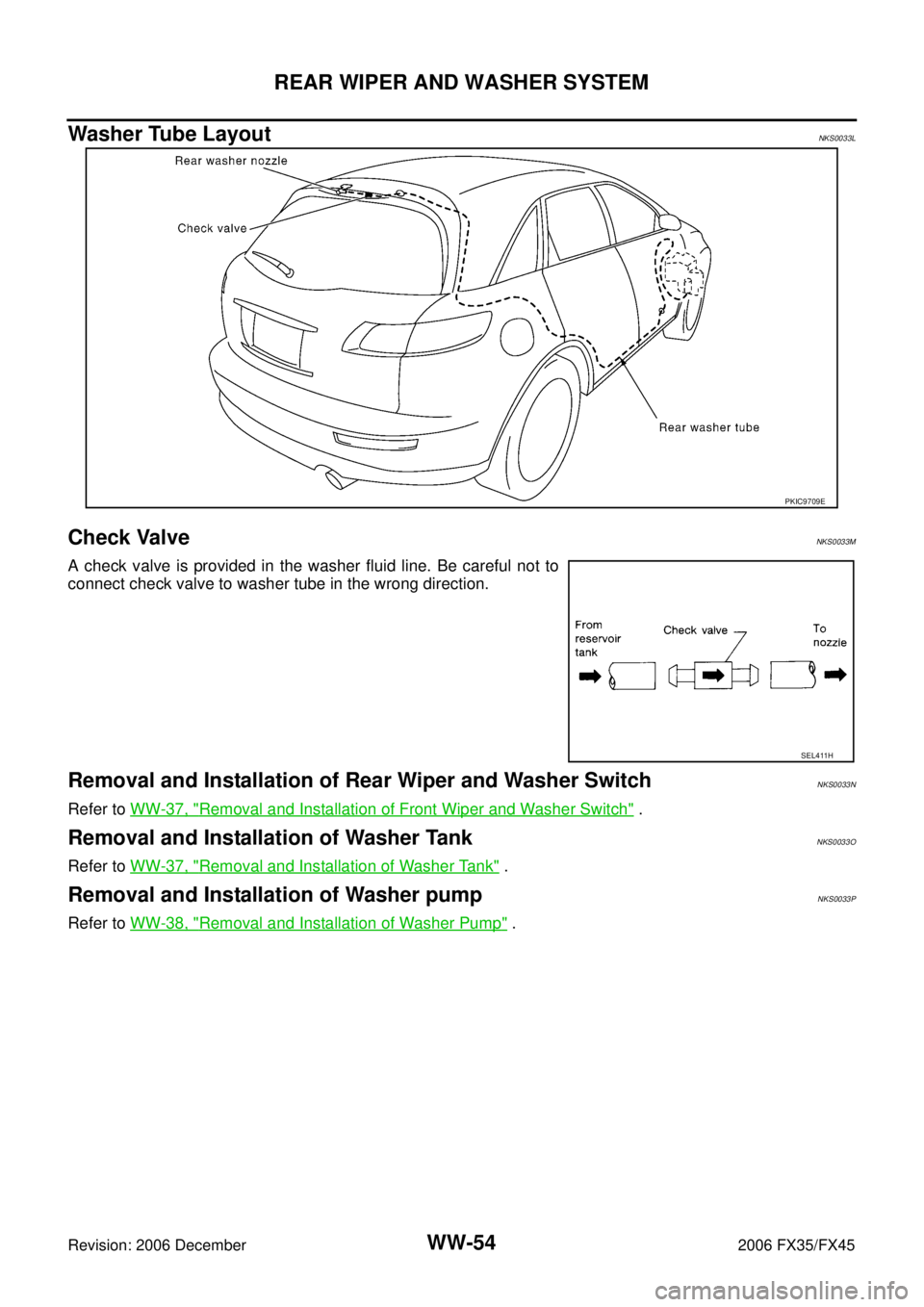

A check valve is provided in the washer fluid line. Be careful not to
connect check valve to washer tube in the wrong direction.
Removal and Installation of Rear Wiper and Washer SwitchNKS0033N
Refer to WW-37, "Removal and Installation of Front Wiper and Washer Switch" .
Removal and Installation of Washer TankNKS0033O
Refer to WW-37, "Removal and Installation of Washer Tank" .
Removal and Installation of Washer pumpNKS0033P
Refer to WW-38, "Removal and Installation of Washer Pump" .
PKIC9709E
