Page 1289 of 4462

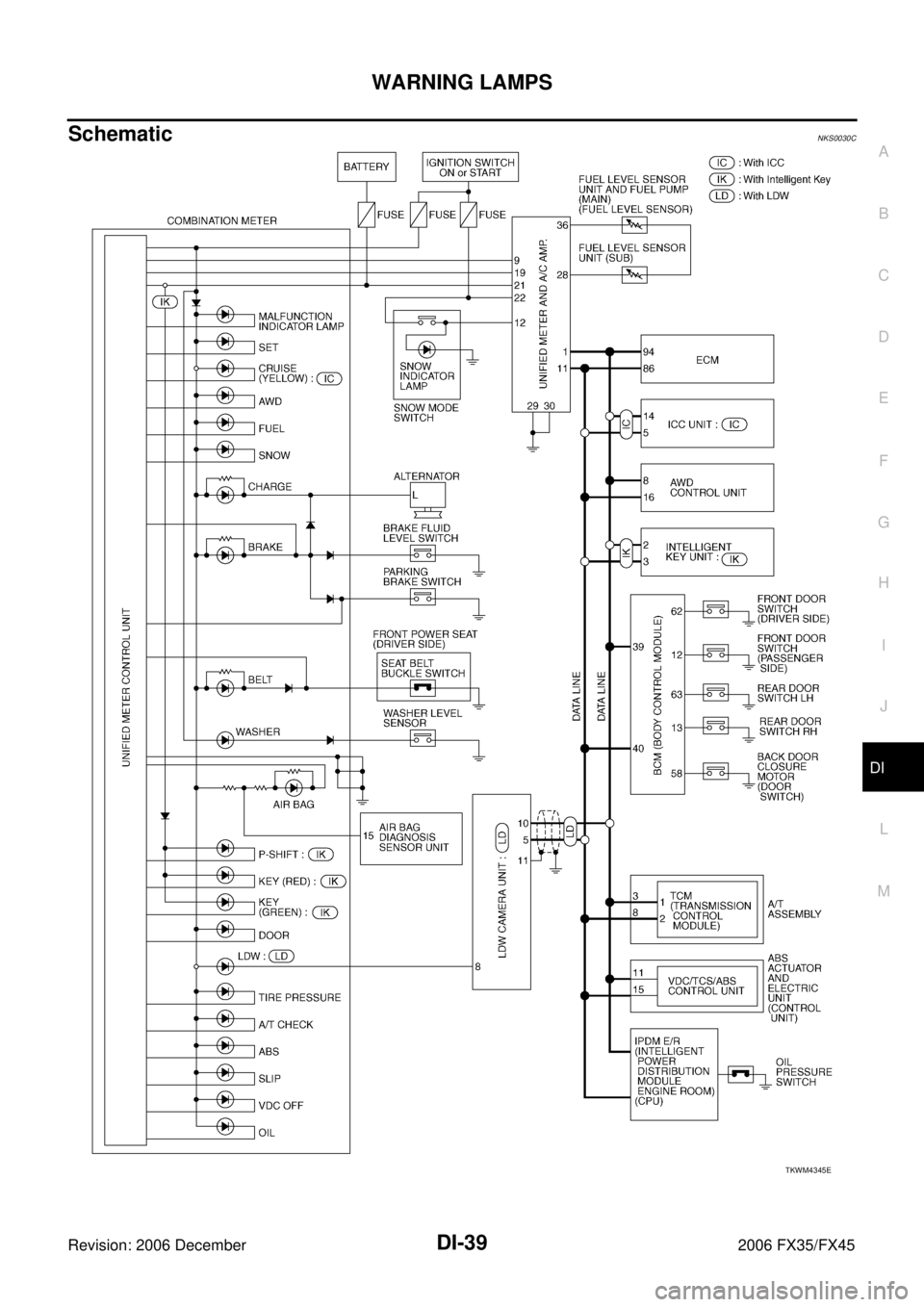

INFINITI FX35 2006 Service Manual WARNING LAMPS DI-39 C D E F G H I J L M A B DI Revision: 2006 December 2006 FX35/FX45 SchematicNKS0030C TKWM4345E

Page 1290 of 4462

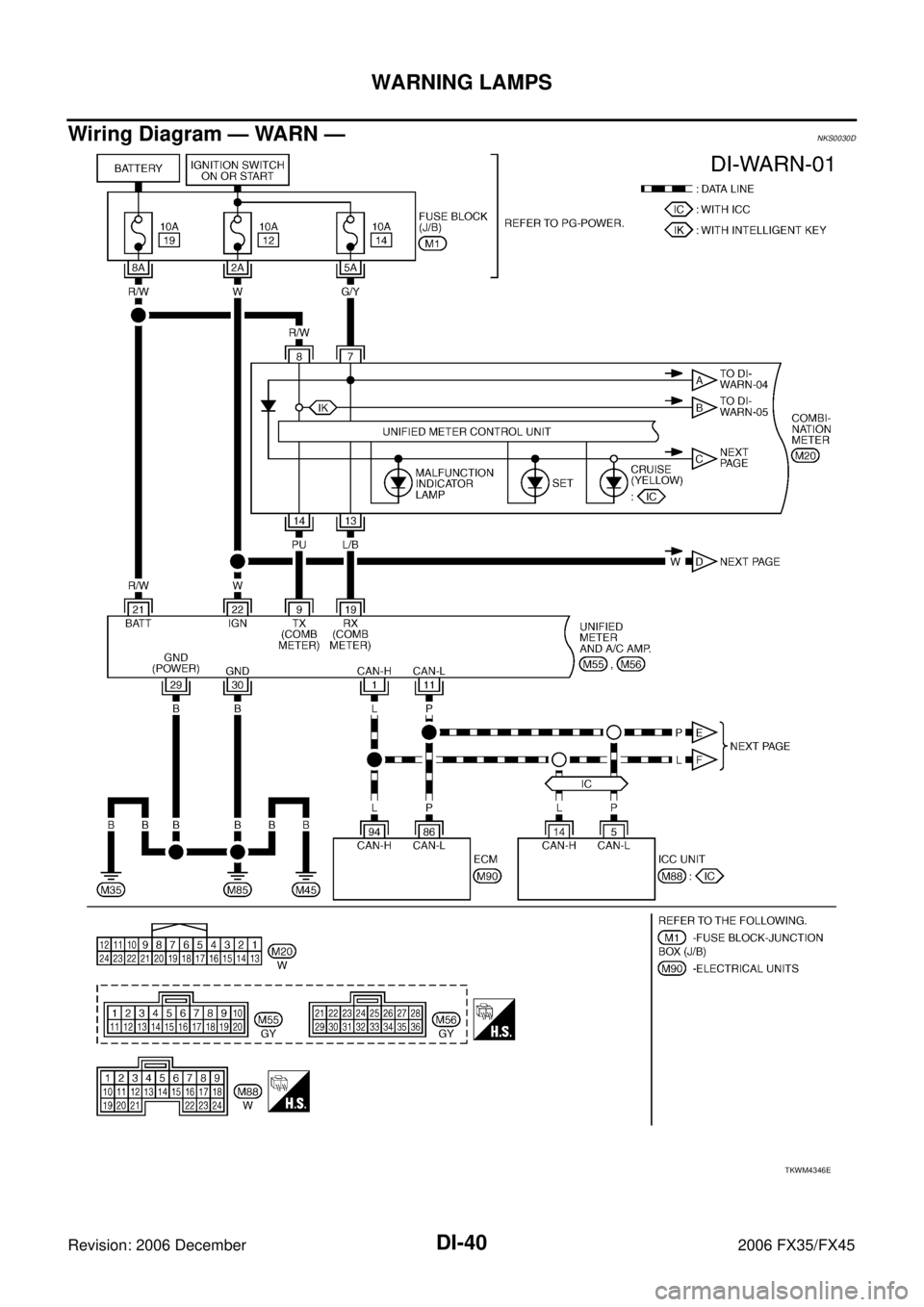

INFINITI FX35 2006 Service Manual DI-40 WARNING LAMPS Revision: 2006 December 2006 FX35/FX45 Wiring Diagram — WARN —NKS0030D TKWM4346E

Page 1291 of 4462

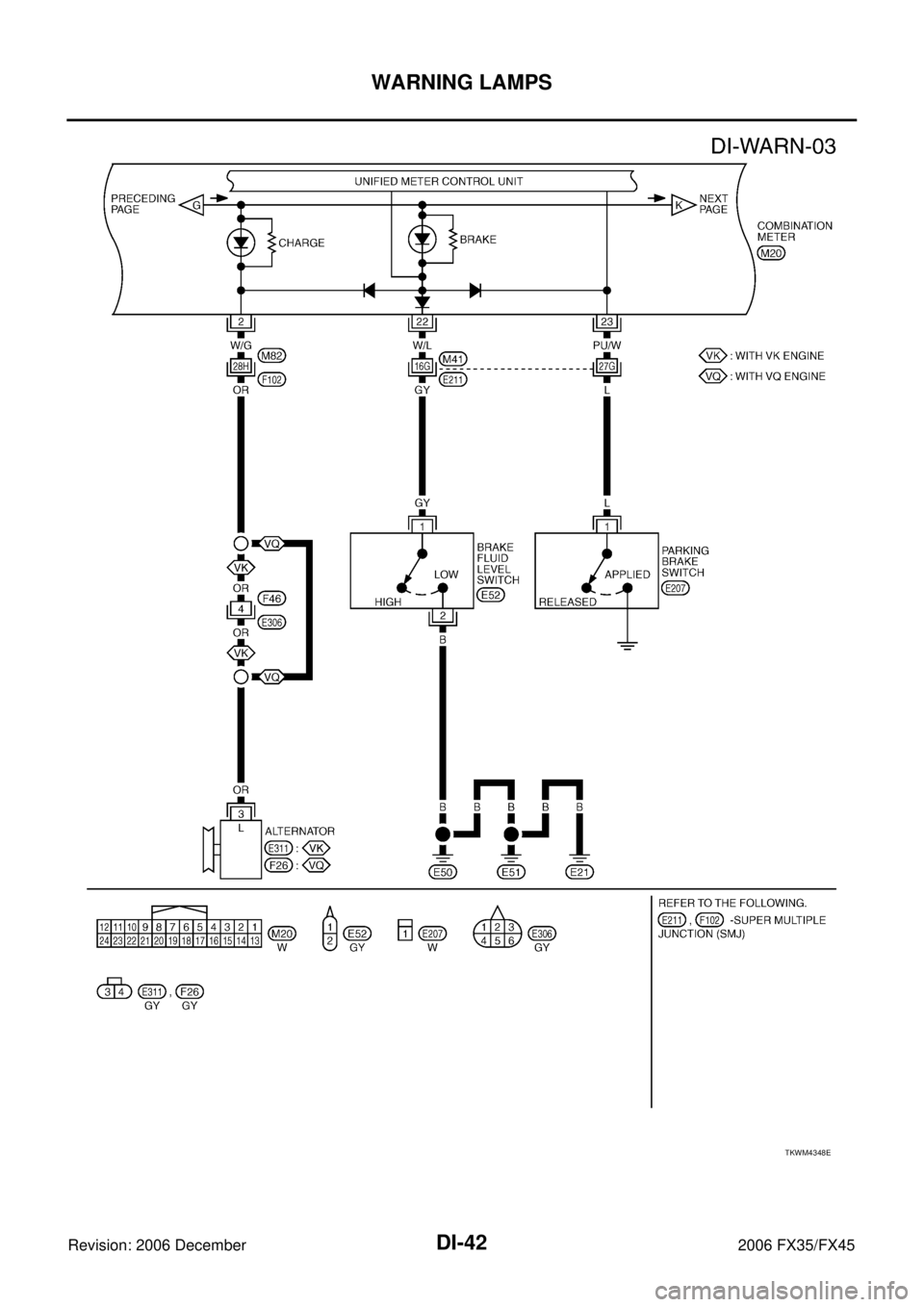

INFINITI FX35 2006 Service Manual WARNING LAMPS DI-41 C D E F G H I J L M A B DI Revision: 2006 December 2006 FX35/FX45 TKWM4347E

Page 1292 of 4462

INFINITI FX35 2006 Service Manual DI-42 WARNING LAMPS Revision: 2006 December 2006 FX35/FX45 TKWM4348E

Page 1293 of 4462

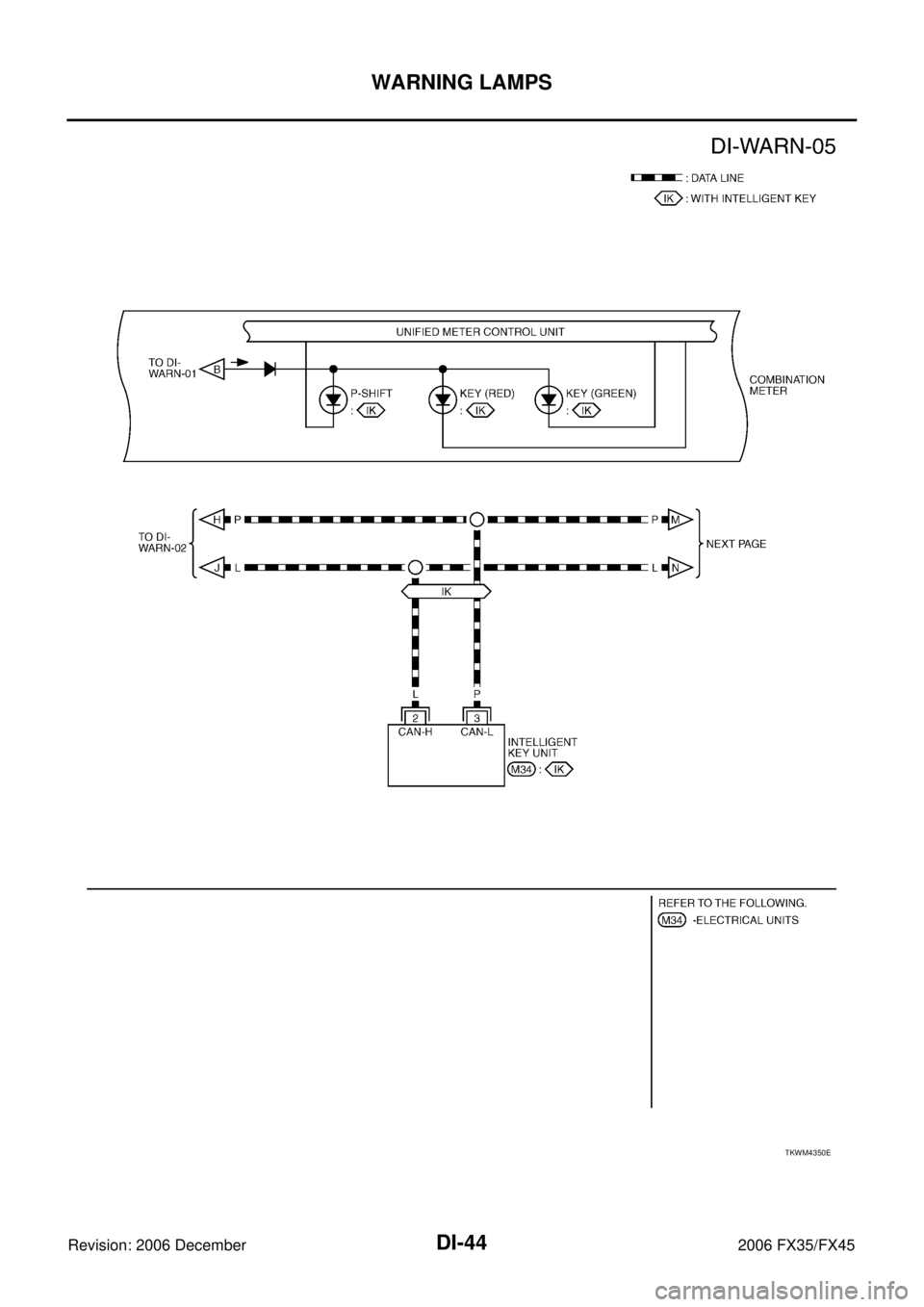

INFINITI FX35 2006 Service Manual WARNING LAMPS DI-43 C D E F G H I J L M A B DI Revision: 2006 December 2006 FX35/FX45 TKWM4349E

Page 1294 of 4462

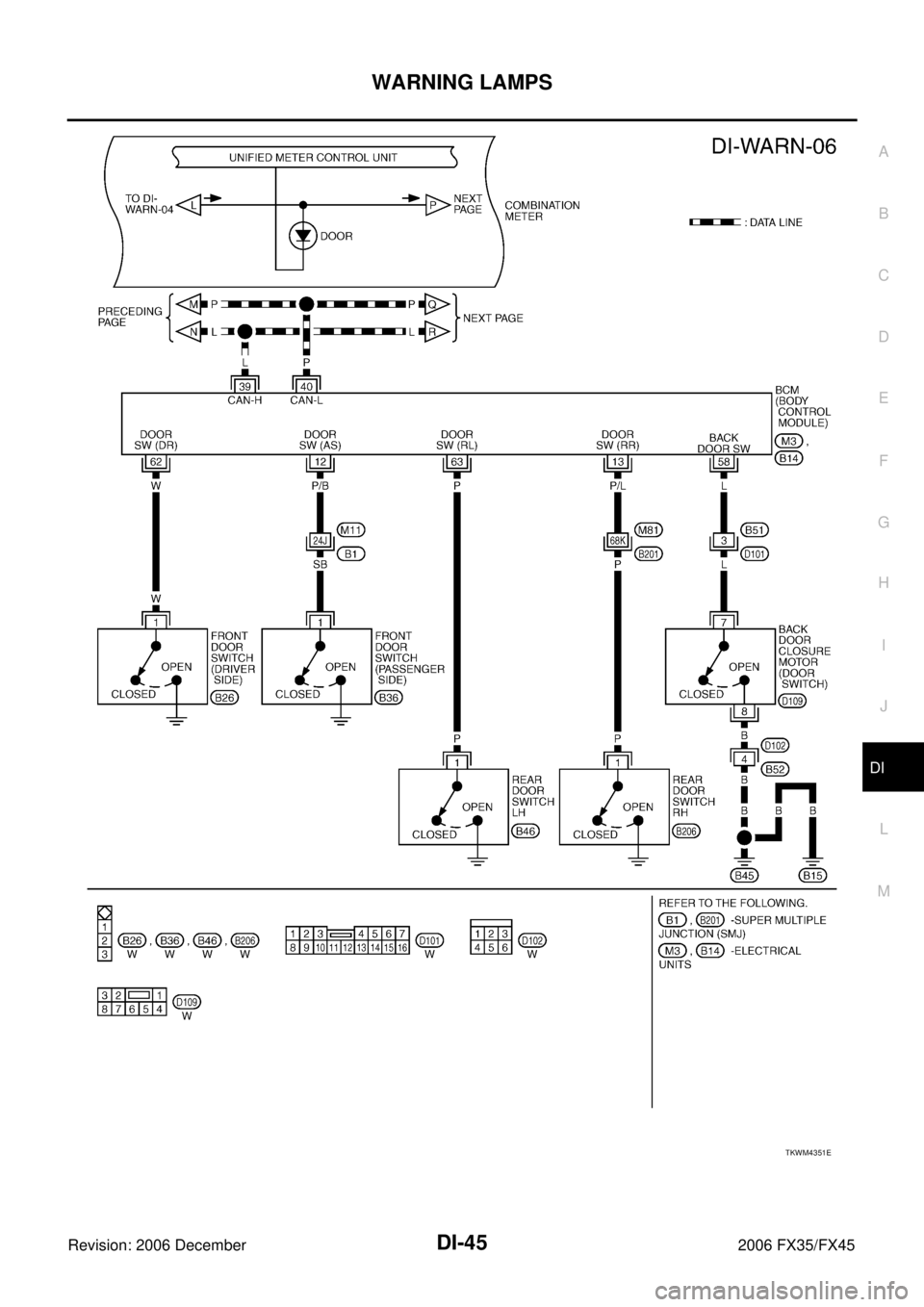

INFINITI FX35 2006 Service Manual DI-44 WARNING LAMPS Revision: 2006 December 2006 FX35/FX45 TKWM4350E

Page 1295 of 4462

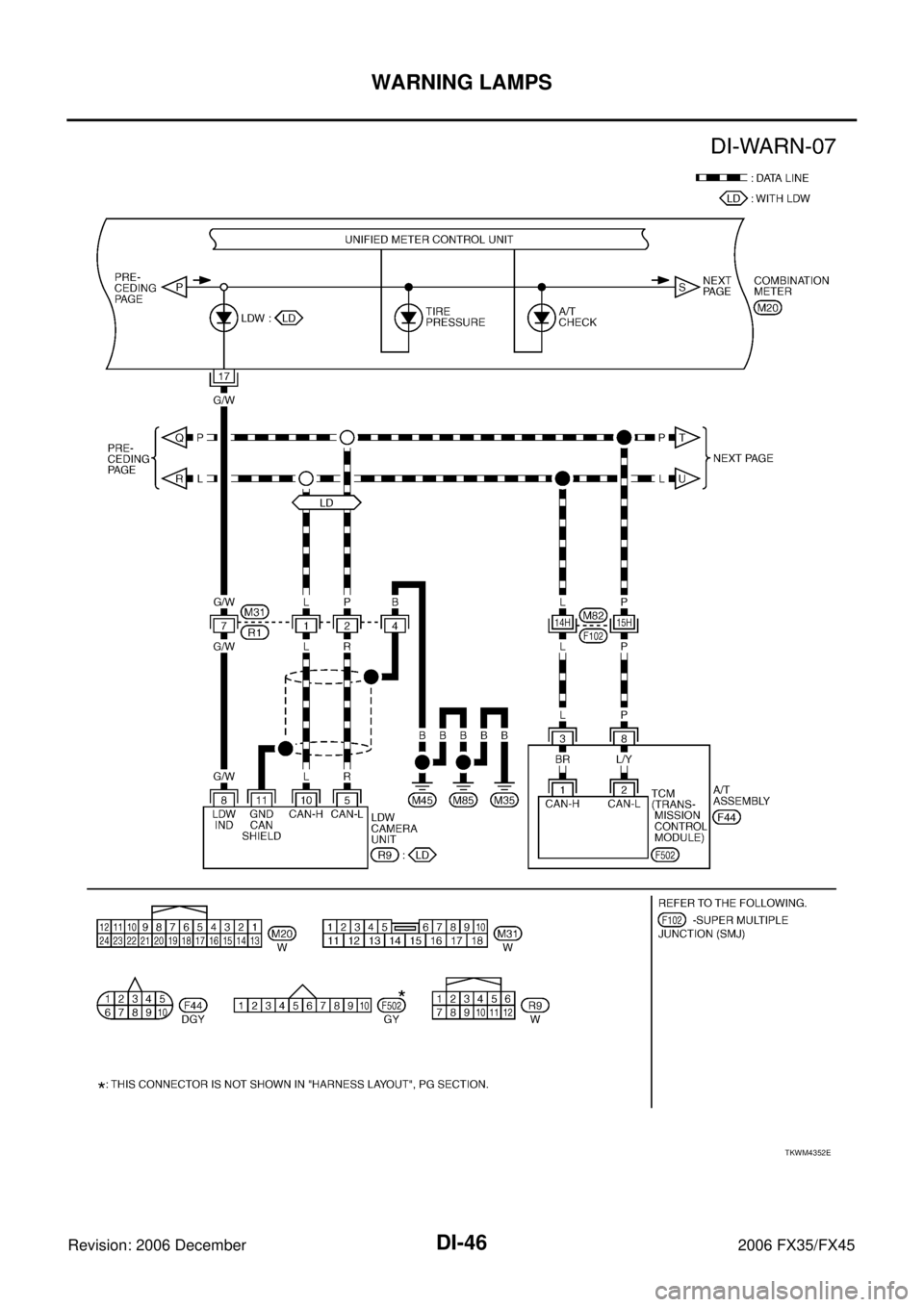

INFINITI FX35 2006 Service Manual WARNING LAMPS DI-45 C D E F G H I J L M A B DI Revision: 2006 December 2006 FX35/FX45 TKWM4351E

Page 1296 of 4462

INFINITI FX35 2006 Service Manual DI-46 WARNING LAMPS Revision: 2006 December 2006 FX35/FX45 TKWM4352E
