Page 1049 of 4462

INFINITI FX35 2006 Service Manual BODY REPAIR BL-235 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 Corrosion ProtectionNIS001Q8 DESCRIPTION To provide improved corrosion prevention, the following anti-c

Page 1050 of 4462

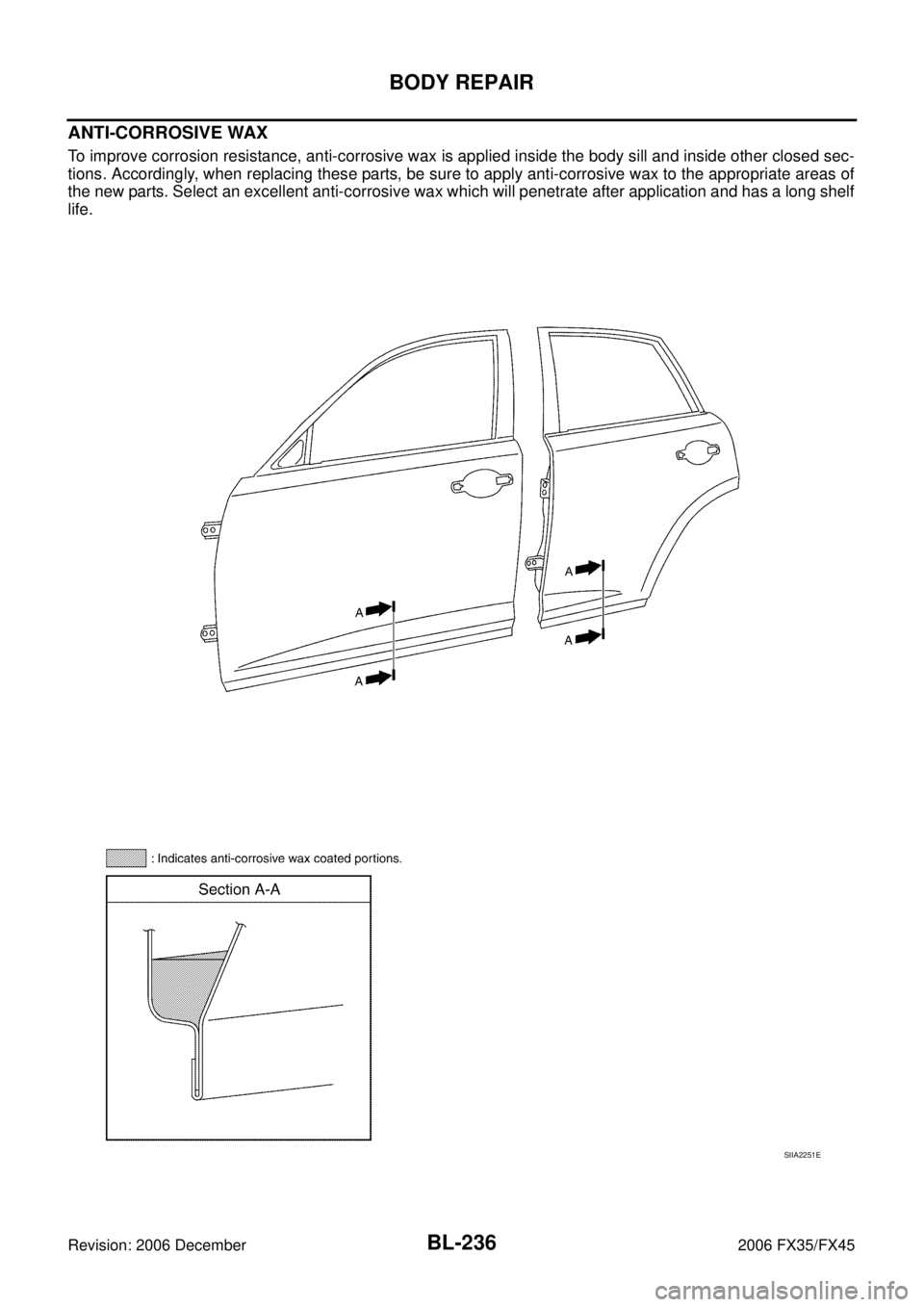

INFINITI FX35 2006 Service Manual BL-236 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 ANTI-CORROSIVE WAX To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec- tions. Ac

Page 1051 of 4462

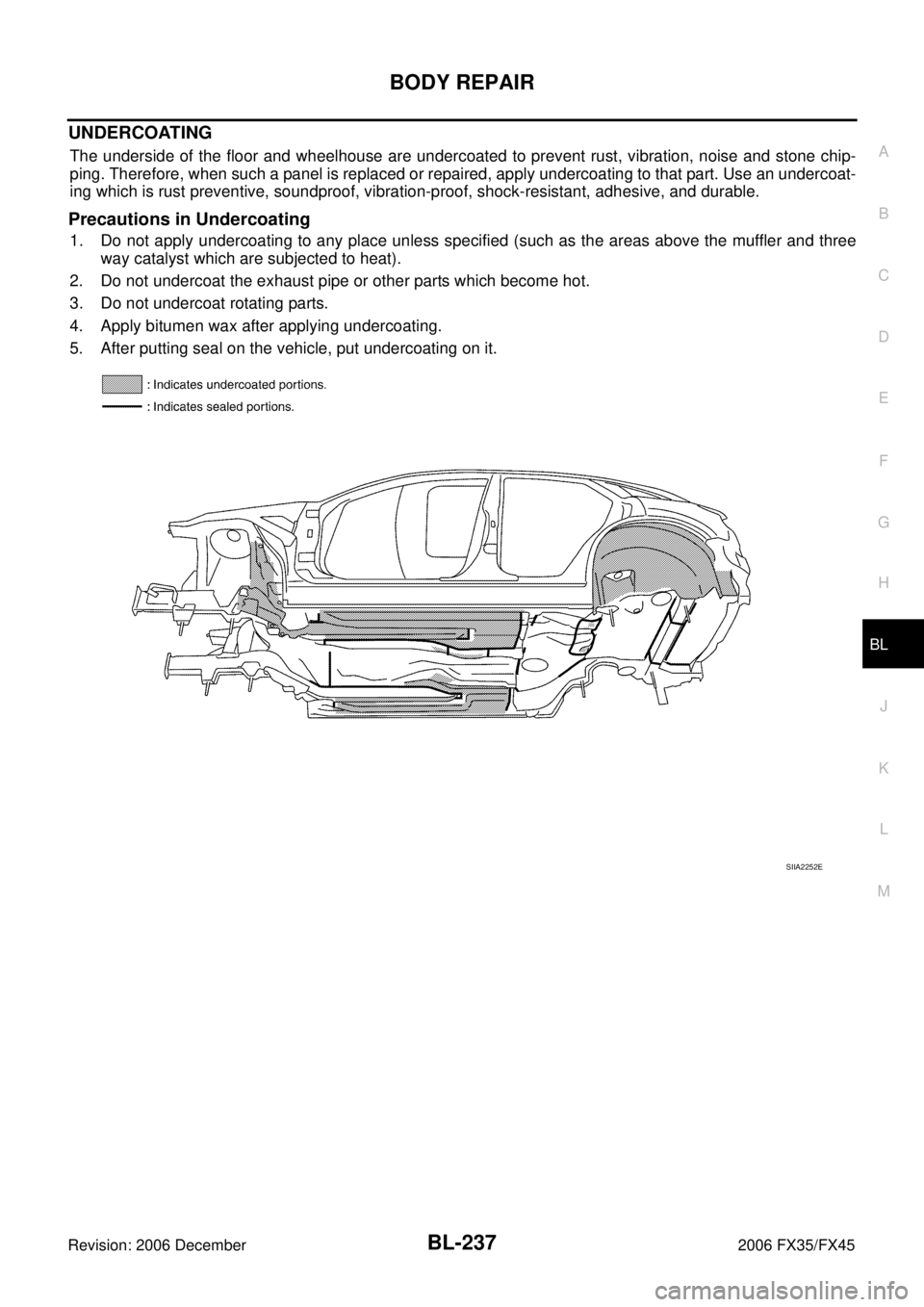

INFINITI FX35 2006 Service Manual BODY REPAIR BL-237 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 UNDERCOATING The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, nois

Page 1052 of 4462

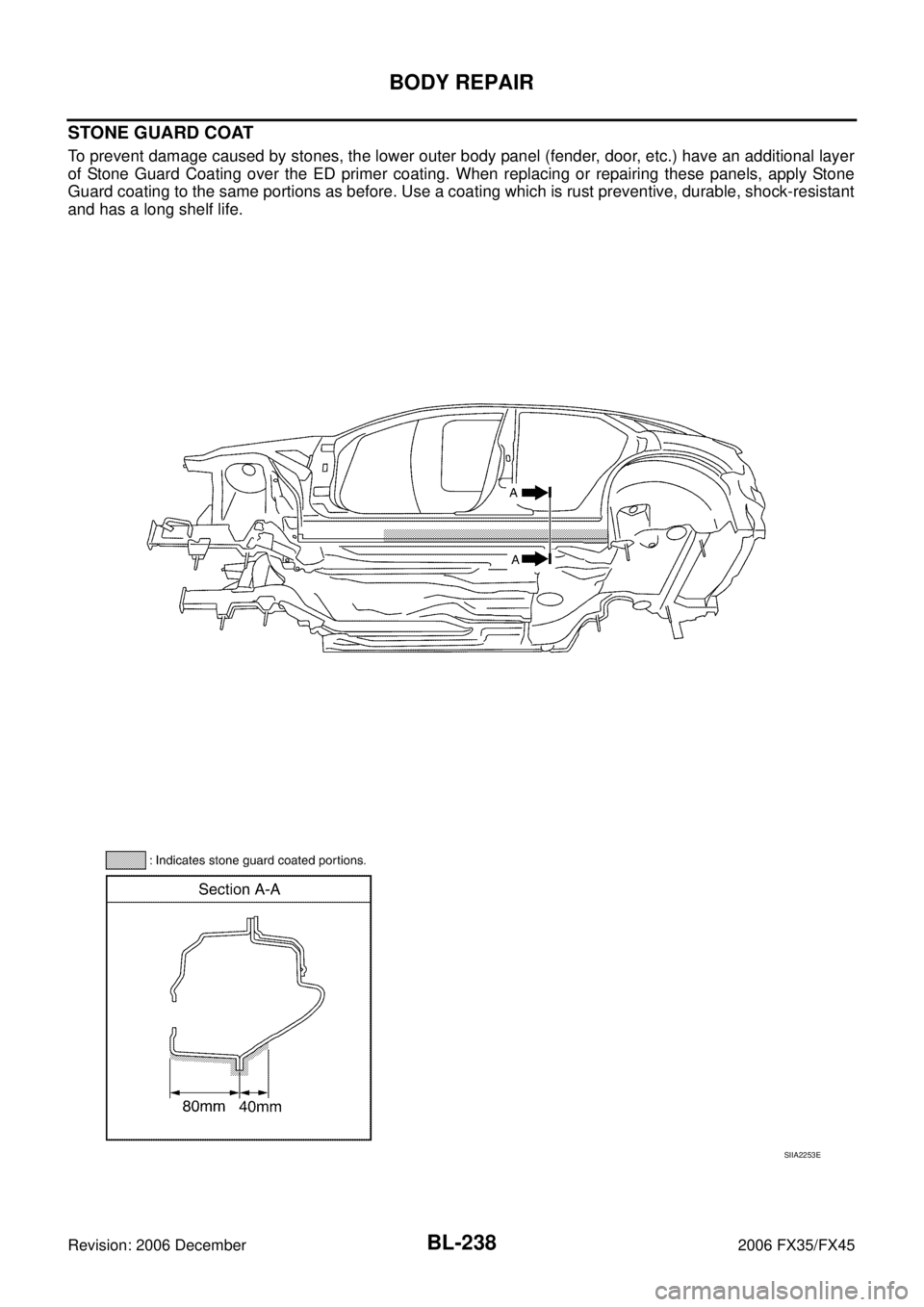

INFINITI FX35 2006 Service Manual BL-238 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 STONE GUARD COAT To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer of Stone Guard

Page 1053 of 4462

INFINITI FX35 2006 Service Manual BODY REPAIR BL-239 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 Body SealingNIS001Q9 DESCRIPTION The following figure shows the areas which are sealed at the factory.

Page 1054 of 4462

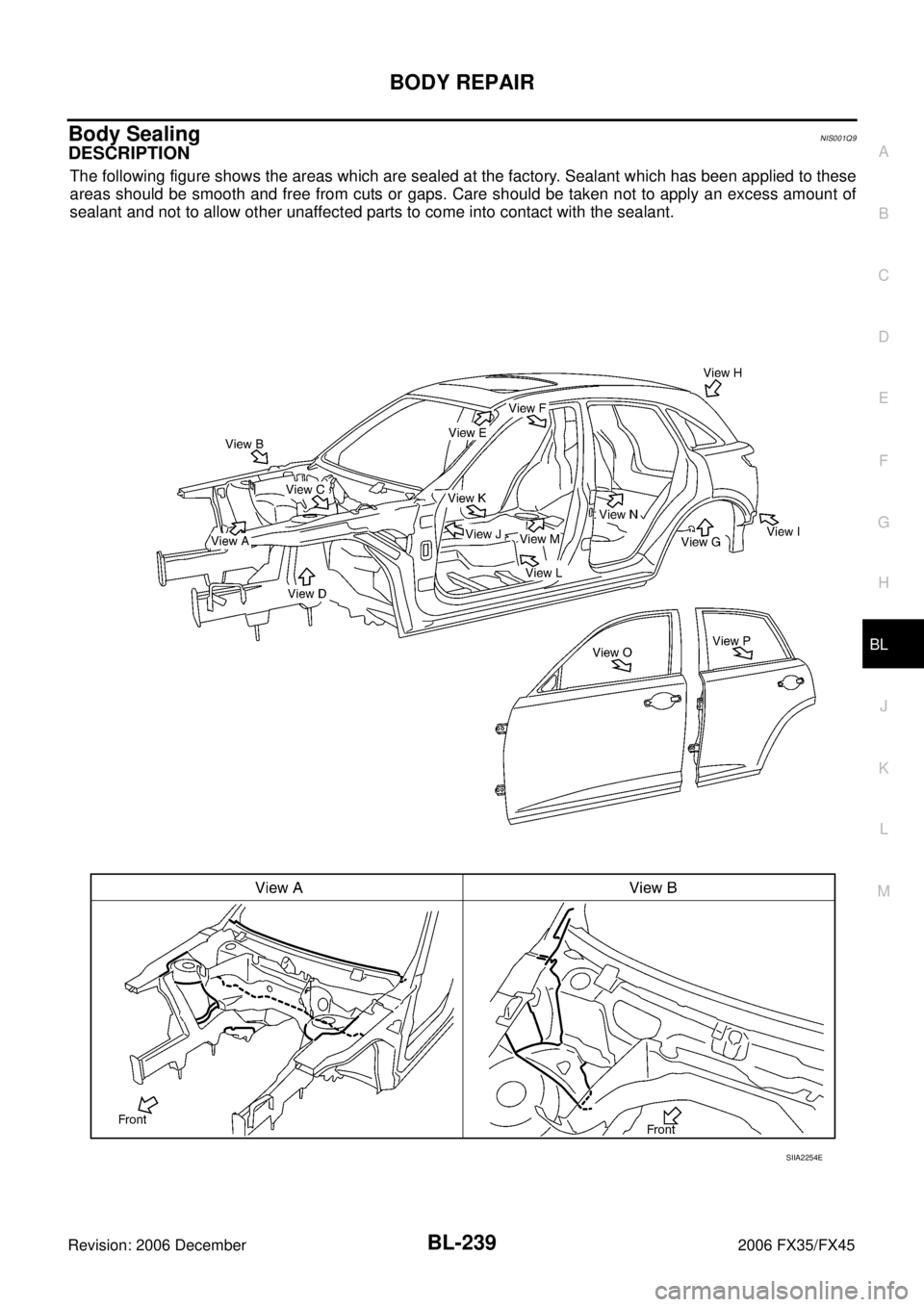

INFINITI FX35 2006 Service Manual BL-240 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 SIIA2255E

Page 1055 of 4462

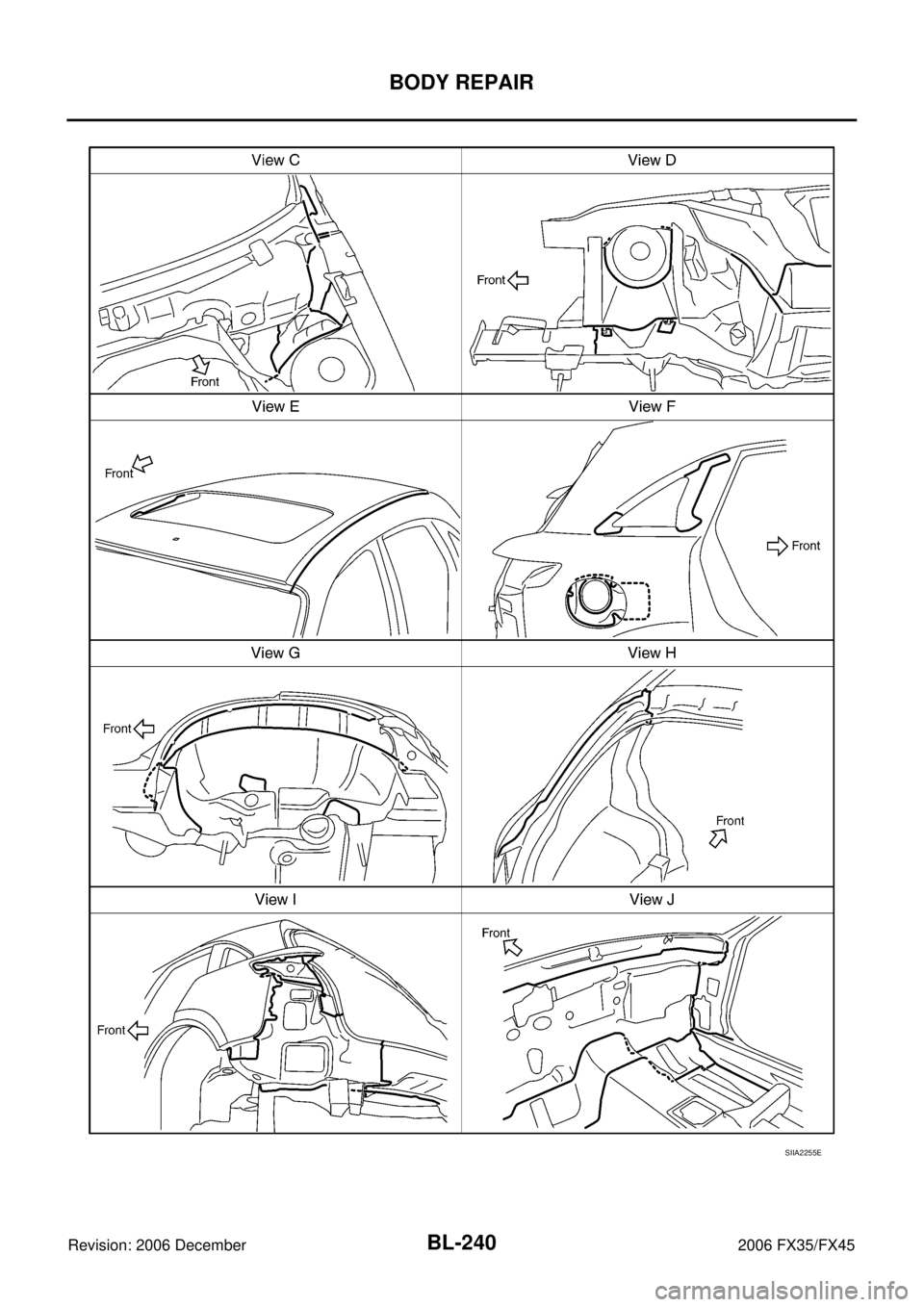

INFINITI FX35 2006 Service Manual BODY REPAIR BL-241 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 SIIA2256E

Page 1056 of 4462

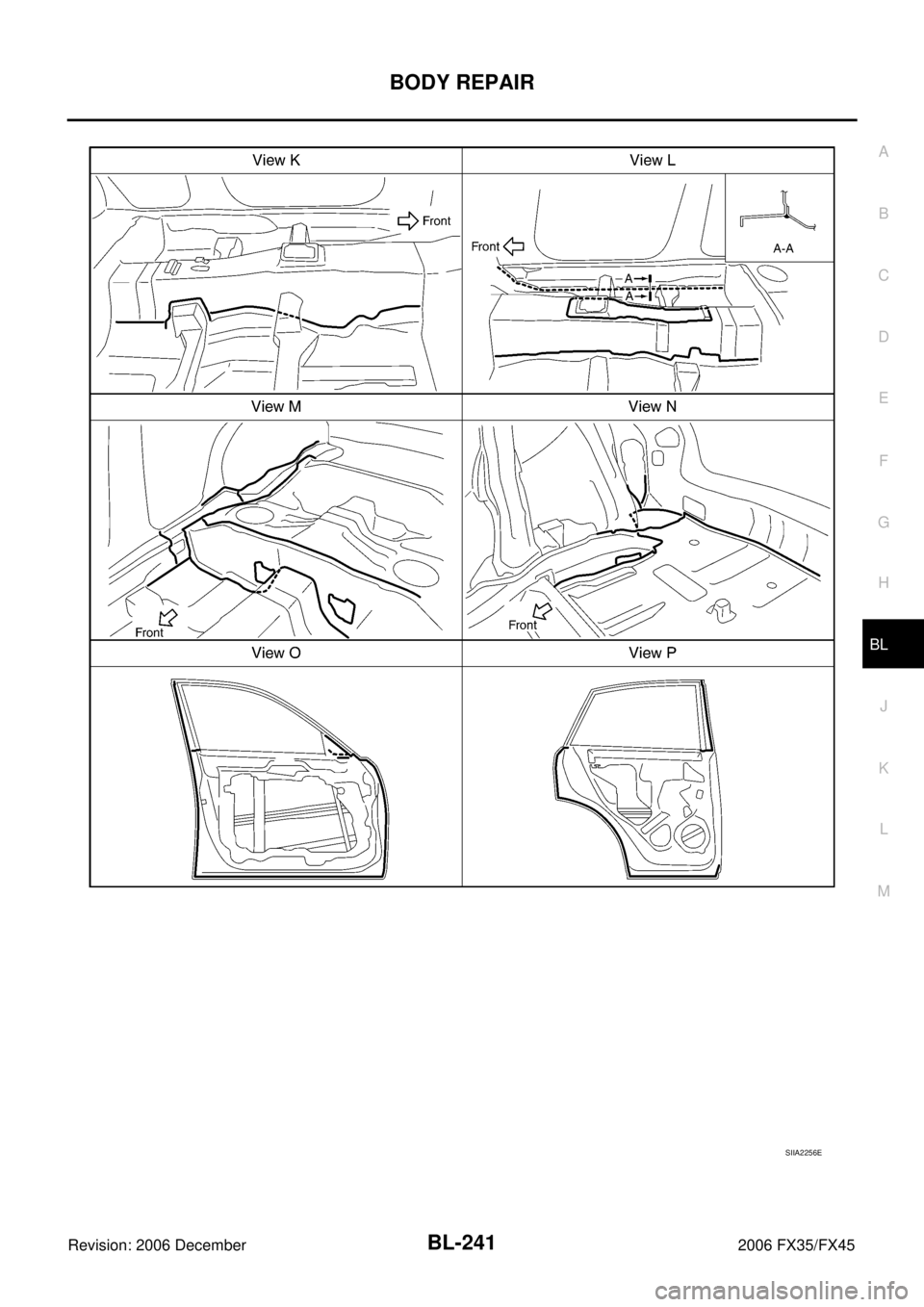

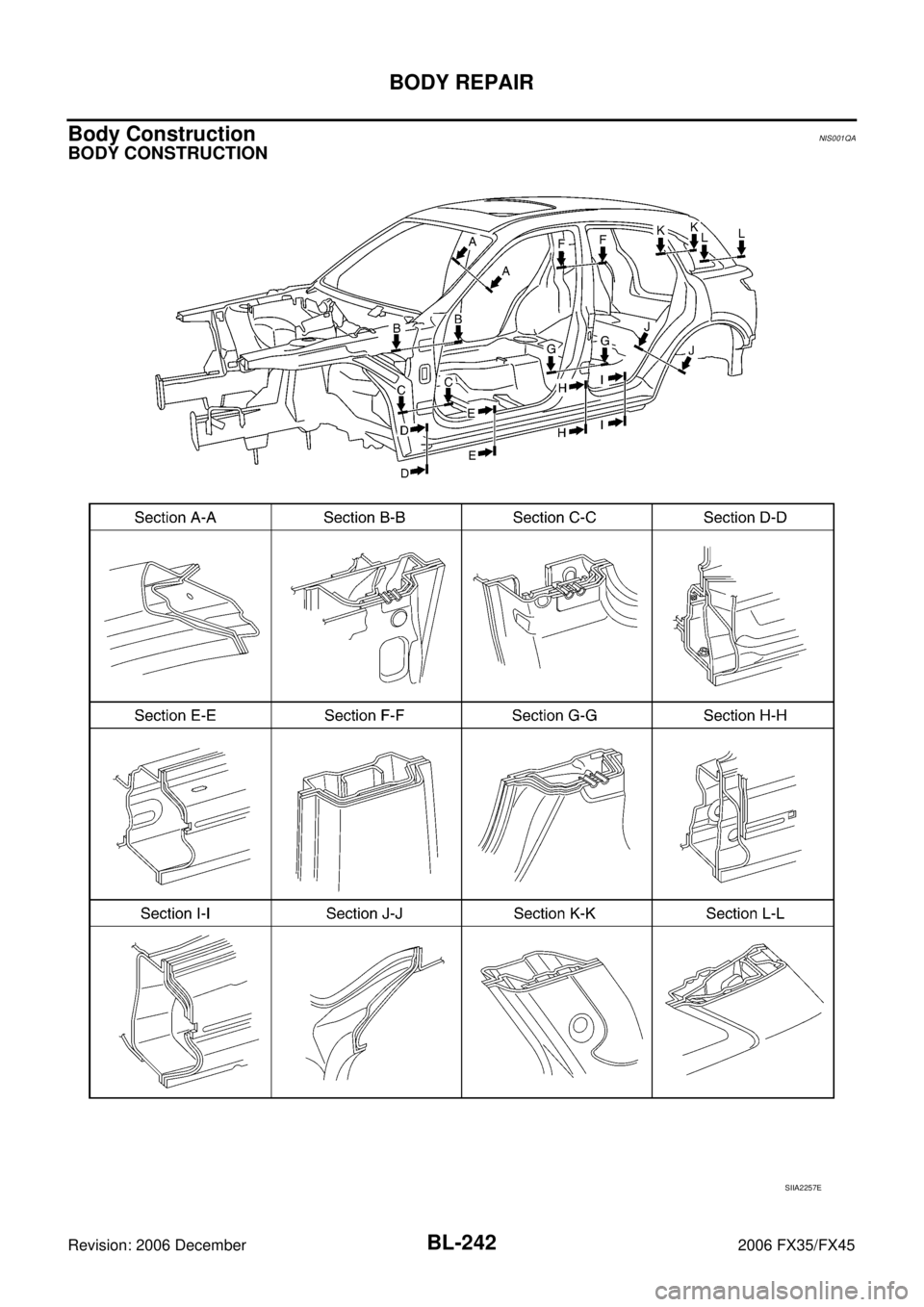

INFINITI FX35 2006 Service Manual BL-242 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 Body ConstructionNIS001QA BODY CONSTRUCTION SIIA2257E
