DTC P1211 TCS CONTROL UNIT EC-1169
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionNBS004CK
The malfunction information related to TCS is transferred through the CAN communication line from “ABS
actuator and electric unit (control unit)” to ECM.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicNBS004CL
Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureNBS004CM
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 60 seconds.
4. If 1st trip DTC is detected, go to EC-1169, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS004CN
Go to BRC-11, "TROUBLE DIAGNOSIS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1211
1211 TCS control unit ECM receives a malfunction information from
“ABS actuator electric unit (control unit)”
ABS actuator and electric unit (control
unit)
TCS related parts
SEF058Y
Page 2554 of 4462
![INFINITI FX35 2006 Service Manual EC-1170
[VK45DE]
DTC P1212 TCS COMMUNICATION LINE
Revision: 2006 December 2006 FX35/FX45
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionNBS004CO
NOTE:
If DTC P1212 is displayed with DTC U1000 o INFINITI FX35 2006 Service Manual EC-1170
[VK45DE]
DTC P1212 TCS COMMUNICATION LINE
Revision: 2006 December 2006 FX35/FX45
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionNBS004CO
NOTE:
If DTC P1212 is displayed with DTC U1000 o](/manual-img/42/57019/w960_57019-2553.png)
EC-1170
[VK45DE]
DTC P1212 TCS COMMUNICATION LINE
Revision: 2006 December 2006 FX35/FX45
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionNBS004CO
NOTE:
If DTC P1212 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-819, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1212 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-822, "
DTC U1010 CAN COMMUNICATION" .
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicNBS004CP
Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureNBS004CQ
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 10 seconds.
4. If 1st trip DTC is detected, go to EC-1170, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS004CR
Go to BRC-11, "TROUBLE DIAGNOSIS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212 TCS communication
line ECM can not receive the information
from “ABS actuator and electric unit (con-
trol unit)” continuously.
Harness or connectors
(The CAN communication line is open or
shorted.)
ABS actuator and electric unit (control unit)
Dead (Weak) battery
SEF058Y
Page 2555 of 4462
![INFINITI FX35 2006 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-1171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionNBS004CS
SYSTEM D INFINITI FX35 2006 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-1171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionNBS004CS
SYSTEM D](/manual-img/42/57019/w960_57019-2554.png)
DTC P1217 ENGINE OVER TEMPERATURE EC-1171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionNBS004CS
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-819, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1217 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-822, "
DTC U1010 CAN COMMUNICATION" .
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/MIDDLE/OFF].
Cooling Fan Operation
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Cooling fan
control IPDM E/R
(Cooling fan relay)
Battery
Battery voltage*
1
Wheel sensorVehicle speed*2
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch Air conditioner ON signal*
2
Refrigerant pressure sensor Refrigerant pressure
PBIB2560E
Page 2556 of 4462
![INFINITI FX35 2006 Service Manual EC-1172
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 December 2006 FX35/FX45
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line INFINITI FX35 2006 Service Manual EC-1172
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 December 2006 FX35/FX45
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line](/manual-img/42/57019/w960_57019-2555.png)
EC-1172
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 December 2006 FX35/FX45
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan at each speed when the current flows in the cooling fan motor as follows.
CONSULT-II Reference Value in Data Monitor ModeNBS004CT
Specification data are reference values.
On Board Diagnosis LogicNBS004CU
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-38, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-27, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio. Refer to MA-13, "
Anti-Freeze Coolant Mixture Ratio" .
Cooling fan speed Cooling fan relay
13
Stop (OFF) OFF OFF
Middle (MID) OFF ON
High (HI) ON ON
Cooling fan speed Cooling fan motor terminals
(+) (-)
Middle 1 3 and 4
2 3 and 4
High 1 and 2 3 and 4
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFF Engine coolant temperature is 94
°C
(201 °F) or less OFF
Engine coolant temperature is between
95 °C (203 °F) and 104 °C (219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217 Engine over tempera-
ture (Overheat)
Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate prop-
erly (Overheat).
Engine coolant was not added to the system
using the proper filling method.
Engine coolant is not within the specified
range.
Harness or connectors
(The cooling fan circuit is open or
shorted.)
IPDM E/R
Cooling fan
Radiator hose
Radiator
Radiator cap
Water pump
Thermostat
For more information, refer to EC-1181,
"Main 13 Causes of Overheating" .
Page 2557 of 4462
![INFINITI FX35 2006 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-1173
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. After refilling coolant, run engine to ensure that no water-flow noi INFINITI FX35 2006 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-1173
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. After refilling coolant, run engine to ensure that no water-flow noi](/manual-img/42/57019/w960_57019-2556.png)
DTC P1217 ENGINE OVER TEMPERATURE EC-1173
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckNBS004CV
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator. Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1177,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to EC-1177,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON- SULT-II.
5. If the results are NG, go to EC-1177, "
Diagnostic Procedure" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1177,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to EC-1177,
"Diagnostic Procedure" .
3. Disconnect engine coolant temperature sensor harness connec- tor.
SEF621W
SEF646X
SEF621W
Page 2558 of 4462
EC-1174
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 December 2006 FX35/FX45
4. Connect 200 Ω resister to the engine coolant temperature sensor
harness connector.
5. Start engine and make sure that cooling fan operates at middle speed.
Be careful not to overheat engine.
If NG, go to EC-1177, "
Diagnostic Procedure" .
If OK, go to the following step.
6. Turn ignition switch OFF.
7. Disconnect 200 Ω resister from engine coolant temperature sen-
sor harness connector.
8. Connect 150 Ω resistor to engine coolant temperature sensor
harness connector.
9. Start engine and make sure that cooling fan operates at higher speed than middle speed.
Be careful not to overheat engine.
10. If NG, go to EC-1177, "
Diagnostic Procedure" .
PBIB0965E
SEF882V
Page 2559 of 4462
DTC P1217 ENGINE OVER TEMPERATURE EC-1175
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

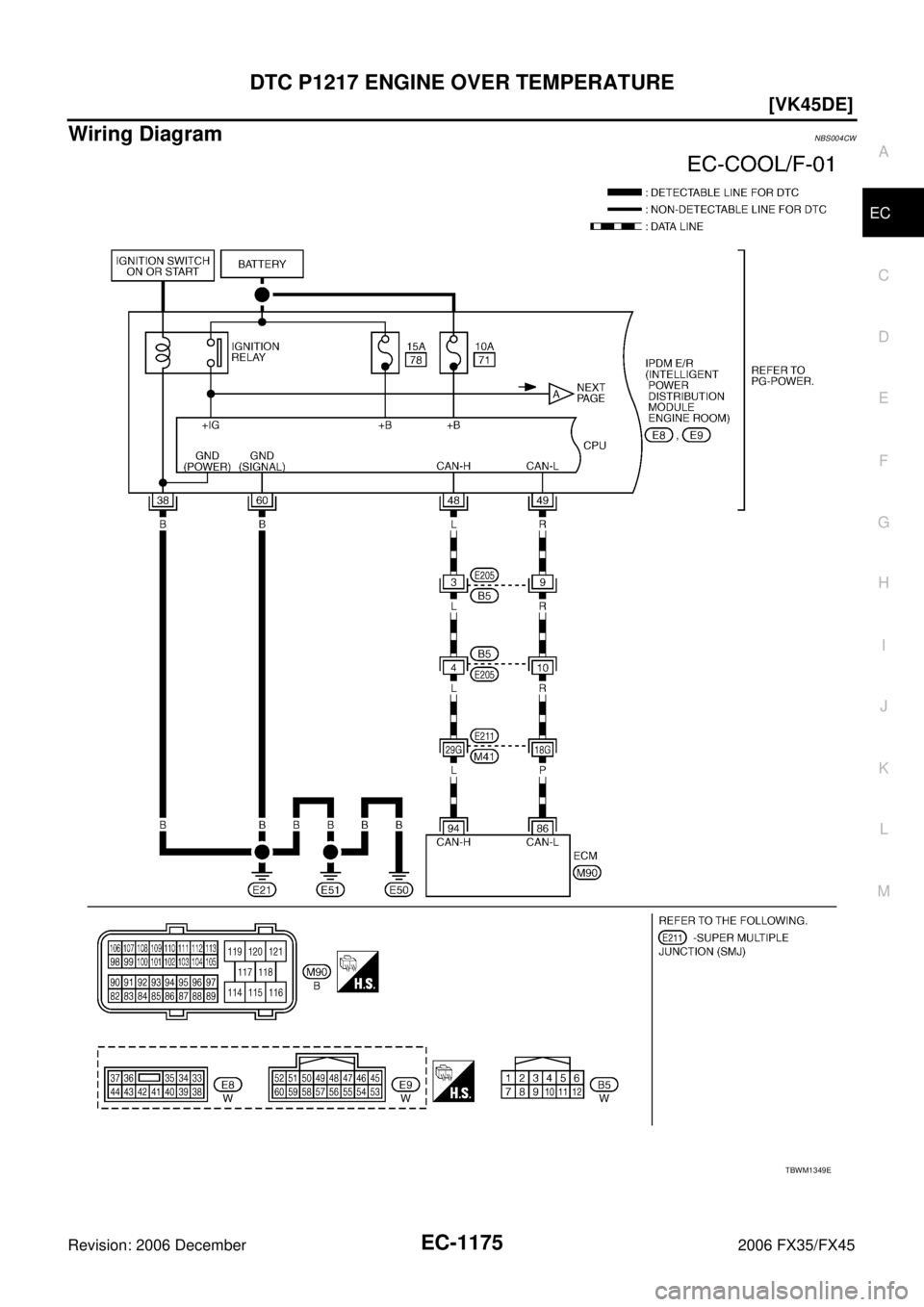

Wiring DiagramNBS004CW
TBWM1349E
Page 2560 of 4462
EC-1176
[VK45DE]

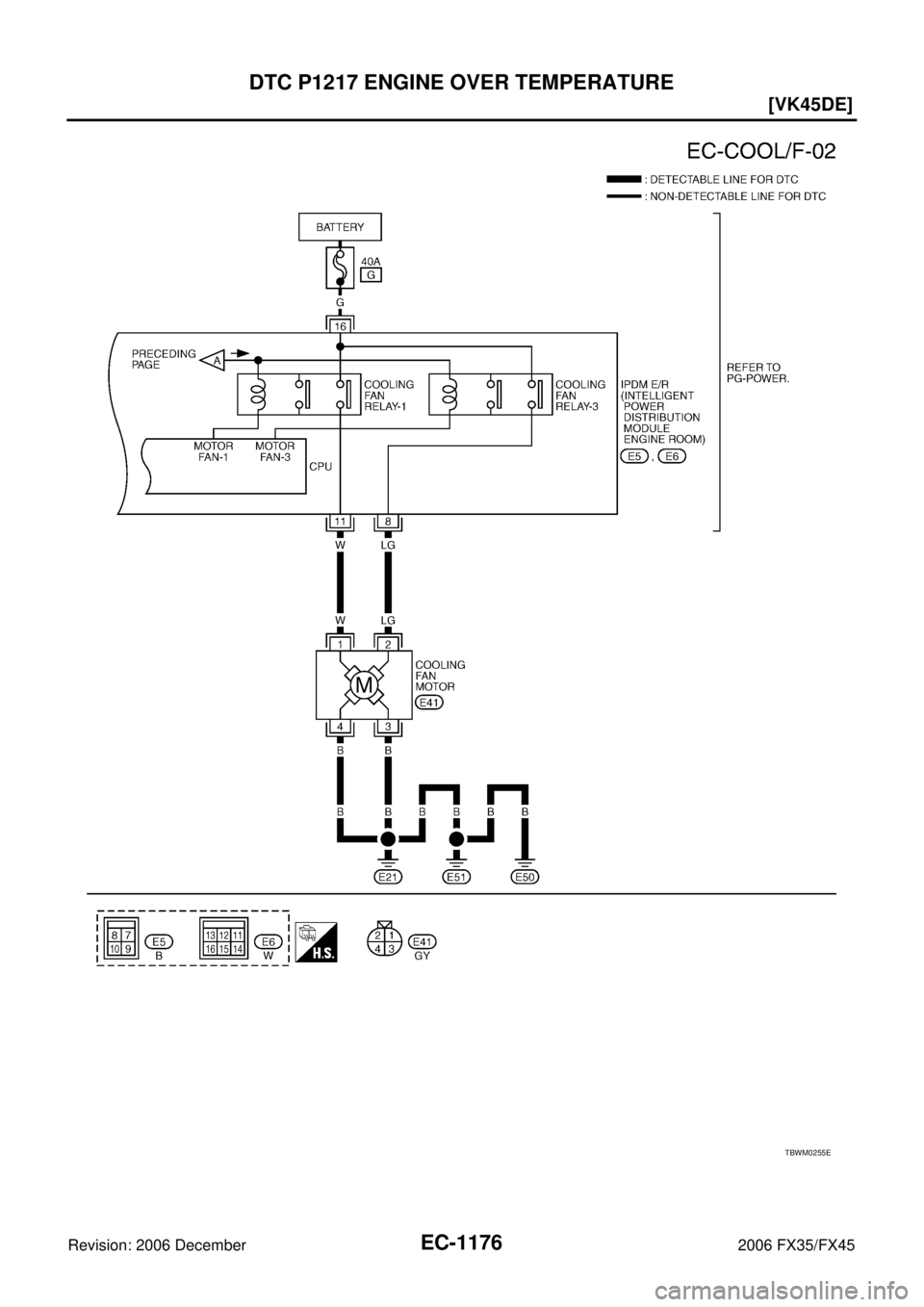

DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 December 2006 FX35/FX45
TBWM0255E
