Page 713 of 4462
NAVIGATION SYSTEM AV-107
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
Schematic — COMM —NKS003K6
TKWM4418E
Page 714 of 4462
AV-108
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45

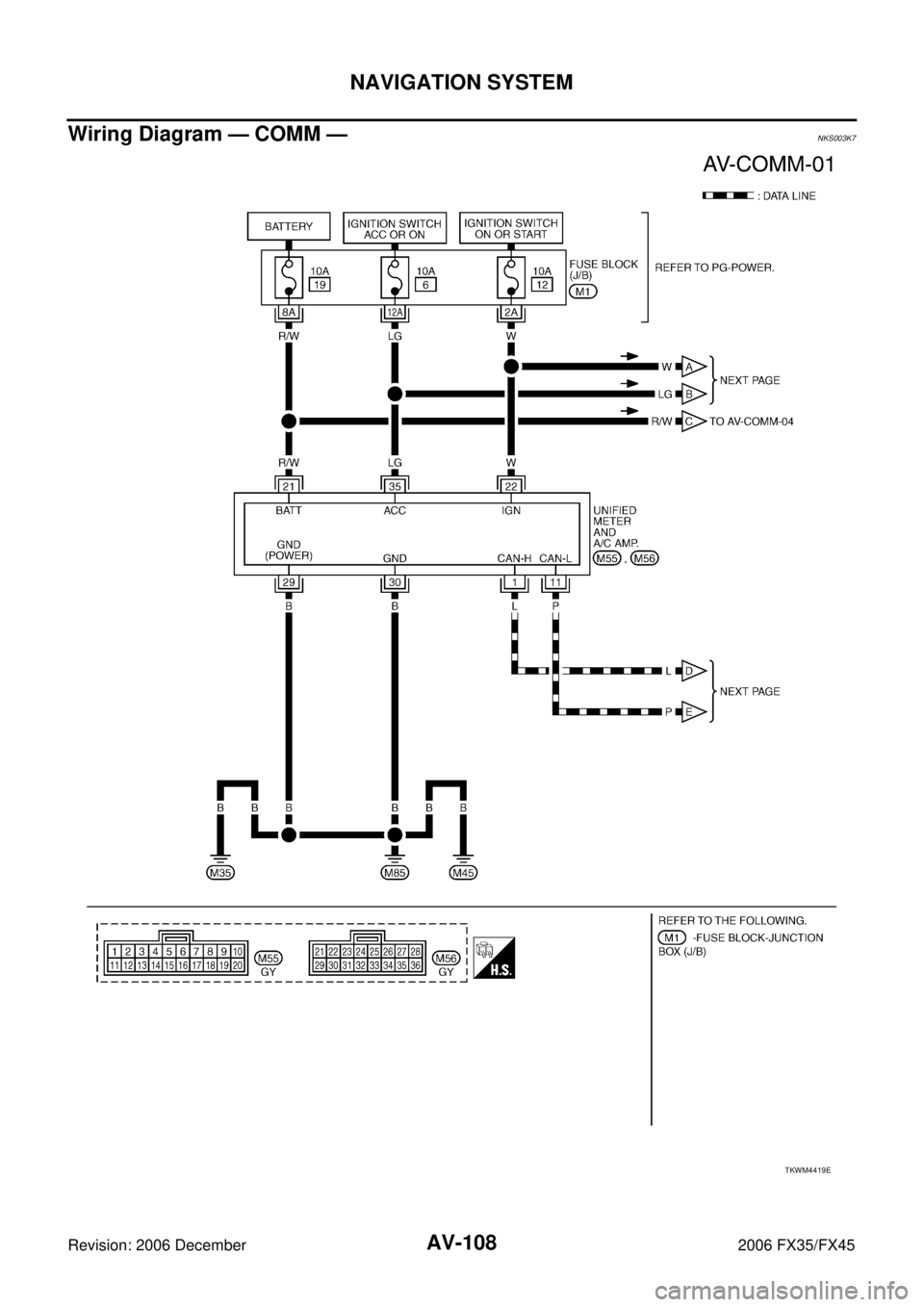

Wiring Diagram — COMM —NKS003K7
TKWM4419E
Page 715 of 4462
NAVIGATION SYSTEM AV-109
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
TKWM4420E
Page 716 of 4462
AV-110
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
TKWM4421E
Page 717 of 4462
NAVIGATION SYSTEM AV-111
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
TKWM4422E
Page 718 of 4462
AV-112
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
TKWM4423E
Page 719 of 4462

NAVIGATION SYSTEM AV-113
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for NAVI Control UnitNKS003K8
Terminal
(Wire color) Item Signal
input/
output Condition
Reference value
+– Ignition
switch Operation
1 (B) Ground Ground — ON — Approx. 0 V
2 (Y) Ground Battery power supply Input OFF — Battery voltage
5 (LG) Ground ACC power supply Input ACC — Battery voltage
12 (LG) 14 (PU) Voice guidance signal Output ON Press “GUIDE/VOICE”
button
13 — Shield — — — —
35 (B) Ground Ground — ON — Approx. 0 V
44 (R) Ground RGB signal (R: red) Output ON Start Confirmation/Adjust-
ment (Navigation) mode,
and then display color bar
by selecting “Color Spec-
trum bar” on Display Diag-
nosis screen
45 (W) Ground RGB signal (G: green) Output ON Start Confirmation/Adjust-
ment (Navigation) mode,
and then display color bar
by selecting “Color Spec-
trum bar” on Display Diag-
nosis screen
46 (B) Ground RGB signal (B: blue) Output ON Start Confirmation/Adjust-
ment (Navigation) mode,
and then display color bar
by selecting “Color Spec-
trum bar” on Display Diag-
nosis screen
47 — Shield — — — —
48 (G) Ground RGB synchronizing
signal Output ON When displaying RGB
49 — Shield — — — —
61 (R) Ground Illumination signal Input OFF Lighting switch ON Approx. 12 V
Lighting switch OFF Approx. 0 V
63 (G) Ground Ignition signal Input ON — Battery voltage
65 (OR) Ground Reverse signal Input ON Selector lever in R position Approx. 12 V
Selector lever except in R
position Approx. 0 V
SKIB3609E
SKIB7360E
SKIB7361E
SKIB7362E
SKIB3603E
Page 720 of 4462
AV-114
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
66 (GY) Ground Vehicle speed signal
(8-pulse) Input ON When vehicle speed is
approx. 25 MPH (40 km/h) NOTE:
Maximum voltage may be 5 V
due to specifications (connected
units).
68 — Shield — — — —
69 (L) Ground Communication
signal (+) Input/
Output ON —
70 (P) Ground Communication
signal (–) Input/
Output ON —
73 Ground GPS signal Input ON Connector is not connected Approx. 5 V
74 — Shield — — — — Te r m i n a l
(Wire color) Item Signal
input/
output Condition
Reference value
+– Ignition
switch Operation
PKIA1935E
SKIB7378E
SKIB7379E
