INFINITI FX35 2006 Service Manual ROAD WHEEL WT-7
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
ROAD WHEELPFP:40300
InspectionNES000GM

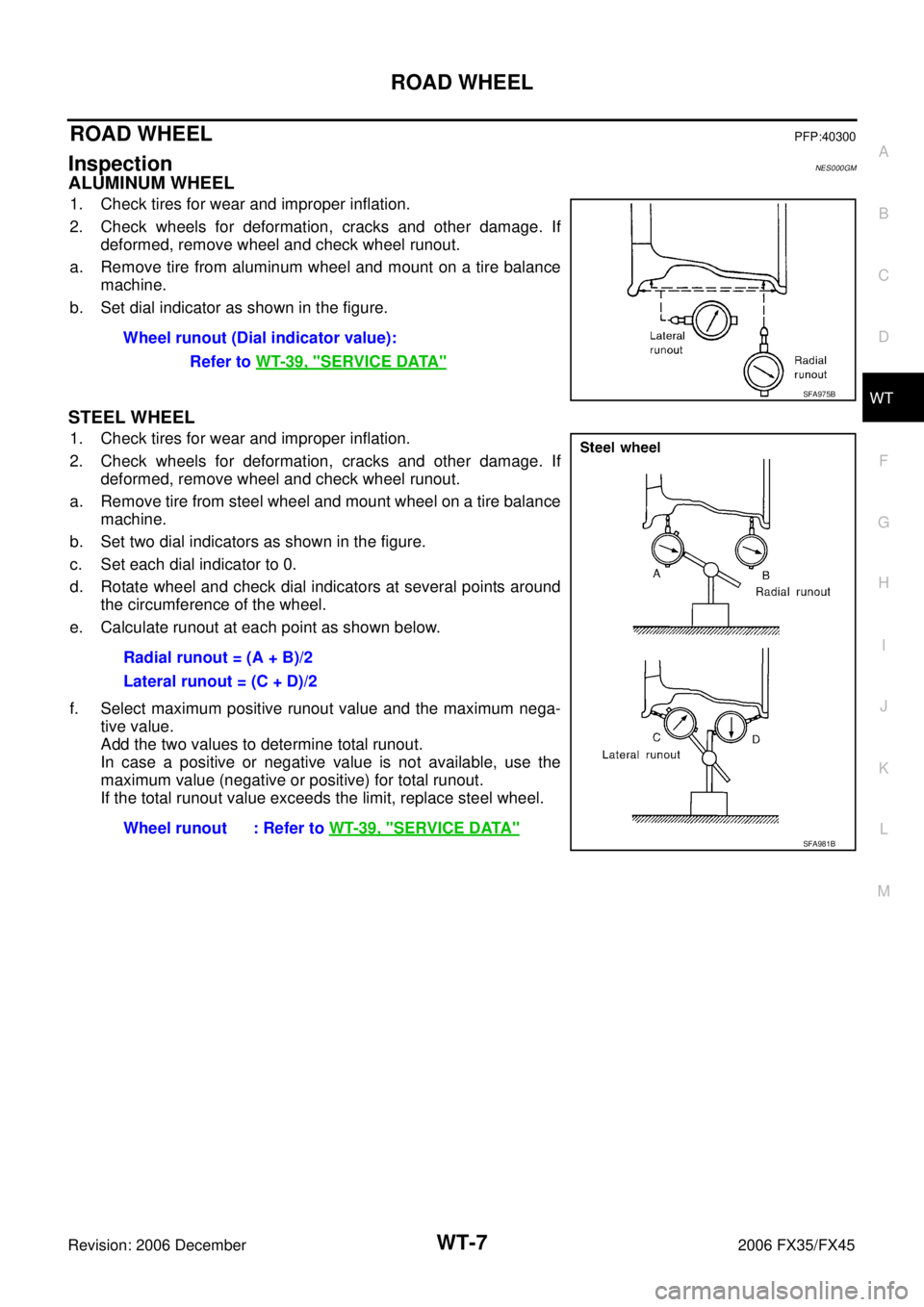

ALUMINUM WHEEL
1. Check tires for wear and improper inflation.
2.

Page 4370 of 4462

INFINITI FX35 2006 Service Manual WT-8
ROAD WHEEL TIRE ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
ROAD WHEEL TIRE ASSEMBLYPFP:40300
Balancing Wheels (Bonding Weight Type)NES000GN
REMOVAL
1. Remove inner and outer balance weights

WT-8
ROAD WHEEL TIRE ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
ROAD WHEEL TIRE ASSEMBLYPFP:40300
Balancing Wheels (Bonding Weight Type)NES000GN
REMOVAL
1. Remove inner and outer balance weights from the road wheel. CAUTION:
Be careful not to scratch the road wheel during removal.
2. Using releasing agent, remove double-faced adhesive tape from the road wheel. CAUTION:
Be careful not to scratch the road wheel during removal.
After removing double-faced adhesive tape, wipe clean traces of releasing agent from the road
wheel.
WHEEL BALANCE ADJUSTMENT
If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting,
select and adjust a drive-in weight mode suitable for road wheels.
1. Set road wheel on wheel balancer using the center hole as a guide. Start the tire balance machine.
2. When inner and outer unbalance values are shown on the wheel balancer indicator, multiply outer unbal- ance value by 5/3 to determine balance weight that should be used. Select the outer balance weight with
a value closest to the calculated value above and install it to the designated outer position of, or at the
designated angle in relation to the road wheel.
CAUTION:
Do not install the inner balance weight before installing the outer balance weight.
Before installing the balance weight, be sure to clean the
mating surface of the road wheel.
Indicated unbalance value × 5/3 = balance weight to be installed
Calculation example:
23 g (0.81 oz) × 5/3 = 38.33 g (1.35 oz) = 40 g (1.41 oz) balance
weight (closer to calculated balance weight value)
Note that balance weight value must be closer to the calculated
balance weight value.
Example:
37.4 = 35 g (1.23 oz)
37.5 = 40 g (1.41 oz)
a. Install balance weight in the position shown in the figure.
b. When installing balance weight to road wheels, set it into the grooved area on the inner wall of the road wheel as shown in the
figure so that the balance weight center is aligned with the wheel
balancer indication position (angle).
CAUTION:
Always use genuine NISSAN adhesion balance weights.
Balance weights are unreusable; always replace with new
ones.
Do not install more than three sheets of balance weight.
SMA054D
SEIA0271E

Page 4371 of 4462

INFINITI FX35 2006 Service Manual ROAD WHEEL TIRE ASSEMBLY WT-9
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
c. If calculated balance weight value exceeds 50 g (1.76 oz), install two balance weight sh

Page 4372 of 4462

INFINITI FX35 2006 Service Manual WT-10
LOW TIRE PRESSURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45
LOW TIRE PRESSURE WARNING SYSTEMPFP:40300

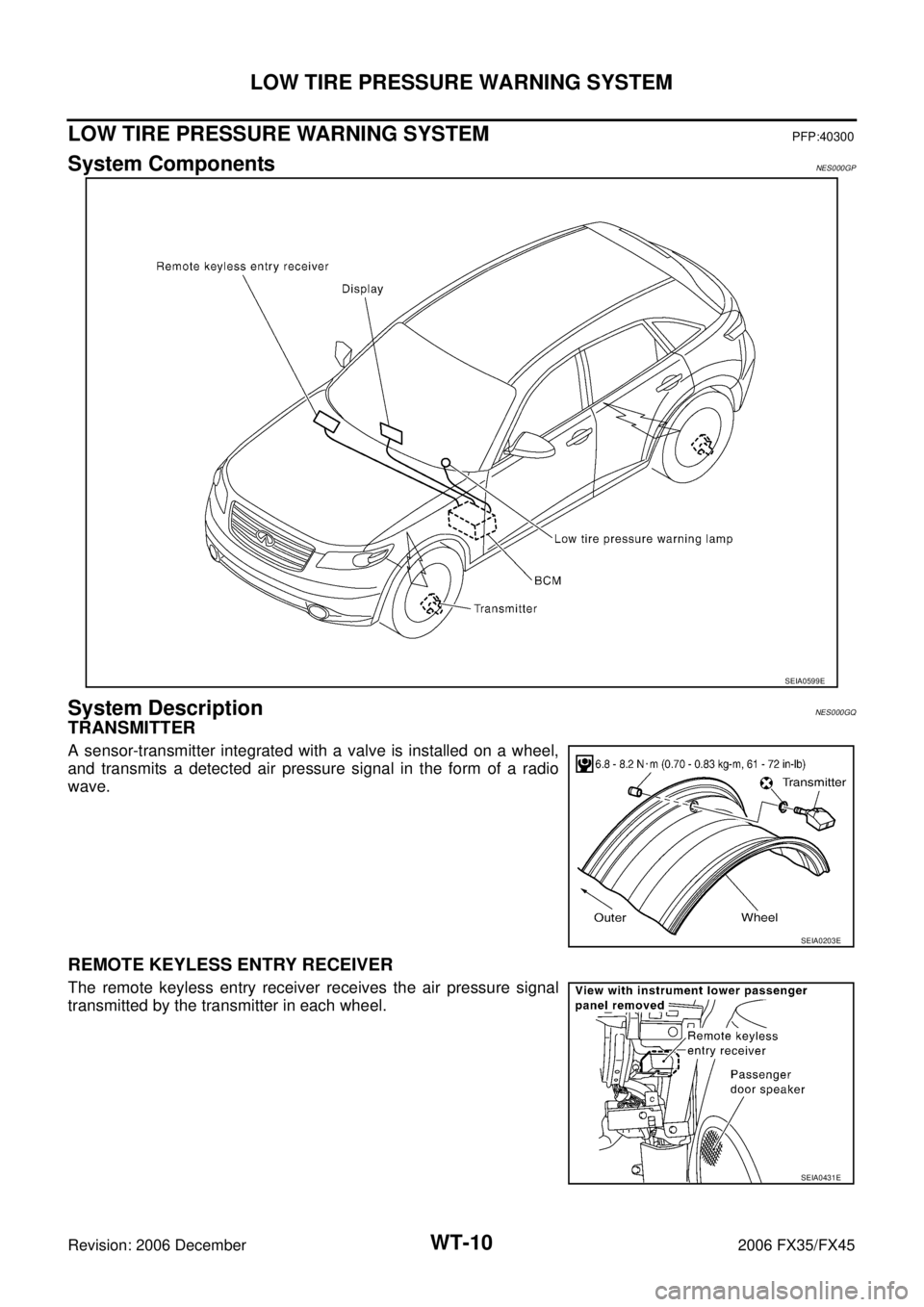

System ComponentsNES000GP
System DescriptionNES000GQ
TRANSMITTER
A sensor-transm

Page 4373 of 4462

INFINITI FX35 2006 Service Manual LOW TIRE PRESSURE WARNING SYSTEM WT-11
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45

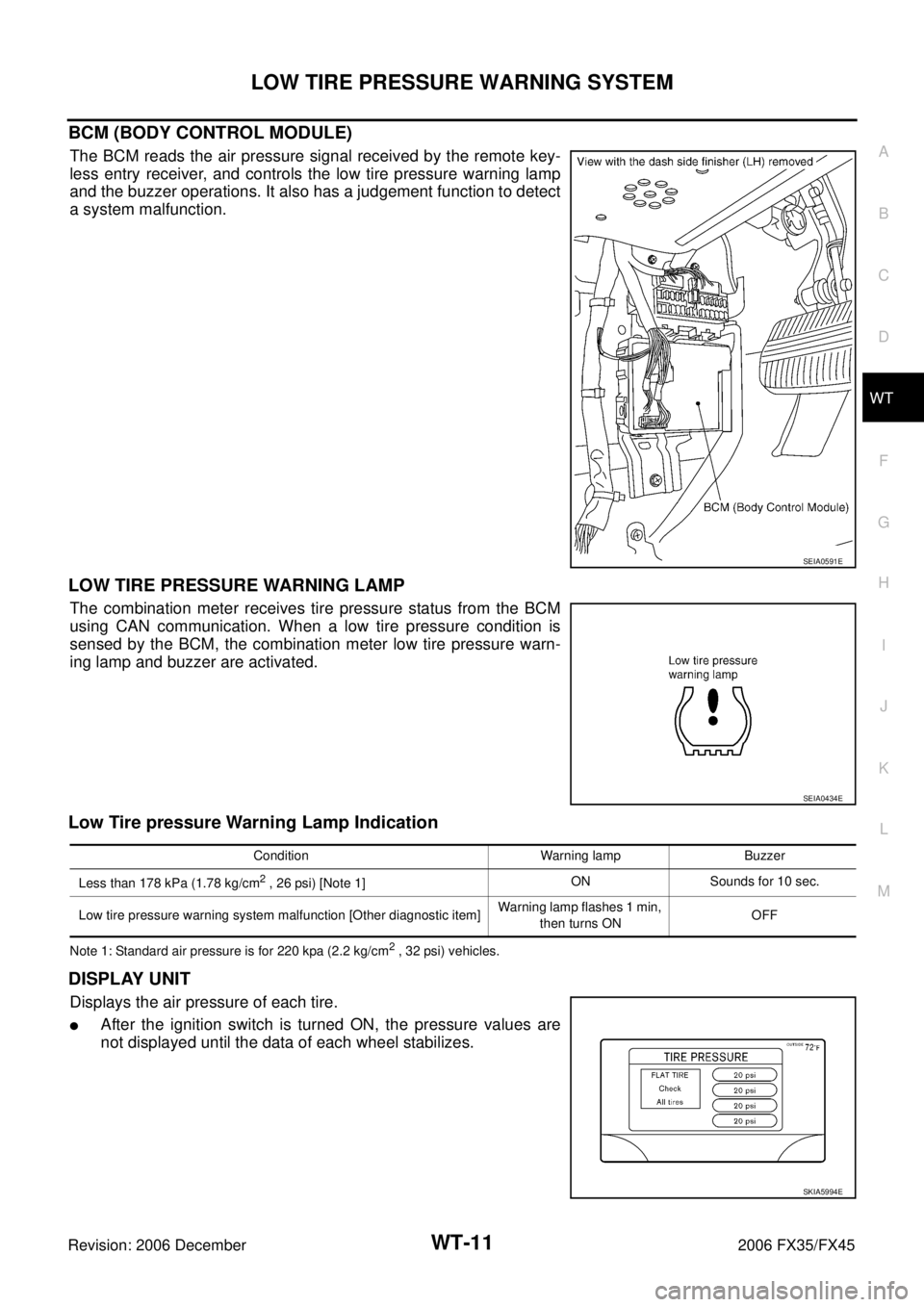

BCM (BODY CONTROL MODULE)
The BCM reads the air pressure signal received by the re

Page 4374 of 4462

INFINITI FX35 2006 Service Manual WT-12
CAN COMMUNICATION
Revision: 2006 December 2006 FX35/FX45
CAN COMMUNICATIONPFP:23710
System DescriptionNES000GR
CAN (Controller Area Network) is a serial communication line for real time applicat

Page 4375 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WT-13
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
TROUBLE DIAGNOSESPFP:00004

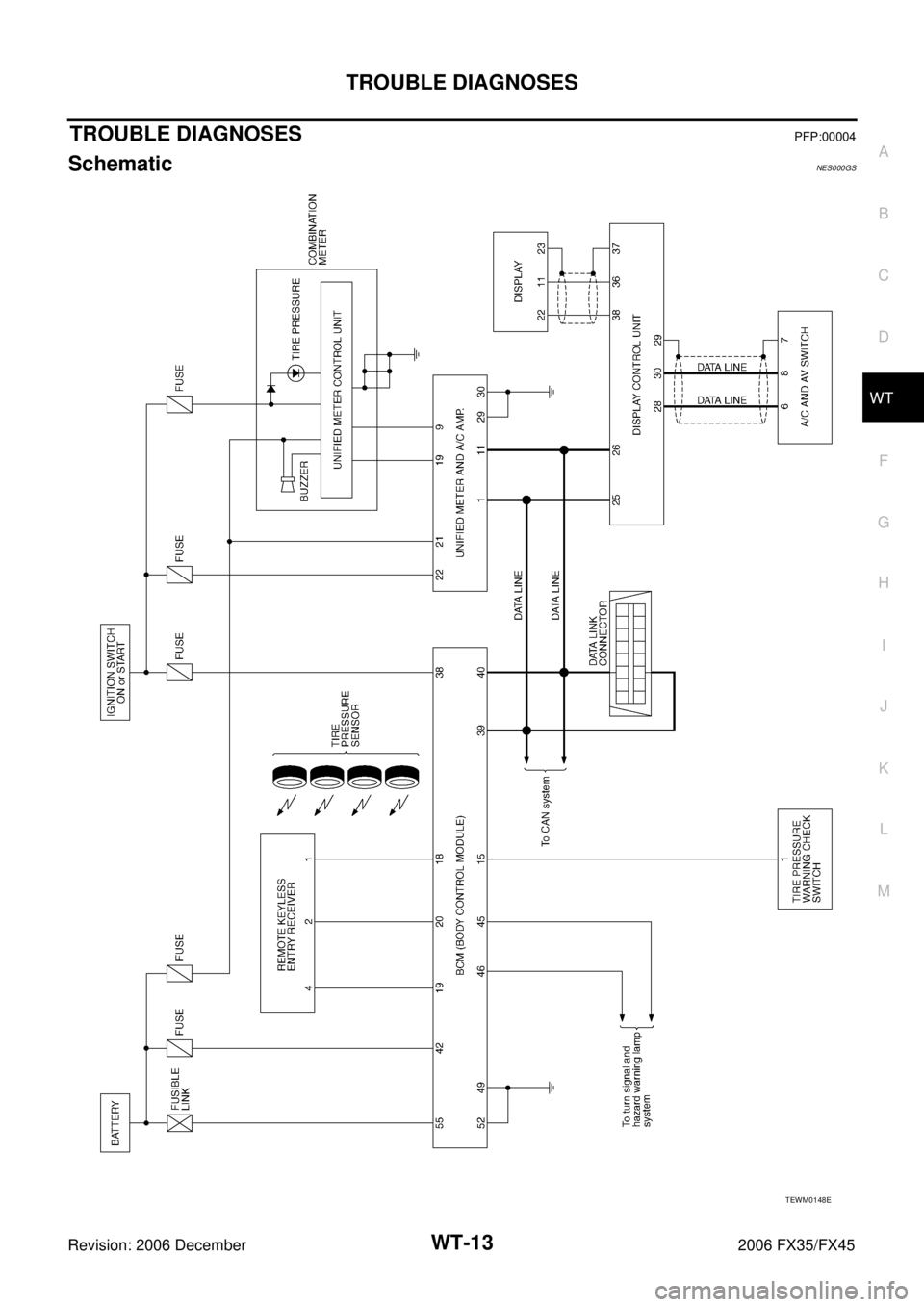

SchematicNES000GS
TEWM0148E

Page 4376 of 4462

INFINITI FX35 2006 Service Manual WT-14
TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45

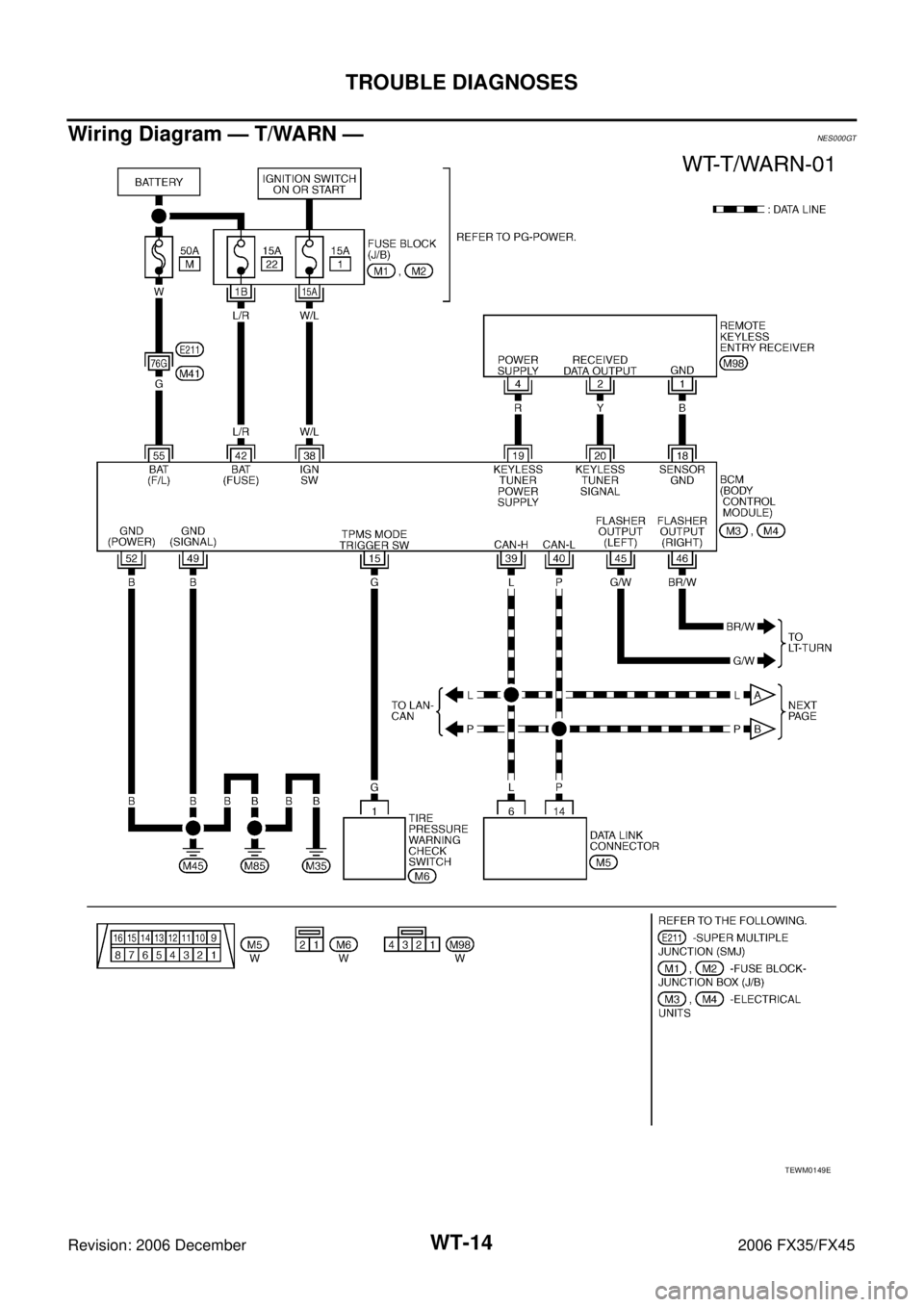

Wiring Diagram — T/WARN —NES000GT
TEWM0149E

Load next 8 pages

Page: < prev 1-10 ... 4337-4344 4345-4352 4353-4360 4361-4368 4369-4376 4377-4384 4385-4392 4393-4400 4401-4408 ... 4464 next >
