TROUBLE DIAGNOSIS SRS-25
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 December 2006 FX35/FX45
DIAGNOSTIC PROCEDURE 3
Final inspection after repairing SRS by using CONSULT-II — Diagnosis mode
Refer to GI-38, "
CONSULT-II Start Procedure" .
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Touch “SELF-DIAG [CURRENT]”.
a. If no malfunction is detected on “SELF-DIAG [CURRENT]”, repair of SRS is completed. Go to step 2.
If any malfunction is detected on “SELF-DIAG [CURRENT]”, the
malfunctioning part is not repaired completely or another mal-
functioning part is detected. Go to SRS-21, "
DIAGNOSTIC
PROCEDURE 2" , and repair malfunctioning part completely.
2. Touch “ERASE”. NOTE:
Touch “ERASE” to clear the memory of the malfunction (“SELF-
DIAG [PAST]”).
If the memory of the malfunction in “SELF-DIAG [PAST]” is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is repaired
completely.
3. Touch “BACK” key of CONSULT-II to “SELECT DIAG MODE” screen. Touch “SELF-DIAG [PAST]”.
SRS697
SRS701
SRS773
SRS697
Page 4274 of 4462
SRS-26
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
4. Make sure no malfunction is detected on “SELF-DIAG [PAST]”.
5. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM” appears in order to return to User mode from Diagnosis mode.
6. Turn ignition switch OFF then turn off and disconnect CON- SULT-II. Go to SRS-19, "
DIAGNOSTIC PROCEDURE 1" .
SRS702
Page 4275 of 4462

TROUBLE DIAGNOSIS SRS-27
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 December 2006 FX35/FX45
DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2)
Inspecting SRS malfunctioning record
1. CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULTS AFTER REPAIRING
Is it the first time for maintenance of SRS?
YES or NO
YES >> Go to SRS-21, "DIAGNOSTIC PROCEDURE 2" .
NO >> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased after repair. Go to SRS-25, "
DIAGNOSTIC PROCEDURE 3" .
DIAGNOSTIC PROCEDURE 5
Inspecting SRS intermittent malfunction by using CONSULT-II — Diagnosis mode
Refer to GI-38, "
CONSULT-II Start Procedure" .
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

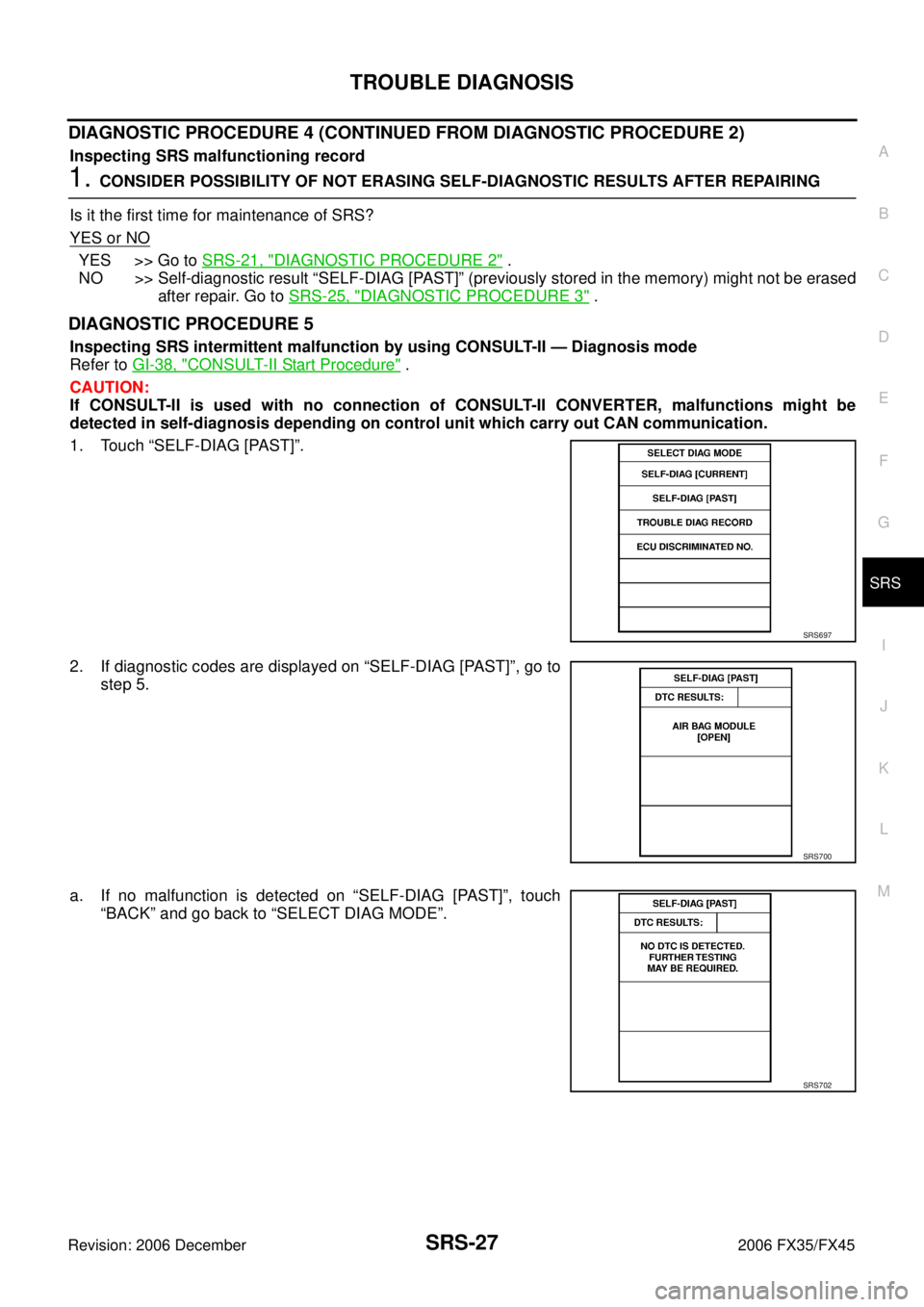

1. Touch “SELF-DIAG [PAST]”.
2. If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go to step 5.
a. If no malfunction is detected on “SELF-DIAG [PAST]”, touch “BACK” and go back to “SELECT DIAG MODE”.
SRS697
SRS700
SRS702
Page 4276 of 4462

SRS-28
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
3. Touch “TROUBLE DIAG RECORD”. NOTE:
With “TROUBLE DIAG RECORD”, diagnosis results previously
erased by a reset operation can be displayed.
4. Diagnostic code is displayed on “TROUBLE DIAG RECORD”.
5. Touch “PRINT”.
6. Compare diagnostic codes to SRS-27, "
DIAGNOSTIC PROCE-
DURE 5" .
7. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM” appears.
8. Turn ignition switch OFF, then turn off and disconnect CON- SULT-II, and both battery cables.
9. Repair the system as outlined by the “Repair order” in “Intermit- tent Malfunction Diagnostic Code Chart”, that corresponds to the
self-diagnostic result. For replacement procedure of component
parts, refer to the Removal and Installation procedure for the appropriate component.
10. Go to SRS-25, "
DIAGNOSTIC PROCEDURE 3" , for final inspection.
CONSULT-II Diagnostic Code Chart (“SELF-DIAG [PAST]” or “TROUBLE DIAG RECORD”)
SRS697
SHIA0182E
Diagnostic item Explanation Repair order
“Recheck SRS at each replacement”
NO DTC IS
DETECTED. When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.
Low battery voltage (Less than 9V)Go to SRS-25, "DIAGNOSTIC PRO-
CEDURE 3" .
No malfunction is detected.Go to SRS-25, "DIAGNOSTIC PRO-
CEDURE 3" .
DRIVER AIR BAG
MODULE
[OPEN]
Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace driver air bag module, diag-
nosis sensor unit and spiral cable.
DRIVER AIR BAG
MODULE
[VB-SHORT]
Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIR BAG
MODULE
[GND-SHORT]
Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIR BAG
MODULE
[SHORT]
Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[OPEN]
Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and front passenger air bag module.
ASSIST A/B MODULE
[VB-SHORT]
Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
Front passenger air bag module circuit is shorted between lines.
Page 4277 of 4462
![INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS SRS-29
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 December 2006 FX35/FX45
CRASH ZONE SEN
[UNIT FAIL]
CRASH ZONE SEN
[COMM FAIL]Crash zone sensor 1. Visually check the INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS SRS-29
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 December 2006 FX35/FX45
CRASH ZONE SEN
[UNIT FAIL]
CRASH ZONE SEN
[COMM FAIL]Crash zone sensor 1. Visually check the](/manual-img/42/57019/w960_57019-4276.png)
TROUBLE DIAGNOSIS SRS-29
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 December 2006 FX35/FX45
CRASH ZONE SEN
[UNIT FAIL]
CRASH ZONE SEN
[COMM FAIL]Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace crash zone sensor and diag-
nosis sensor unit.
SIDE MODULE LH
[OPEN]
Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and LH side air bag module.
SIDE MODULE LH
[VB-SHORT]
Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
Front LH side air bag module circuit is shorted between lines.
SIDE MODULE RH
[OPEN]
Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and RH side air bag module.
SIDE MODULE RH
[VB-SHORT]
Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
Front RH side air bag module circuit is shorted between lines.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]
LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and LH side air bag (Satellite) sen-
sor.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]
RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and RH side air bag (Satellite) sen-
sor.
PRE-TEN FRONT LH
[OPEN]
Front LH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and front LH seat belt.
PRE-TEN FRONT LH
[VB-SHORT]
Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
Front LH pre-tensioner circuit is shorted between lines.
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”
Page 4278 of 4462
![INFINITI FX35 2006 Service Manual SRS-30
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
PRE-TEN FRONT RH
[OPEN]Front RH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the ha INFINITI FX35 2006 Service Manual SRS-30
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
PRE-TEN FRONT RH
[OPEN]Front RH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the ha](/manual-img/42/57019/w960_57019-4277.png)
SRS-30
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
PRE-TEN FRONT RH
[OPEN]Front RH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and front RH seat belt.
PRE-TEN FRONT RH
[VB-SHORT]
Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
Front RH pre-tensioner circuit is shorted between lines.
CURTAIN MODULE LH
[OPEN]
LH side curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and LH side curtain air bag module.
CURTAIN MODULE LH
[VB-SHORT]
LH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE LH
[GND-SHORT]
LH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE LH
[SHORT]
LH side curtain air bag module circuit is shorted between lines.
CURTAIN MODULE RH
[OPEN]
RH side curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and RH side curtain air bag module.
CURTAIN MODULE RH
[VB-SHORT]
RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE RH
[GND-SHORT]
RH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE RH
[SHORT]
RH side curtain air bag module circuit is shorted between lines.
CONTROL UNIT
Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness connection.
2. Replace the diagnosis sensor unit.
PASS A/B INDCTR
CKT
Cutoff telltale circuit is open or shorted to grand or the circuits
are shorted each other. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace cutoff telltale.
4. Replace the diagnosis sensor unit.
OCCUPANT SENS C/U
[UNIT FAIL]
Trouble occurs in Occupant Classification System-CU.Replace passenger side seat cush-
ion assembly.
OCCUPANT SENS
[UNIT FAIL]
Trouble occurs in Occupant Classification System-SENS.Replace passenger side seat cush-
ion assembly.
BELT TENSION SENS
[UNIT FAIL]
Trouble occurs in Belt Tension sensor (BTS), circuit of BTS—
Occupant Classification System-CU, or Occupant Classification
System-CU. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace passenger side seat belt assembly.
4. Replace the diagnosis sensor unit.
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”
Page 4279 of 4462
TROUBLE DIAGNOSIS SRS-31
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 December 2006 FX35/FX45
OCCUPANT SENS C/U
[COMM FAIL]Trouble occurs in Occupant Classification System-CU, circuit of
Occupant Classification System-CU—Diagnosis Senser Unit, or
Diagnosis Sensor Unit. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace passenger side seat cush- ion assembly.
4. Replace the diagnosis sensor unit.
FRONTAL COLLISION-
DETECTION
Seat belt pre-tensioner and front air bag are deployed.Go to SRS-50, "For Frontal Colli-
sion" .
SIDE COLLISION
DETECTION
Side and curtain air bag is deployed.Go to SRS-52, "For Side Collision" .
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”
Page 4280 of 4462
SRS-32
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Trouble Diagnosis without CONSULT-IINHS0007I
DIAGNOSTIC PROCEDURE 6
Inspecting SRS Malfunctioning Parts by Using “AIR BAG” Warning Lamp — Diagnosis Mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is detected in User mode.
1. Turn ignition switch ON.
2. After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.
3. Wait more than 3 seconds.
4. Repeat the steps 1 to 3 twice. (Perform three times in all.)
5. Turn ignition switch ON.
SRS is now in Diagnosis mode.
“AIR BAG” warning lamp operates in Diagnosis mode as follows:
WARNING LAMP FLASH CODE CHART
PHIA0532E
PHIA1233E
SHIA0028E
