2006 INFINITI FX35 Service Manual

service auxiliary battery location catalytic converter change wheel display check engine

Load previous 8 pages

Page 1497 of 4462

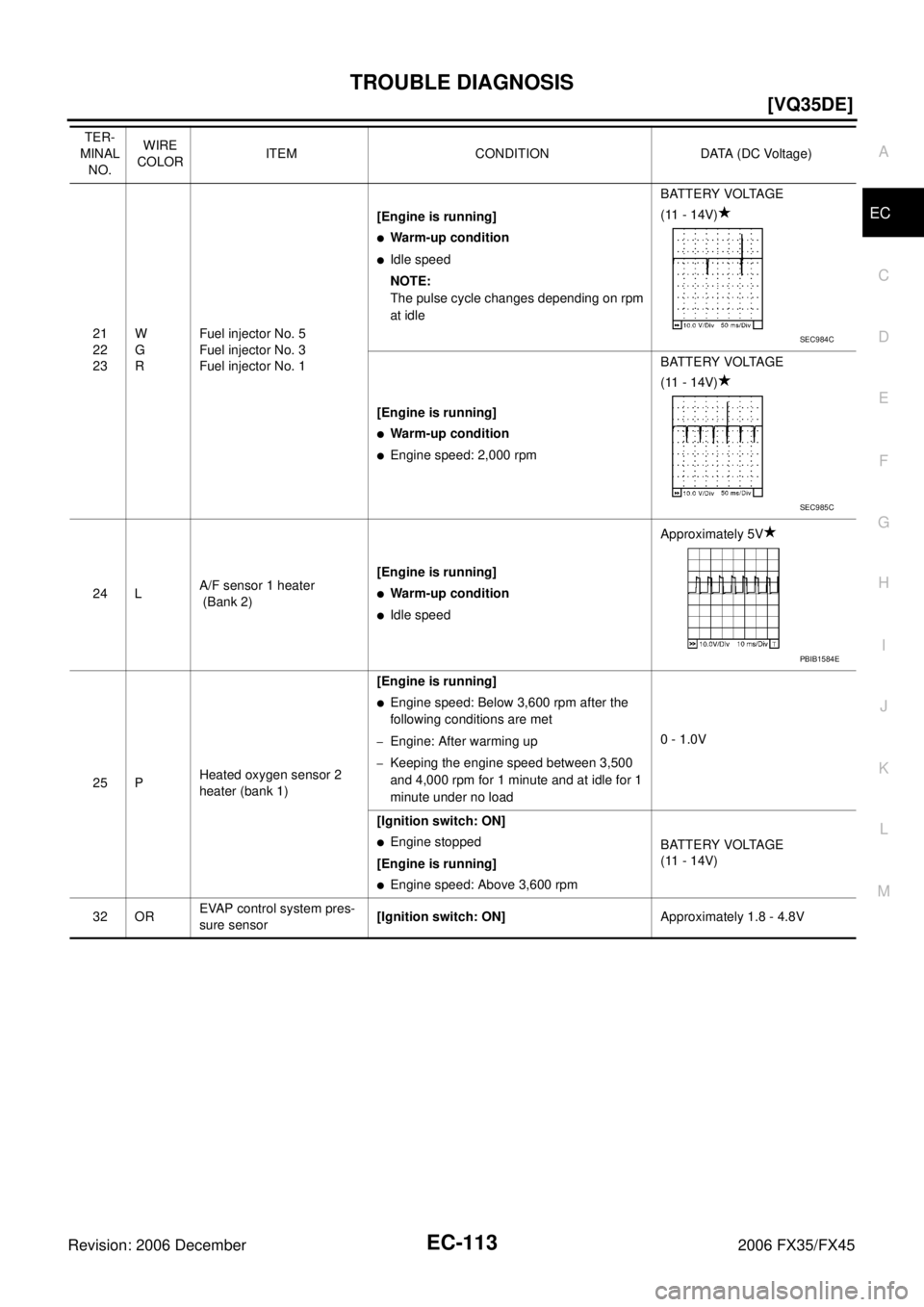

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-113
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
21
22
23 W
G
R Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1 [Eng

Page 1498 of 4462

INFINITI FX35 2006 Service Manual EC-114
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
33 R/L Camshaft position sensor
(PHASE) (bank 1) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle

Page 1499 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-115
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX4547 L Sensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximat

Page 1500 of 4462

INFINITI FX35 2006 Service Manual EC-116
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
66 B Sensor ground
(Throttle position sensor) [Engine is running]Warm-up condition
Idle speed
Approximately 0V
67 B/W Sen

Page 1501 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-117
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX4582 B/W Sensor ground
(APP sensor 1, ASCD steer-
ing switch, ICC steering
switch) [E

TROUBLE DIAGNOSIS EC-117
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX4582 B/W Sensor ground
(APP sensor 1, ASCD steer-
ing switch, ICC steering
switch) [Engine is running]Warm-up condition
Idle speed
Approximately 0V
83 G/OR Sensor ground
(APP sensor 2) [Engine is running]
Warm-up condition
Idle speed
Approximately 0V
85 PU Data link connector [Ignition switch: ON]
CONSULT-II or GST: Disconnected Approximately 5V - Battery volt-
age (11 - 14V)
86 P CAN communication line [Ignition switch: ON] Approximately 1.1 - 2.3V
Output voltage varies with the
communication status.
90 L/B Sensor power supply
(APP sensor 1) [Ignition switch: ON]
Approximately 5V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
94 L CAN communication line [Ignition switch: ON] Approximately 2.6 - 3.2V
Output voltage varies with the
communication status.
98 Y/R Accelerator pedal position
sensor 2 [Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released
0.15 - 0.60V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed 1.95 - 2.40V
99 G/Y ICC steering switch
(models with ICC system) [Ignition switch: ON]
ICC steering switch: OFF
Approximately 4.3V
[Ignition switch: ON]
MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]
CANCEL switch: Pressed Approximately 1.3V
[Ignition switch: ON]
RESUME/ACCELERATE switch: Pressed Approximately 3.7V
[Ignition switch: ON]
SET/COAST switch: Pressed Approximately 3.0V
[Ignition switch: ON]
DISTANCE switch: Pressed Approximately 2.2V
99 G/Y ASCD steering switch
(models with ASCD system) [Ignition switch: ON]
ASCD steering switch: OFF
Approximately 4.0V
[Ignition switch: ON]
MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]
CANCEL switch: Pressed Approximately 1.0V
[Ignition switch: ON]
RESUME/ACCELERATE switch: Pressed Approximately 3.0V
[Ignition switch: ON]
SET/COAST switch: Pressed Approximately 2.0V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)

Page 1502 of 4462

INFINITI FX35 2006 Service Manual EC-118
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
101 P/L Stop lamp switch [Ignition switch: OFF]Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]
Brake pe

EC-118
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
101 P/L Stop lamp switch [Ignition switch: OFF]Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
102 LG/B PNP switch [Ignition switch: ON]
Selector lever: P or N
Approximately 0V
[Ignition switch: ON]
Except above position BATTERY VOLTAGE
(11 - 14V)
104 L/OR Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed 3.9 - 4.7V
107 PU/W Fuel tank temperature sen-
sor [Engine is running] Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.
108 SB ICC brake switch
(models with ICC system)
ASCD brake switch
(models with ASCD system) [Ignition switch: ON]
Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]
Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
109 W/L Ignition switch [Ignition switch: OFF]
0V
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 3 G Y / R F u e l p u m p r e l a y [Ignition switch: ON]
For 1 second after turning ignition switch ON
[Engine is running] 0 - 1.5V
[Ignition switch: ON]
More than 1 second after turning ignition
switch ON BATTERY VOLTAGE
(11 - 14V)
11 5
11 6 B/R
B/W ECM ground [Engine is running]
Idle speed Body ground
11 7 R / Y EVAP canister vent control
valve [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
121 R/W Power supply for ECM
(Back-up) [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)

Page 1503 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-119
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope

Page 1504 of 4462

INFINITI FX35 2006 Service Manual EC-120
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
Item DIAGNOSTIC TEST MODE
WORK SUP-
PORT SELF-DIAGNOSTIC
RESU
