2006 INFINITI FX35 Service Manual

coolant temperature audio auxiliary battery headlights AUX airbag off

Load previous 8 pages

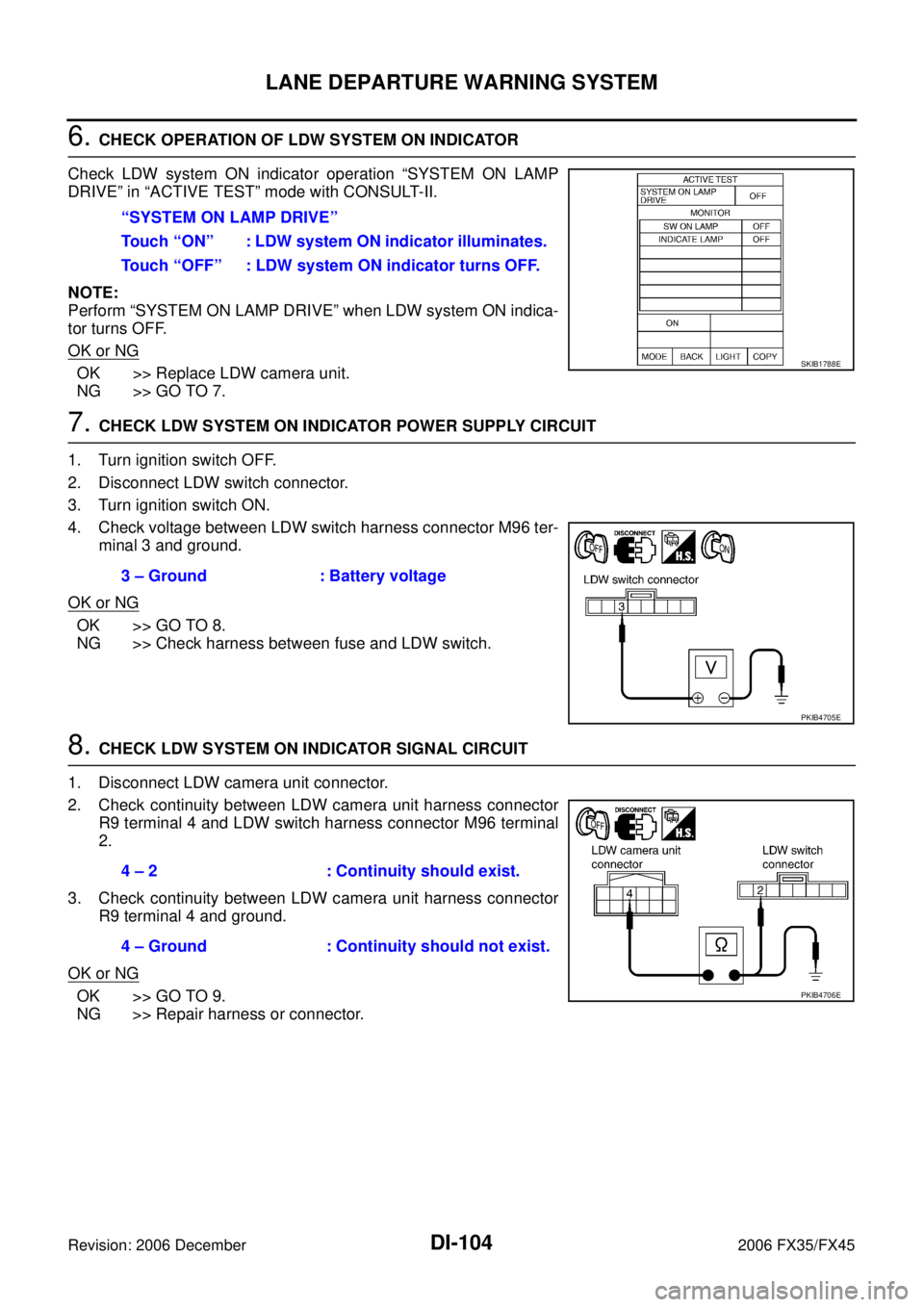

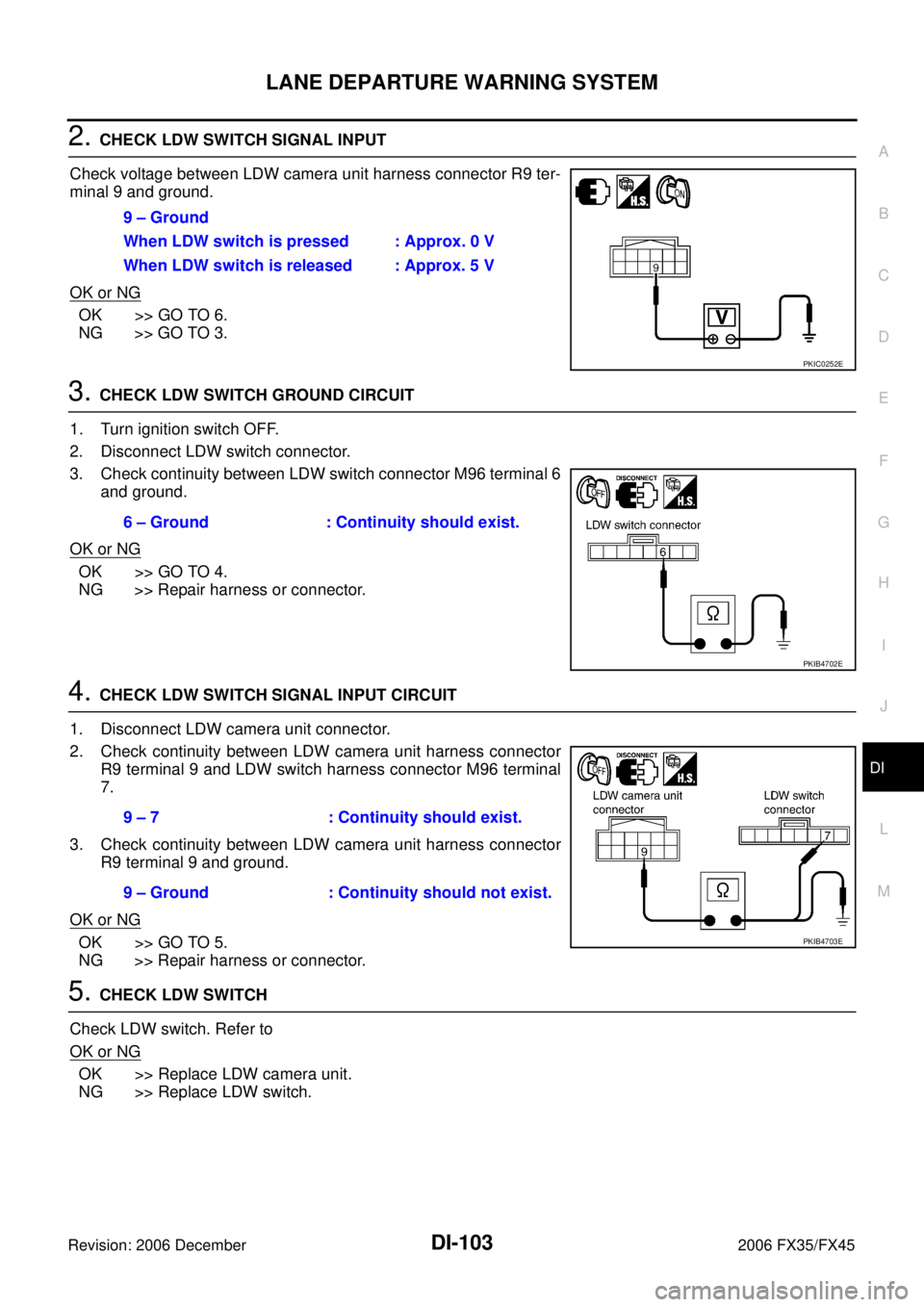

Page 1353 of 4462

INFINITI FX35 2006 Service Manual LANE DEPARTURE WARNING SYSTEM DI-103
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
2. CHECK LDW SWITCH SIGNAL INPUT
Check voltage between LDW camera unit harness conne

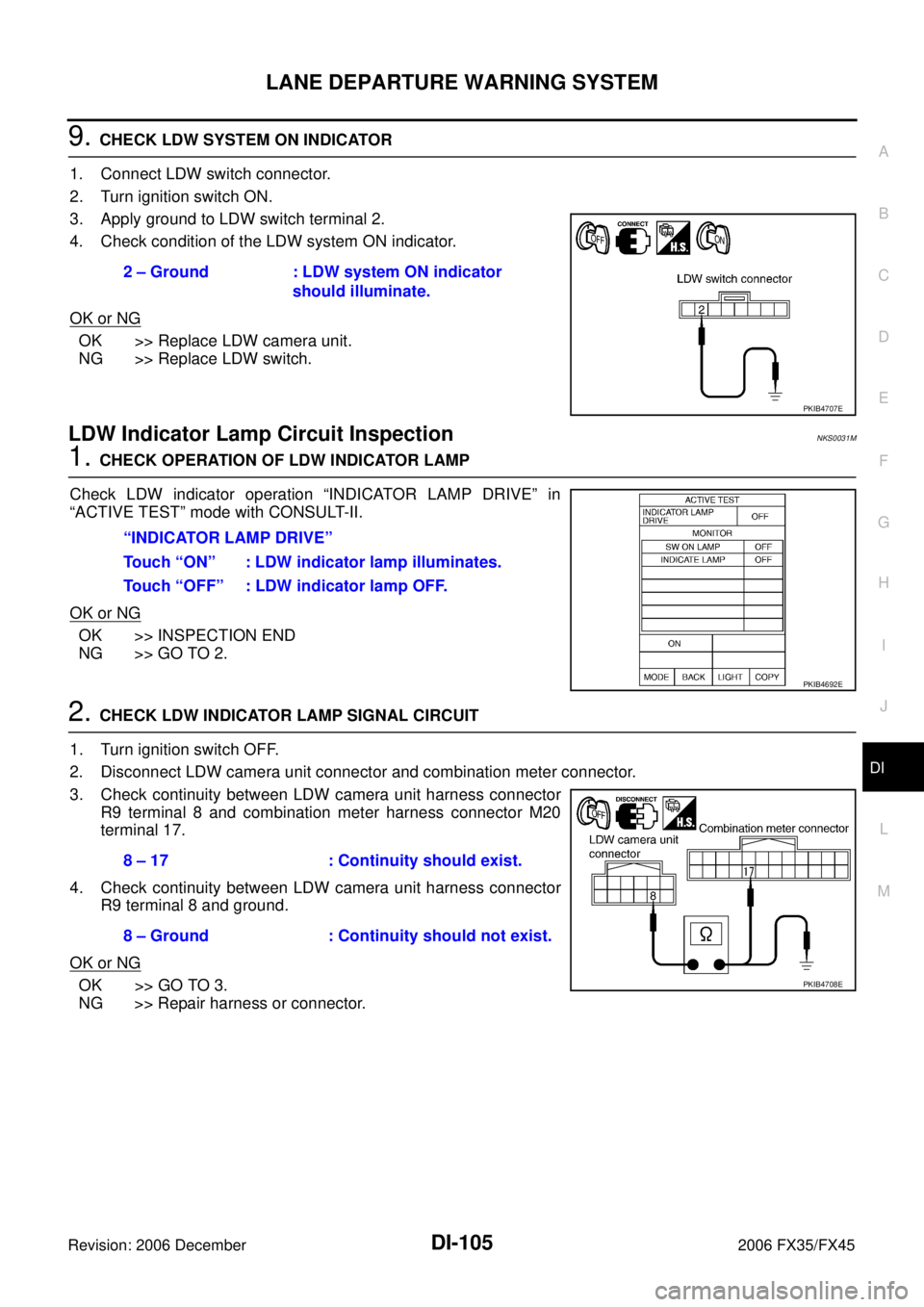

Page 1354 of 4462

INFINITI FX35 2006 Service Manual DI-104
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45
6. CHECK OPERATION OF LDW SYSTEM ON INDICATOR
Check LDW system ON indicator operation “SYSTEM ON LAMP
DRIVE” in “ACT

Page 1355 of 4462

INFINITI FX35 2006 Service Manual LANE DEPARTURE WARNING SYSTEM DI-105
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
9. CHECK LDW SYSTEM ON INDICATOR
1. Connect LDW switch connector.
2. Turn ignition

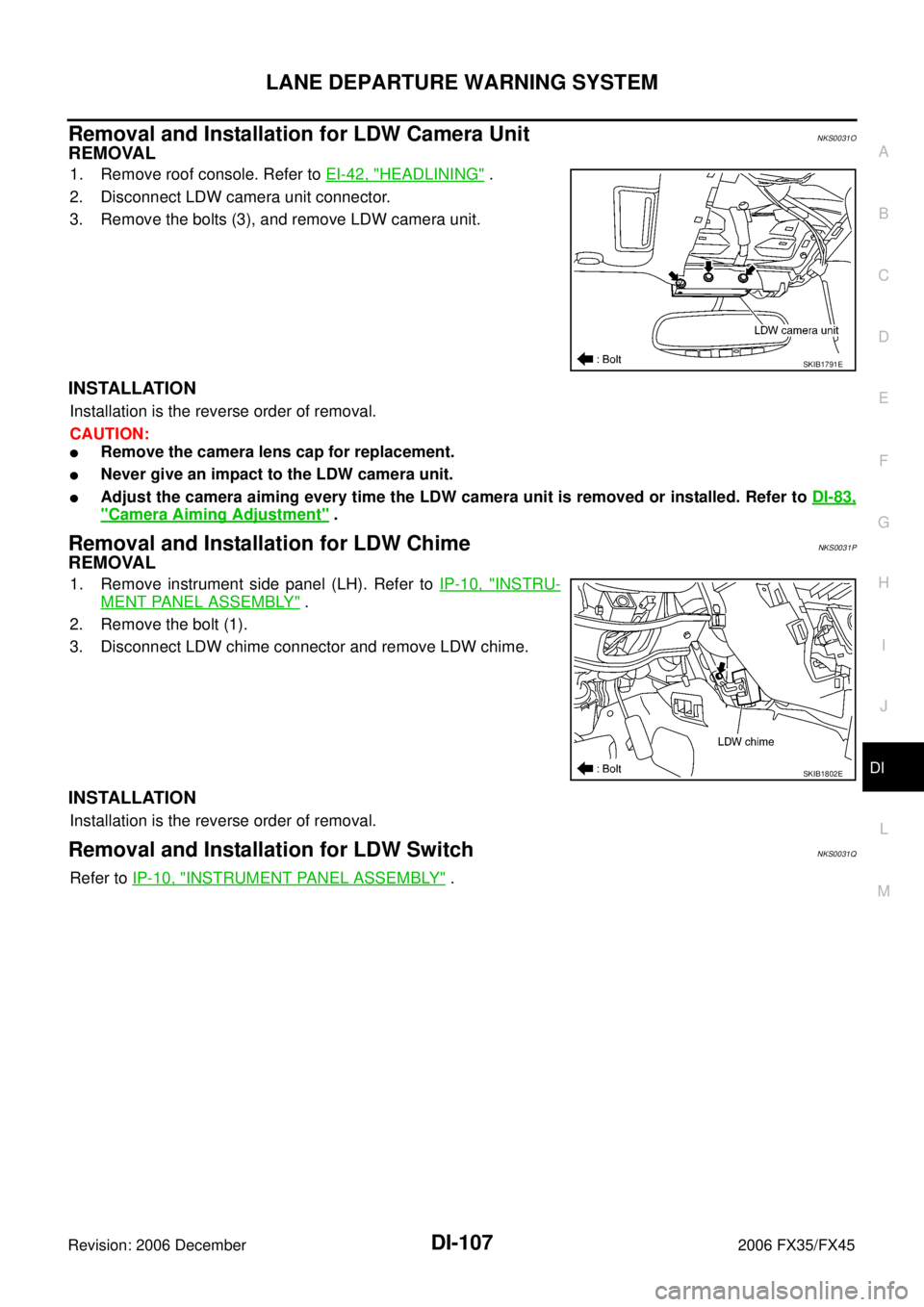

Page 1356 of 4462

INFINITI FX35 2006 Service Manual DI-106
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45
3. CHECK LDW INDICATOR LAMP OPERATION
1. Connect combination meter connector.
2. Turn ignition switch ON.
3. Ground combin

Page 1357 of 4462

INFINITI FX35 2006 Service Manual LANE DEPARTURE WARNING SYSTEM DI-107
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Removal and Installation for LDW Camera UnitNKS0031O
REMOVAL
1. Remove roof console.

Page 1358 of 4462

INFINITI FX35 2006 Service Manual DI-108
CAN COMMUNICATION
Revision: 2006 December 2006 FX35/FX45
CAN COMMUNICATIONPFP:23710
System DescriptionNKS003HO
CAN (Controller Area Network) is a serial communication line for real time applica

Page 1359 of 4462

INFINITI FX35 2006 Service Manual COMPASS DI-109
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
COMPASSPFP:24835
Precautions for CompassNKS003HQ
NOTE:
Do not install the ski rack, antenna, etc. which is

COMPASS DI-109
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
COMPASSPFP:24835
Precautions for CompassNKS003HQ
NOTE:
Do not install the ski rack, antenna, etc. which is attach to the vehicle with a magnet base. It affects the
operation of the compass.
When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not
spray glass cleaner directly on the mirror as it may cause the liquid cleaner to enter the mirror housing.
System DescriptionNKS003HR
This electronic compass is able to display 8 primary directions:
N, NE, E, SE, S, SW, W, NW.
The inside mirror switch (2) is used to operate the compass and
automatic anti-glare system.
Switch Operation
NOTE:
For further details of the compass and automatic anti-glare system, refer to Owner's Manual
All standard compasses determine direction relative to Magnetic North; however, this electronic compass
is designed to display direction relative to True North.
The difference between Magnetic North and True North varies from place to place across the surface of
the earth.
This electronic compass must be “told” approximately where it is on the earth’s surface so that the Mag-
netic North reading can be properly converted into a True North display.
To tell the electronic compass where it’s at, the earth is separated into numbered “Zone Variances”. The
Zone Variance number in which the compass is to function must be entered into this electronic compass.
Each zone is magnetically about 4.2 ° wide. Typically, anything under 22.5 ° total zone change is not
noticed on the electronic compass display. However, over 22.5 °, a reading may be off by one or more pri-
mary directions.
On long trips, a vehicle may leave its original zone and enter one or more new zones. Generally, you do
not need to reset the compass zone if you travel between 3 or 4 zones, such as business travel or vaca-
tion. The typical driver will not notice any difference on the display within 3 or 4 zones. However, if the
vehicle is “permanently” moved to a new location, it is recommended that the compass zone be reset.
SKIB8487E
1. Compass display
2. Inside mirror switch
Press Compass is turned ON/OFF
Press and hold
(for 3 – 6 sec.) Automatic anti-glare system turns ON/OFF
Press and hold
(for 6 – 9 sec.) Compass display turns to zone variation change
mode
Press and hold
(for more than 9 sec.) Compass display turns to calibration mode

Page 1360 of 4462

INFINITI FX35 2006 Service Manual DI-110
COMPASS
Revision: 2006 December 2006 FX35/FX45
TroubleshootingNKS003HS
The electronic compass is highly protected from changes in most magnetic fields. However, some large
changes in magnetic

DI-110
COMPASS
Revision: 2006 December 2006 FX35/FX45
TroubleshootingNKS003HS
The electronic compass is highly protected from changes in most magnetic fields. However, some large
changes in magnetic fields can affect it. Some examples are (but not limited to): high tension power lines,
large steel buildings, subways, steel bridges, automatic car washes, large piles of scrap metal, etc. While
this does not happen very often, it is possible.
During normal operation, the Compass Mirror will continuously update the compass calibration to adjust
for gradual changes in the vehicle's magnetic “remnant” field. If the vehicle is subjected to high magnetic
influences, the compass may appear to indicate false headings, become locked, or appear that it is
unable to be calibrated. If this occurs, perform the calibration procedure.
If at any time the compass continually displays the incorrect direction or the reading is erratic or locked,
verify the correct zone variance.
Troubleshooting Chart
Symptom Cause Solution / Reference
The compass display reads “C”.
Compass is not calibrated.
Incorrect zone variance setting.
Large change in magnetic field (Steel
bridges, subways, concentrations of
metal, carwashes, etc.)
Compass was calibrated incorrectly or in
the presence of a strong magnetic field. Perform Calibration.
Refer to D I - 111 , "
Calibration Procedure" .
Compass shows the wrong direction.
Compass does not change direction –
appears “Locked”.
Compass does not show all the directions,
one or more is missing.
The compass was calibrated but it “loses”
calibration.
On long trips the compass shows the
wrong direction. Perform Zone Variation Setting if correct
reading is desired in that location.
Refer to D I - 111 , "
Zone Variation Setting
Procedure" .
Compass does not work – No direction is
displayed. Compass not turned ON.
Check for green LED indicator (inside mir-
ror switch).
No power to inside mirror. Check power supply circuit.
