INFINITI FX35 2006 Service Manual PRECAUTIONS GI-9
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
Precautions for Air Conditioning NAS00067
Use an approved refrigerant recovery unit any time the air cond

Page 3194 of 4462

INFINITI FX35 2006 Service Manual GI-10
HOW TO USE THIS MANUAL
Revision: 2006 December 2006 FX35/FX45
HOW TO USE THIS MANUALPFP:00008
Description NAS00068
This volume explains “Removal, Disassembly, Installation, Inspection and Adj

GI-10
HOW TO USE THIS MANUAL
Revision: 2006 December 2006 FX35/FX45
HOW TO USE THIS MANUALPFP:00008
Description NAS00068
This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diag-
noses”.
Te r m sNAS00069
The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal
injury and/or damage to some part of the vehicle.
WARNING indicates the possibility of personal injury if instructions are not followed.
CAUTION indicates the possibility of component damage if instructions are not followed.
BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.
Standard value:Tolerance at inspection and adjustment.
Limit value:The maximum or minimum limit value that should not be exceeded at inspection and adjust-
ment.
UnitsNAS0006A
The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit),
and alternatively expressed in the metric system and in the yard/pound system.
Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about
the standard tightening torque.
“Example”
Range
Standard
ContentsNAS0006B
ALPHABETICAL INDEX is provided at the end of this manual so that you can rapidly find the item and
page you are searching for.
A QUICK REFERENCE INDEX , a black tab (e.g. ) is provided on the first page. You can quickly find
the first page of each section by matching it to the section's black tab.
THE CONTENTS are listed on the first page of each section.
THE TITLE is indicated on the upper portion of each page and shows the part or system.
THE PAGE NUMBER of each section consists of two or three letters which designate the particular sec-
tion and a number (e.g. “BR-5”).
THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks
of work and hidden or tricky steps which are not shown in the previous large illustrations.
Assembly, inspection and adjustment procedures for the complicated units such as the automatic tran-
saxle or transmission, etc. are presented in a step-by-step format where necessary. Outer Socket Lock Nut : 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)
Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb)

Page 3195 of 4462

INFINITI FX35 2006 Service Manual HOW TO USE THIS MANUAL GI-11
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
ComponentsNAS0006C
THE LARGE ILLUSTRATIONS are exploded views (see the following) and cont

Page 3196 of 4462

INFINITI FX35 2006 Service Manual GI-12
HOW TO USE THIS MANUAL
Revision: 2006 December 2006 FX35/FX45

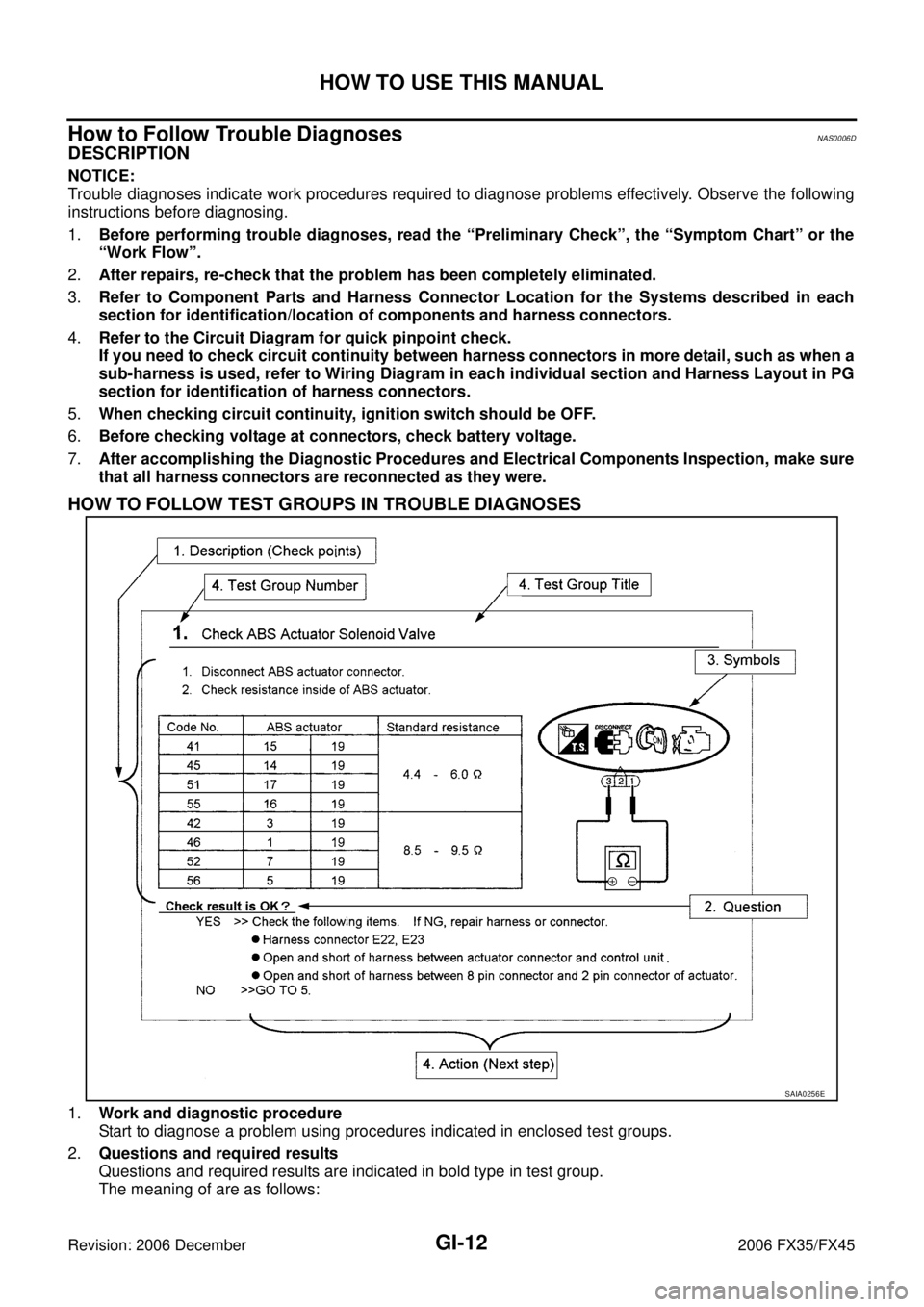

How to Follow Trouble DiagnosesNAS0006D
DESCRIPTION
NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problem

Page 3197 of 4462

INFINITI FX35 2006 Service Manual HOW TO USE THIS MANUAL GI-13
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
3. Symbol used in illustration
Symbols included in illustrations refer to measurements or p

Page 3198 of 4462

INFINITI FX35 2006 Service Manual GI-14
HOW TO USE THIS MANUAL
Revision: 2006 December 2006 FX35/FX45
TYPE 2: Harness Wire Color and Connector Number are Shown in Text

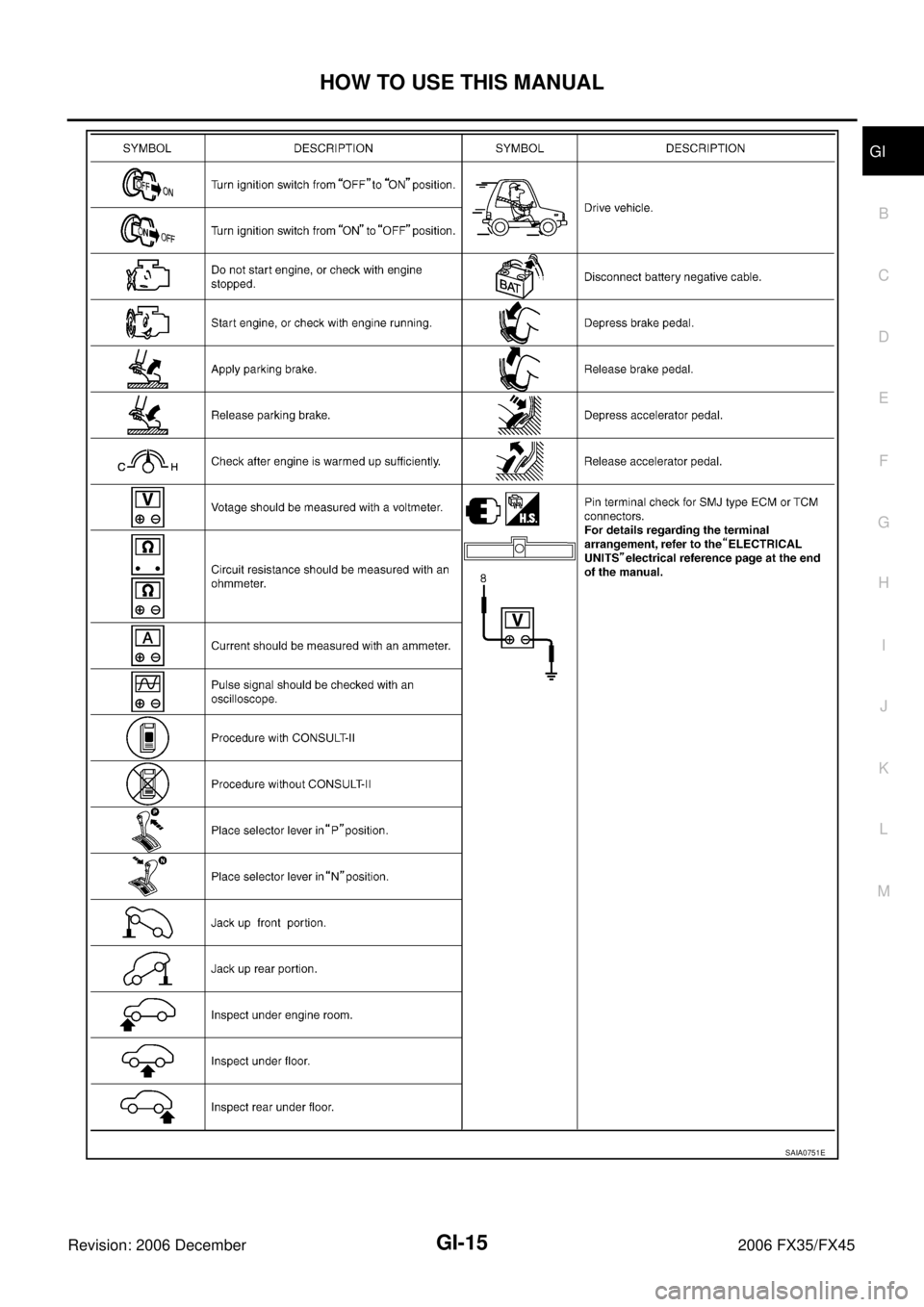

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES
SGI144A
SAIA

Page 3199 of 4462

INFINITI FX35 2006 Service Manual HOW TO USE THIS MANUAL GI-15
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
SAIA0751E

Page 3200 of 4462

INFINITI FX35 2006 Service Manual GI-16
HOW TO USE THIS MANUAL
Revision: 2006 December 2006 FX35/FX45
How to Read Wiring DiagramsNAS0006E
CONNECTOR SYMBOLS
Most of connector symbols in wiring diagrams are shown from the terminal side
