Page 4457 of 4462

INFINITI FX35 2006 Service Manual POWER SOCKET WW-55 C D E F G H I J L M A B WW Revision: 2006 December 2006 FX35/FX45 POWER SOCKETPFP:253A2 Wiring Diagram — P/SCKT —NKS0033S TKWM4490E

Page 4458 of 4462

INFINITI FX35 2006 Service Manual WW-56 POWER SOCKET Revision: 2006 December 2006 FX35/FX45 Removal and Installation of Front Power Socket – 1NKS003N8 REMOVAL 1. Remove A/T console finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMB

Page 4459 of 4462

INFINITI FX35 2006 Service Manual POWER SOCKET WW-57 C D E F G H I J L M A B WW Revision: 2006 December 2006 FX35/FX45 Removal and Installation of Luggage Room Power SocketNKS0033V REMOVAL 1. Remove inner socket from the r

Page 4460 of 4462

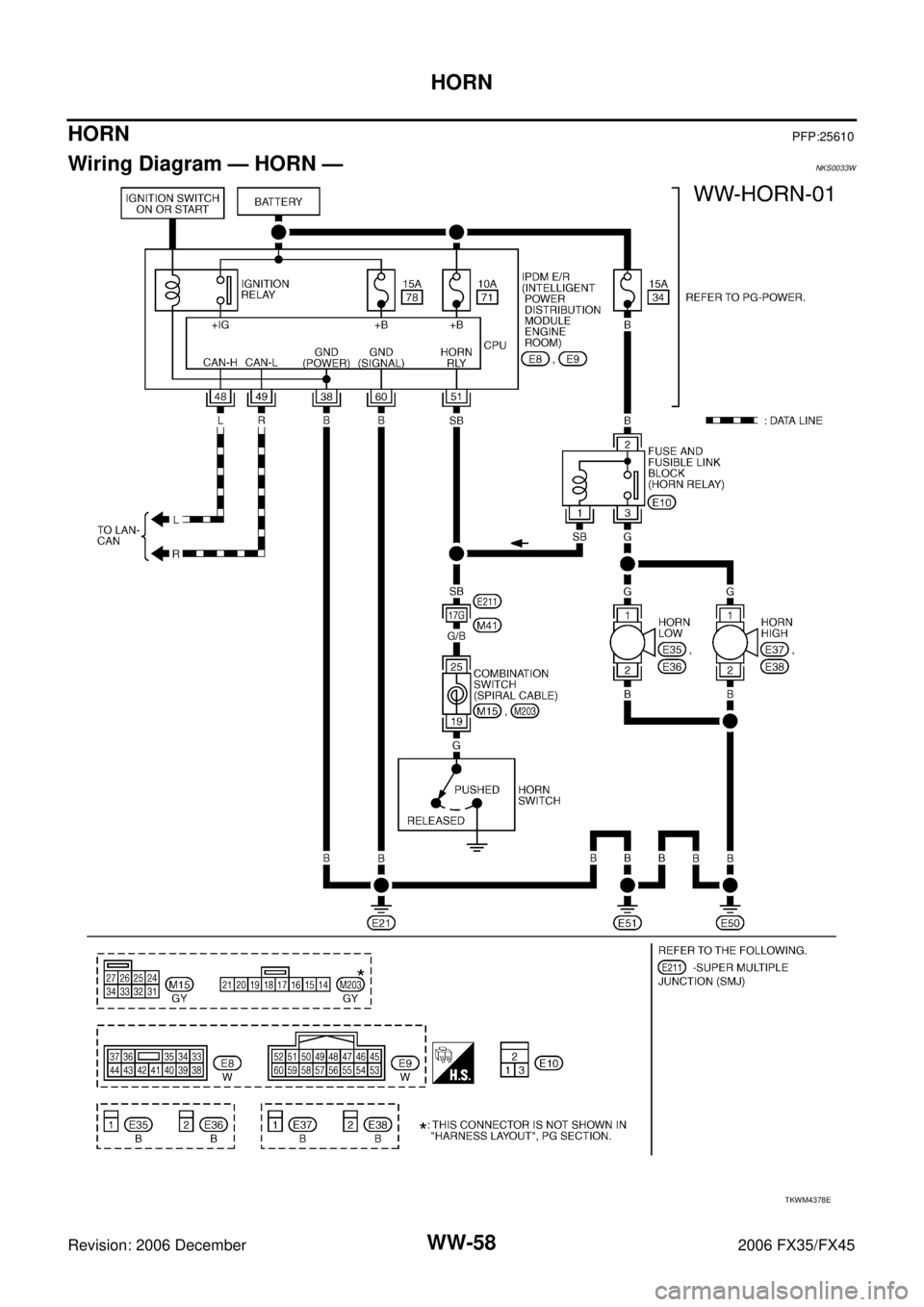

INFINITI FX35 2006 Service Manual WW-58 HORN Revision: 2006 December 2006 FX35/FX45 HORNPFP:25610 Wiring Diagram — HORN —NKS0033W TKWM4378E

Page 4461 of 4462

INFINITI FX35 2006 Service Manual HORN WW-59 C D E F G H I J L M A B WW Revision: 2006 December 2006 FX35/FX45 Removal and InstallationNKS0033X REMOVAL 1. Remove front grille. Refer to EI-22, "FRONT GRILLE" . 2. Disco

Page 4462 of 4462

INFINITI FX35 2006 Service Manual WW-60 HORN Revision: 2006 December 2006 FX35/FX45
