INFINITI FX35 2006 Service Manual PERIODIC MAINTENANCE MA-9
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2006 December 2006 FX35/FX45
NOTE:
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) o

PERIODIC MAINTENANCE MA-9
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2006 December 2006 FX35/FX45
NOTE:
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace the drive belts i f found
damaged or if the auto belt tensioner reading (only for VK45DE engine) reaches the maximum limit.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Maintenance-free item. For service procedures, refer to FL section.
(4) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(5) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by INFINITI for reliable vehicle operation. The owner need not perfo rm
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and inter vals are
required.
CHASSIS AND BODY MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary.
Spark plugs (PLATINUM-
TIPPED type) Replace every 105,000 miles (169,000 km). MA-20
,
MA-
27
Intake & exhaust valve clear-
ance* NOTE (5) EM-93, "Valve Clear-
ance",
EM-
222, "Va l v e
Clearance"
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months, which-
ever comes first. Miles x 1,000
(km x 1,000) Months 33.75
(54) 27 37.5
(60) 30 41.25
(66) 33 45
(72) 36 48.75
(78) 39 52.5
(84) 42 56.25
(90) 45 60
(96) 48
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months,
whichever comes first. Miles x 1,000
(km x 1,000)
Months 3.75
(6)
3 7.50
(12)
6 11 . 2 5
(18)
9 15
(24)
12 18.75
(30)
15 22.5
(36)
18 26.25
(42)
21 30
(48)
24
Brake lines & cables II MA-35
Brake pads & rotors
IIII MA-36
Automatic transmission &
transfer fluid & differential
gear oil NOTE (1) I I MA-29,
MA-31
,
MA-32
Steering gear, linkage &
transfer gear, axle & sus-
pension parts IIII MA-36
,
MA-37
Tire rotation NOTE (2) MA-4,
MA-35
Drive shaft boots and pro-
peller shaft (AWD models) IIII MA-38,
MA-32
Exhaust system IIII MA-29
In-cabin microfilter
RR AT C - 1 2 4
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months,
whichever comes first. Miles x 1,000
(km x 1,000)
Months 33.75
(54)
27 37.5
(60)
30 41.25
(66)
33 45
(72)
36 48.75
(78)
39 52.5
(84)
42 56.25
(90)
45 60
(96)
48
Brake lines & cables II MA-35
Brake pads & rotors
I III MA-36

Page 3810 of 4462

INFINITI FX35 2006 Service Manual MA-10
PERIODIC MAINTENANCE
Revision: 2006 December 2006 FX35/FX45
NOTE:
(1) If towing a trailer, using a camper or a car-top carrier, or driving on rough or muddy roads, change (not just inspect) fl

MA-10
PERIODIC MAINTENANCE
Revision: 2006 December 2006 FX35/FX45
NOTE:
(1) If towing a trailer, using a camper or a car-top carrier, or driving on rough or muddy roads, change (not just inspect) fl uid (A/T, trans-
fer)/oil at every 30,000 miles (48,000 km) or 24 months. Using automatic transmission fluid other than Genuine Nissan Matic J
ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic transmis-
sion, which is not covered by the INFINITI new vehicle limited warranty.
(2) Refer to “Tire rotation” under the “GENERAL MAINTENANCE” heading earlier in this section.
Schedule 2NLS0005Z
EMISSION COMTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only
NOTE:
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace the drive belts i f found
damaged or if the auto belt tensioner reading (only for VK45DE engine) reaches the maximum limit.
(2) Maintenance-free item. For service procedures, refer to FL section.
(3) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(4) If valve noise increases, inspect valve clearance. Automatic transmission &
transfer fluid & differential
gear oil NOTE (1) I I
MA-29
,
MA-31
,
MA-32
Steering gear, linkage &
transfer gear, axle & sus-
pension parts I III
MA-36
, MA-37
Tire rotation NOTE (2) MA-4,
MA-35
Drive shaft boots and pro-
peller shaft (AWD models) I III MA-38,
MA-32
Exhaust system I III MA-29
In-cabin microfilter
RR ATC-124
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months,
whichever comes first. Miles x 1,000
(km x 1,000) Months 33.75
(54) 27 37.5
(60) 30 41.25
(66) 33 45
(72) 36 48.75
(78) 39 52.5
(84) 42 56.25
(90) 45 60
(96) 48
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference Sec-
tion - Page or - Content Title
Perform at number of miles,
kilometers or months, whichever
comes first. Miles x 1,000
(km x 1,000) Months 7.5
(12) 6 15
(24) 12 22.5
(36) 18 30
(48) 24 37.5
(60) 30 45
(72) 36 52.5
(84) 42 60
(96) 48
Drive belts NOTE (1) I* MA-14
, MA-22
Air cleaner filter [R] [R] MA-18, MA-25
EVAP vapor lines I* I* MA-21, MA-28
Fuel lines I* I* MA-17, MA-25
Fuel filter NOTE (2) -
Engine coolant NOTE (3) R* MA-15
, MA-22
Engine oil R R R R R R R R MA-18, MA-25
Engine oil filter [Use part No.
15208 31U00 (for VK45DE),
15208 65F00 (for VQ35DE) or
equivalent.] RRRR R RRR
MA-19
, MA-26
Spark plugs (PLATINUM-
TIPPED type) Replace every 105,000 miles (169,000 km).
MA-20, MA-27
Intake & exhaust valve clear-
ance* NOTE (4) EM-93, "
Va l v e
Clearance",
EM-
222, "Va l v e
Clearance"

Page 3811 of 4462

INFINITI FX35 2006 Service Manual PERIODIC MAINTENANCE MA-11
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2006 December 2006 FX35/FX45
* Maintenance items and intervals with “*” are recommended by INFINITI for reliable vehicle

Page 3812 of 4462

INFINITI FX35 2006 Service Manual MA-12
RECOMMENDED FLUIDS AND LUBRICANTS
Revision: 2006 December 2006 FX35/FX45
RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and Lubricants NLS00060
*1: For further details, see “SAE Viscosity N

MA-12
RECOMMENDED FLUIDS AND LUBRICANTS
Revision: 2006 December 2006 FX35/FX45
RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and Lubricants NLS00060
*1: For further details, see “SAE Viscosity Number”.
*2: Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and
automatic transmission durability, and may damage the automatic transmission, which is not covered by the INFINITI new
vehicle limited warranty.
*3: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0 °C (32 °F).
*4: DEXRON
TM III/ MERCONTM or equivalent may also be used. Outside the continental United States and Alaska contact an INFINITI
dealer for more information regarding suitable fluids, including recommended brand(s) of DEXRON TM III/ MERCONTM automatic trans-
mission fluid.
*5: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TM III/ MERCONTM , or equivalent ATF may also be used.
*6: Available in mainland U.S.A. through your INFINITI dealer. Capacity (Approximate)
Recommended Fluids/Lubricants
US measure Imp mea-
sure Liter
Engine oil
Drain and
refill With oil fil-
ter change VK45DE 6-1/8 qt 5-1/8 qt 5.8
For VK45DE engine:
API Certification Mark*1
API grade SJ or SL, Energy Conserving*1
ILSAC grade GF-II & GF-III*1
For VQ35DE engine:
API Certification Mark*1
API grade SG/SH, Energy Conserving I & II or
API grade SJ or SL, Energy Conserving*1
ILSAC grade GF-I, GF-II & GF-III *1
VQ35DE 5 qt 4 - 1/8 qt 4.7
Without oil
filter
change VK45DE 5-1/2 qt 4-5/8 qt 5.2
VQ35DE 4-5/8 qt 3-7/8 qt 4.4
Dry engine (Overhaul) VK45DE 7-3/8 qt 6-1/8 qt 7.0
VQ35DE 5-3/4 qt 4-3/4 qt 5.4
Cooling
system With res-
ervoir tank VK45DE 10-5/8 qt 8-3/4 qt 10.0
Genuine NISSAN Long Life Antifreeze/ Coolant
or equivalent
VQ35DE 9-1/8 qt 7-5/8 qt 8.6
Reservoir
tank VK45DE 7/8 qt 3/4 qt 0.8
VQ35DE 7/8 qt 3/4 qt 0.8
Automatic transmission fluid 10-7/8 qt 9-1/8 qt 10.3 Genuine NISSAN Matic J ATF *2
Differential gear oil Front 1-3/8 pt 1-1/8 pt 0.65
API GL-5, Viscosity SAE 80 W-90 *3
Rear 3 pt 2-1/2 pt 1.40
Transfer fluid 2-5/8 pt 2-1/4 pt 1.25 Genuine NISSAN Matic D ATF (Continental U.S.
and Alaska) or Canada NISSAN Automatic
Transmission Fluid*4
Power steering fluid (PSF) 1-1/8 qt 7/8 qt 1.0 Genuine NISSAN PSF or equivalent*5
Brake fluid — — — Genuine NISSAN Super Heavy Duty Brake
Fluid*6 or equivalent
DOT 3 (US FMVSS No. 116)
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Windshield washer fluid — — — Genuine NISSAN Windshield Washer Concen-
trate Cleaner & Antifreeze Fluid or equivalent
Fuel
recommendation VK45DE — — —
Refer to
GI-7, "
Precautions for Fuel (Unleaded
Premium Gasoline Required)"
VQ35DE — — — Refer to
GI-6, "Precautions for Fuel (Unleaded
Premium Gasoline Recommended)"

Page 3813 of 4462

INFINITI FX35 2006 Service Manual RECOMMENDED FLUIDS AND LUBRICANTS MA-13
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2006 December 2006 FX35/FX45

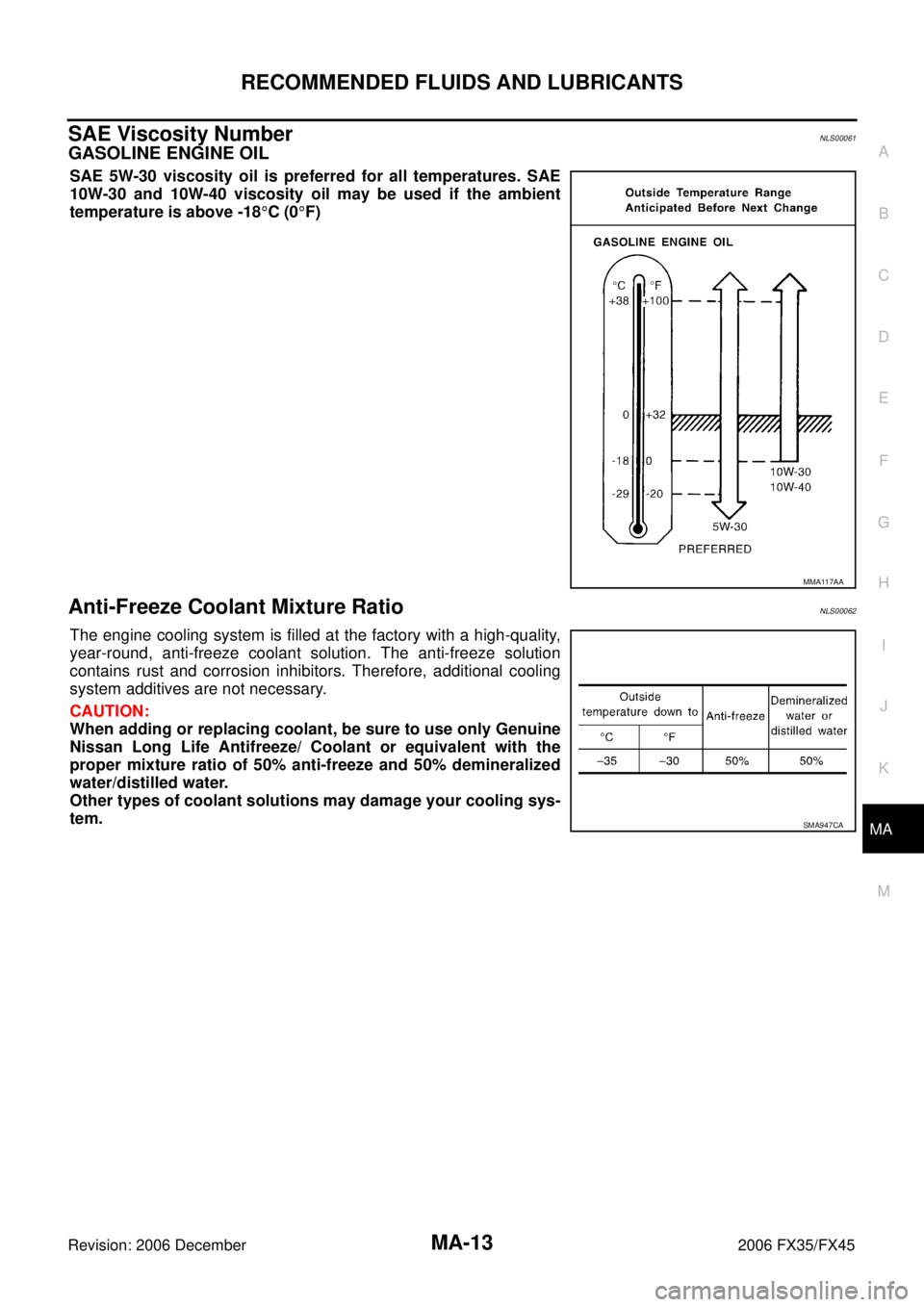

SAE Viscosity NumberNLS00061
GASOLINE ENGINE OIL
SAE 5W-30 viscosity oil is prefer

Page 3814 of 4462

INFINITI FX35 2006 Service Manual MA-14
ENGINE MAINTENANCE (VQ35DE ENGINE)
Revision: 2006 December 2006 FX35/FX45
ENGINE MAINTENANCE (VQ35DE ENGINE)PFP:10001
Checking Drive BeltsNLS00063
WARNING:
Be sure to perform when engine is sto

MA-14
ENGINE MAINTENANCE (VQ35DE ENGINE)
Revision: 2006 December 2006 FX35/FX45
ENGINE MAINTENANCE (VQ35DE ENGINE)PFP:10001
Checking Drive BeltsNLS00063
WARNING:
Be sure to perform when engine is stopped.
1. Inspect belts for cracks, fraying, wear and oil. If necessary, replace.
2. Inspect drive belt deflection or tension at a point on belt midway between pulleys.
Inspection should be done only when engine is cold, or over
30 minutes after engine is stopped.
Measure the belt tension with belt tension gauge (Commercial
service tool: BT3373-F or equivalent) at points marked
shown in the figure.
When measuring the deflection, apply 98 N (10 kg, 22 lb) at
the marked point.
Adjust if the belt deflection exceeds the limit or if the belt ten-
sion is not within specifications.
CAUTION:
When checking the belt deflection or the tension immediately after installation, first adjust it to
the specified value. Then, after turning crankshaft two turns or more, re-adjust to the specified
value to avoid variation in deflection between pulleys.
Tighten idler pulley lock nut by hand and measure the deflection or the tension without loose-
ness.
Belt Deflection and Tension
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on belt.
Drive Belts Tension AdjustmentNLS00064
CAUTION:
When belt is replaced with a new one, adjust it to value for “New belt” to accommodate for insuffi-
cient adaptability with pulley grooves.
When deflection or tension of belt being used exceeds “Limit”, adjust it to value for “After adjust-
ment”.
When checking belt deflection or tension immediately after installation, first adjust it to the speci-
fied value. Then, after turning crankshaft two turns or more, re-adjust to the specified value to
avoid variation in deflection between pulleys.
When installing belt, make sure that it is correctly engaged with pulley grooves.
Keep engine oil, working fluid and engine coolant away from belt and pulley grooves.
Do not twist or bend belt excessively.
KBIA1731J
Items Deflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt New belt Used belt
New belt
Limit After adjustment Limit After adjustment
Alternator and
power steering
oil pump belt 7 (0.28)
4 - 5
(0.16 - 0.20) 3.5 - 4.5
(0.138 - 0.177) 294 (30, 66) 730 - 818
(74.5 - 83.5, 164 - 184) 838 - 926
(85.5 - 94.5, 188 - 208)
A/C compressor
belt 12 (0.47) 9 - 10
(0.35 - 0.39) 8 - 9
(0.31 - 0.35) 196 (20, 44) 348 - 436
(35.5 - 44.5, 78 - 98) 470 - 559
(48 - 57,
106 - 126)
Applied pushing
force 98 N (10 kg, 22 lb) —
Portion
Belt tightening method for adjustment
Alternator and power steering oil pump belt Adjusting bolt on idler pulley
A/C compressor belt Adjusting bolt on idler pulley

Page 3815 of 4462

INFINITI FX35 2006 Service Manual ENGINE MAINTENANCE (VQ35DE ENGINE) MA-15
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2006 December 2006 FX35/FX45
ALTERNATOR AND POWER STEERING OIL PUMP BELT
1. Remove front engine undercover wit

Page 3816 of 4462

INFINITI FX35 2006 Service Manual MA-16
ENGINE MAINTENANCE (VQ35DE ENGINE)
Revision: 2006 December 2006 FX35/FX45
3. Remove reservoir tank as necessary, drain engine coolant and clean reservoir tank before installing.
4. Check draine

Load next 8 pages

Page: < prev 1-10 ... 3777-3784 3785-3792 3793-3800 3801-3808 3809-3816 3817-3824 3825-3832 3833-3840 3841-3848 ... 4464 next >

cooling fuel cap release remote control refrigerant type ABS technical specifications
