Page 3537 of 4462

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-177 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 10 Check Intelligent Key unit circuit. Refer to LAN-195, "Intelligent Key Unit C

Page 3538 of 4462

INFINITI FX35 2006 Service Manual LAN-178 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 11 Check data link connector circuit. Refer to LAN-195, "Data Link Connector Circuit Inspection" . PKIC9509E PKIB4188E

Page 3539 of 4462

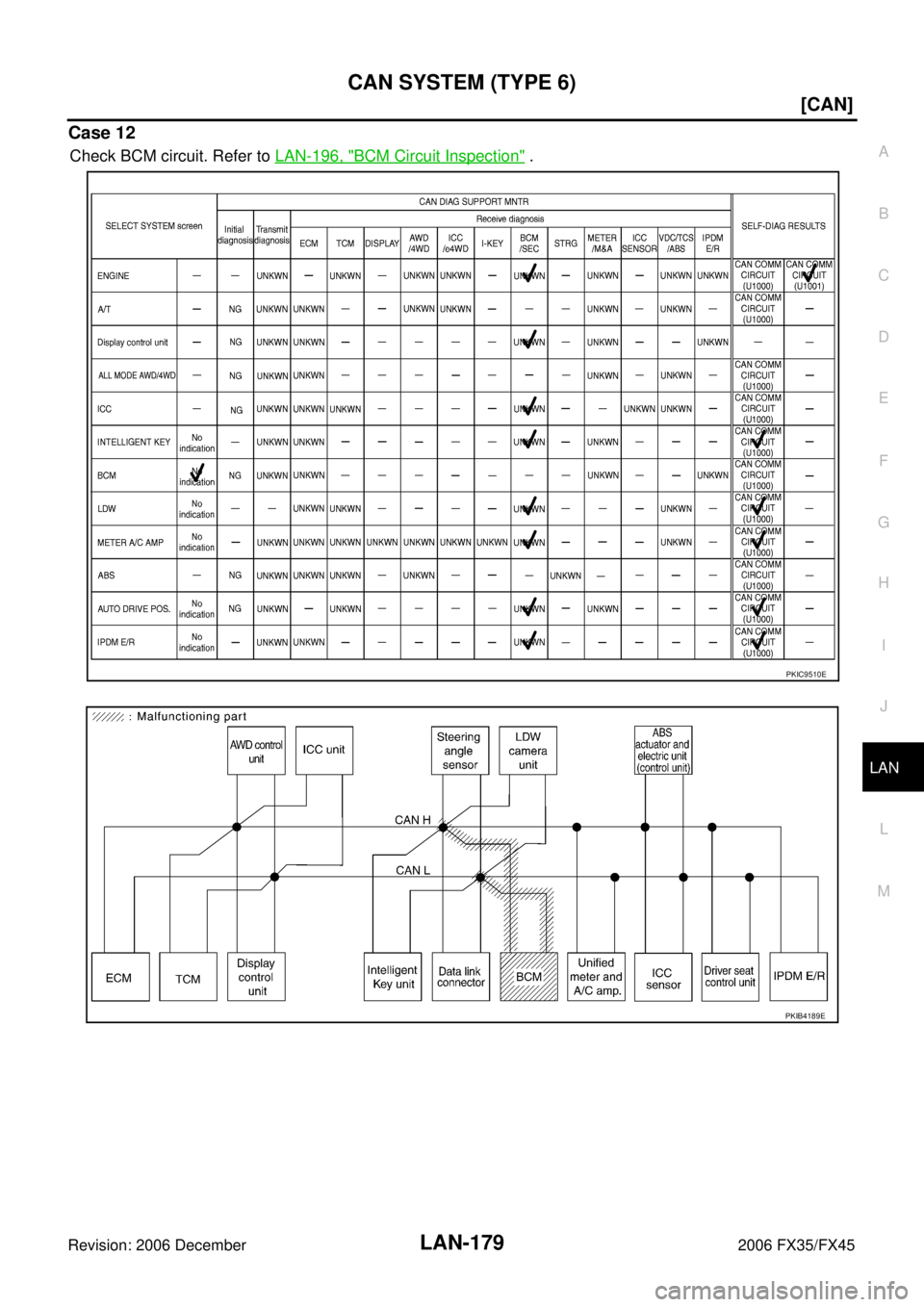

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-179 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 12 Check BCM circuit. Refer to LAN-196, "BCM Circuit Inspection" . PKIC9510E PKI

Page 3540 of 4462

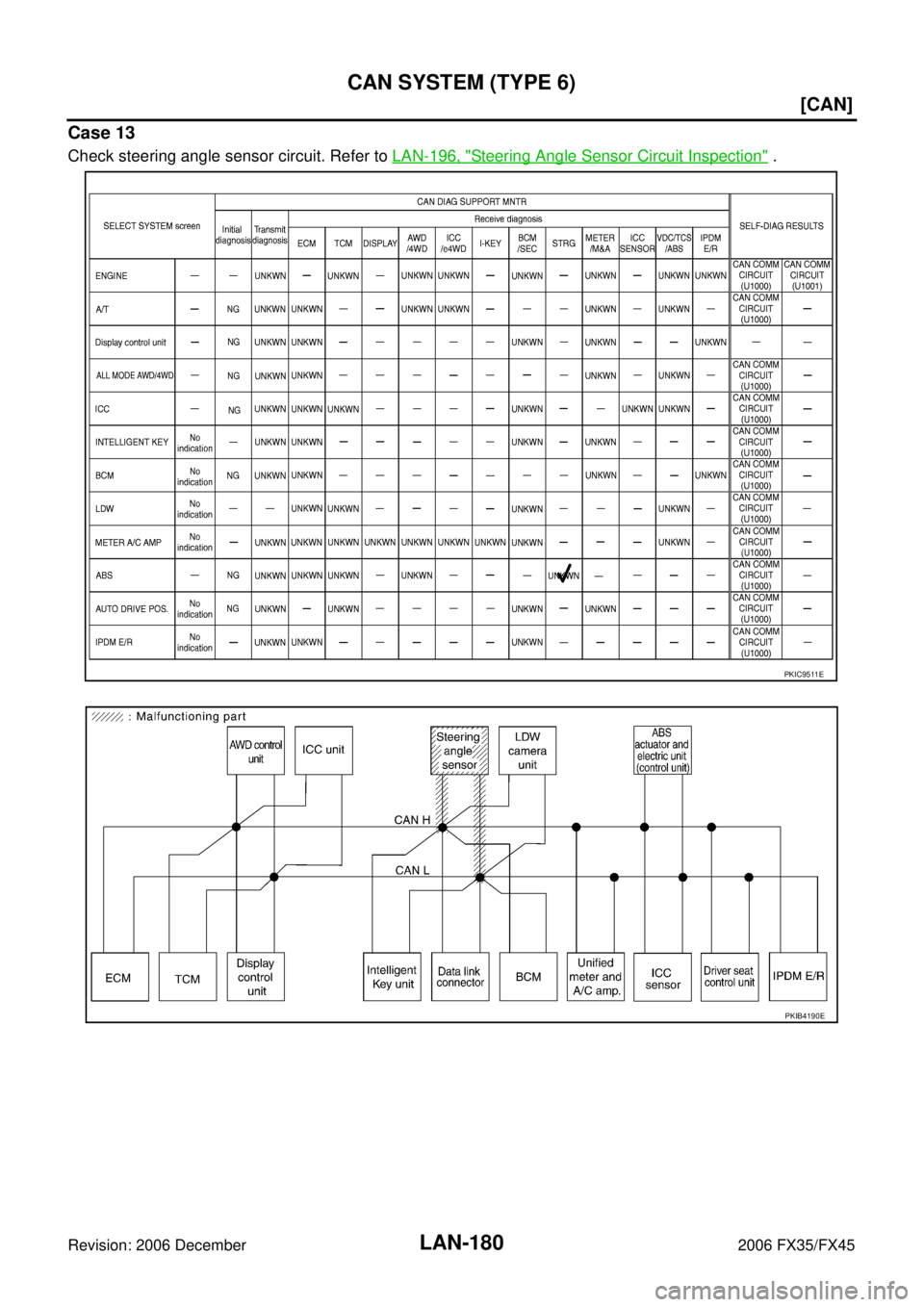

INFINITI FX35 2006 Service Manual LAN-180 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 13 Check steering angle sensor circuit. Refer to LAN-196, "Steering Angle Sensor Circuit Inspection" . PKIC9511E PKIB4190

Page 3541 of 4462

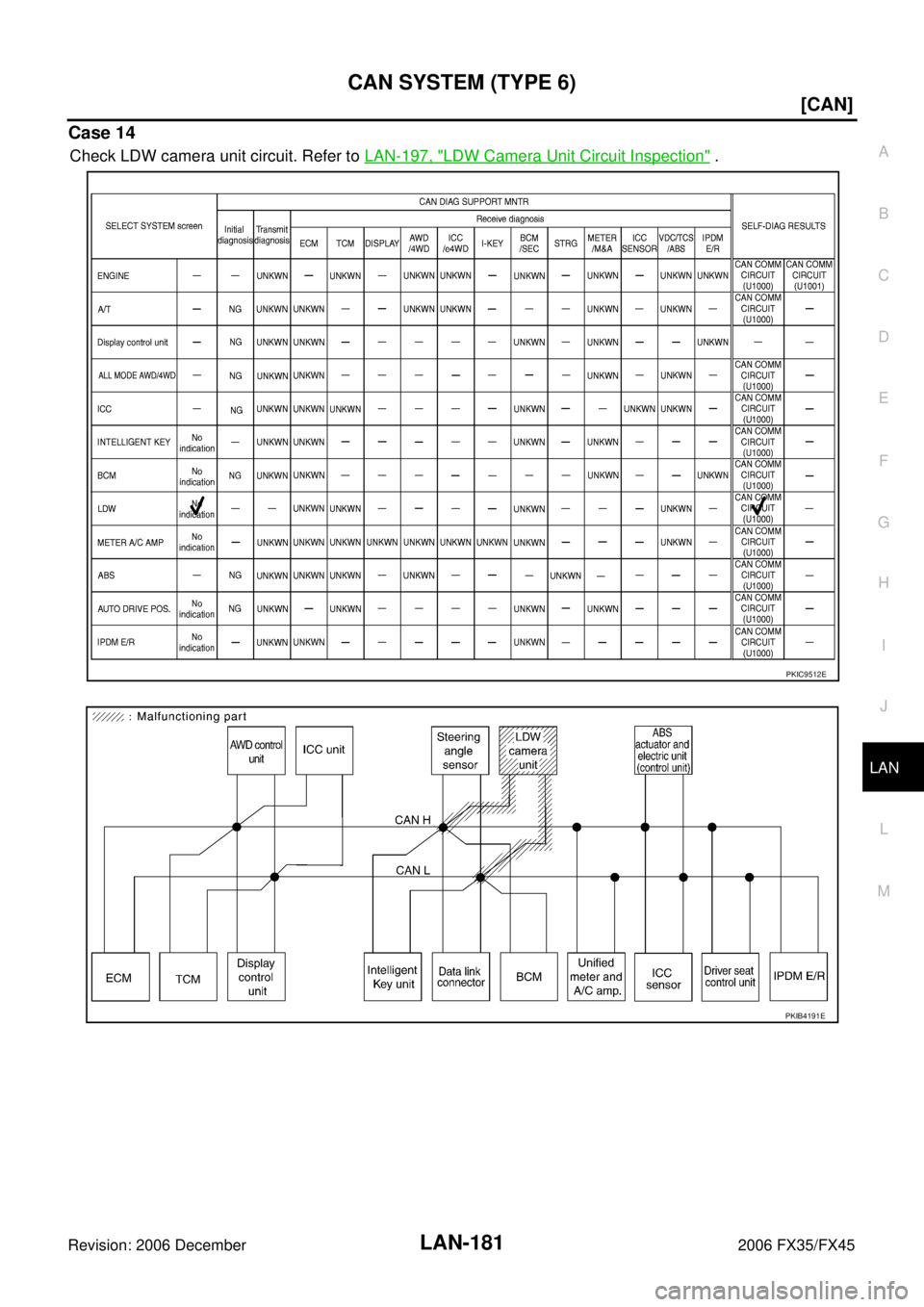

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-181 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 14 Check LDW camera unit circuit. Refer to LAN-197, "LDW Camera Unit Circuit Ins

Page 3542 of 4462

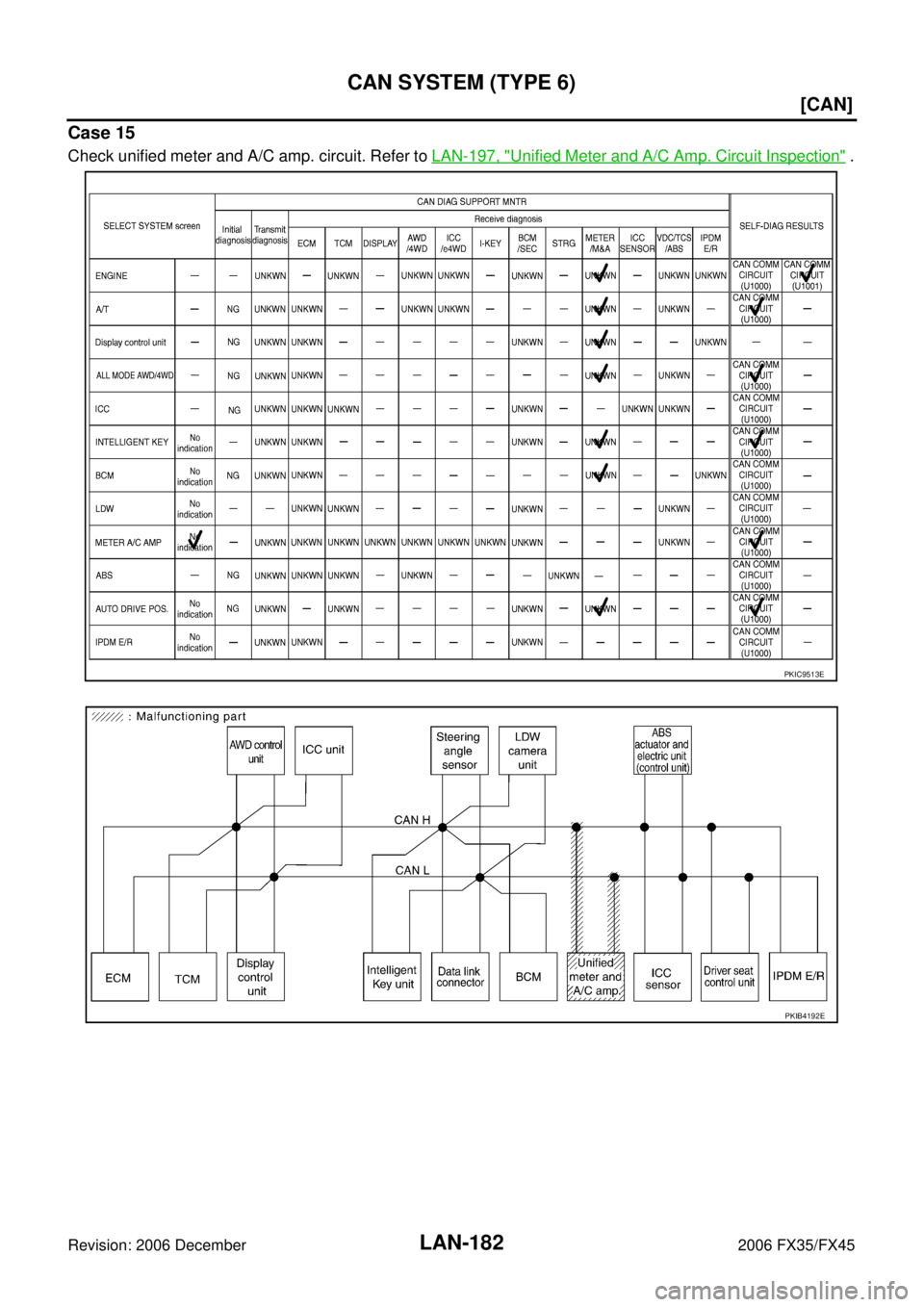

INFINITI FX35 2006 Service Manual LAN-182 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 15 Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" . PKIC9513

Page 3543 of 4462

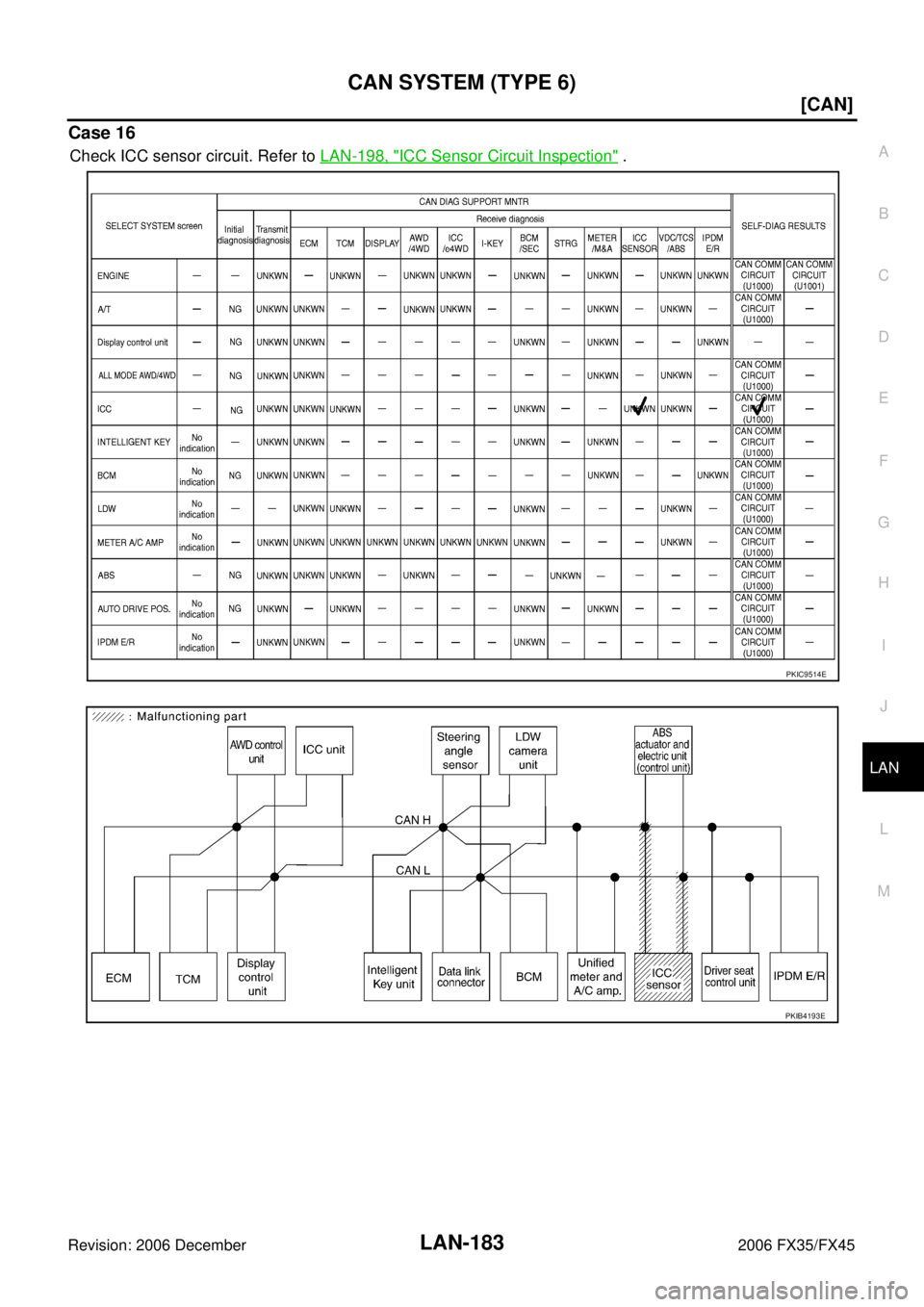

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-183 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 16 Check ICC sensor circuit. Refer to LAN-198, "ICC Sensor Circuit Inspection" .

Page 3544 of 4462

INFINITI FX35 2006 Service Manual LAN-184 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 17 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-198, "ABS Actuator and Electric Unit (Contro
