Page 3505 of 4462

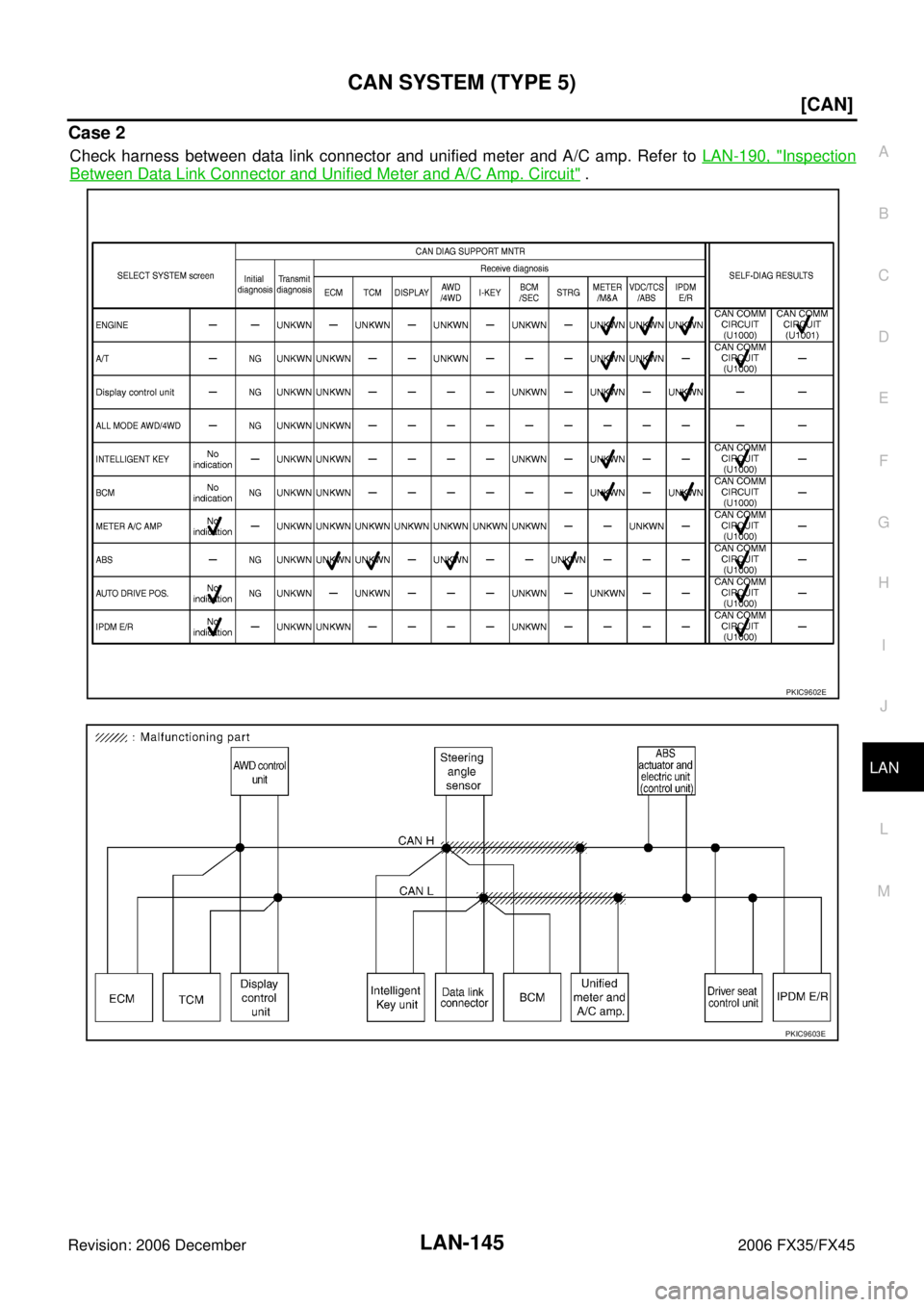

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 5) LAN-145 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer t

Page 3506 of 4462

INFINITI FX35 2006 Service Manual LAN-146 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 December 2006 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-190, "

Page 3507 of 4462

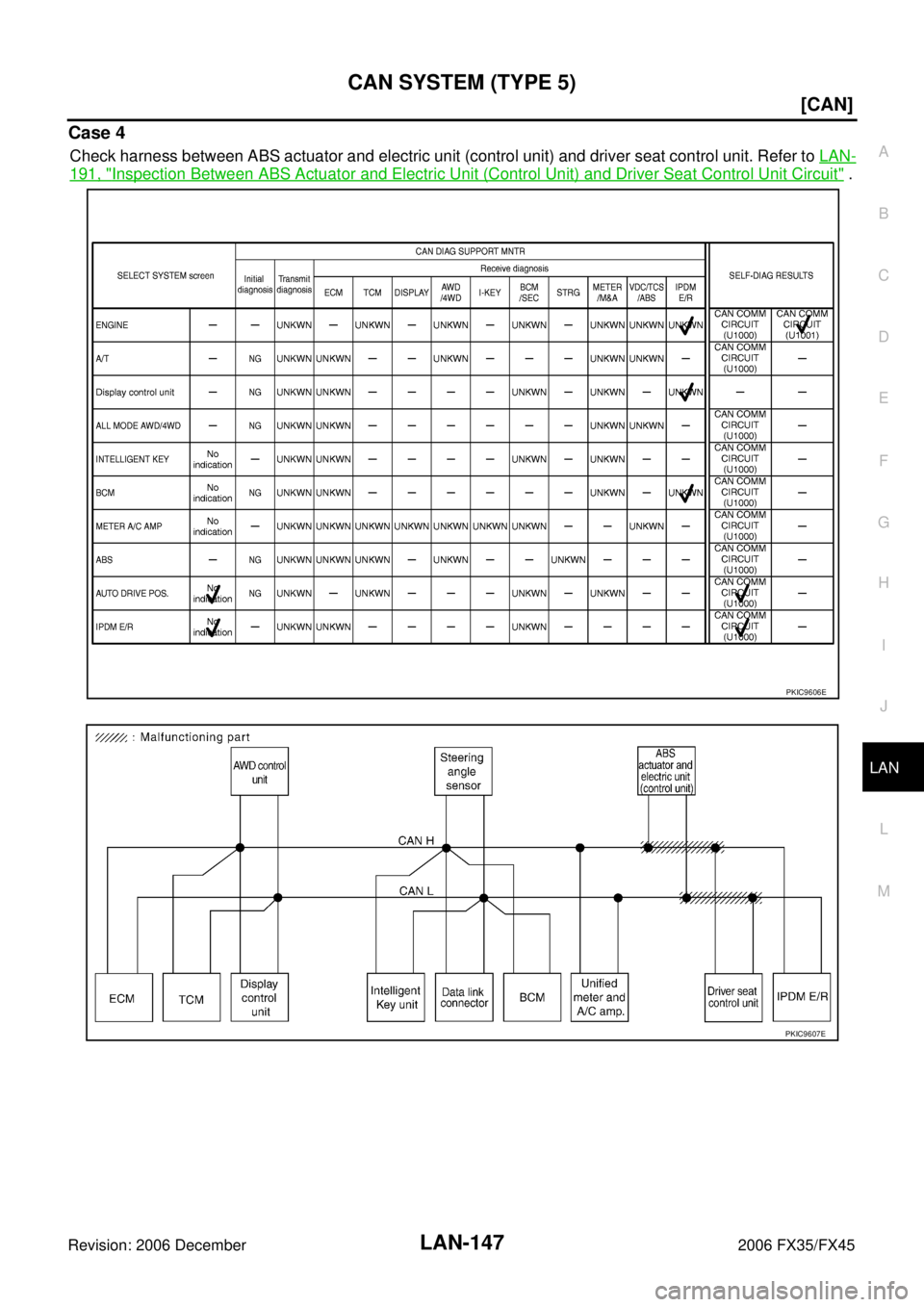

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 5) LAN-147 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver s

Page 3508 of 4462

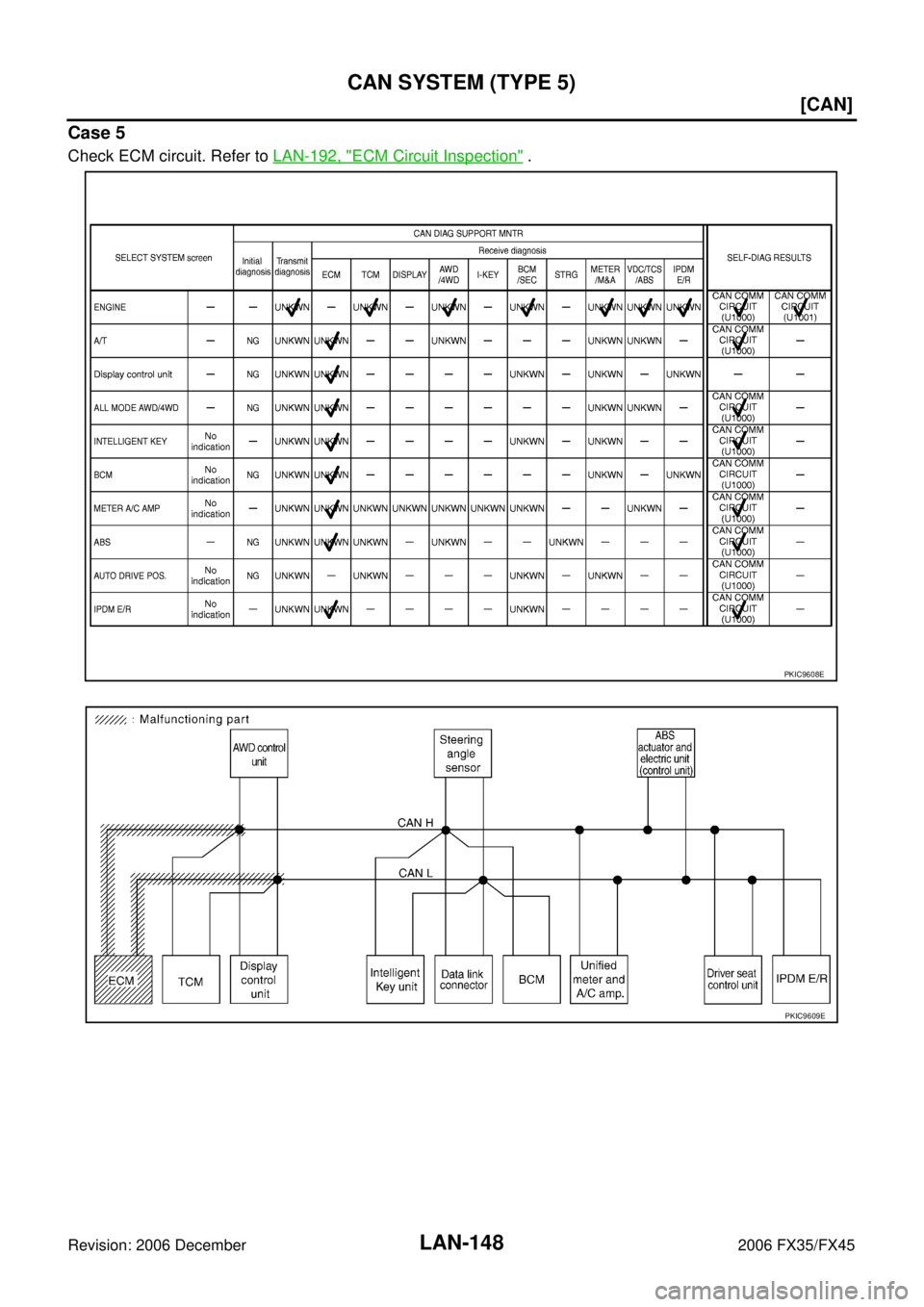

INFINITI FX35 2006 Service Manual LAN-148 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 December 2006 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" . PKIC9608E PKIC9609E

Page 3509 of 4462

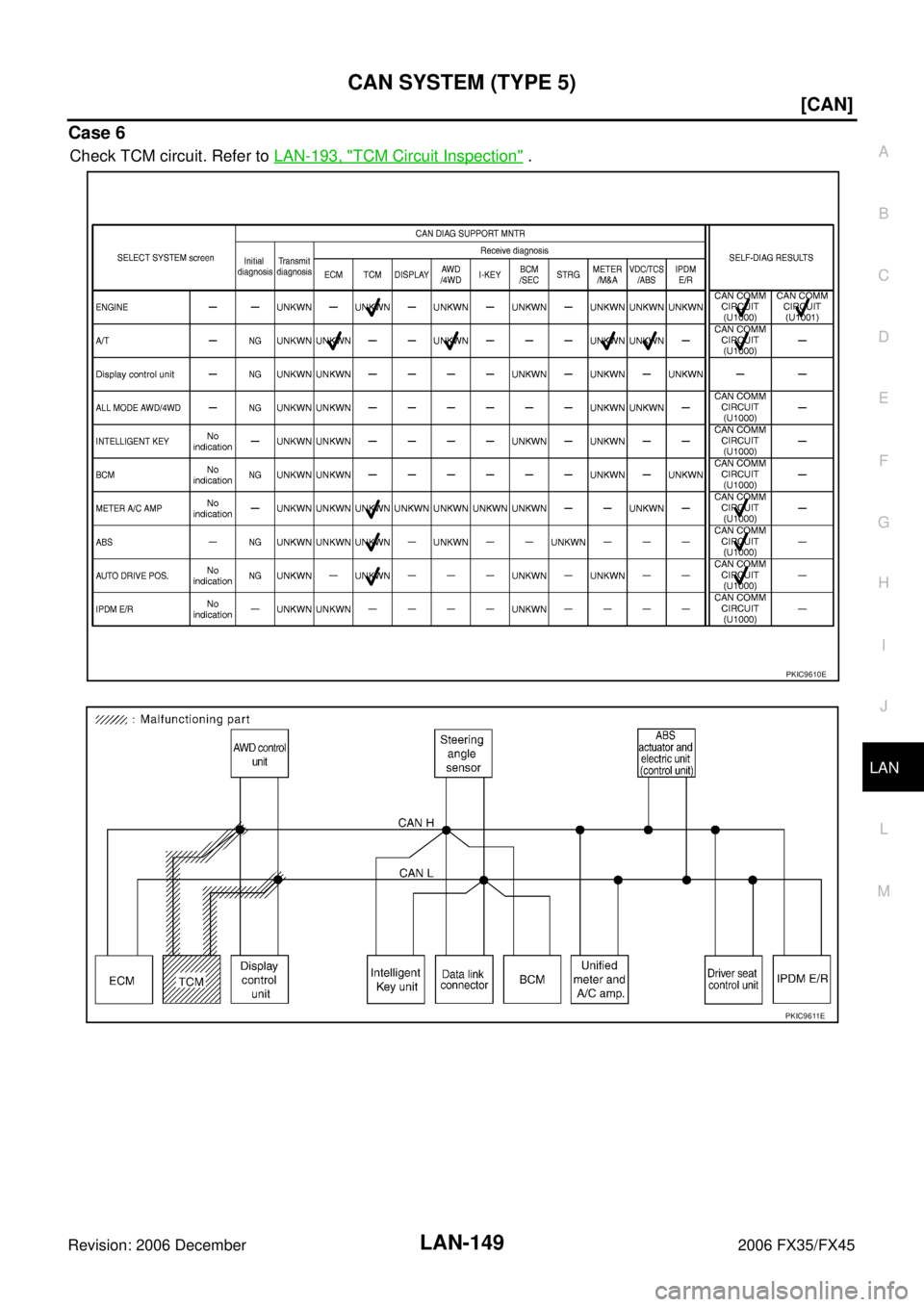

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 5) LAN-149 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" . PKIC9610E PKIC

Page 3510 of 4462

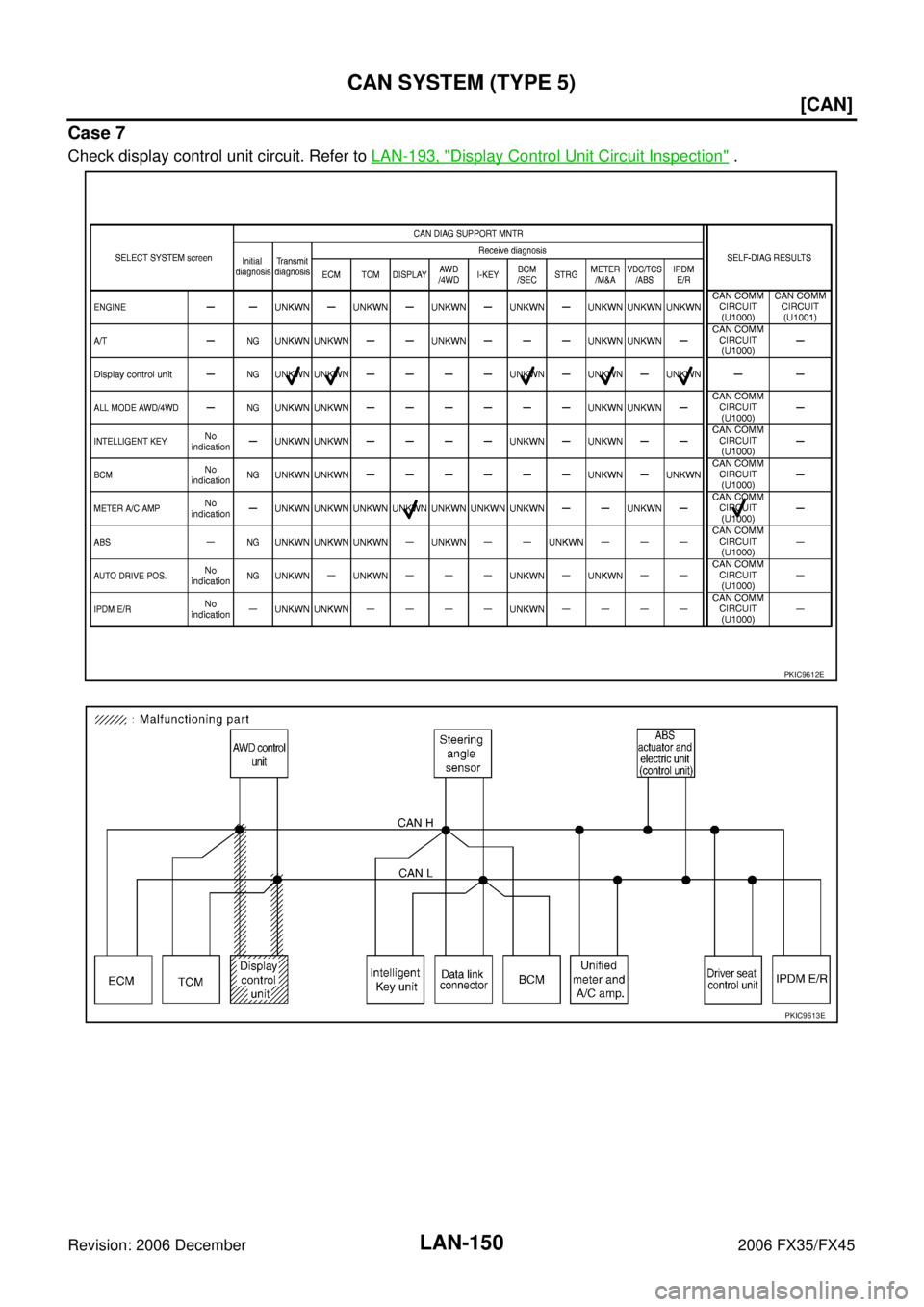

INFINITI FX35 2006 Service Manual LAN-150 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 December 2006 FX35/FX45 Case 7 Check display control unit circuit. Refer to LAN-193, "Display Control Unit Circuit Inspection" . PKIC9612E PKIC9613E

Page 3511 of 4462

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 5) LAN-151 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 8 Check AWD control unit circuit. Refer to LAN-194, "AWD Control Unit Circuit In

Page 3512 of 4462

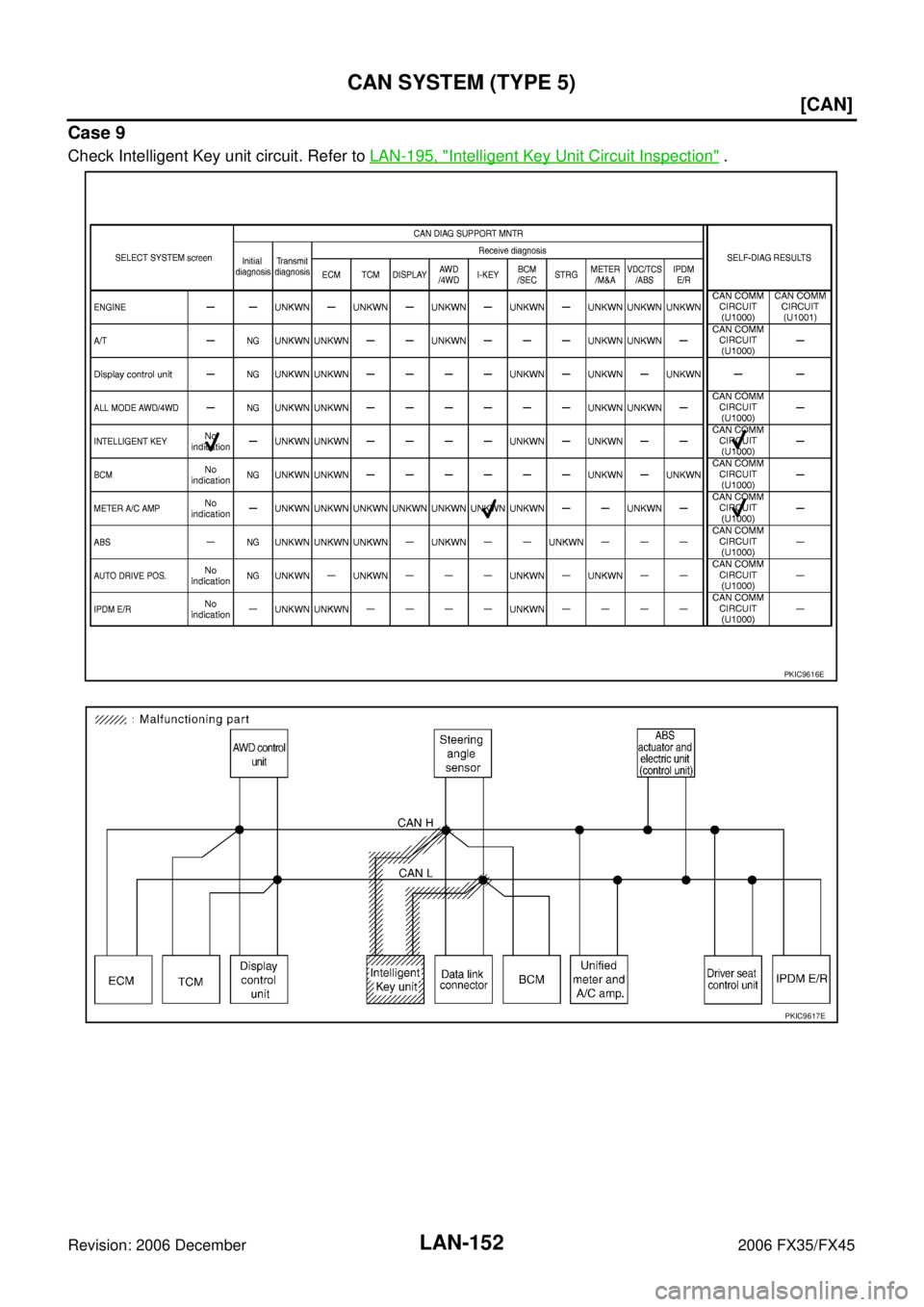

INFINITI FX35 2006 Service Manual LAN-152 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 December 2006 FX35/FX45 Case 9 Check Intelligent Key unit circuit. Refer to LAN-195, "Intelligent Key Unit Circuit Inspection" . PKIC9616E PKIC9617E
