![INFINITI FX35 2006 Service Manual DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-433
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CI INFINITI FX35 2006 Service Manual DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-433
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CI](/manual-img/42/57019/w960_57019-1816.png)
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-433
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT 1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors B201, M81
Harness connectors M82, F102
Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-433, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace EVAP control system pressure sensor.
10. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionNBS003RR
EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
2. Install a vacuum pump to EVAP control system pressure sensor.
3. Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.
CAUTION:
Always calibrate the vacuum pump gauge when using it.
Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or
pressure over 101.3 kPa (760 mmHg, 29.92 inHg).
4. If NG, replace EVAP control system pressure sensor. Continuity should exist.
Applied vacuum kPa
(mmHg, inHg) Voltage V
Not applied 1.8 - 4.8
-26.7 (-200, -7.87) 2.1 to 2.5V lower than above value
PBIB1173E
Page 1818 of 4462

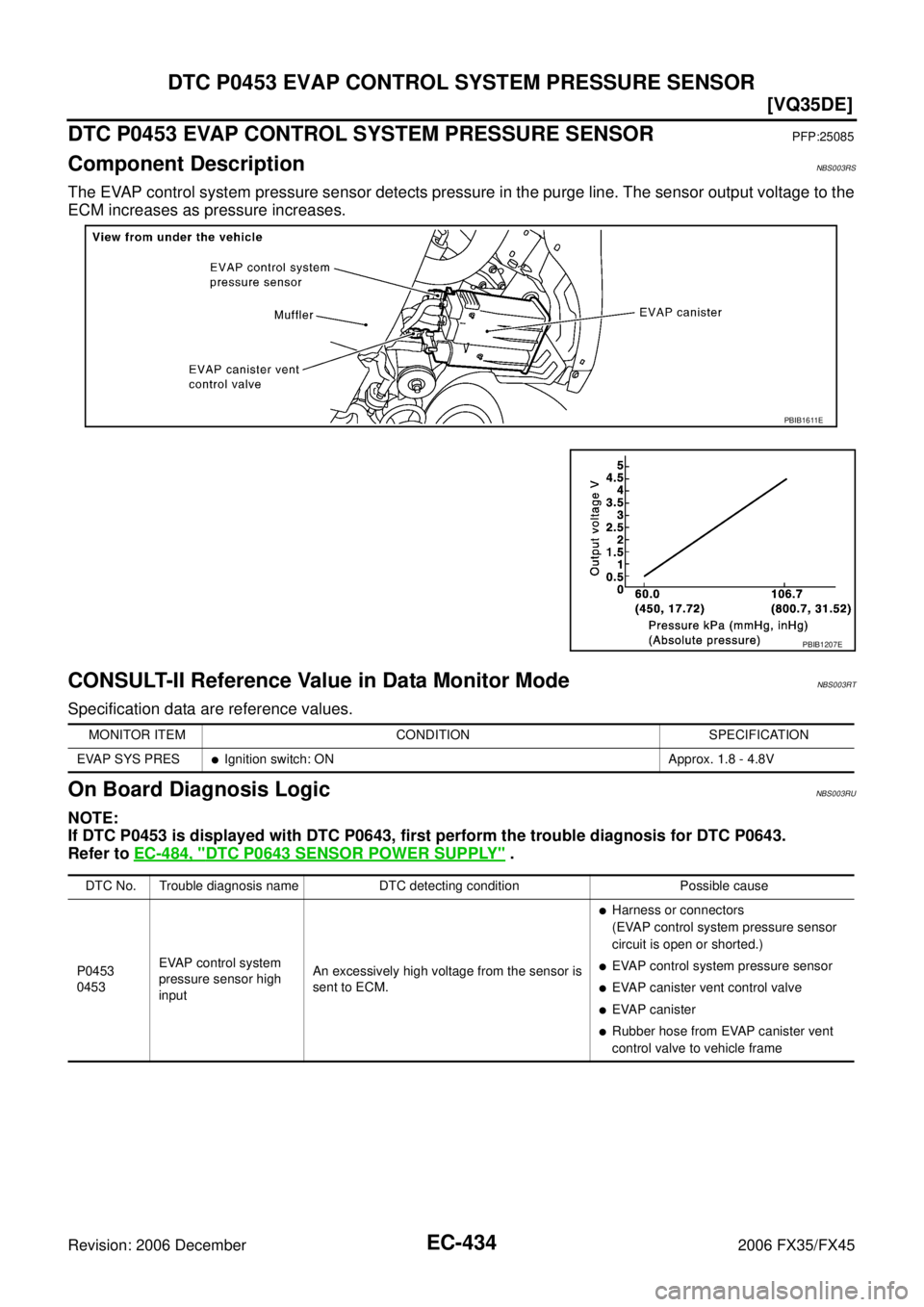

![INFINITI FX35 2006 Service Manual EC-434
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSORPFP:25085
Component DescriptionNBS003RS
The EVAP contr INFINITI FX35 2006 Service Manual EC-434
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSORPFP:25085
Component DescriptionNBS003RS
The EVAP contr](/manual-img/42/57019/w960_57019-1817.png)
EC-434
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSORPFP:25085
Component DescriptionNBS003RS
The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the
ECM increases as pressure increases.
CONSULT-II Reference Value in Data Monitor ModeNBS003RT
Specification data are reference values.
On Board Diagnosis LogicNBS003RU
NOTE:
If DTC P0453 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-484, "
DTC P0643 SENSOR POWER SUPPLY" .
PBIB1611E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0453
0453 EVAP control system
pressure sensor high
input An excessively high voltage from the sensor is
sent to ECM.
Harness or connectors
(EVAP control system pressure sensor
circuit is open or shorted.)
EVAP control system pressure sensor
EVAP canister vent control valve
EVAP canister
Rubber hose from EVAP canister vent
control valve to vehicle frame
Page 1819 of 4462
![INFINITI FX35 2006 Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-435
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS003RV
NOTE:
If DTC Confirmatio INFINITI FX35 2006 Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-435
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS003RV
NOTE:
If DTC Confirmatio](/manual-img/42/57019/w960_57019-1818.png)
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-435
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS003RV
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. Make sure that “FUEL T/TMP SE” is more than 0 °C (32 °F).
6. Start engine and wait at least 20 seconds.
7. If 1st trip DTC is detected, go to EC-437, "
Diagnostic Procedure"
.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal 107 (Fuel tank tem- perature sensor signal) and ground is less than 4.2V.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and wait at least 20 seconds.
5. Select Service $07 with GST. If 1st trip DTC is detected, go to EC-437, "
Diagnostic Procedure"
.
SEF194Y
PBIB1110E
Page 1820 of 4462
EC-436
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003RW
TBWM1392E
Page 1821 of 4462
![INFINITI FX35 2006 Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-437
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured bet INFINITI FX35 2006 Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-437
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured bet](/manual-img/42/57019/w960_57019-1820.png)

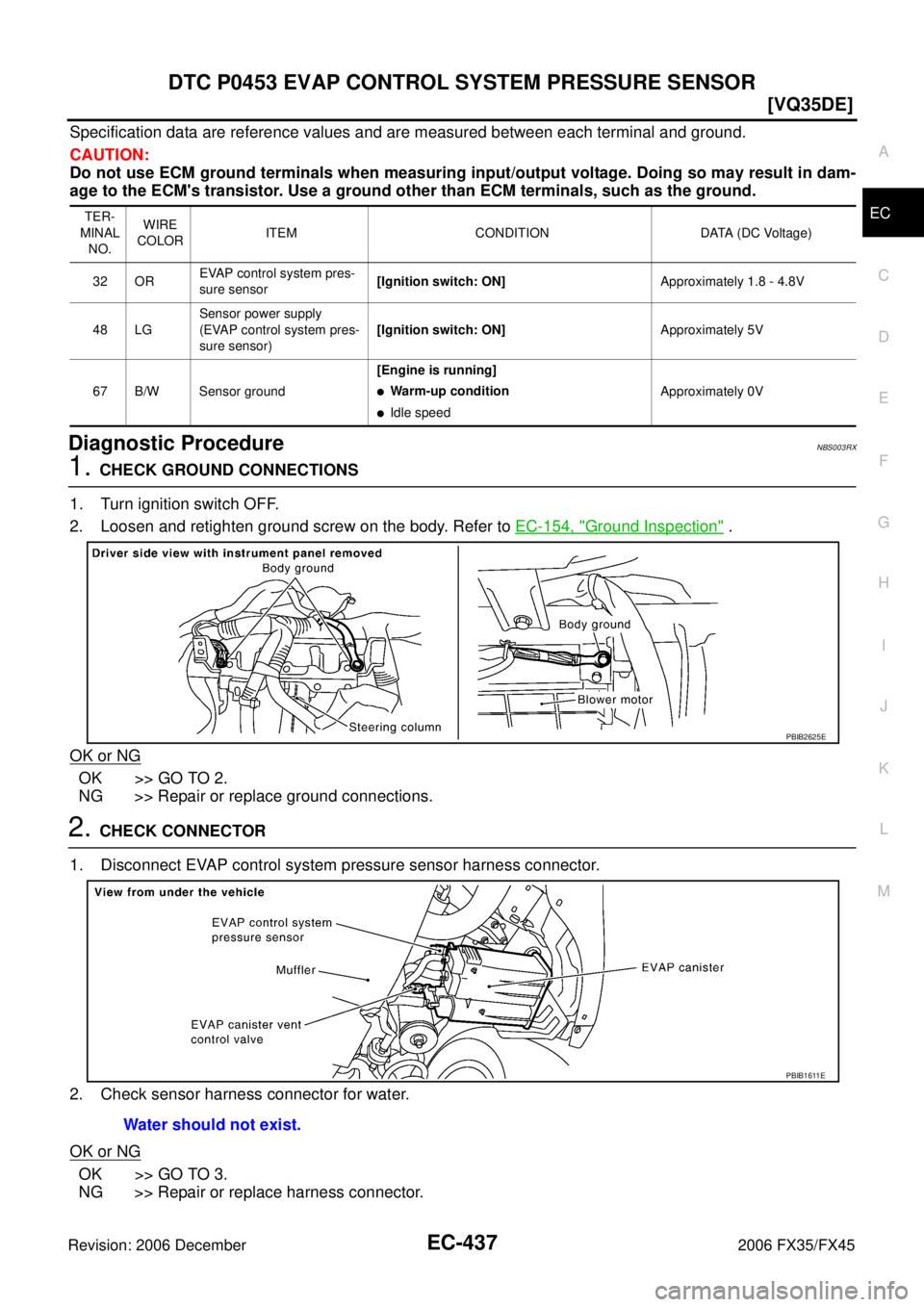

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-437
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS003RX
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-154, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check sensor harness connector for water.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness connector.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
32 OR EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
48 LG Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
67 B/W Sensor ground [Engine is running]
Warm-up condition
Idle speed Approximately 0V
PBIB2625E
Water should not exist.
PBIB1611E
Page 1822 of 4462
![INFINITI FX35 2006 Service Manual EC-438
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. INFINITI FX35 2006 Service Manual EC-438
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2.](/manual-img/42/57019/w960_57019-1821.png)
EC-438
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between EVAP control system pressure sensor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M81, B201
Harness connectors M82, F102
Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M81, B201
Harness connectors M82, F102
Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
Voltage: Approximately 5V
PBIB0138E
Continuity should exist.
Page 1823 of 4462
![INFINITI FX35 2006 Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-439
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CI INFINITI FX35 2006 Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-439
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CI](/manual-img/42/57019/w960_57019-1822.png)
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-439
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT 1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M81, B201
Harness connectors M82, F102
Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK RUBBER TUBE
1. Disconnect rubber tube connected to EVAP canister vent control valve.
2. Check the rubber tube for clogging, vent and kinked.
OK or NG
OK >> GO TO 10.
NG >> Clean the rubber tube using an air blower, repair or replace rubber tube.
10. CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-417, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace EVAP canister vent control valve.
11 . CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace EVAP control system pressure sensor. Continuity should exist.
Page 1824 of 4462
EC-440
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
12. CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Does water drain from the EVAP canister?
Ye s o r N o
Yes >> GO TO 13.
No >> GO TO 15.
13. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14. DETECT MALFUNCTIONING PART
Check the following.
EVAP canister for damage
EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
>> Repair hose or replace EVAP canister.
15. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
PBIB1031E
