Page 3753 of 4462

INFINITI FX35 2006 Service Manual ILLUMINATION LT-191 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 CAN Communication System DescriptionNKS002Z3 CAN (Controller Area Network) is a serial communication l

Page 3754 of 4462

INFINITI FX35 2006 Service Manual LT-192 ILLUMINATION Revision: 2006 December 2006 FX35/FX45 SchematicNKS002Z5 TKWM4327E

Page 3755 of 4462

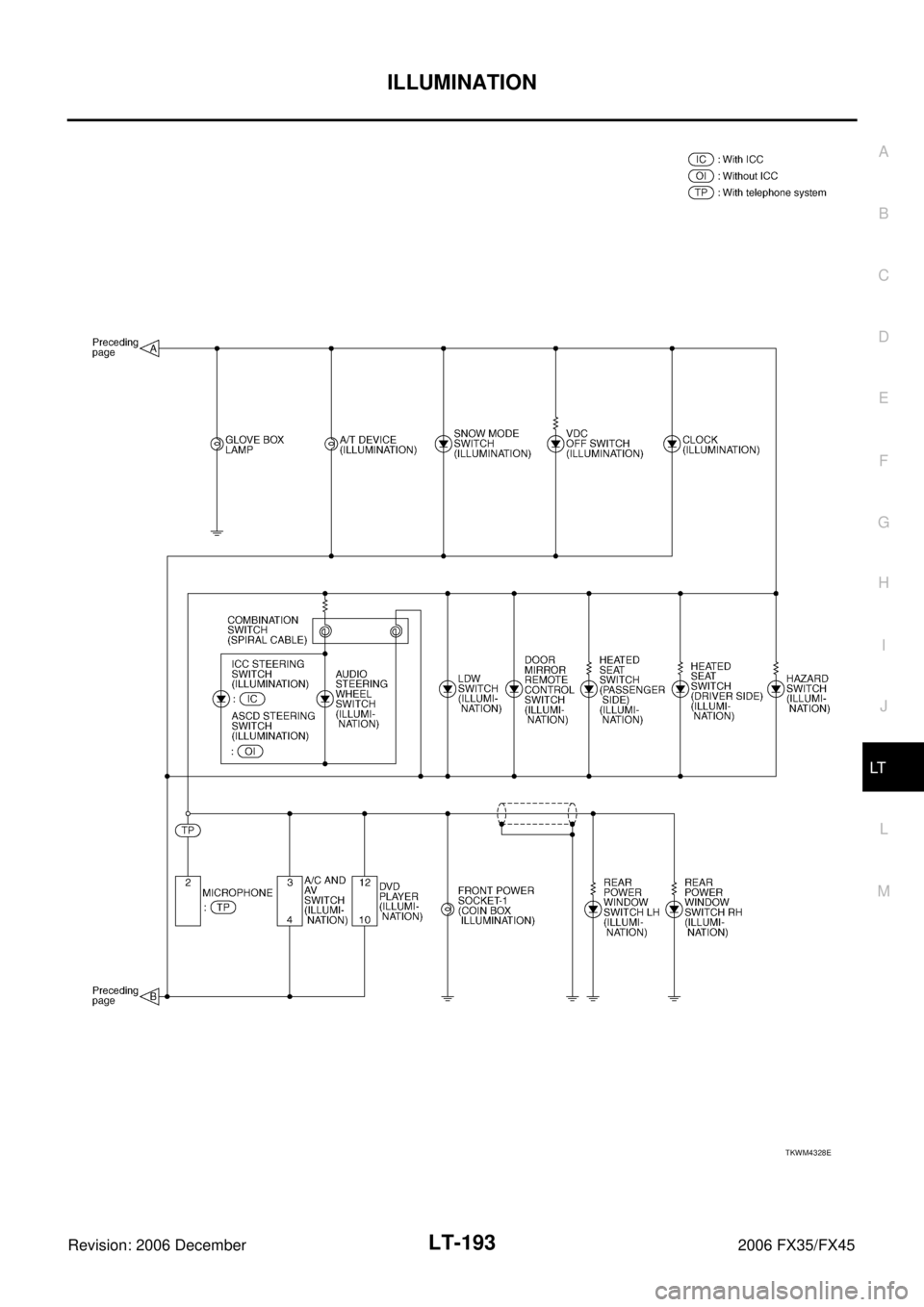

INFINITI FX35 2006 Service Manual ILLUMINATION LT-193 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 TKWM4328E

Page 3756 of 4462

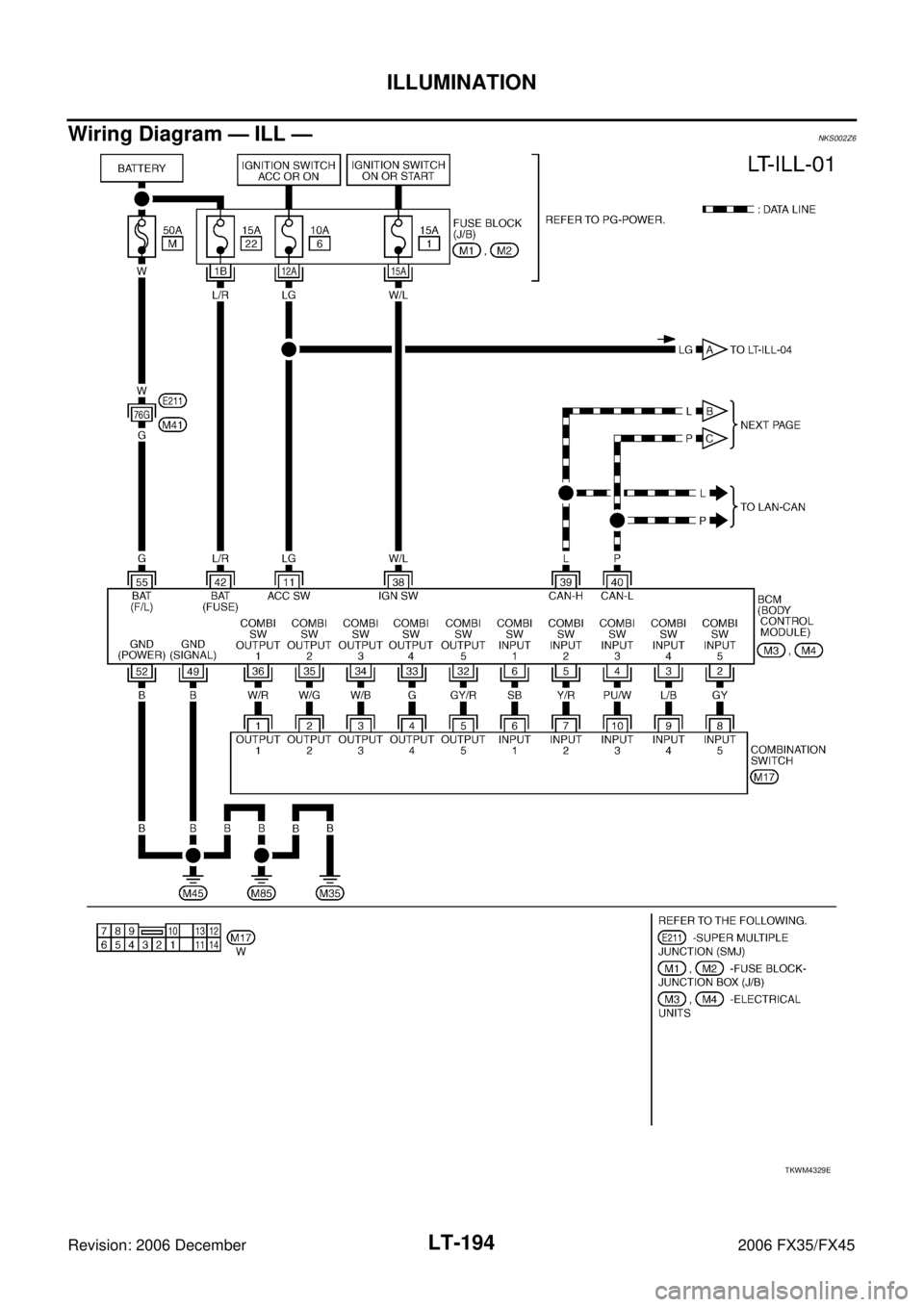

INFINITI FX35 2006 Service Manual LT-194 ILLUMINATION Revision: 2006 December 2006 FX35/FX45 Wiring Diagram — ILL —NKS002Z6 TKWM4329E

Page 3757 of 4462

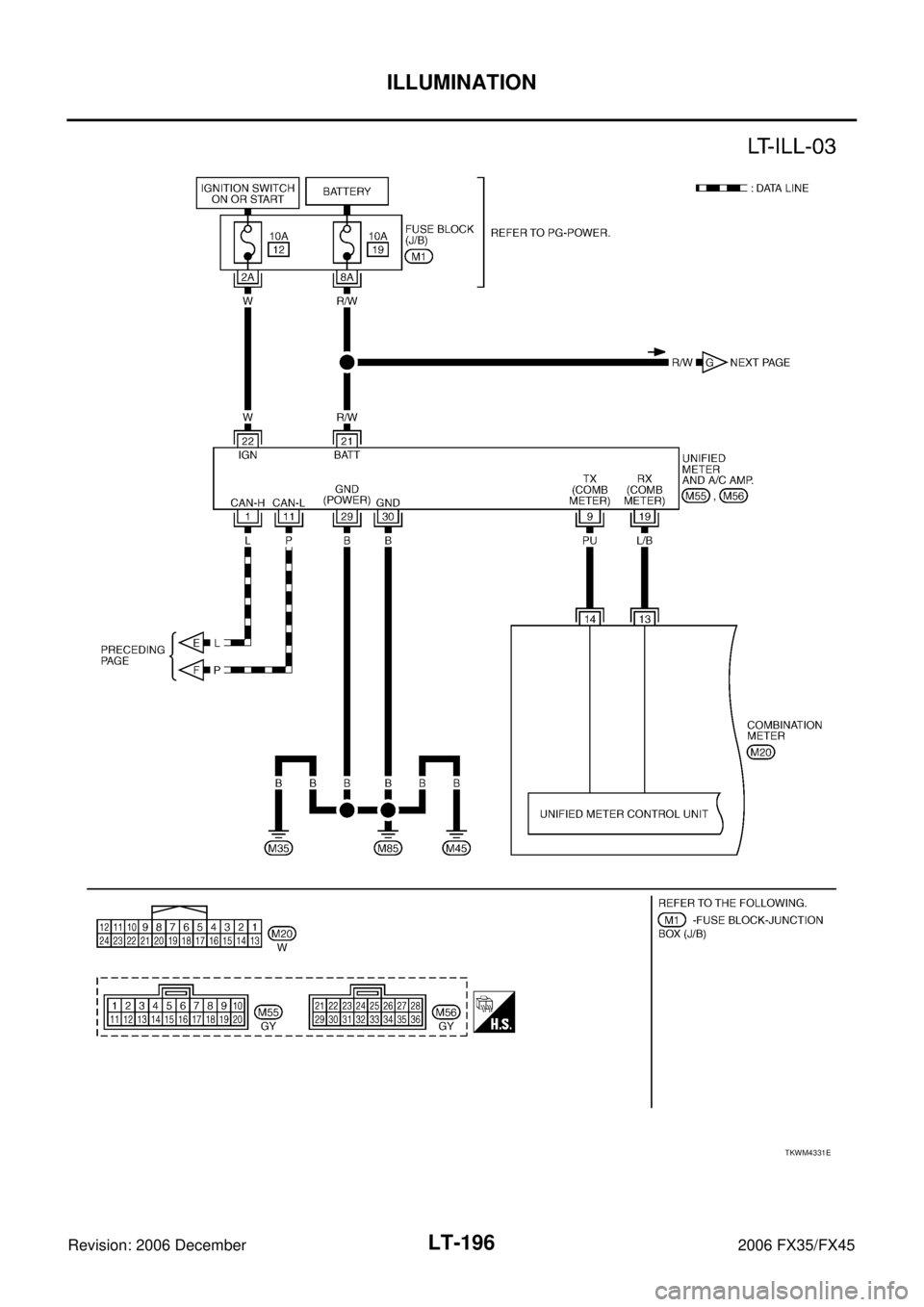

INFINITI FX35 2006 Service Manual ILLUMINATION LT-195 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 TKWM4330E

Page 3758 of 4462

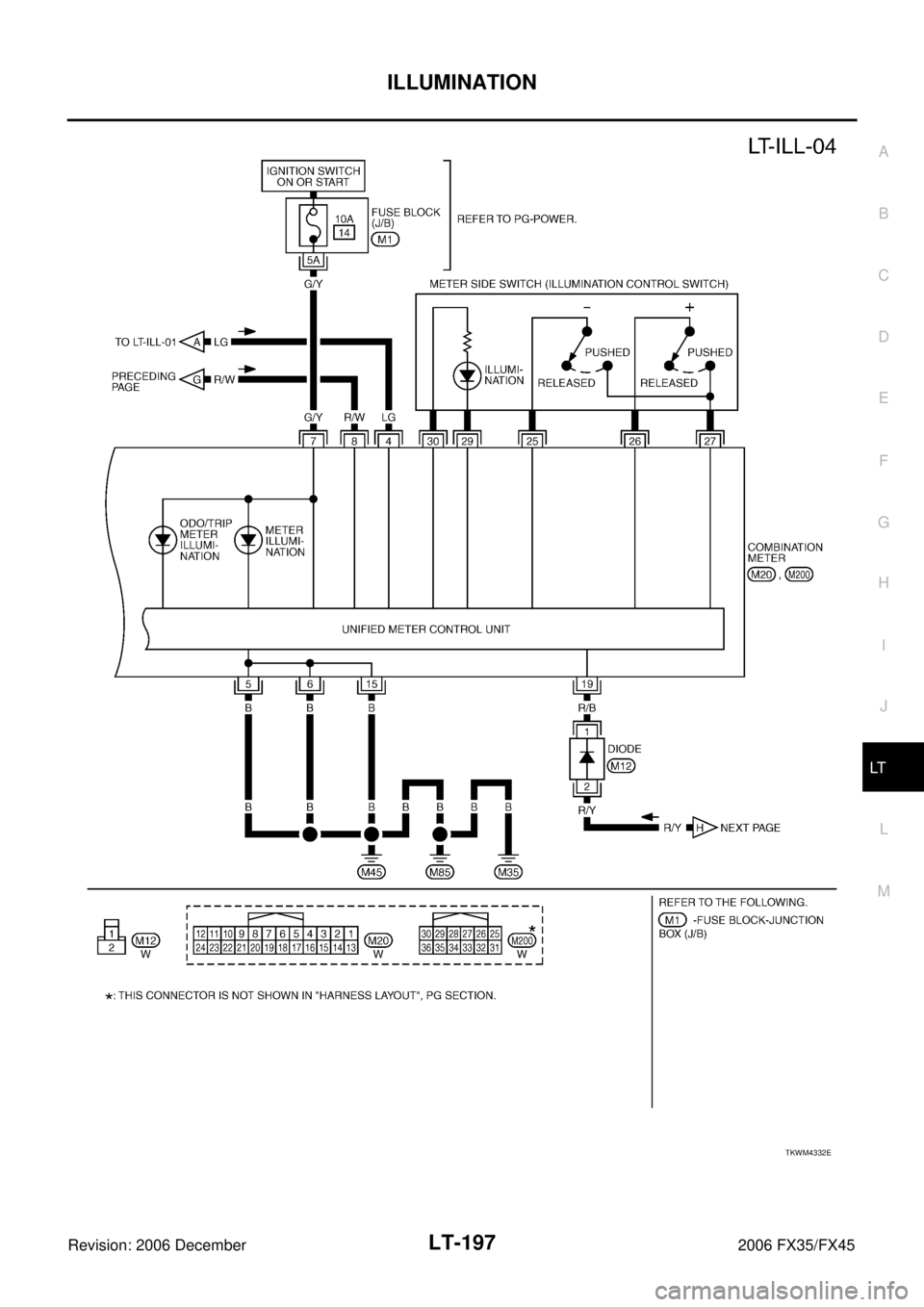

INFINITI FX35 2006 Service Manual LT-196 ILLUMINATION Revision: 2006 December 2006 FX35/FX45 TKWM4331E

Page 3759 of 4462

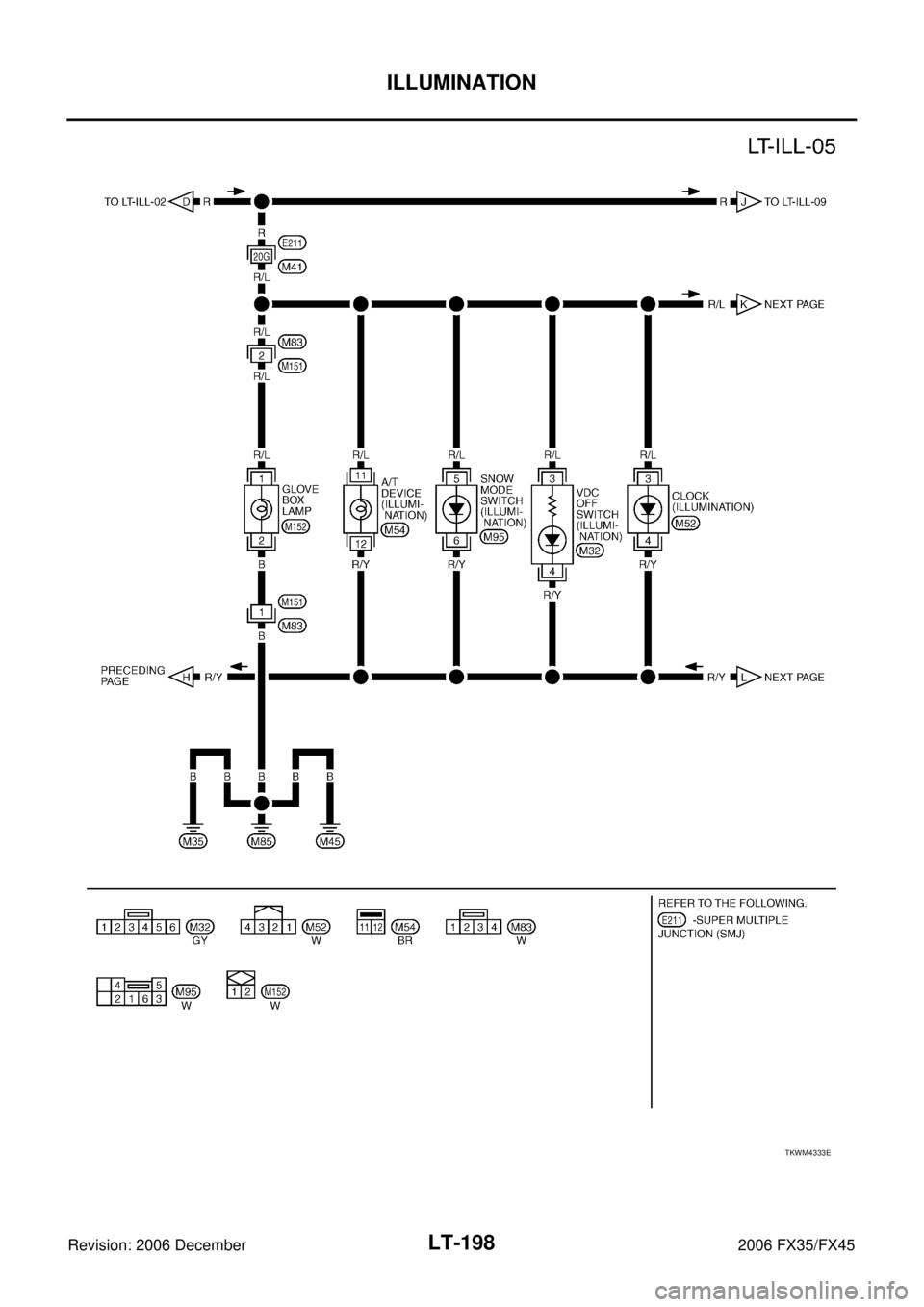

INFINITI FX35 2006 Service Manual ILLUMINATION LT-197 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 TKWM4332E

Page 3760 of 4462

INFINITI FX35 2006 Service Manual LT-198 ILLUMINATION Revision: 2006 December 2006 FX35/FX45 TKWM4333E
