ASCD INDICATOR EC-625
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNBS0040A
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnoses for DTC U1000, U1001. Refer to EC-156, "
DTC U1000, U1001 CAN
COMMUNICATION LINE" .
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-31, "
SELF-DIAG RESULTS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-34, "
DTC [B2202] Meter Communication Circuit" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ONMAIN switch: pressed at the 1st
time → at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
When vehicle speed is
between 40km/h (25MPH)
and 144km/h (89MPH) ASCD: Operating ON
ASCD: Not operating OFF
Page 2010 of 4462
![INFINITI FX35 2006 Service Manual EC-626
[VQ35DE]
ELECTRICAL LOAD SIGNAL
Revision: 2006 December 2006 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionNBS003ZU
The electrical load signal (Headlamp switch signal, etc.) is transferr INFINITI FX35 2006 Service Manual EC-626
[VQ35DE]
ELECTRICAL LOAD SIGNAL
Revision: 2006 December 2006 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionNBS003ZU
The electrical load signal (Headlamp switch signal, etc.) is transferr](/manual-img/42/57019/w960_57019-2009.png)
EC-626
[VQ35DE]
ELECTRICAL LOAD SIGNAL
Revision: 2006 December 2006 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionNBS003ZU
The electrical load signal (Headlamp switch signal, etc.) is transferred through the CAN communication line
from BCM to ECM via IPDM E/R.
CONSULT-II Reference Value in Data Monitor ModeNBS003ZV
Specification data are reference values.
Diagnostic ProcedureNBS003ZW
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
Ignition switch: ON Rear window defogger switch is ON
and/or lighting switch is in 2nd. ON
Rear window defogger switch is OFF
and lighting switch is OFF. OFF
HEATER FAN SW
Engine: After warming up, idle
the engine Heater fan: Operating. ON
Heater fan: Not operating OFF
Condition Indication
Rear window defogger switch: ON ON
Rear window defogger switch: OFF OFF
PBIB0103E
Condition Indication
Lighting switch: ON at 2nd position ON Lighting switch: OFF OFF
PBIB0103E
Page 2011 of 4462
ELECTRICAL LOAD SIGNAL EC-627
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
3. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Check “HEATER FAN SW” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
4. CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to GW-67, "
REAR WINDOW DEFOGGER" .
>> INSPECTION END
5. CHECK HEADLAMP SYSTEM
Refer to LT- 7 , "
HEADLAMP - XENON TYPE -" .
>> INSPECTION END
6. CHECK HEATER FAN CONTROL SYSTEM
Refer to AT C - 4 0 , "
TROUBLE DIAGNOSIS" .
>> INSPECTION END
Condition Indication
Heater fan: Operating ON
Heater fan: Not operating OFF
PBIB1995E
Page 2012 of 4462
![INFINITI FX35 2006 Service Manual EC-628
[VQ35DE]
FUEL INJECTOR
Revision: 2006 December 2006 FX35/FX45
FUEL INJECTORPFP:16600
Component DescriptionNBS003ZE
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a INFINITI FX35 2006 Service Manual EC-628
[VQ35DE]
FUEL INJECTOR
Revision: 2006 December 2006 FX35/FX45
FUEL INJECTORPFP:16600
Component DescriptionNBS003ZE
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a](/manual-img/42/57019/w960_57019-2011.png)
EC-628
[VQ35DE]
FUEL INJECTOR
Revision: 2006 December 2006 FX35/FX45
FUEL INJECTORPFP:16600
Component DescriptionNBS003ZE
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the Ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the fuel injection pulse
duration. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeNBS003ZF
Specification data are reference values.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL See EC-138, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
Page 2013 of 4462
FUEL INJECTOR EC-629
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

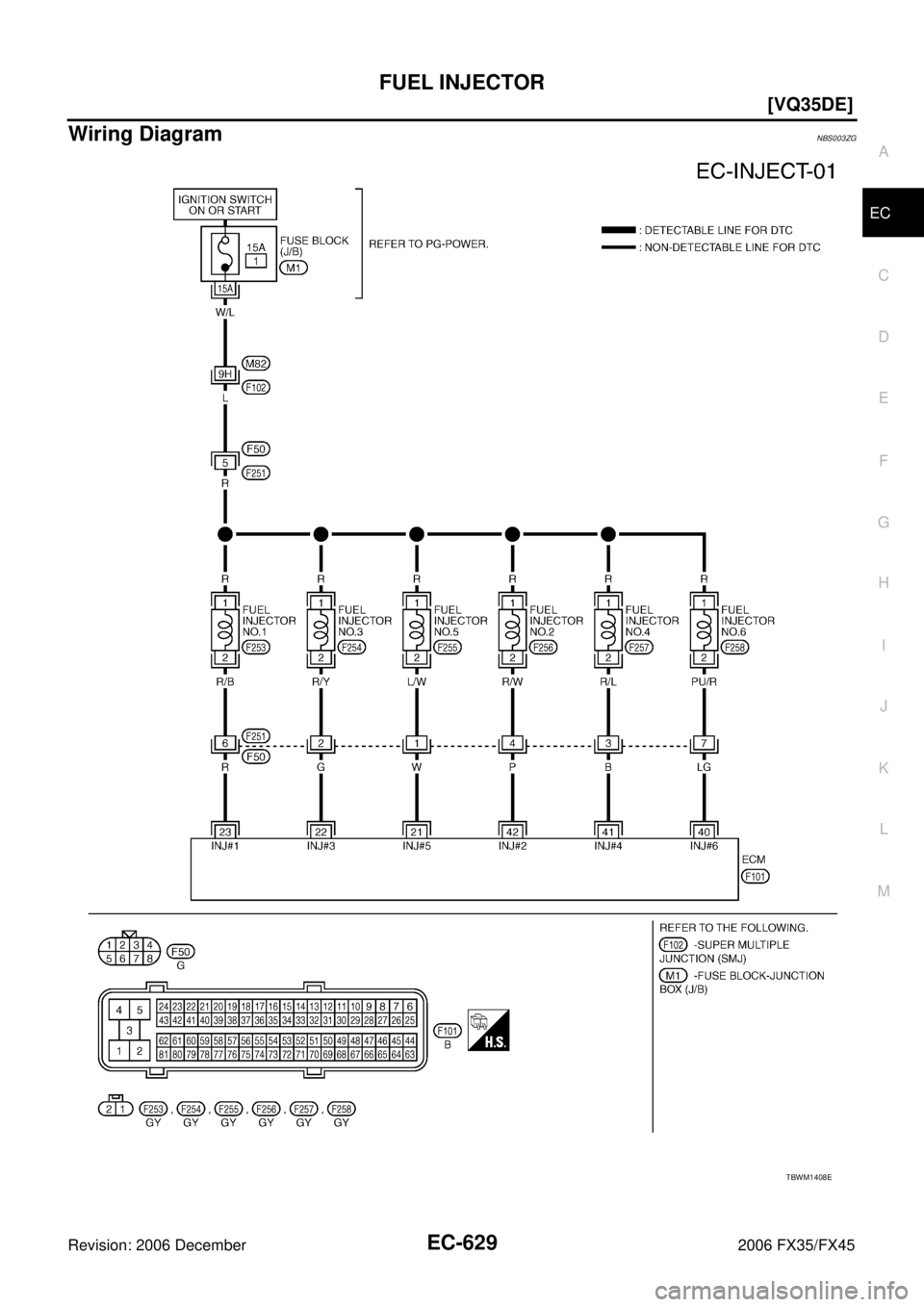

Wiring DiagramNBS003ZG
