INFINITI FX35 2006 Service Manual BODY REPAIR BL-283
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45

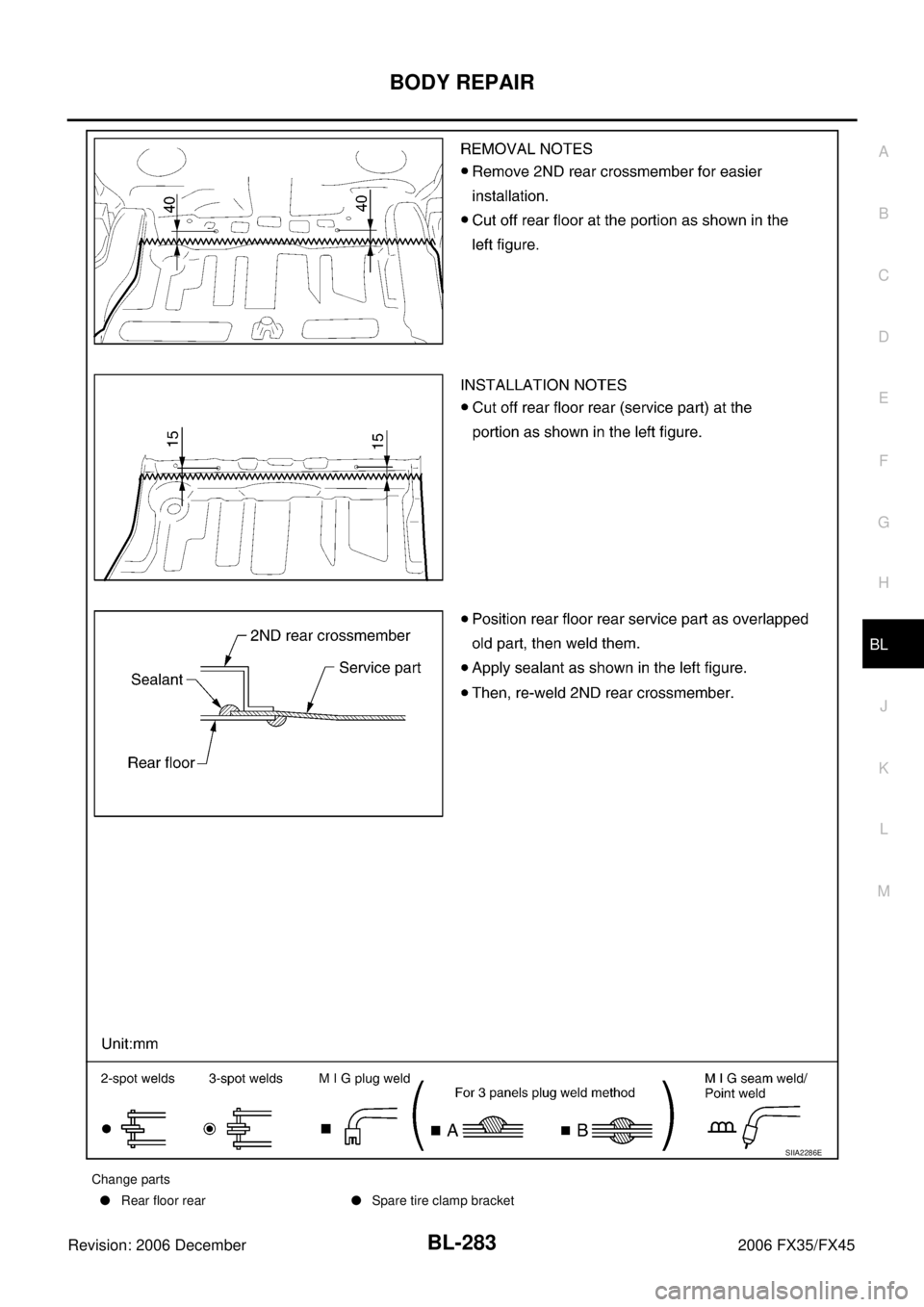

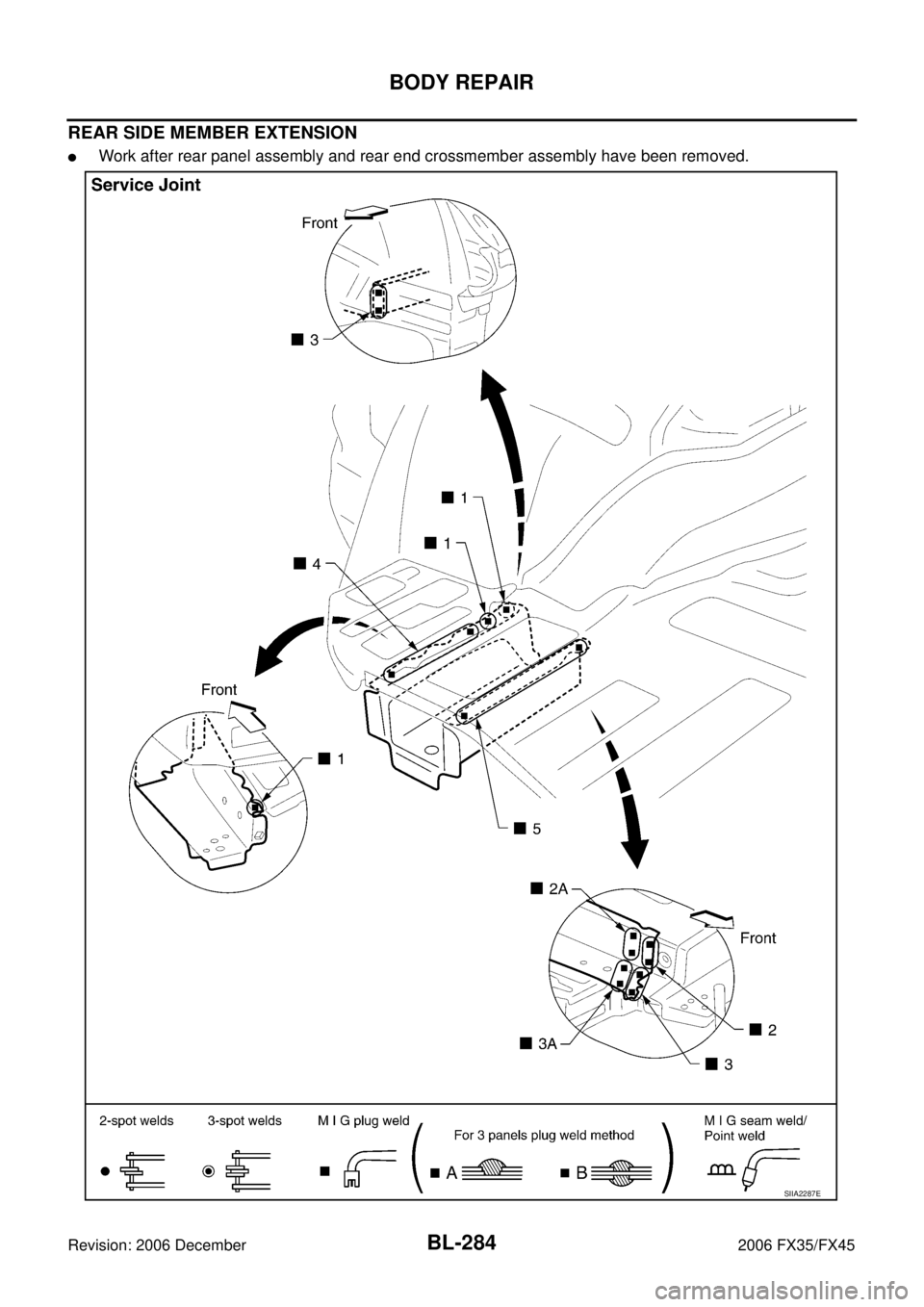

SIIA2286E
Change parts Rear floor rear Spare tire clamp bracket

Page 1098 of 4462

INFINITI FX35 2006 Service Manual BL-284
BODY REPAIR
Revision: 2006 December 2006 FX35/FX45
REAR SIDE MEMBER EXTENSION
Work after rear panel assembly and rear end crossmember assembly have been removed.
SIIA2287E

Page 1099 of 4462

INFINITI FX35 2006 Service Manual BODY REPAIR BL-285
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Change parts Rear side member extension (LH)

Page 1100 of 4462

INFINITI FX35 2006 Service Manual BL-286
BODY REPAIR
Revision: 2006 December 2006 FX35/FX45

Page 1101 of 4462

INFINITI FX35 2006 Service Manual BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION BR
A
B
BR
Revision: 2006 December 2006 FX35/FX45
BRAKE SYSTEM
PRECAUTIONS ..................................................

BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION BR
A
B
BR
Revision: 2006 December 2006 FX35/FX45
BRAKE SYSTEM
PRECAUTIONS ..................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Procedures without Cowl Top Cover ..... 3
Precautions for Brake System ............................. ..... 3
PREPARATION ...................................................... ..... 4
Commercial Service Tools ................................... ..... 4
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 5
NVH Troubleshooting Chart ................................ ..... 5
BRAKE PEDAL ..................................................... ..... 6
Inspection and Adjustment .................................. ..... 6
PLAY AND CLEARANCE BETWEEN BRAKE
PEDAL AND FLOOR PANEL WITH PEDAL
DEPRESSED ................................................... ..... 6
ADJUSTMENT ................................................. ..... 6
Components ........................................................ ..... 7
Removal and Installation ..................................... ..... 7
REMOVAL ........................................................ ..... 7
INSPECTION AFTER REMOVAL .................... ..... 8
INSTALLATION ................................................ ..... 8
BRAKE FLUID ....................................................... ..... 9
On-Board Inspection ........................................... ..... 9
LEVEL CHECK ................................................ ..... 9
Drain and Refill .................................................... ..... 9
Bleeding Brake System ....................................... ... 10
BRAKE TUBE AND HOSE .................................... ....11
Hydraulic Circuit .................................................. .... 11
Removal and Installation of Front Brake Tube and
Brake Hose ......................................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ .... 11
Removal and Installation of Rear Brake Piping and
Brake Hose ......................................................... ... 12
REMOVAL ........................................................ ... 12
INSTALLATION ................................................ ... 12
Inspection After Installation ................................. ... 12
BRAKE MASTER CYLINDER ............................... ... 13
On-Board Inspection ........................................... ... 13 LEAK INSPECTION .........................................
... 13
Components ........................................................ ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 14
Disassembly and Assembly ................................. ... 14
DISASSEMBLY ................................................ ... 14
ASSEMBLY ...................................................... ... 14
BRAKE BOOSTER ................................................ ... 15
On-Vehicle Service .............................................. ... 15
OPERATING CHECK ....................................... ... 15
AIRTIGHT CHECK ........................................... ... 15
Components ........................................................ ... 15
Removal and Installation ..................................... ... 16
REMOVAL ........................................................ ... 16
INSPECTION AFTER REMOVAL .................... ... 16
INSTALLATION ................................................ ... 16
VACUUM LINES .................................................... ... 17
Components ........................................................ ... 17
Removal and Installation ..................................... ... 17
Inspection ............................................................ ... 18
VISUAL INSPECTION ...................................... ... 18
CHECK VALVE INSPECTION .......................... ... 18
FRONT DISC BRAKE ............................................ ... 19
On-Vehicle Inspection .......................................... ... 19
PAD WEAR INSPECTION ................................ ... 19
Components ........................................................ ... 19
Removal and Installation of Brake Pad ............... ... 20
REMOVAL ........................................................ ... 20
INSTALLATION ................................................ ... 20
Removal and Installation of Brake Caliper Assembly ... 20
REMOVAL ........................................................ ... 20
INSTALLATION ................................................ ... 21
Disassembly and Assembly of Brake Caliper
Assembly ............................................................. ... 21
DISASSEMBLY ................................................ ... 21
INSPECTION AFTER DISASSEMBLY ............. ... 22
ASSEMBLY ...................................................... ... 22

Page 1102 of 4462

INFINITI FX35 2006 Service Manual BR-2Revision: 2006 December 2006 FX35/FX45 DISC ROTOR INSPECTION ............................
... 24
Brake Burnishing Procedure ................................ ... 24
REAR DISC BRAKE ..........

Page 1103 of 4462

INFINITI FX35 2006 Service Manual PRECAUTIONS BR-3
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT

PRECAUTIONS BR-3
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000LN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Procedures without Cowl Top CoverNFS000LO
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precautions for Brake SystemNFS000LP
Clean dust on front brake and rear brake with a vacuum dust collector. Do not blow with compressed air.
Recommended fluid is brake fluid “DOT 3”. MA-12, "Fluids and Lubricants" .
Do not reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas.
To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use new brake fluid.
Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.
Use a flare nut torque wrench when installing brake tube.
When installing brake piping, be sure to check torque.
Before working, turn ignition switch OFF and disconnect con-
nectors for ABS actuator and electric unit (control unit) or battery
cables.
Burnish the brake contact surfaces after refinishing or replacing
drums or rotors, after replacing pads or linings, or if a soft pedal
occurs at very low mileage.
Refer to BR-24, "
Brake Burnishing Procedure" (Front disc
brake), BR-31, "
Brake Burnishing Procedure" (Rear disc brake).
WARNING:
Clean brake pads and shoes with a waste cloth, then clean with a dust collector.
PIIB3706J
SBR686C
