Page 3921 of 4462

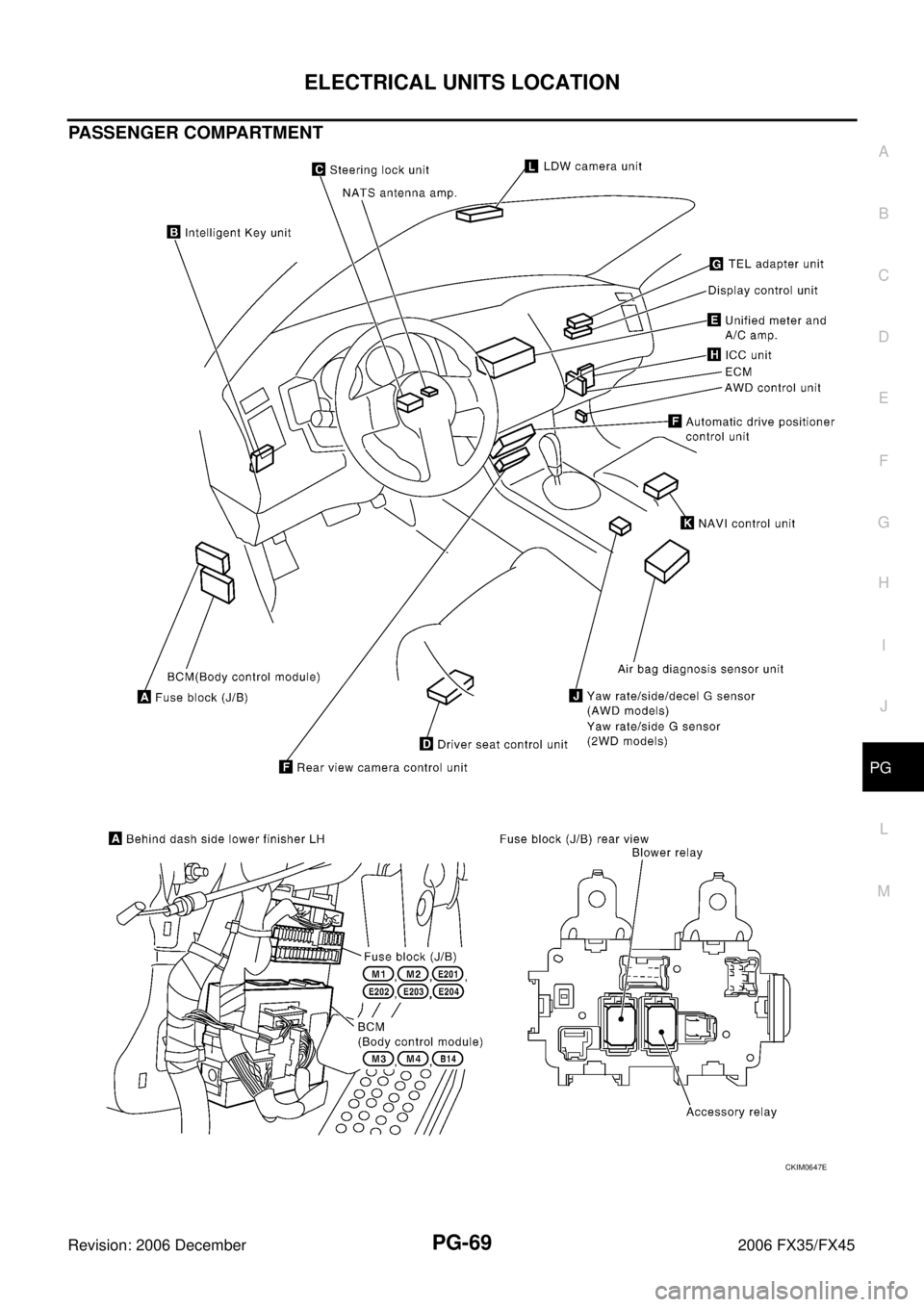

INFINITI FX35 2006 Service Manual ELECTRICAL UNITS LOCATION PG-69 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 PASSENGER COMPARTMENT CKIM0647E

Page 3922 of 4462

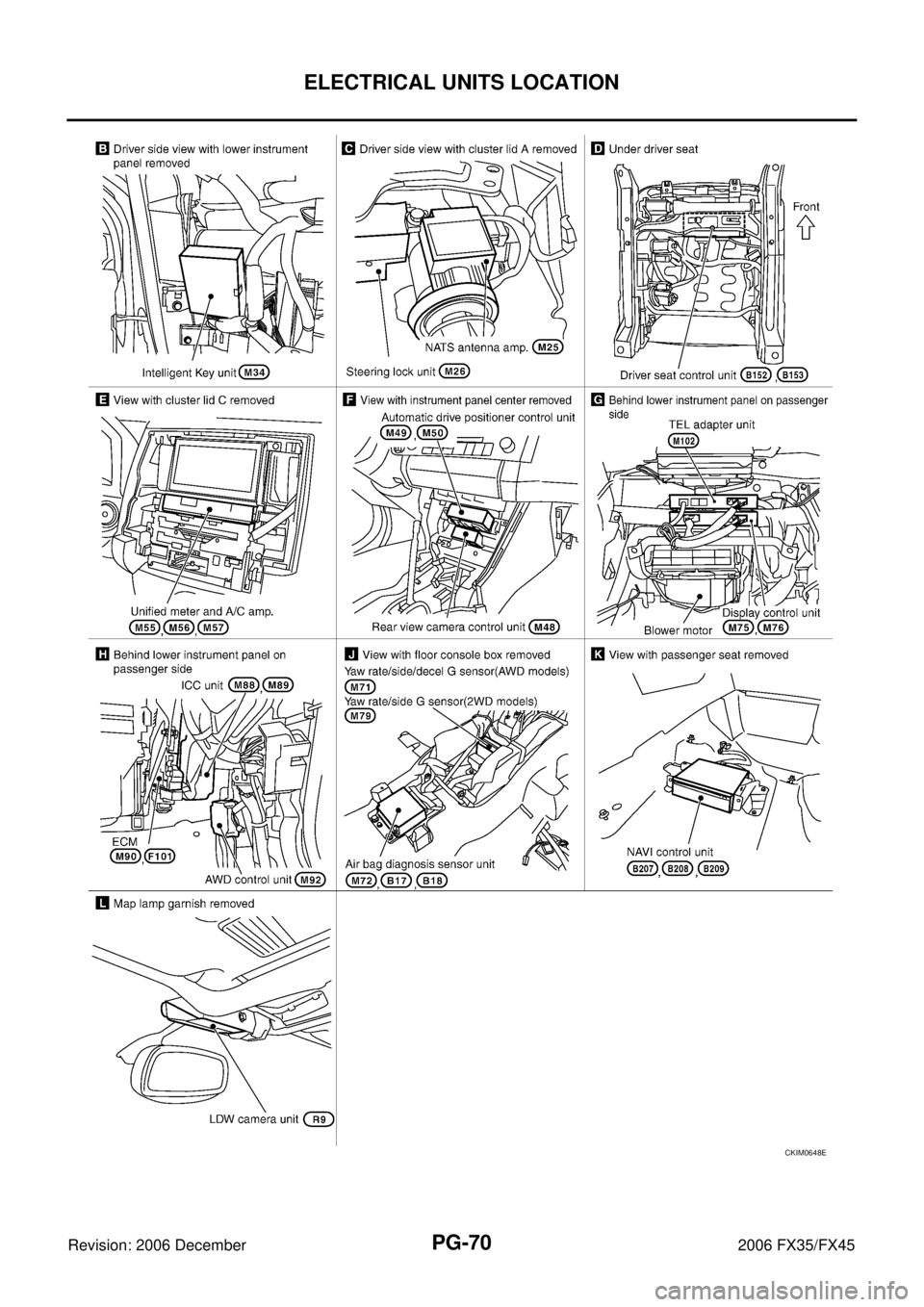

INFINITI FX35 2006 Service Manual PG-70 ELECTRICAL UNITS LOCATION Revision: 2006 December 2006 FX35/FX45 CKIM0648E

Page 3923 of 4462

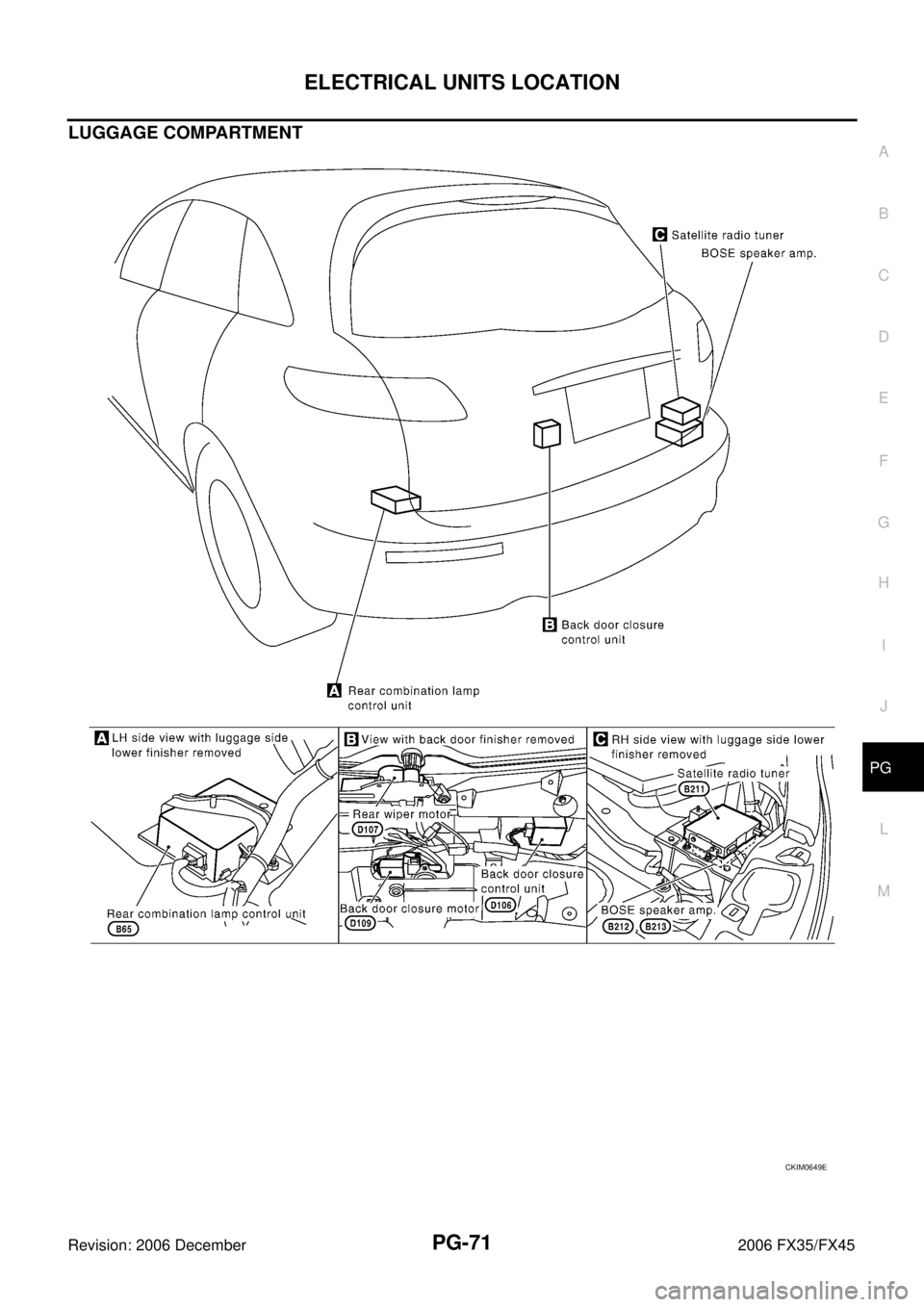

INFINITI FX35 2006 Service Manual ELECTRICAL UNITS LOCATION PG-71 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 LUGGAGE COMPARTMENT CKIM0649E

Page 3924 of 4462

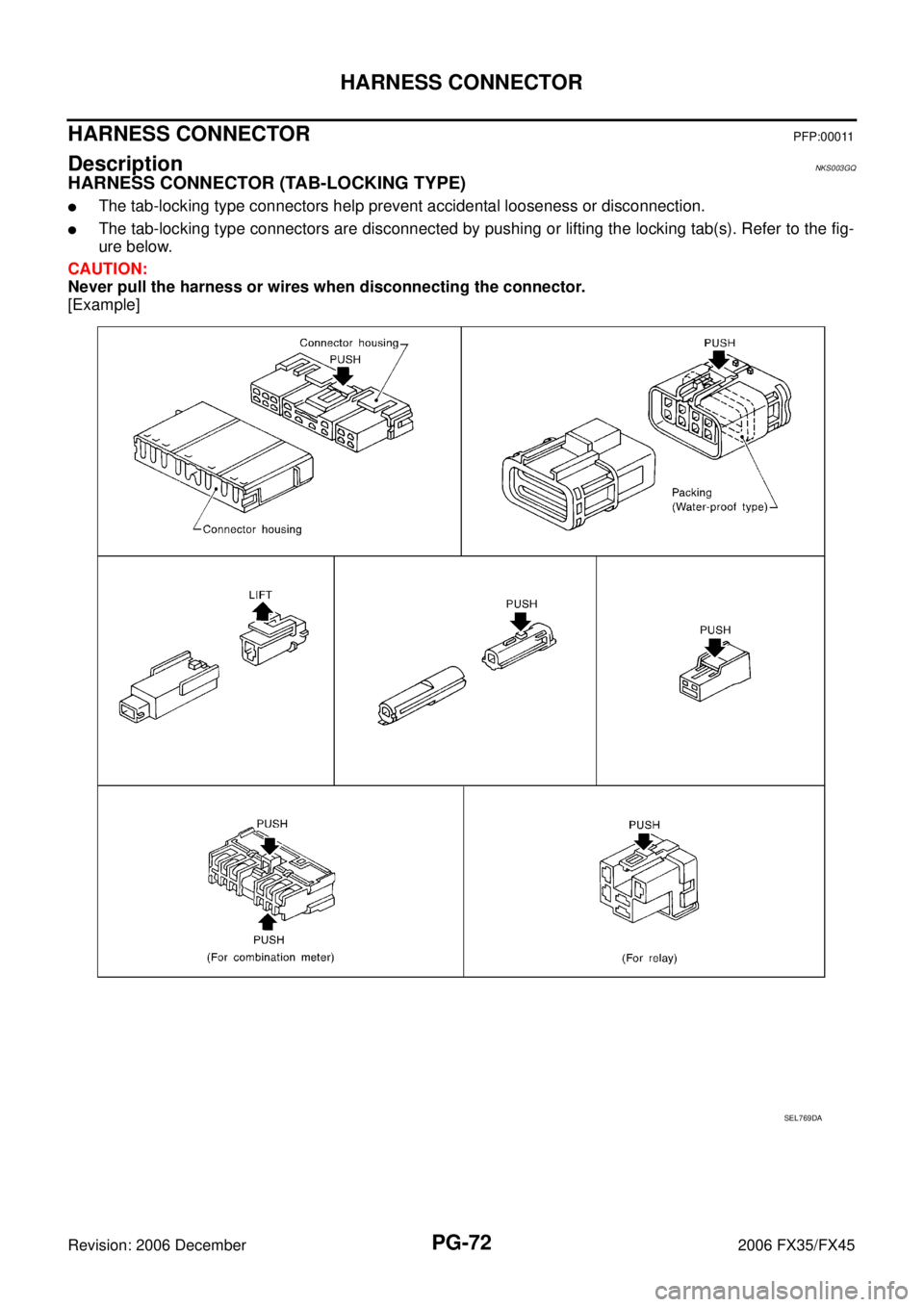

INFINITI FX35 2006 Service Manual PG-72 HARNESS CONNECTOR Revision: 2006 December 2006 FX35/FX45 HARNESS CONNECTOR PFP:00011 DescriptionNKS003GQ HARNESS CONNECTOR (TAB-LOCKING TYPE) The tab-locking type connectors help prevent accid

Page 3925 of 4462

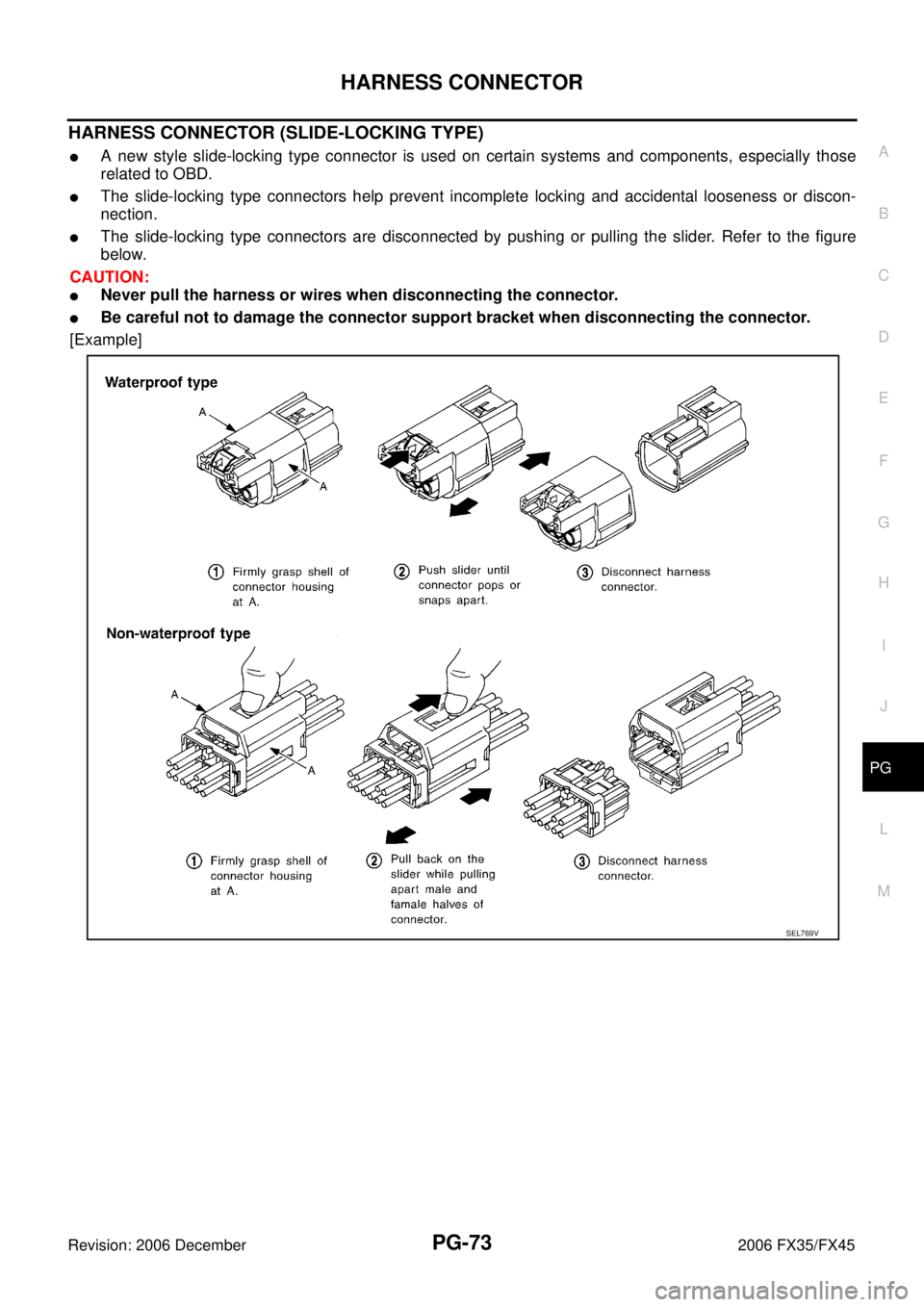

INFINITI FX35 2006 Service Manual HARNESS CONNECTOR PG-73 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 HARNESS CONNECTOR (SLIDE-LOCKING TYPE) A new style slide-locking type connector is used on certai

Page 3926 of 4462

INFINITI FX35 2006 Service Manual PG-74 HARNESS CONNECTOR Revision: 2006 December 2006 FX35/FX45 HARNESS CONNECTOR (LEVER LOCKING TYPE) Lever locking type harness connectors are used on certain control units and control modules such

Page 3927 of 4462

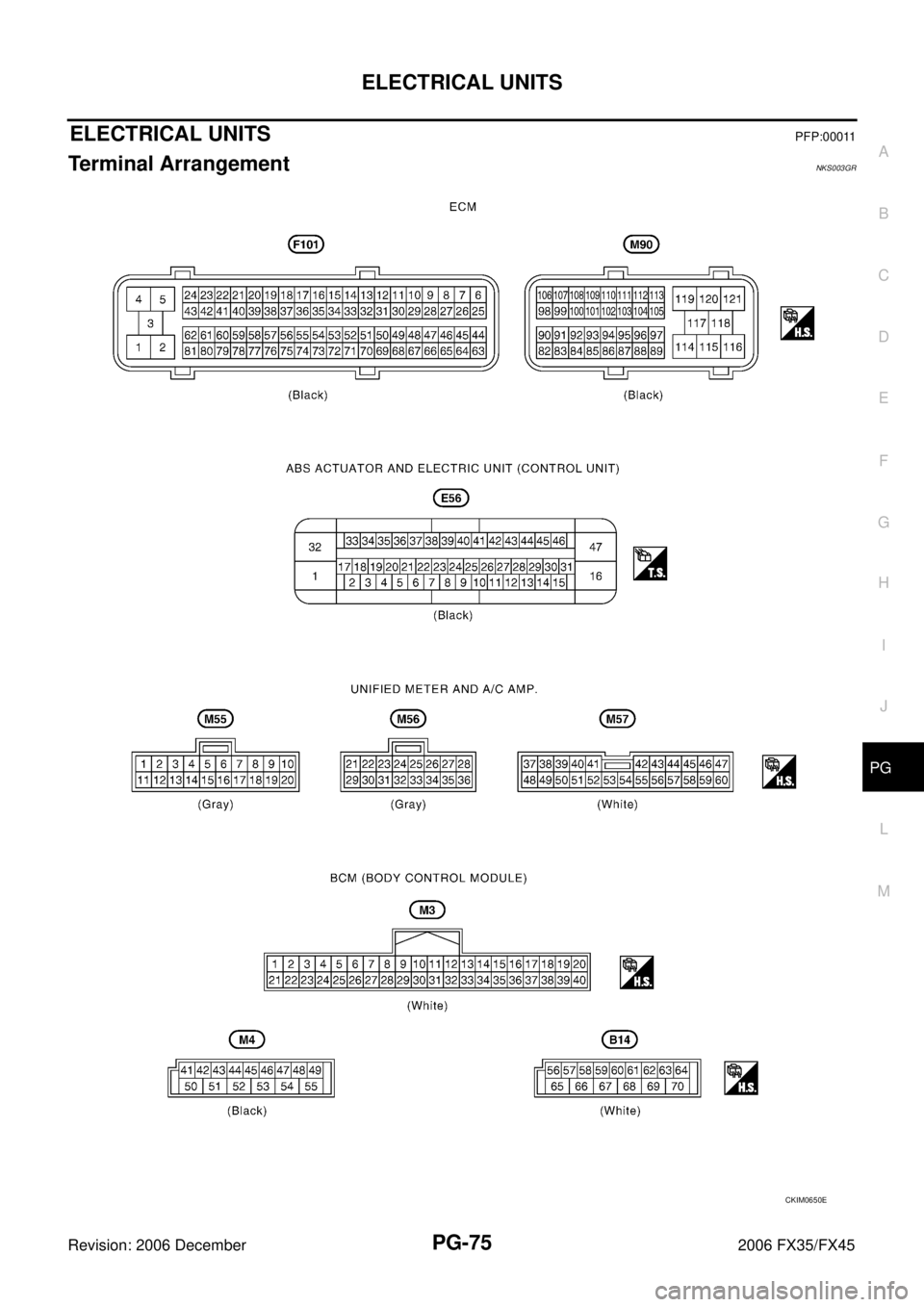

INFINITI FX35 2006 Service Manual ELECTRICAL UNITS PG-75 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 ELECTRICAL UNITS PFP:00011 Terminal Arrangement NKS003GR CKIM0650E

Page 3928 of 4462

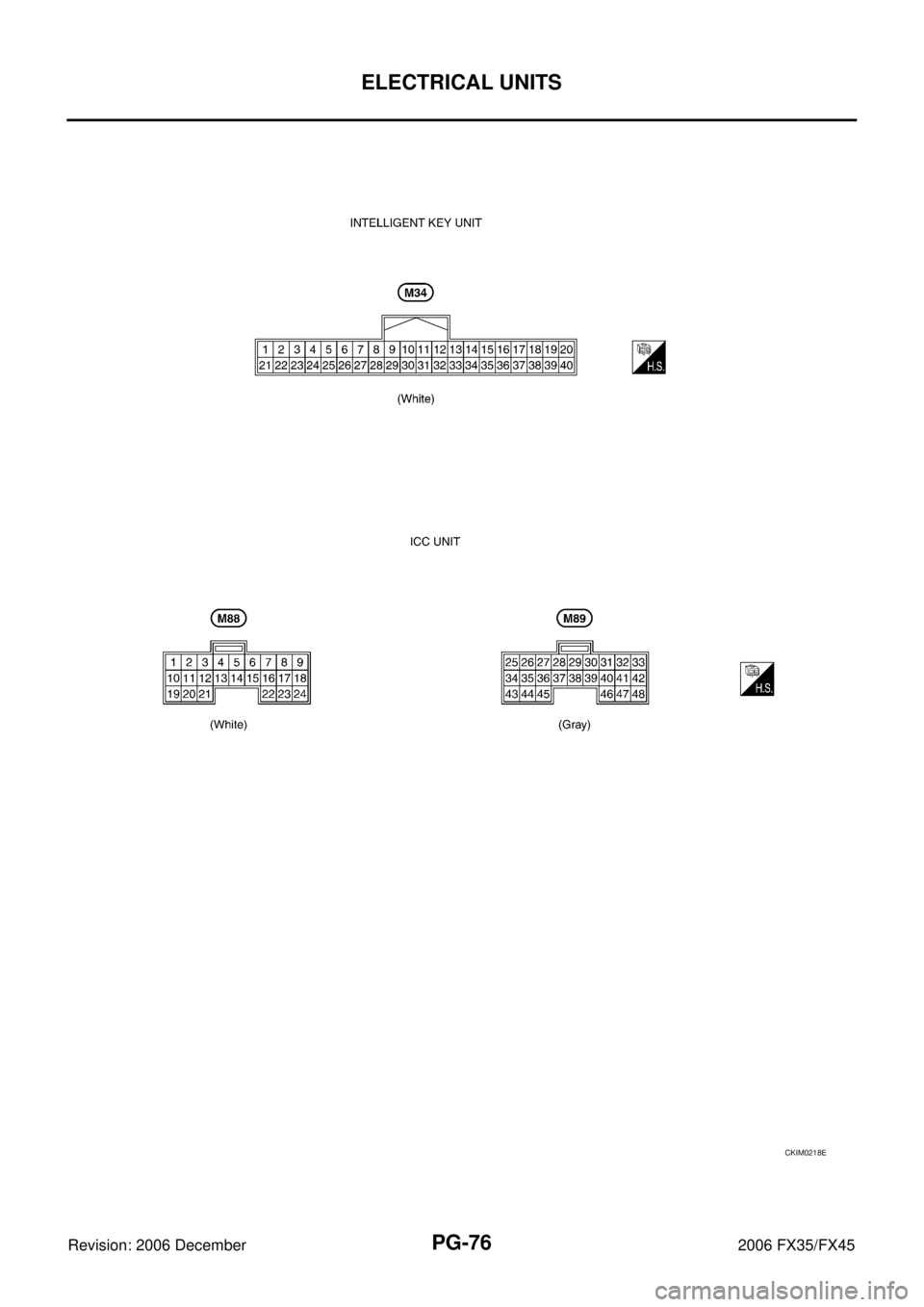

INFINITI FX35 2006 Service Manual PG-76 ELECTRICAL UNITS Revision: 2006 December 2006 FX35/FX45 CKIM0218E
