Page 1153 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS BRC-21
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45

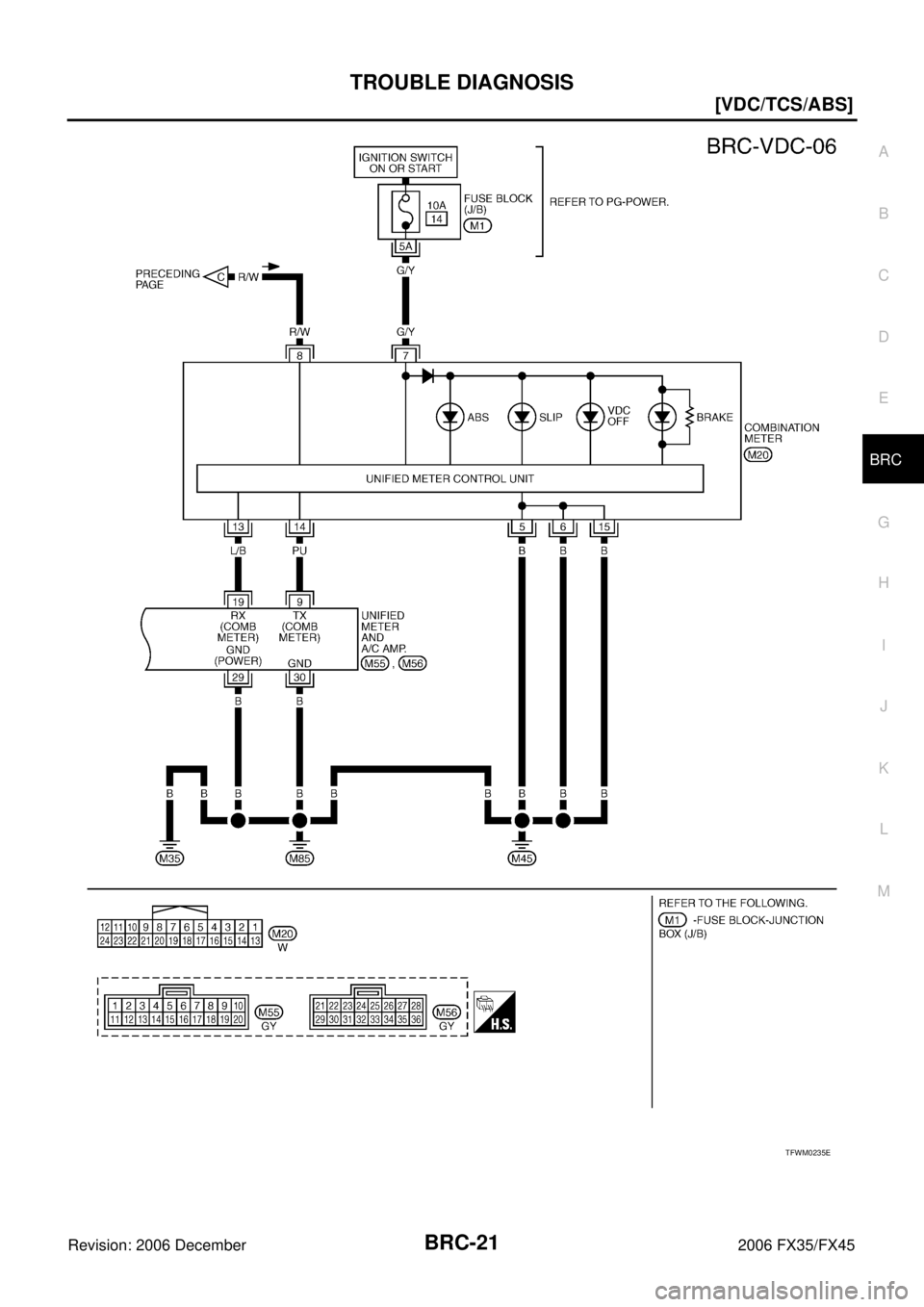

TFWM0235E

Page 1154 of 4462

INFINITI FX35 2006 Service Manual BRC-22
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Control Unit Input/Output Signal StandardNFS000NF
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows ABS actuator

BRC-22
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Control Unit Input/Output Signal StandardNFS000NF
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows ABS actuator and electric unit (control unit) calculation data, so a normal value
might be displayed even in the event the output circuit (harness) is open or short-circuited.
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R: R position
N: N position
D: D position
GEAR A/T gear position 1: 1st gear
2: 2nd gear
3: 3rd gear
4: 4th gear
5: 5th gear
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSOR Wheel speed Vehicle stopped 0 km/h
Vehicle running (Note 1) Almost in accor-
dance with speedom-
eter display
(within ± 10 %)
ACCEL POS SIG Open/close condition of throttle valve
(linked with accelerator pedal) Accelerator pedal not depressed
(ignition switch ON) 0 %
Depress accelerator pedal
(ignition switch ON) 0 to 100 %
ENGINE SPEED With engine running With engine stopped 0 rpm
Engine running Almost in accor-
dance with tachome-
ter display
STR ANGLE SIG Steering angle detected by steering angle
sensor Straight-ahead Approx. 0 deg
Steering wheel turned –756 to 756 deg
YAW RATE SEN Yaw rate detected by yaw rate sensor Vehicle stopped Approx. 0 d/s
Vehicle running –100 to 100 d/s
SIDE G-SENSOR Transverse G detected by side G sensor Vehicle stopped
Approx. 0 m/s
2
Vehicle running–16.7 to 16.7 m/s2
PRESS SENSOR Brake fluid pressure detected by pressure
sensor With ignition switch turned ON and brake
pedal released Approx. 0 bar
With ignition switch turned ON and brake
pedal depressed 0 to 170 bar
BATTERY VOLT Battery voltage supplied to ABS actuator
and electric unit (control unit) Ignition switch ON 10 to 16 V
STOP LAMP SW Brake pedal operation Brake pedal depressed ON
Brake pedal not depressed OFF
OFF SW VDC OFF switch ON/OFF status VDC OFF switch ON
(When VDC OFF indicator lamp is ON) ON
VDC OFF switch OFF
(When VDC OFF indicator lamp is OFF) OFF
ABS WARN LAMP ABS warning lamp ON condition (Note 2) ABS warning lamp ON ON
ABS warning lamp OFF OFF

Page 1155 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS BRC-23
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
MOTOR RELAY Operation status of motor and motor relay Ignition switch ON or engin

TROUBLE DIAGNOSIS BRC-23
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
MOTOR RELAY Operation status of motor and motor relay Ignition switch ON or engine running
(ABS not operated) OFF
Ignition switch ON or engine running
(ABS operated) ON
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONSULT-II) ON
When actuator relay is inactive
(in fail-safe mode) OFF
OFF LAMP VDC OFF indicator lamp status
(Note 3) When VDC OFF indicator lamp is ON ON
When VDC OFF indicator lamp is OFF OFF
SLIP LAMP SLIP indicator lamp status
(Note 4) When SLIP indicator lamp is ON ON
When SLIP indicator lamp is OFF OFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL Solenoid valve operation Actuator (solenoid) is active (“ACTIVE
TEST” with CONSULT-II) and actuator
relay is active (ignition switch ON) ON
When actuator (solenoid) is not active or
actuator relay is inactive (in fail-safe
mode) OFF
CV1
CV2
SV1
SV2 VDC/TCS switch-over valve status When actuator (switch-over valve) is
active (“ACTIVE TEST” with CONSULT-II)
and actuator relay is active (ignition
switch ON) ON
When actuator (switch-over valve) is not
active or actuator relay is inactive (in fail-
safe mode) OFF
DECEL G-SEN Longitudinal acceleration detected by decel
G sensor (Note 5) Vehicle stopped Approx. 0 G
Vehicle running -1.7 to +1.7 G
FLUID LEV SW ON/OFF status of brake fluid level switch When brake fluid level switch ON ON
When brake fluid level switch OFF OFF
VDC FAIL SIG
TCS FAIL SIG
ABS FAIL SIG
EBD FAIL SIG Fail signal status VDC fail
TCS fail
ABS fail
EBD fail ON
VDC normal
TCS normal
ABS normal
EBD normal OFF
EBD WARN LAMP Brake warning lamp on condition
(Note 6) Brake warning lamp ON ON
Brake warning lamp OFF OFF
EBD SIGNAL EBD operation EBD active ON
EBD not active OFF
ABS SIGNAL ABS operation ABS active ON
ABS not active OFF
TCS SIGNAL TCS operation TCS active ON
TCS not active OFF
VDC SIGNAL VDC operation VDC active ON
VDC not active OFF
Monitor item Display content
Data monitor
Condition Reference value in
normal operation

Page 1156 of 4462

INFINITI FX35 2006 Service Manual BRC-24
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approx. Within 2 seconds after ig

BRC-24
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not activa ted.
Note 3: ON/OFF timing of VDC OFF indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC OFF switch is ON.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation.) And when VDC OFF switch is OFF.
Note 4: ON/OFF timing of SLIP indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC/TCS function is activa ted
while driving.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not activa ted.
Flashing: VDC/TCS function is active during driving
Note 5: Only AWD models.
Note 6: Serves as EBD warning lamp.
CONSULT-II Functions (VDC)NFS000NG
CONSULT-II MAIN FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CRANKING SIG CRANKING status Cranking ON
Not cranking OFF
4WD FAIL REQ ETS fail status (Note 5) ETS fail ON
ETS normal OFF
2WD/4WD Drive axle 2WD model 2WD
AW D mod el AW D
Monitor item Display content
Data monitor
Condition Reference value in
normal operation
Diagnostic test mode Function Reference
WORK SUP-
PORT This mode enables a technician to adjust some devices faster and more accurately
by following the indications on CONSULT-II. BRC-6, "
ON-VEHICLE SER-
VICE"
SELF-DIAG
RESULTS Self-diagnostic results can be read and erased quickly.
BRC-25, "Self-Diagnosis"
DATA MONI-
TOR Input/Output data in the ABS actuator and electric unit (control unit) can be read.
BRC-29, "Data Monitor"
CAN DIAG
SUPPORT
MNTR The results of transmit/receive diagnosis of communication can be read.
LAN-16, "CAN Diagnostic
Support Monitor"
ACTIVE TEST Diagnostic Test Mode in which CONSULT-II drives some actuators apart from the
ABS actuator and electric unit (control unit) and also shifts some parameters in a
specified range. BRC-31, "Active Test"
FUNCTION
TEST Performed by CONSULT-II instead of a technician to determine whether each sys-
tem is “OK” or “NG”. —
ECU PART
NUMBER ABS actuator and electric unit (control unit) part number can be read. —

Page 1157 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS BRC-25
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
Self-DiagnosisNFS000OI
DESCRIPTION
If an error is detected in the system, ABS war

TROUBLE DIAGNOSIS BRC-25
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
Self-DiagnosisNFS000OI
DESCRIPTION
If an error is detected in the system, ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp
on the combination meter turn on. In this case, perform self-diagnosis as follows:
While CONSULT-II is used, ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp may be
turned on in a case of no malfunctioning.
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform “CONSULT-II Starting Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping vehicle, with the engine running, touch “ABS”, “SELF-DIAG RESULTS” in order on the CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on the
ignition switch, “ABS” might not be displayed in the “SYSTEM SELECTION” screen. In this case,
repeat the operation from step 1. If it can not be shown after several attempts, ABS actuator and
electric unit (control unit) may have malfunctioned.
6. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by touching “PRINT”.)
When “NO FAILURE” is displayed, check ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp.
7. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning component.
8. Drive the vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute. CAUTION:
In a case that a wheel sensor is malfunctioning, ABS warning lamp, VDC OFF indicator lamp, SLIP
indicator lamp will turn on. If vehicle is not driven at approximately 30 km/h (19 MPH) or more for
at least approximately 1 minute after repair of the wheel sensor system, ABS warning lamp, VDC
OFF indicator lamp and SLIP indicator lamp may not turn off even if everything is normal. Check
again to make sure that there is no malfunction on other parts.
ERASE MEMORY
1. Turn ignition switch OFF.
2. Start the engine and touch “ABS”, “SELF-DIAG RESULTS”, “ERASE MEMORY” in order on the CON- SULT-II screen to erase the error memory.
CAUTION:
If the error memory is not erased, re-conduct the operation from step 4.
3. Perform self-diagnosis again, and make sure that diagnostic memory is erased.
4. Drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp turn off.
NOTE:
VDC OFF switch should not stay “ON” position.

Page 1158 of 4462

INFINITI FX35 2006 Service Manual BRC-26
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
DISPLAY ITEM LIST
Self-diagnostic item Malfunction detecting condition Check system
RR RH SENSOR- 1
[C1101] Circuit of

BRC-26
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
DISPLAY ITEM LIST
Self-diagnostic item Malfunction detecting condition Check system
RR RH SENSOR- 1
[C1101] Circuit of rear RH wheel sensor is open, shorted or sensor power volt-
age is unusual.
BRC-36, "
Wheel Sensor Cir-
cuit" (Note 1)
RR LH SENSOR- 1
[C1102] Circuit of rear LH wheel sensor is open, shorted or sensor power volt-
age is unusual.
FR RH SENSOR- 1
[C1103] Circuit of front RH wheel sensor is open, shorted or sensor power volt-
age is unusual.
FR LH SENSOR- 1
[C1104] Circuit of front LH wheel sensor is open, shorted or sensor power volt-
age is unusual.
RR RH SENSOR- 2
[C1105] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
RR LH SENSOR- 2
[C1106] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
FR RH SENSOR- 2
[C1107] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
FR LH SENSOR- 2
[C1108] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
ABS SENSOR
[ABNORMAL SIGNAL]
[ C 111 5 ] Wheel sensor input is malfunction.
BATTERY VOLTAGE
[ABNORMAL]
[C1109] ABS actuator and electric unit (control unit) power voltage is too low. BRC-45, "
ABS Actuator and
Electric Unit (Control Unit)
Power Supply and Ground Cir-
cuit"
CONTROLLER FAILURE
[ C 111 0 ] Internal malfunction of ABS actuator and electric unit (control unit)
BRC-38, "VDC/TCS/ABS Con-
trol Unit Circuit"
PUMP MOTOR
[ C 1111 ] ( N o t e 3 ) During actuator motor operation with ON, when actuator motor turns
OFF or when control line for actuator motor relay is open. BRC-44, "Actuator Motor Cir-
cuit"During actuator motor operation with OFF, when actuator motor turns
ON or when control line for relay is shorted to ground.
G - SENSOR
[C1113] (Note 4) Decel G sensor is malfunctioning, or signal line of decel G sensor is
open or shorted. BRC-41, "
Yaw Rate/Side G
Sensor (2WD Models), Yaw
Rate/Side/Decel G Sensor
(AWD Models) Circuit"
STOP LAMP SW
[ C 111 6 ] Stop lamp switch circuit is open or shorted.
BRC-47, "Stop Lamp Switch
Circuit"

Page 1159 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS BRC-27
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
FR LH IN ABS SOL
[C1120] Circuit of front LH IN ABS solenoid is open or shorted,

TROUBLE DIAGNOSIS BRC-27
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
FR LH IN ABS SOL
[C1120] Circuit of front LH IN ABS solenoid is open or shorted, or control line is
open or shorted to power supply or ground.
BRC-43, "
Solenoid and VDC
Change-Over Valve Circuit"
FR LH OUT ABS SOL
[C1121] Circuit of front LH OUT ABS solenoid is open or shorted, or control line
is open or shorted to power supply or ground.
FR RH IN ABS SOL
[C1122] Circuit of front RH IN ABS solenoid is open or shorted, or control line is
open or shorted to power supply or ground.
FR RH OUT ABS SOL
[C1123] Circuit of front RH OUT ABS solenoid is open or shorted, or control line
is open or shorted to power supply or ground.
RR LH IN ABS SOL
[C1124] Circuit of rear LH IN ABS solenoid is open or shorted, or control line is
open or shorted to power supply or ground.
RR LH OUT ABS SOL
[C1125] Circuit of rear LH OUT ABS solenoid is open or shorted, or control line
is open or shorted to power supply or ground.
RR RH IN ABS SOL
[C1126] Circuit of rear RH IN ABS solenoid is open or shorted, or control line is
open or shorted to power supply or ground.
RR RH OUT ABS SOL
[C1127] Circuit of rear RH OUT ABS solenoid is open or shorted, or control line
is open or shorted to power supply or ground.
CV1
[C1164] Primary side VDC switch-over solenoid valve 1 (cut valve 1) is open or
shorted, or control line is open or shorted to power supply or ground.
CV2
[C1165] Secondary side VDC switch-over solenoid valve 2 (cut valve 2) is open
or shorted, or control line is open or shorted to power supply or ground.
SV1
[C1166] Primary side VDC switch-over solenoid valve 1 (suction valve 1) is
open or shorted, or control line is open or shorted to power supply or
ground.
SV2
[C1167] Secondary side VDC switch-over solenoid valve 2 (suction valve 2) is
open or shorted, or control line is open or shorted to power supply or
ground.
ACTUATOR RLY
[C1140] (Note 3)
Actuator solenoid valve relay is ON, even if control unit sends off sig-
nal.
Actuator solenoid valve relay is OFF, even if control unit sends on
signal. BRC-44, "
Actuator Motor Cir-
cuit"
PRESS SEN CIRCUIT
[C1142] Pressure sensor signal line is open or shorted, or sensor power volt-
age is unusual, or pressure sensor is malfunctioning. BRC-39, "Pressure Sensor Cir-
cuit"
ST ANG SEN CIRCUIT
[C1143] Neutral position of steering angle sensor is dislocated, or steering
angle sensor is malfunctioning. BRC-40, "Steering Angle Sen-
sor Circuit"
ST ANG SEN SIGNAL
[C1144] Neutral position correction of steering angle sensor is not finished. BRC-6, "Adjustment of Steer-
ing Angle Sensor Neutral Posi-
tion"
YAW RATE SENSOR
[C1145] Yaw rate sensor has generated an error, or yaw rate sensor signal line
is open or shorted. BRC-41, "
Yaw Rate/Side G
Sensor (2WD Models), Yaw
Rate/Side/Decel G Sensor
(AWD Models) Circuit"
SIDE G-SEN CIRCUIT
[C1146] Side G sensor is malfunctioning, or signal line of side G sensor is open
or shorted. BRC-41, "
Yaw Rate/Side G
Sensor (2WD Models), Yaw
Rate/Side/Decel G Sensor
(AWD Models) Circuit"
BR FLUID LEVEL LOW
[C1155] Brake fluid level drops or circuit between ABS actuator and electric unit
(control unit) and brake fluid level switch is open or shorted. BRC-48, "Brake Fluid Level
Switch Circuit"
ST ANG SEN COM CIR
[C1156] CAN communication line or steering angle sensor has generated an
error. BRC-40, "
Steering Angle Sen-
sor Circuit"
BRC-50, "CAN Communication
Circuit"
Self-diagnostic item Malfunction detecting condition Check system

Page 1160 of 4462

INFINITI FX35 2006 Service Manual BRC-28
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Note 1: After completing repairs of shorted sensor circuit, when turning ignition switch ON, ABS warning lamp turned on. M

BRC-28
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Note 1: After completing repairs of shorted sensor circuit, when turning ignition switch ON, ABS warning lamp turned on. Make t hat ABS
warning lamp turned off while driving vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute according to self-
diagnosis procedure. In addition, if wheel sensor 2 is displayed for wheels, check wheel sensor circuit and also check ABS actu ator and
electric unit (control unit) power voltage.
Note 2: If multiple malfunctions are detected including CAN communication line [U1000], perform diagnosis for CAN communication line
first.
Note 3: “ACTUATOR RLY” on the CONSULT-II self-diagnostic results indicates the malfunction of actuator relay or circuit. Actuat or relay
is imbedded in ABS actuator and electric unit (control unit).
Note 4:Only AWD models. DECEL G SEN SET
[C1160] (Note 4) Neutral position correction of decel G sensor is not finished. BRC-49, "
When “DECEL G
SEN SET” Appears on Self-
diagnostic Results Display
(AWD Models)"
BRC-7, "Calibration of Decel G
Sensor (AWD Models)"
VARIANT CODING
[C1170] V coding is not functioning. ABS actuator and electric unit
(control unit) and circuit
ENGINE SIGNAL 1
[C1130] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine fuel cut system is malfunctioning.
BRC-38, "
Engine System"
ENGINE SIGNAL 2
[C1131] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine ETC system is malfunctioning.
ENGINE SIGNAL 3
[C1132] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine CAN system is malfunctioning.
ENGINE SIGNAL 4
[C1133] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine torque down system is malfunctioning.
ENGINE SIGNAL 6
[C1136] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine control system is malfunctioning.
CAN COMM CIRCUIT
[U1000]
CAN communication line is open or shorted.
ABS actuator and electric unit (control unit) internal malfunction
Battery voltage for EMC is suddenly interrupted for approximately
0.5 seconds or more. BRC-50, "
CAN Communication
Circuit" (Note 2)
Self-diagnostic item Malfunction detecting condition Check system

Load next 8 pages

Page: < prev 1-10 ... 1121-1128 1129-1136 1137-1144 1145-1152 1153-1160 1161-1168 1169-1176 1177-1184 1185-1192 ... 4464 next >

language adding oil change key battery sat nav check engine brakes
