Page 1417 of 4462

INFINITI FX35 2006 Service Manual ENGINE CONTROL SYSTEM EC-33
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
FUEL INJECTION TIMING
Two types of systems are used.
Sequential Multiport Fuel Inject

ENGINE CONTROL SYSTEM EC-33
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

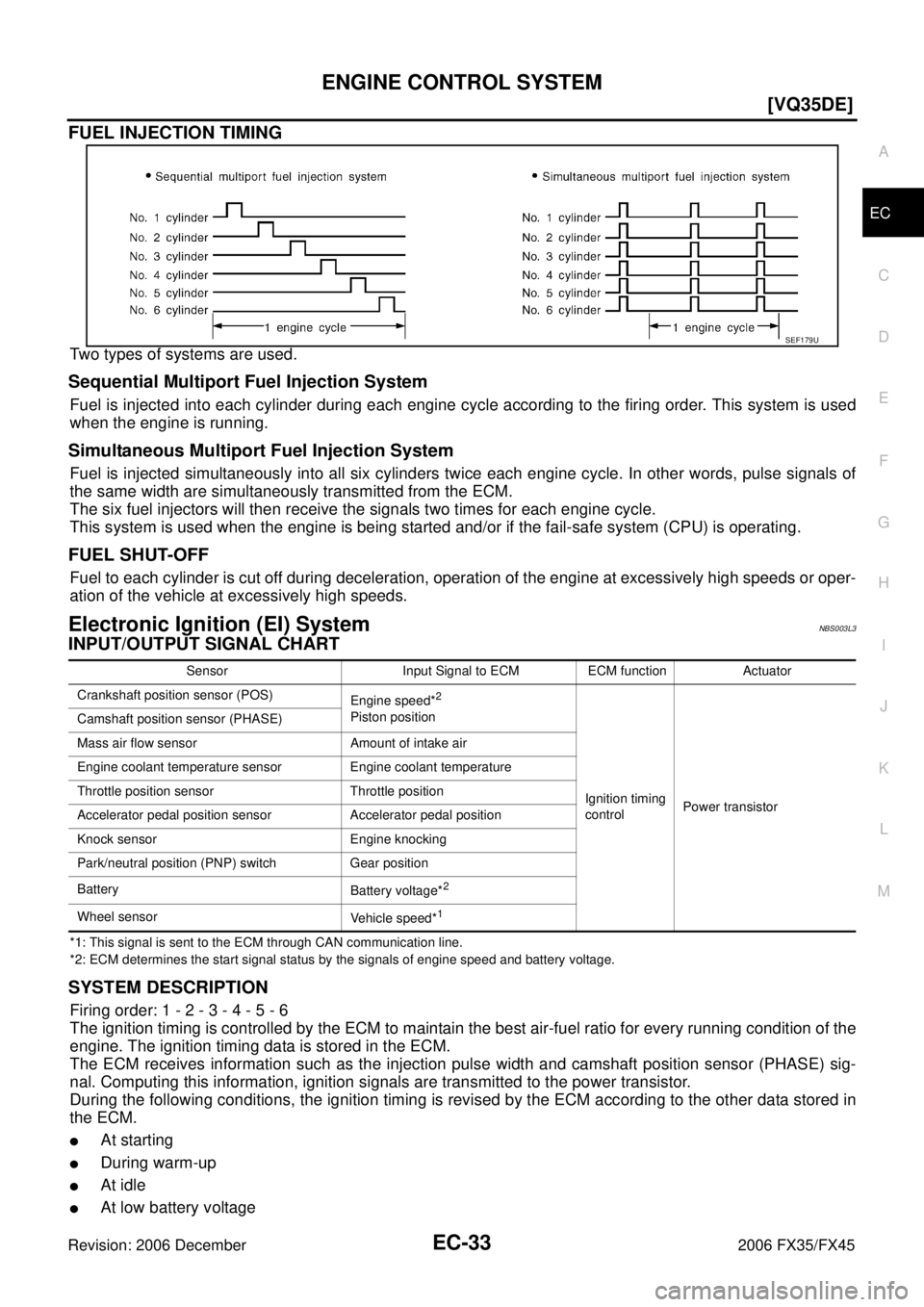

FUEL INJECTION TIMING
Two types of systems are used.
Sequential Multiport Fuel Injection System
Fuel is injected into each cylinder during each engine cycle according to the firing order. This system is used
when the engine is running.
Simultaneous Multiport Fuel Injection System
Fuel is injected simultaneously into all six cylinders twice each engine cycle. In other words, pulse signals of
the same width are simultaneously transmitted from the ECM.
The six fuel injectors will then receive the signals two times for each engine cycle.
This system is used when the engine is being started and/or if the fail-safe system (CPU) is operating.
FUEL SHUT-OFF
Fuel to each cylinder is cut off during deceleration, operation of the engine at excessively high speeds or oper-
ation of the vehicle at excessively high speeds.
Electronic Ignition (EI) SystemNBS003L3
INPUT/OUTPUT SIGNAL CHART
*1: This signal is sent to the ECM through CAN communication line.
*2: ECM determines the start signal status by the signals of engine speed and battery voltage.
SYSTEM DESCRIPTION
Firing order: 1 - 2 - 3 - 4 - 5 - 6
The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor (PHASE) sig-
nal. Computing this information, ignition signals are transmitted to the power transistor.
During the following conditions, the ignition timing is revised by the ECM according to the other data stored in
the ECM.
At starting
During warm-up
At idle
At low battery voltage
SEF179U
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS) Engine speed*
2
Piston position
Ignition timing
control Power transistor
Camshaft position sensor (PHASE)
Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Knock sensor Engine knocking
Park/neutral position (PNP) switch Gear position
Battery Battery voltage*
2
Wheel sensorVehicle speed*1

Page 1418 of 4462

INFINITI FX35 2006 Service Manual EC-34
[VQ35DE]
ENGINE CONTROL SYSTEM
Revision: 2006 December 2006 FX35/FX45
During acceleration
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programm

Page 1419 of 4462

INFINITI FX35 2006 Service Manual AIR CONDITIONING CUT CONTROL EC-35
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
AIR CONDITIONING CUT CONTROLPFP:23710
Input/Output Signal ChartNBS003L5
*1: Th

Page 1420 of 4462

INFINITI FX35 2006 Service Manual EC-36
[VQ35DE]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Revision: 2006 December 2006 FX35/FX45
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionNBS003L7
INPUT/OUTPUT SIGNAL CHART
*: This

EC-36
[VQ35DE]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Revision: 2006 December 2006 FX35/FX45
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionNBS003L7
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line.
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indicator and SET indicator in combination meter. If any
malfunction occurs in ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch. (Then SET indicator in combination meter illuminates.)
ACCELERATOR OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.
CANCEL switch is pressed
More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)
Brake pedal is depressed
Selector lever is changed to N, P, R position
Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed
VDC/TCS system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.
Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will
stop blinking and the cruise operation will be able to work by depressing SET/COAST switch or RESUME/
ACCELERATE switch.
Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed control Electric throttle control
actuator
Stop lamp switch Brake pedal operation
ASCD steering switch ASCD steering switch operation
Park/Neutral position (PNP)
switch Gear position
Unified meter and A/C amp. Vehicle speed*
TCM Powertrain revolution*

Page 1421 of 4462

INFINITI FX35 2006 Service Manual AUTOMATIC SPEED CONTROL DEVICE (ASCD) EC-37
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
COAST OPERATION
When the SET/COAST switch is pressed during cruise co

Page 1422 of 4462

INFINITI FX35 2006 Service Manual EC-38
[VQ35DE]
CAN COMMUNICATION
Revision: 2006 December 2006 FX35/FX45
CAN COMMUNICATIONPFP:23710
System DescriptionNBS003L9
CAN (Controller Area Network) is a serial communication line for real time

Page 1423 of 4462

INFINITI FX35 2006 Service Manual EVAPORATIVE EMISSION SYSTEM EC-39
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionNBS003LA

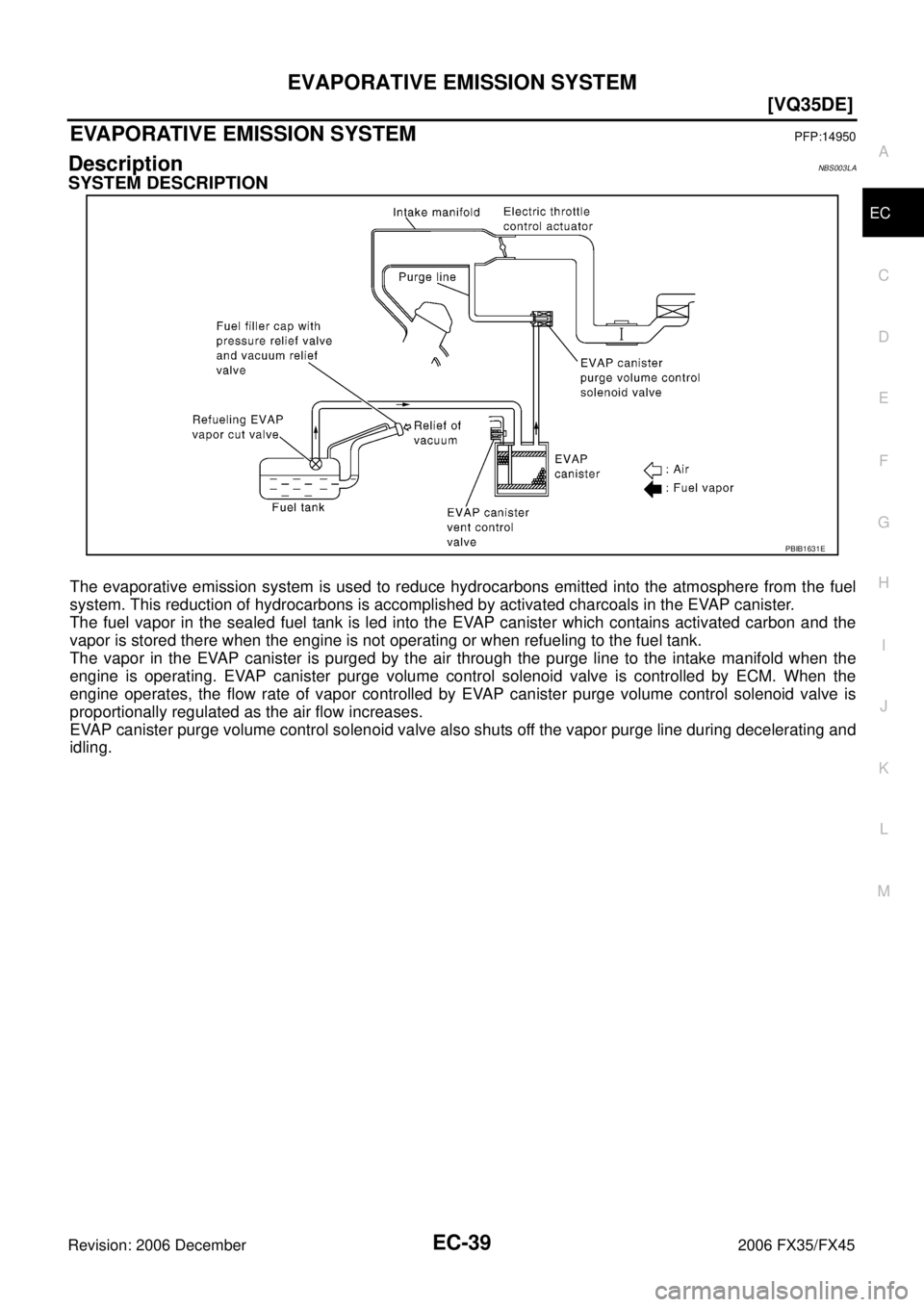

SYSTEM DESCRIPTION
The

Page 1424 of 4462

INFINITI FX35 2006 Service Manual EC-40
[VQ35DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 December 2006 FX35/FX45

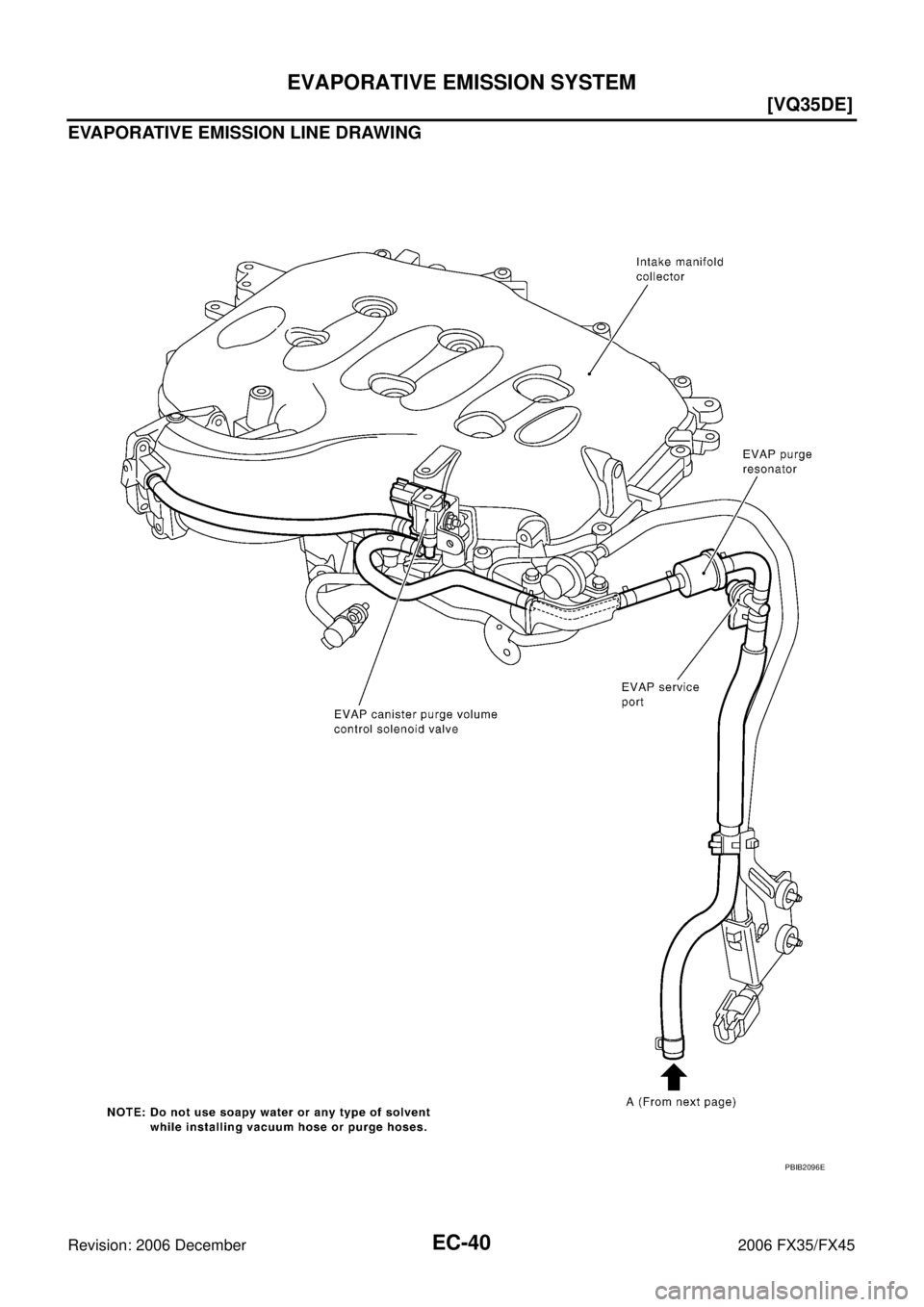

EVAPORATIVE EMISSION LINE DRAWING
PBIB2096E
