Page 2985 of 4462

INFINITI FX35 2006 Service Manual IGNITION COIL EM-191
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
IGNITION COILPFP:22448
ComponentsNBS003I3
Removal and InstallationNBS003I4
REMOVAL
1. Remove

Page 2986 of 4462

INFINITI FX35 2006 Service Manual EM-192
[VK45DE]
SPARK PLUG (PLATINUM-TIPPED TYPE)
Revision: 2006 December 2006 FX35/FX45
SPARK PLUG (PLATINUM-TIPPED TYPE)PFP:22401

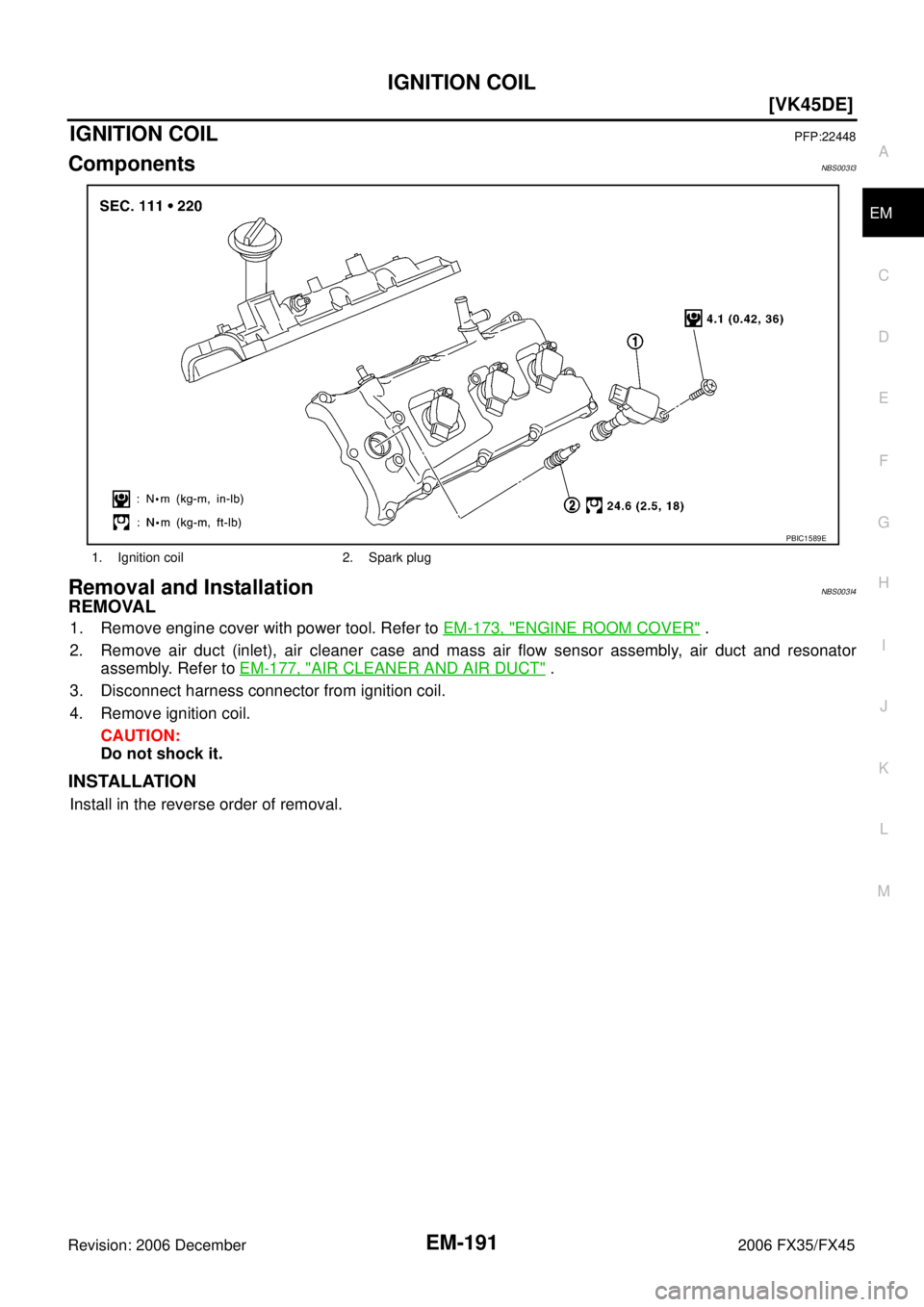

ComponentsNBS003I5
Removal and InstallationNBS003I6

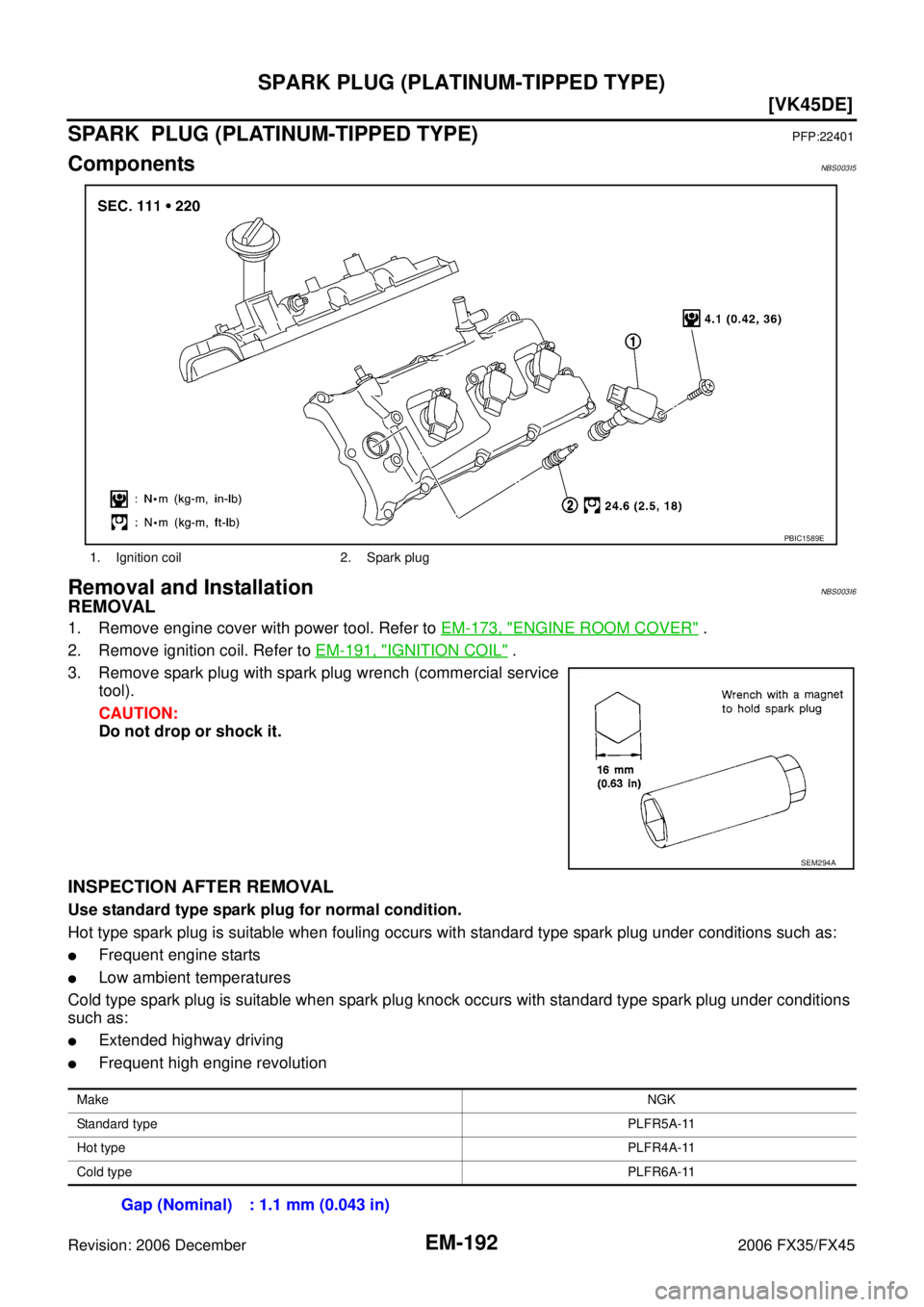

REMOVAL
1. Remo

Page 2987 of 4462

INFINITI FX35 2006 Service Manual SPARK PLUG (PLATINUM-TIPPED TYPE) EM-193
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45

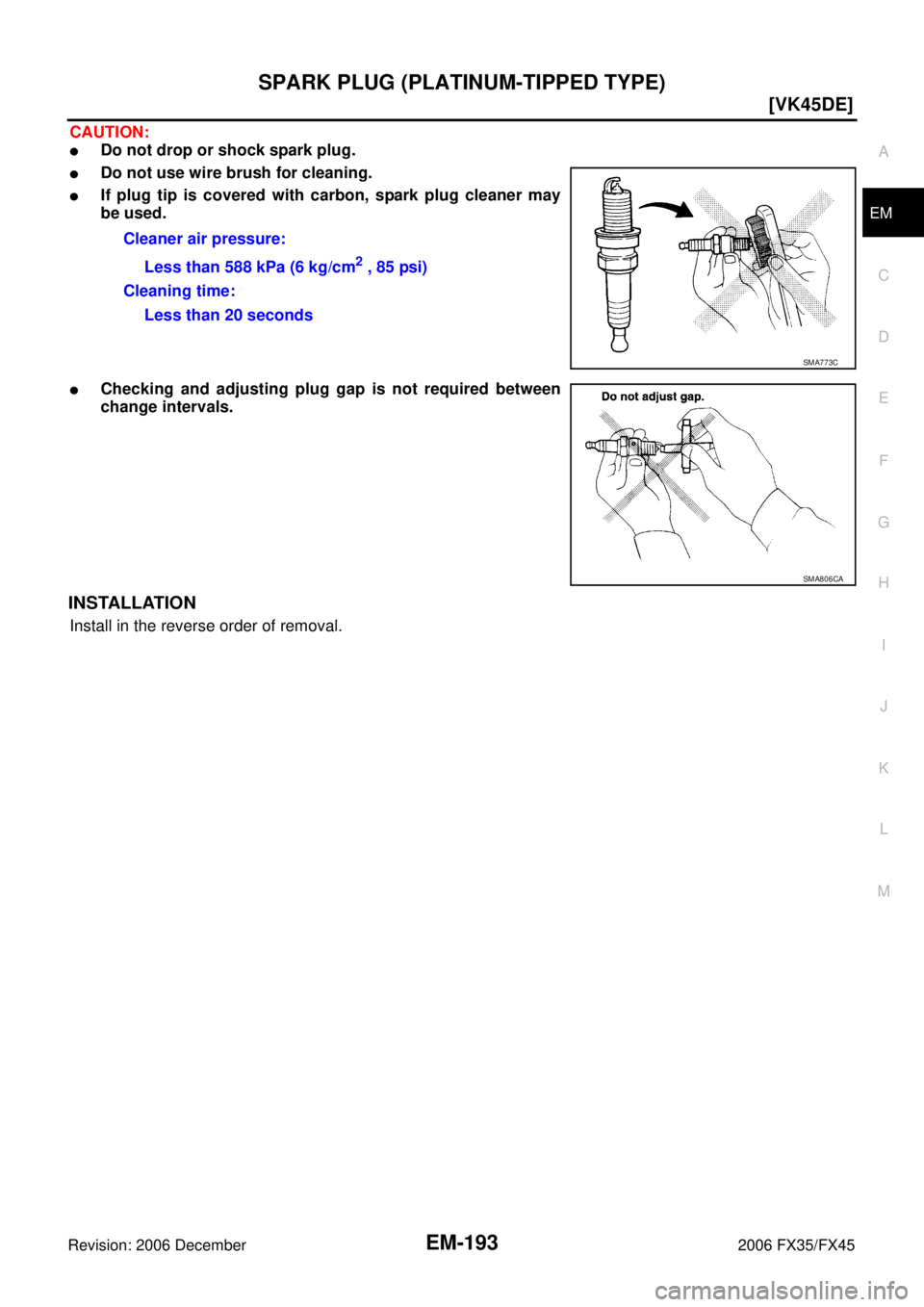

CAUTION:
Do not drop or shock spark plug.
Do not use wire brush for cl

Page 2988 of 4462

INFINITI FX35 2006 Service Manual EM-194
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 December 2006 FX35/FX45
FUEL INJECTOR AND FUEL TUBEPFP:16600

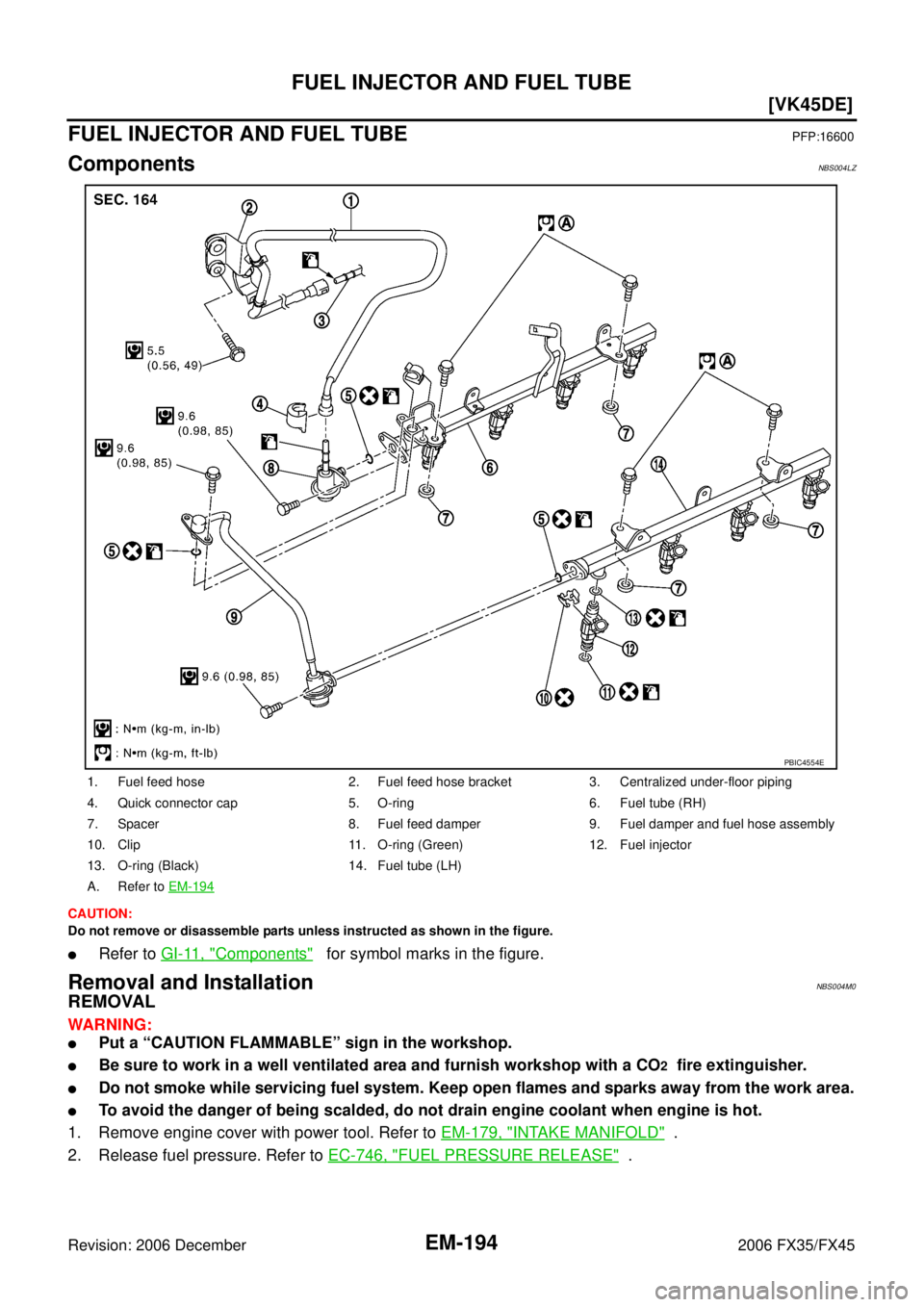

ComponentsNBS004LZ
CAUTION:
Do not remove or disassemble parts unless instructe

Page 2989 of 4462

INFINITI FX35 2006 Service Manual FUEL INJECTOR AND FUEL TUBE EM-195
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45

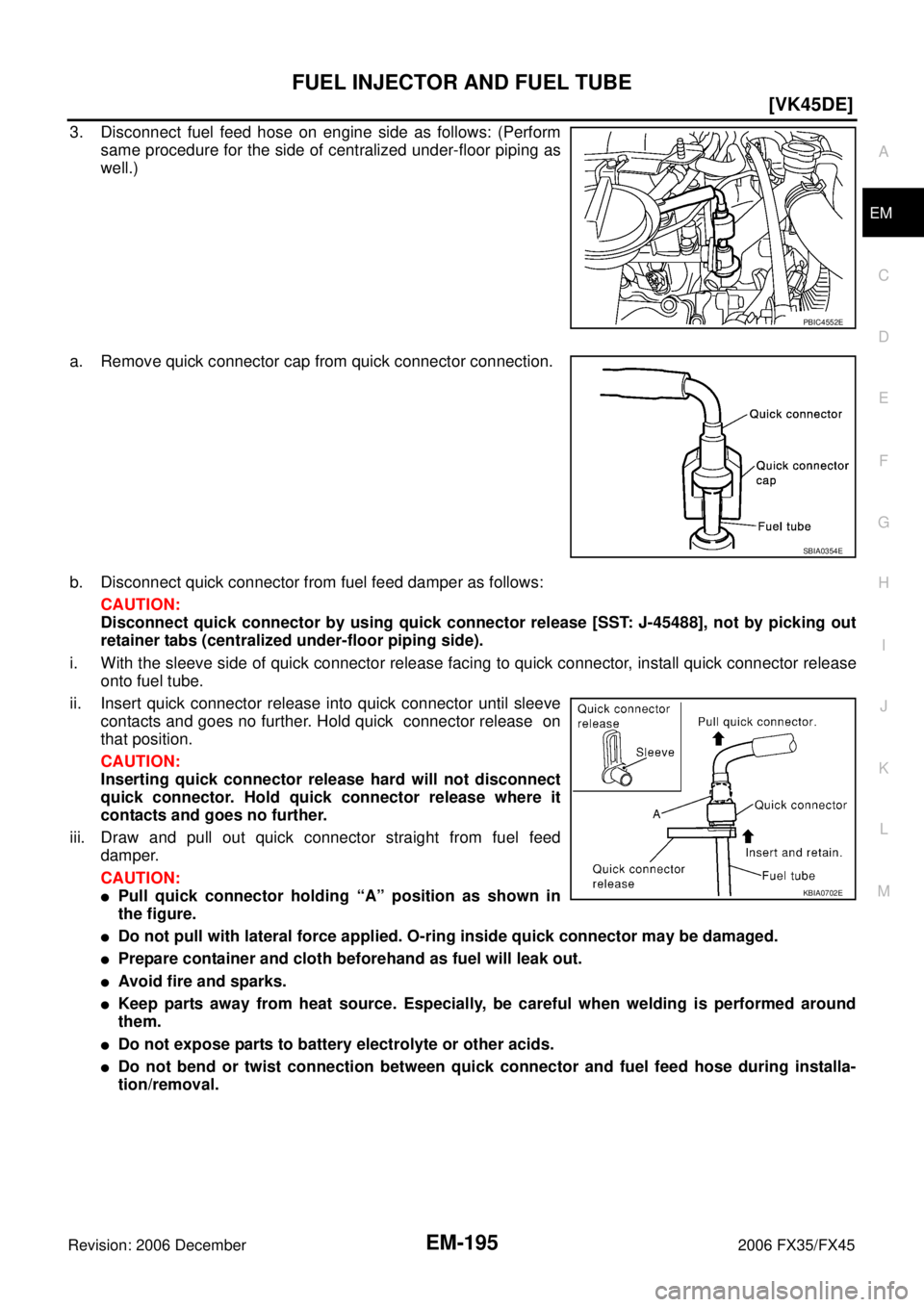

3. Disconnect fuel feed hose on engine side as follows: (Perform same procedu

Page 2990 of 4462

INFINITI FX35 2006 Service Manual EM-196
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 December 2006 FX35/FX45

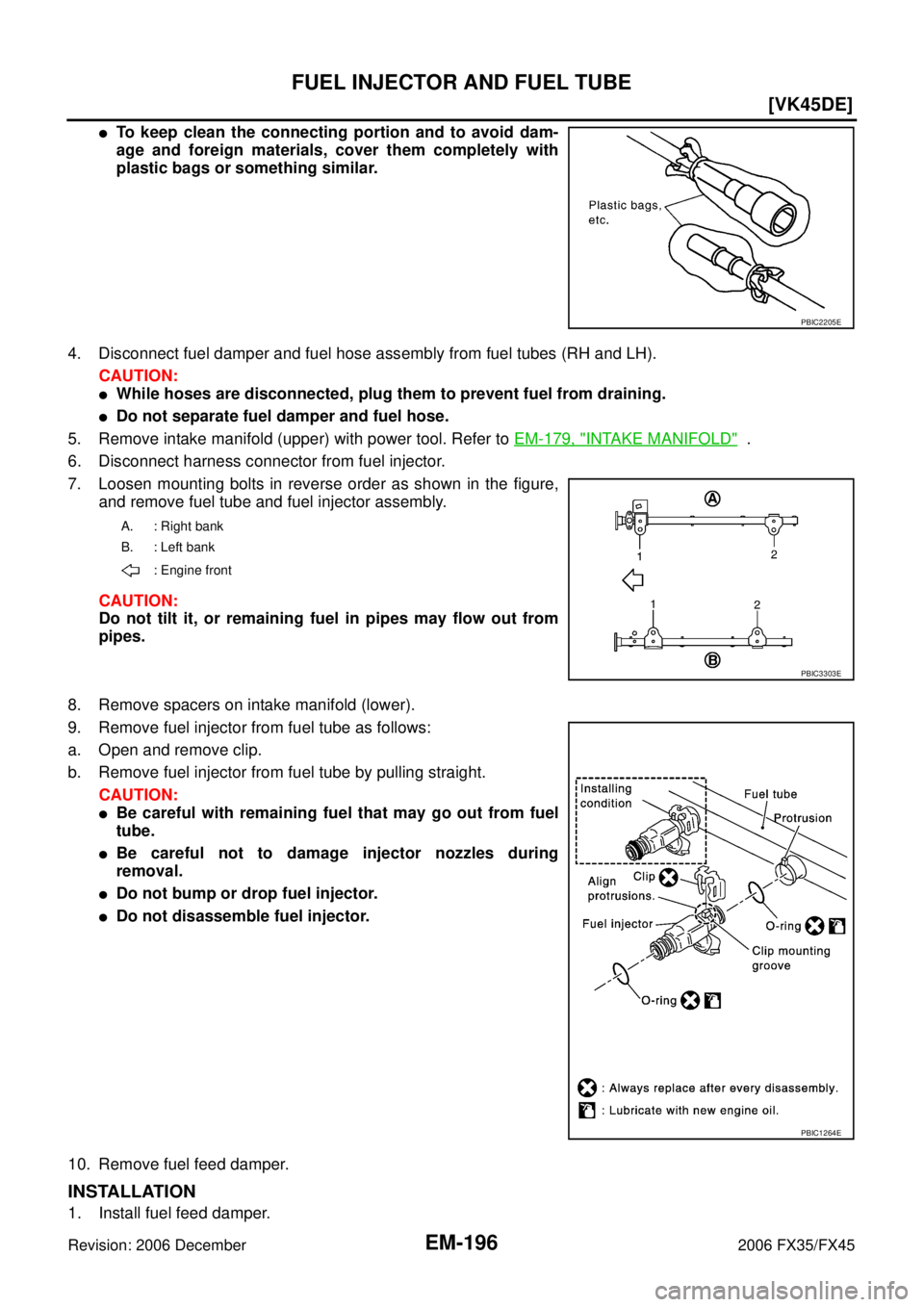

To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plasti

Page 2991 of 4462

INFINITI FX35 2006 Service Manual FUEL INJECTOR AND FUEL TUBE EM-197
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
When handling new O-rings, be careful of the following caution.
CAUTION:
Ha

FUEL INJECTOR AND FUEL TUBE EM-197
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
When handling new O-rings, be careful of the following caution.
CAUTION:
Handle O-ring with bare hands. Do not wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreign material.
When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not
to twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.
Insert new O-ring straight into fuel tube. Do not decenter or twist it.
Insert fuel feed damper straight into fuel tube (RH).
Tighten mounting bolts evenly in turn.
After tightening mounting bolts, make sure that there is no gap between flange and fuel tube (RH).
2. Install new O-rings to fuel injector paying attention to the following caution. CAUTION:
Upper and lower O-ring are different. Be careful not to confuse them.
Handle O-ring with bare hands. Never wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreign material.
When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.
Insert O-ring straight into fuel injector. Do not decenter or twist it.
3. Install fuel injector to fuel tube as follows:
a. Insert clip into clip mounting groove on fuel injector.
Insert clip so that “protrusion A” of fuel injector matches “cut-
out A” of clip.
CAUTION:
Do not reuse clip. Replace it with a new one.
Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.
Insert it while matching it to the axial center.
Insert fuel injector so that “protrusion B” of fuel tube matches
“cutout B” of clip.
Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel injector does not rotate or come off.
Make sure that protrusions of fuel injectors are aligned with
cutouts of clips after installation.
4. Install spacers on intake manifold (lower).

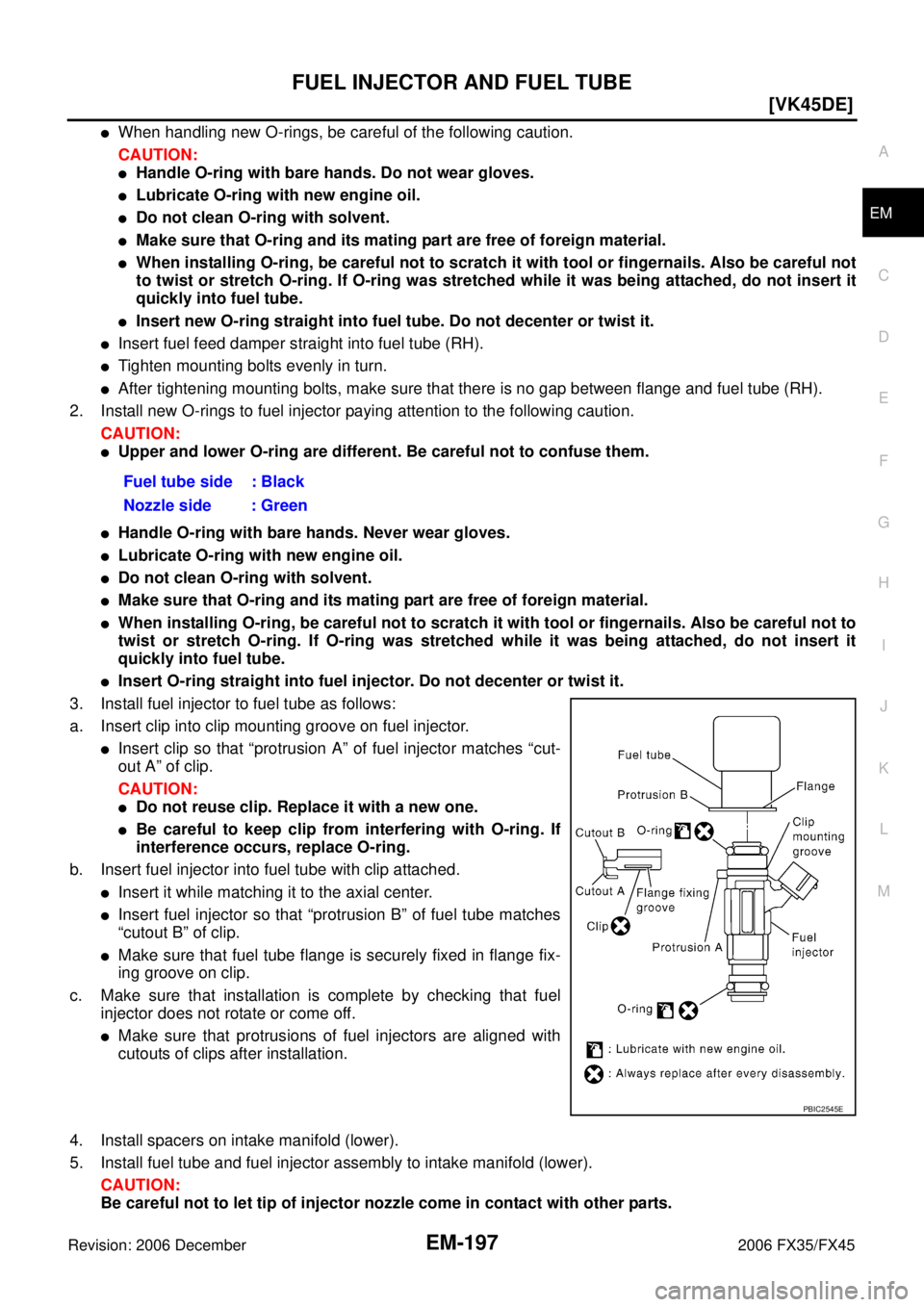

5. Install fuel tube and fuel injector assembly to intake manifold (lower). CAUTION:
Be careful not to let tip of injector nozzle come in contact with other parts. Fuel tube side : Black
Nozzle side : Green
PBIC2545E

Page 2992 of 4462

INFINITI FX35 2006 Service Manual EM-198
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 December 2006 FX35/FX45

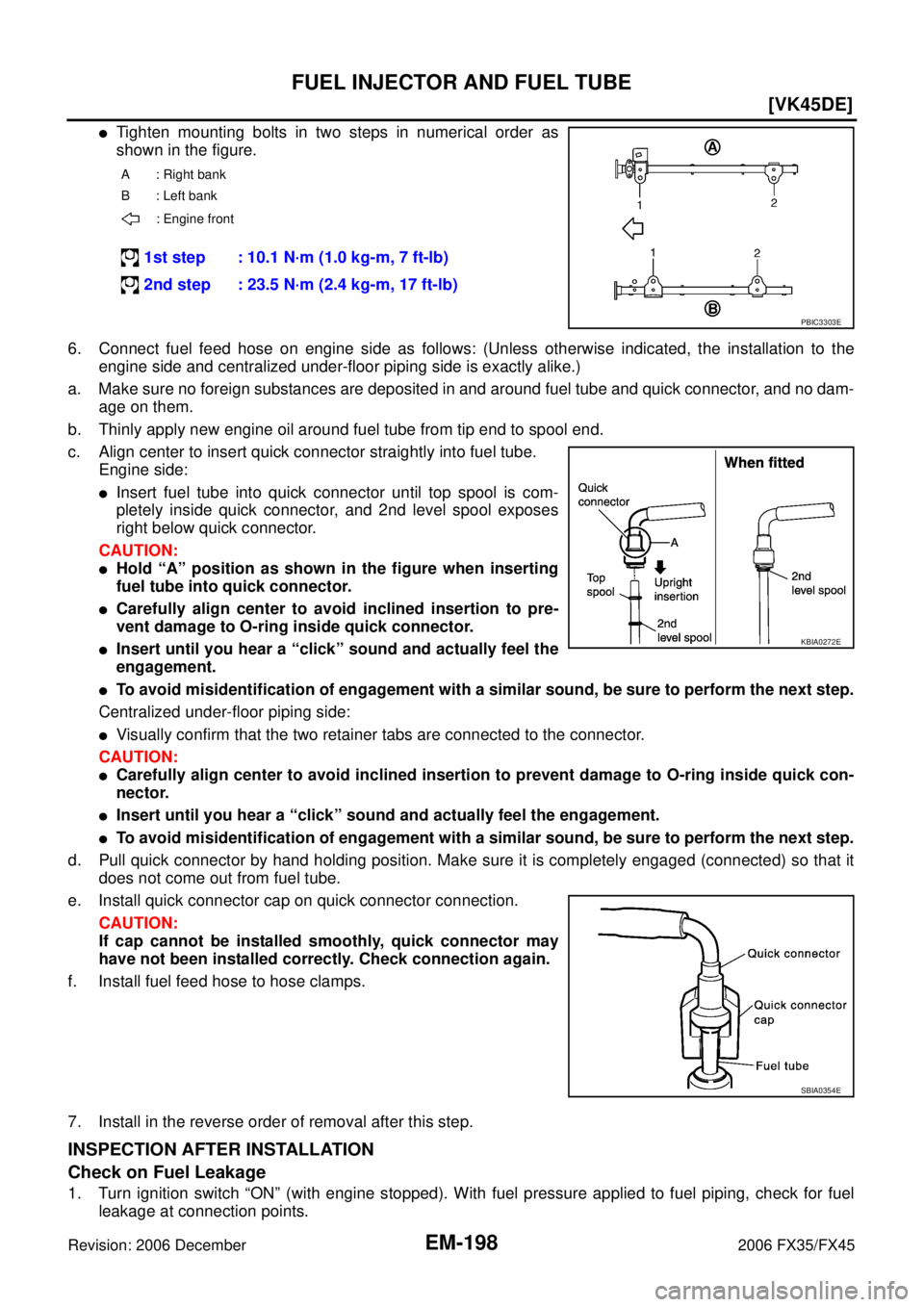

Tighten mounting bolts in two steps in numerical order as
shown in the figure.
6. Connect fuel feed hose on engine

EM-198
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 December 2006 FX35/FX45
Tighten mounting bolts in two steps in numerical order as
shown in the figure.
6. Connect fuel feed hose on engine side as follows: (Unless otherwise indicated, the installation to the engine side and centralized under-floor piping side is exactly alike.)
a. Make sure no foreign substances are deposited in and around fuel tube and quick connector, and no dam- age on them.
b. Thinly apply new engine oil around fuel tube from tip end to spool end.
c. Align center to insert quick connector straightly into fuel tube. Engine side:
Insert fuel tube into quick connector until top spool is com-
pletely inside quick connector, and 2nd level spool exposes
right below quick connector.
CAUTION:
Hold “A” position as shown in the figure when inserting
fuel tube into quick connector.
Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
Insert until you hear a “click” sound and actually feel the
engagement.
To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
Centralized under-floor piping side:
Visually confirm that the two retainer tabs are connected to the connector.
CAUTION:
Carefully align center to avoid inclined insertion to prevent damage to O-ring inside quick con-
nector.
Insert until you hear a “click” sound and actually feel the engagement.
To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
d. Pull quick connector by hand holding position. Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
e. Install quick connector cap on quick connector connection. CAUTION:
If cap cannot be installed smoothly, quick connector may
have not been installed correctly. Check connection again.
f. Install fuel feed hose to hose clamps.
7. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leakage
1. Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leakage at connection points.
A : Right bank
B : Left bank
: Engine front
1st step : 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step : 23.5 N·m (2.4 kg-m, 17 ft-lb)
PBIC3303E
KBIA0272E
SBIA0354E
