INFINITI FX35 2006 Service Manual OIL PAN AND OIL STRAINER EM-31
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-1

OIL PAN AND OIL STRAINER EM-31
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
8. Remove air hose from air duct to mass air flow sensor side and electric throttle control actuator side. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
9. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-8, "
Special Service Tools" .
10. Remove front suspension member. Refer to FSU-17, "
FRONT SUSPENSION MEMBER" .
11. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
12. Remove alternator stay. Refer to SC-20, "
CHARGING SYSTEM" .
13. Remove starter motor. Refer to SC-8, "
STARTING SYSTEM" .
14. Remove idler pulley and bracket assembly. Refer to EM-64, "
TIMING CHAIN" .
15. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
16. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 6 6 , "
TRANSMISSION
ASSEMBLY" .
17. Remove crankshaft position sensor (POS).
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
18. Remove oil filter, as necessary. Refer to LU-10, "
OIL FILTER" .
19. Remove oil cooler, as necessary. Refer to LU-14, "
OIL COOLER" .

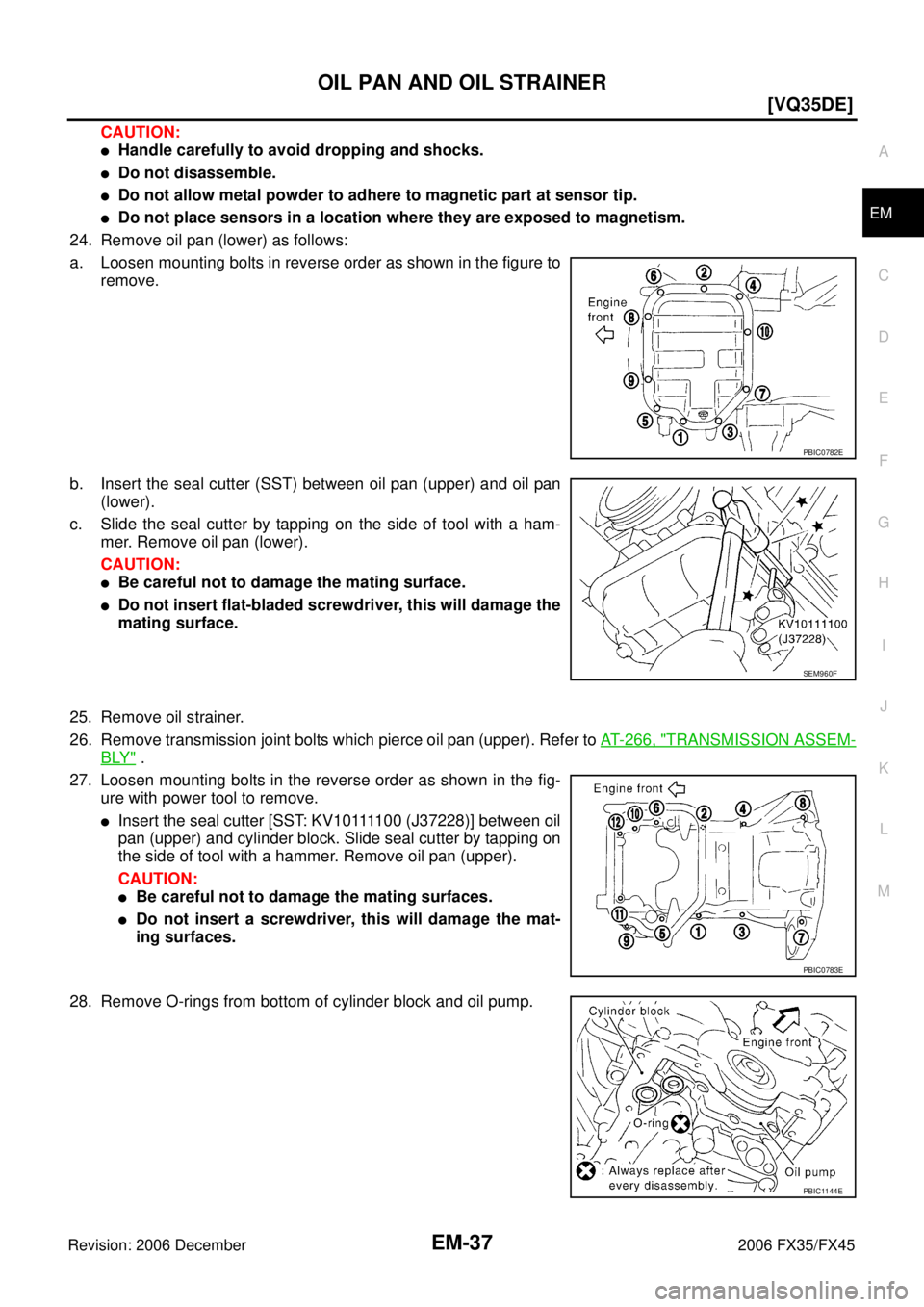

20. Remove oil pan (lower) as follows:
a. Loosen mounting bolts in reverse order as shown in the figure to remove.
b. Insert the seal cutter (SST) between oil pan (upper) and oil pan (lower).
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert a screwdriver, this will damage the mating
surfaces.
c. Slide the seal cutter by tapping on the side of tool with a ham- mer. Remove oil pan (lower). Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
PBIC0782E
SEM960F

Page 2826 of 4462

INFINITI FX35 2006 Service Manual EM-32
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 December 2006 FX35/FX45
21. Remove oil strainer.
22. Remove transmission joint bolts which pierce oil pan (upper). Refer to AT- 2 6 6 , "
TRA

Page 2827 of 4462

INFINITI FX35 2006 Service Manual OIL PAN AND OIL STRAINER EM-33
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45

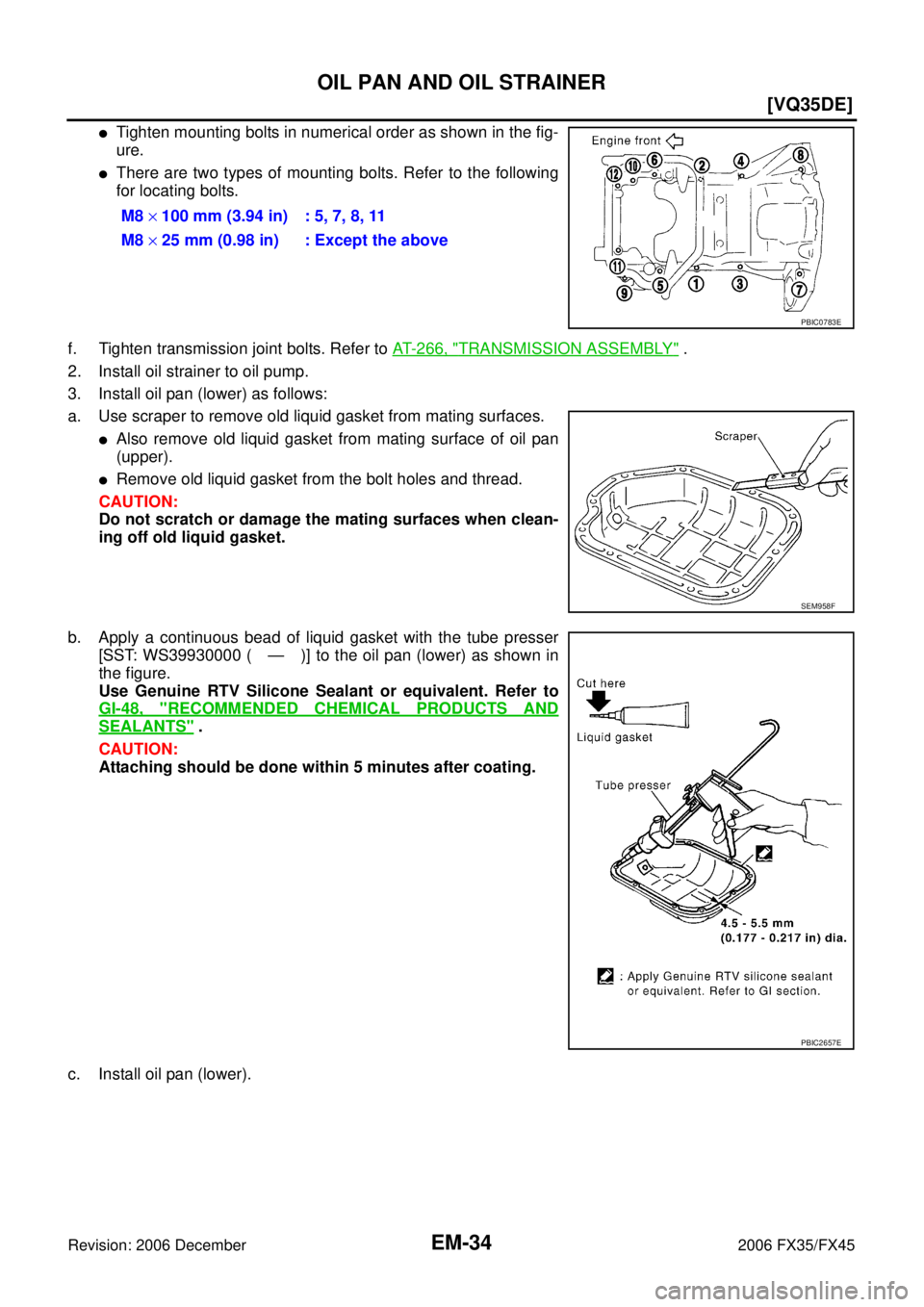

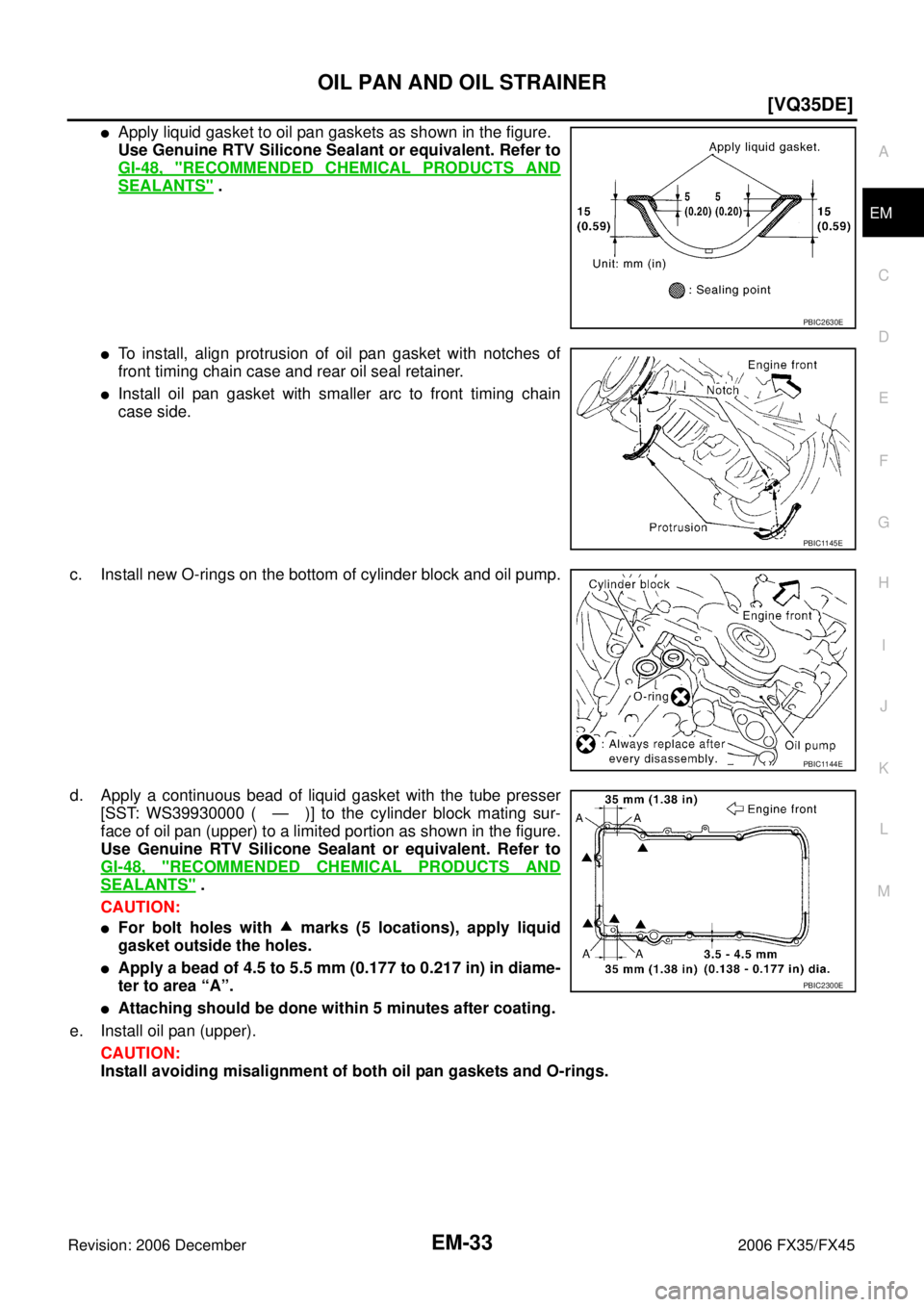

Apply liquid gasket to oil pan gaskets as shown in the figure.
Use Genuine RTV S

Page 2828 of 4462

INFINITI FX35 2006 Service Manual EM-34
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 December 2006 FX35/FX45

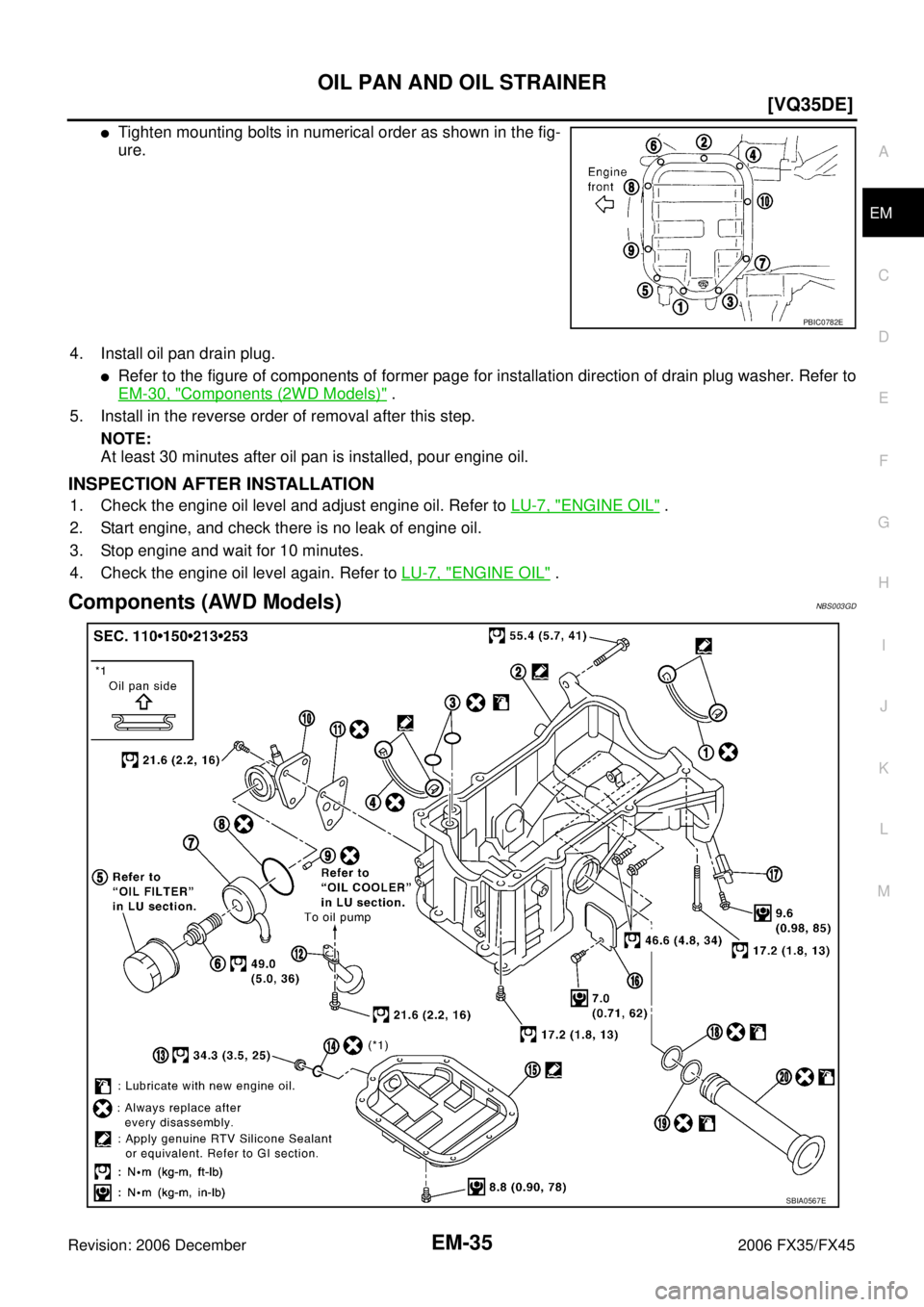

Tighten mounting bolts in numerical order as shown in the fig-
ure.
There are two types of mounting bolts. Refer to th

Page 2829 of 4462

INFINITI FX35 2006 Service Manual OIL PAN AND OIL STRAINER EM-35
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
Tighten mounting bolts in numerical order as shown in the fig-
ure.
4. Install

Page 2830 of 4462

INFINITI FX35 2006 Service Manual EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 December 2006 FX35/FX45
Removal and Installation (AWD Models)NBS003GE
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine

EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 December 2006 FX35/FX45
Removal and Installation (AWD Models)NBS003GE
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
To remove oil pan (lower) only, take step 5, then step 24. Removal of step 1, hood assembly (step 2) and step
4 are unnecessary.
1. Remove front tire.
2. Remove hood assembly. Refer to BL-13, "
HOOD" .
3. Remove front and rear engine undercover with power tool.
4. Remove front cross bar with power tool. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
5. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
8. Remove air hose from air duct to mass air flow sensor side and electric throttle control actuator side. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
9. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
10. Remove front drive shaft (LH and RH) and side shaft. Refer to FAX-12, "
FRONT DRIVE SHAFT" .
11. Remove side shaft. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
12. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-8, "
Special Service Tools" .
13. Remove front suspension member. Refer to Refer to FSU-17, "
FRONT SUSPENSION MEMBER" .
14. Remove engine mounting bracket, engine mounting bracket (lower) and insulator. Refer to EM-113,
"ENGINE ASSEMBLY" .
15. Remove front propeller shaft. Refer to PR-4, "
FRONT PROPELLER SHAFT" .
16. Remove oil filter and oil filter bracket. Refer to LU-12, "
OIL FILTER BRACKET (AWD)" .
17. Remove alternator stay. Refer to SC-20, "
CHARGING SYSTEM" .
18. Remove idler pulley and bracket. Refer to EM-15, "
DRIVE BELTS" .
19. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
20. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 6 6 , "
TRANSMISSION
ASSEMBLY" .
21. Remove front final drive assembly. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
22. Remove starter motor. Refer to SC-8, "
STARTING SYSTEM" .
23. Remove crankshaft position sensor (POS).
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil filter bracket 11. Oil filter bracket gasket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Rear plate 17. Crankshaft position sensor (POS) 18 O-ring (small)
19. O-ring (large) 20. Axle pipe
Slinger bolts: : 28.0 N·m (2.9 kg-m, 21 ft-lb)

Page 2831 of 4462

INFINITI FX35 2006 Service Manual OIL PAN AND OIL STRAINER EM-37
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do

Page 2832 of 4462

INFINITI FX35 2006 Service Manual EM-38
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 December 2006 FX35/FX45
29. Remove oil pan gaskets.

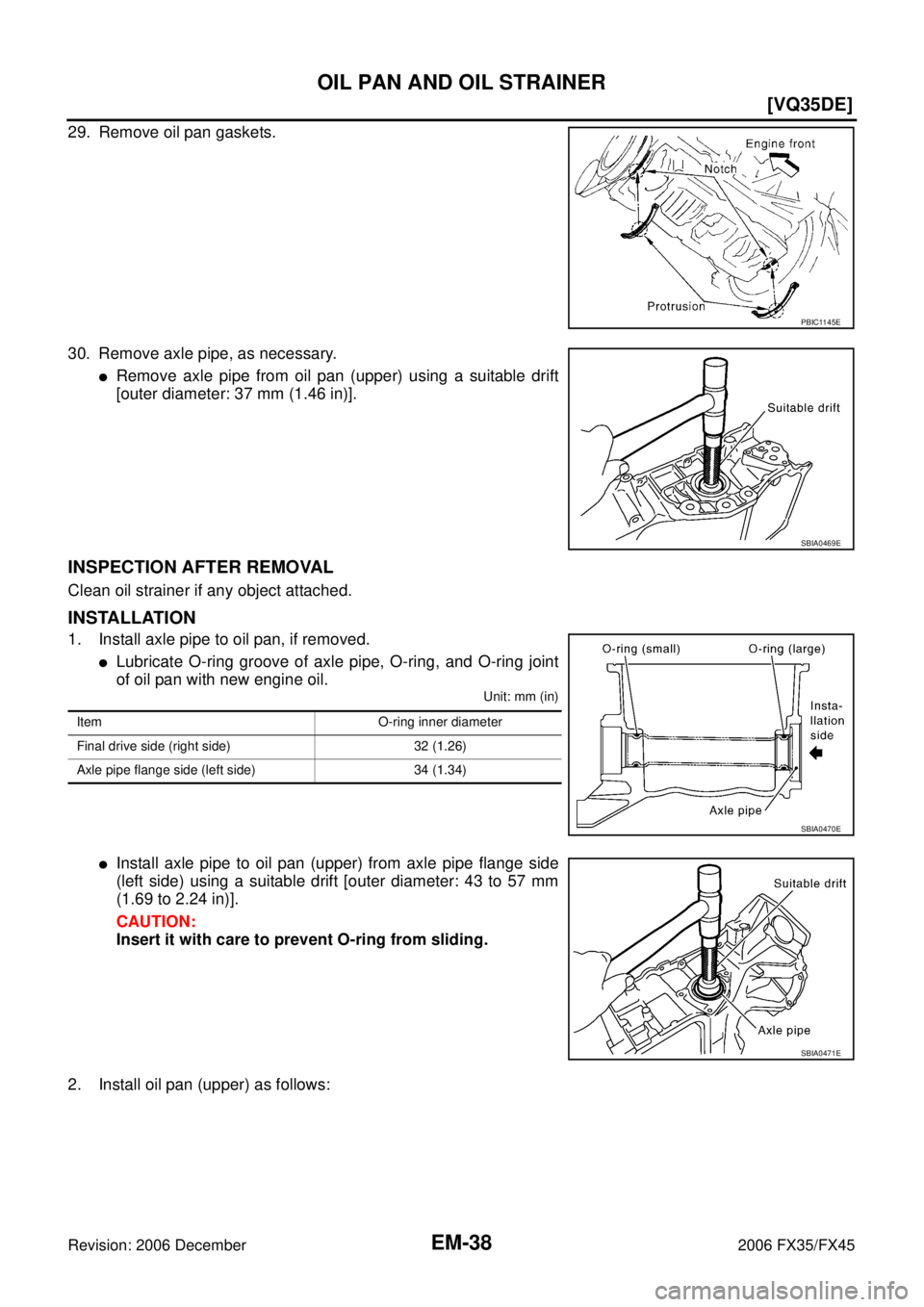

30. Remove axle pipe, as necessary.
Remove axle pipe from oil pan (upper) using a suitable

Load next 8 pages
