TURN SIGNAL AND HAZARD WARNING LAMPS LT-95
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45

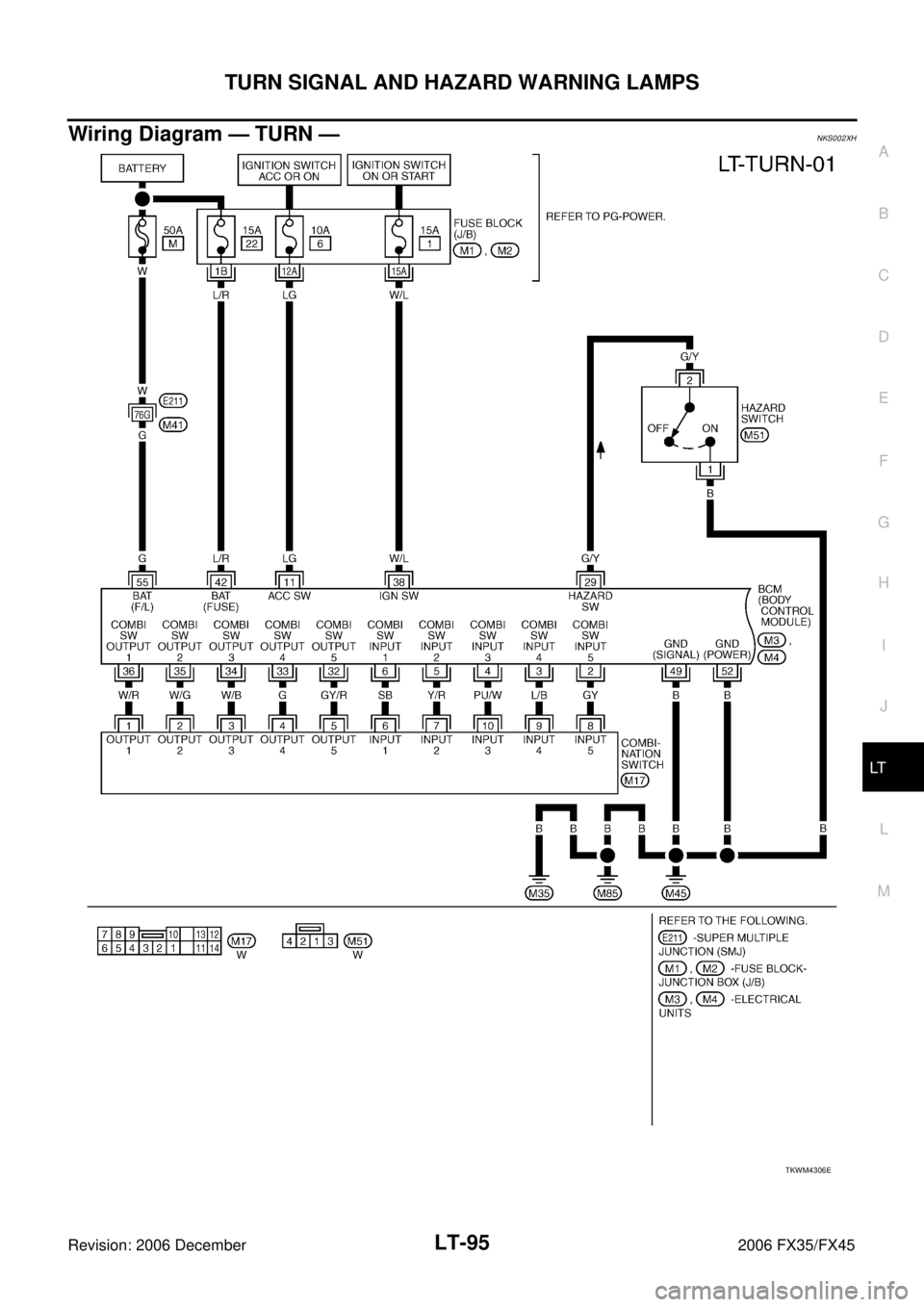

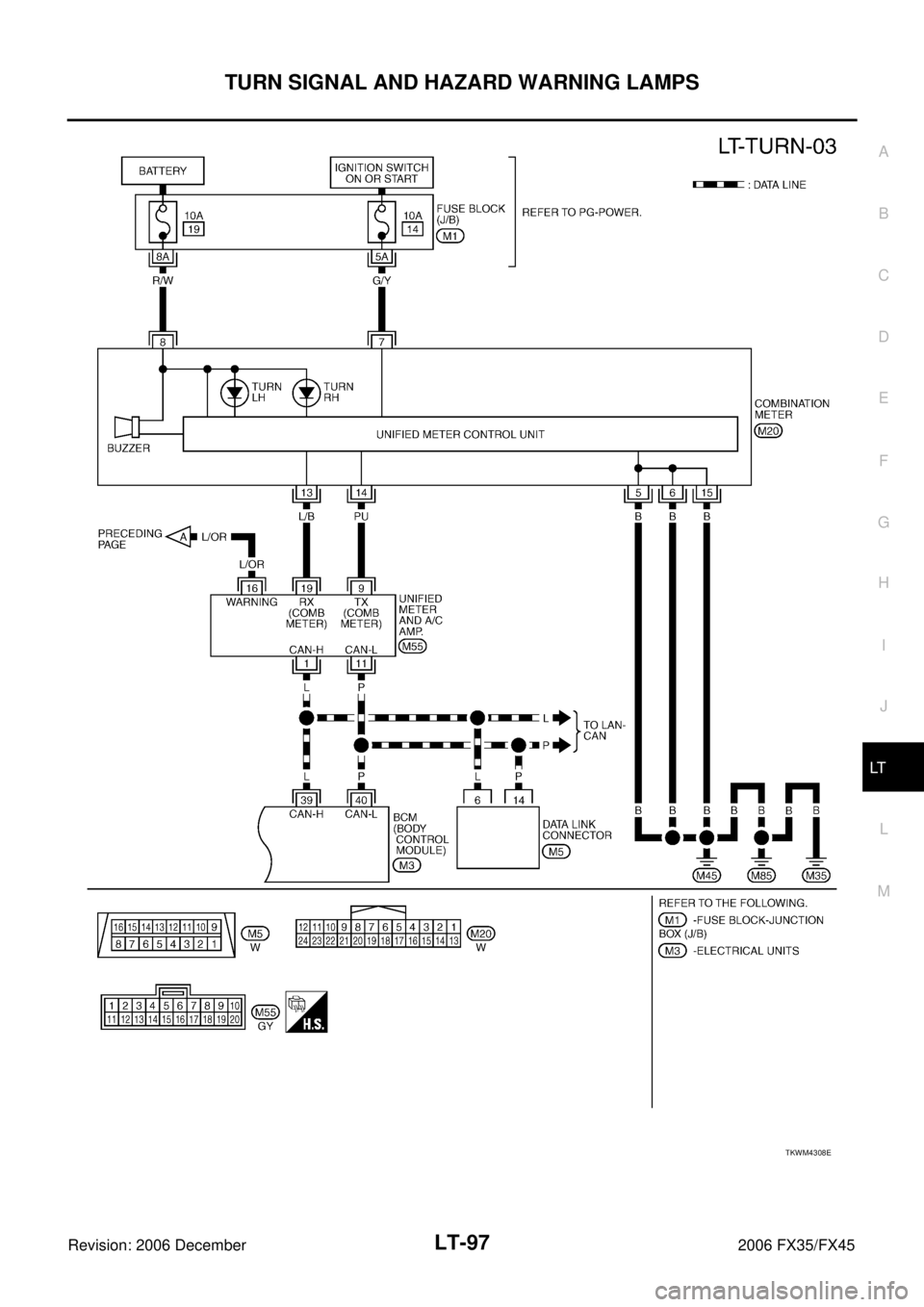

Wiring Diagram — TURN —NKS002XH
TKWM4306E
Page 3658 of 4462
LT-96
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
TKWM4307E
Page 3659 of 4462
TURN SIGNAL AND HAZARD WARNING LAMPS LT-97
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
TKWM4308E
Page 3660 of 4462

LT-98
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Values for BCMNKS002XI
Terminal No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
2R Combination
switch input 5 ON Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4) OFF Approx. 0 V
Turn signal switch to right Approx. 1.0 V
3P/L Combination
switch input 4 ON Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4) OFF Approx. 0 V
Turn signal switch to left Approx. 1.0 V
11 L G Ignition switch
(ACC) ACC — Battery voltage
29 G/Y Hazard switch
signal OFF Hazard switch ON Approx. 0 V
OFF Battery voltage
36 L/W Combination
switch output 1 ON Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4) OFF
Approx. 7.2 V
Any of the conditions
below
Turn signal switch to
right
Turn signal switch to left
Approx. 1.2 V
38 W/L Ignition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 L/R Battery power
supply OFF — Battery voltage
PKIB4959J
PKIB4959J
PKIB4960J
PKIB4958J
Page 3661 of 4462

TURN SIGNAL AND HAZARD WARNING LAMPS LT-99
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for Rear Combination Lamp Control UnitNKS003N4
45 G/W Flasher output
(left) ON
Combination
switch Turn left ON
46 BR/W Flasher output
(right) ON
Combination
switch Turn right ON
49 B Ground ON — Approx. 0 V
52 B Ground ON — Approx. 0 V
55 G Battery power
supply OFF — Battery voltage
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
SKIA3009J
SKIA3009J
Te r m i -
nal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
1 GY Ignition switch (ON) ON — Battery voltage
2 R Tail lamp signal — Lighting switch OFF Approx. 0 V
Lighting switch 1ST Battery voltage
3 P Stop lamp signal — Brake pedal released
(stop lamp switch OFF) Approx. 0 V
Brake pedal depressed
(stop lamp switch ON) Battery voltage
4 OR Turn signal lamp LH signal ON
Turn signal switch OFF,
hazard switch OFF Approx. 0 V
ON Turn signal switch LH
Approx. 6.0 V
— Hazard switch ON
5 PU Turn signal lamp RH signal ON
Turn signal switch OFF,
hazard switch OFF Approx. 0 V
ON Turn signal switch RH
Approx. 6.0 V
— Hazard switch ON
PKIC6370E
PKIC6370E
Page 3662 of 4462
LT-100
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45

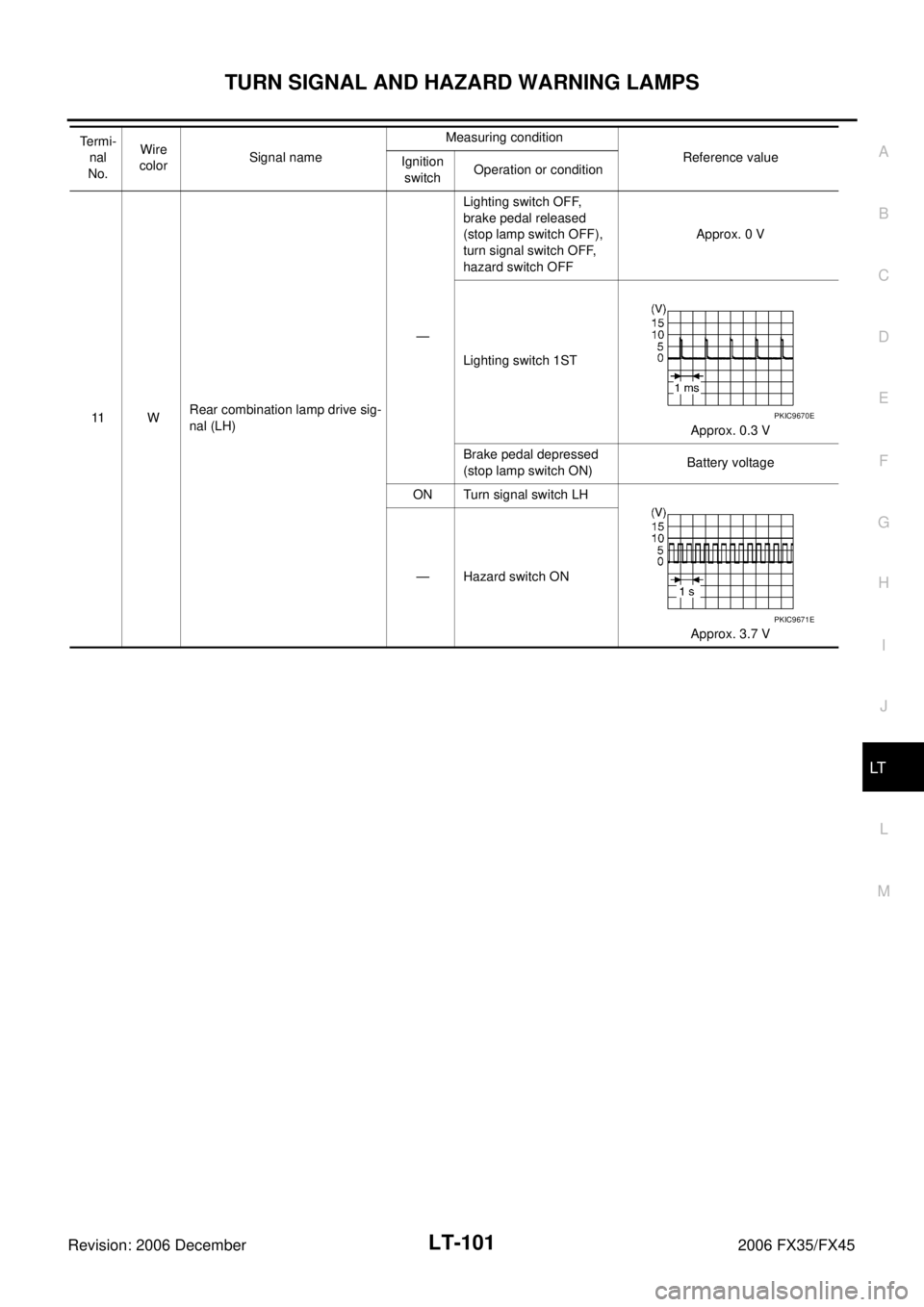

6 SB Warning output signal ON When turn signal lamp
operates normally
Approx. 5.0 V
Except when turn signal
lamp operates normally Approx. 9.9 V
7 B Ground ON — Approx. 0 V
8Y Rear combination lamp RH
ground ON — Approx. 0 V
9LG Rear combination lamp drive sig-
nal (RH) — Lighting switch OFF,
brake pedal released
(stop lamp switch OFF),
turn signal switch OFF,
hazard switch OFF Approx. 0 V
Lighting switch 1ST Approx. 0.3 V
Brake pedal depressed
(stop lamp switch ON) Battery voltage
ON Turn signal switch RH
Approx. 3.7 V
— Hazard switch ON
10 BR Rear combination lamp LH
ground ON — Approx. 0 V
Te r m i -
nal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
PKIC9669E
PKIC9670E
PKIC9671E
Page 3663 of 4462
TURN SIGNAL AND HAZARD WARNING LAMPS LT-101
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
11 W Rear combination lamp drive sig-
nal (LH) — Lighting switch OFF,
brake pedal released
(stop lamp switch OFF),
turn signal switch OFF,
hazard switch OFF Approx. 0 V
Lighting switch 1ST Approx. 0.3 V
Brake pedal depressed
(stop lamp switch ON) Battery voltage
ON Turn signal switch LH
Approx. 3.7 V
— Hazard switch ON
Te r m i -
nal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or conditionPKIC9670E
PKIC9671E
Page 3664 of 4462

LT-102
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
How to Proceed With Trouble DiagnosisNKS002XJ
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 9 0 , "
System Description" .
3. Perform preliminary check. Refer to LT- 1 0 2 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do turn signal and hazard warning lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckNKS002XK
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
Refer to LT- 9 5 , "
Wiring Diagram — TURN —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
Rear combination lamp control unit Battery 20
(+) (-) Ignition switch position
OFF ACC ON
BCM con-
nector Terminal
M3 11
Ground Approx. 0 V
Battery
voltage Battery
voltage
38 Approx. 0 V Approx. 0 V Battery
voltage
M4 42
Battery
voltage Battery
voltage Battery
voltage
55 Battery
voltage Battery
voltage Battery
voltage
PKIB5197E
