Page 4353 of 4462

INFINITI FX35 2006 Service Manual TRANSFER ASSEMBLY TF-51 C E F G H I J K L M A B TF Revision: 2006 December 2006 FX35/FX45 INSPECTION Cases Check items below. If necessary, replace them with new ones. Contact surfaces o

Page 4354 of 4462

INFINITI FX35 2006 Service Manual TF-52 TRANSFER ASSEMBLY Revision: 2006 December 2006 FX35/FX45 ASSEMBLY Front Drive Shaft and Drive Chain 1. Install front drive shaft front bearing, using drifts. 2. Install front drive shaft rear

Page 4355 of 4462

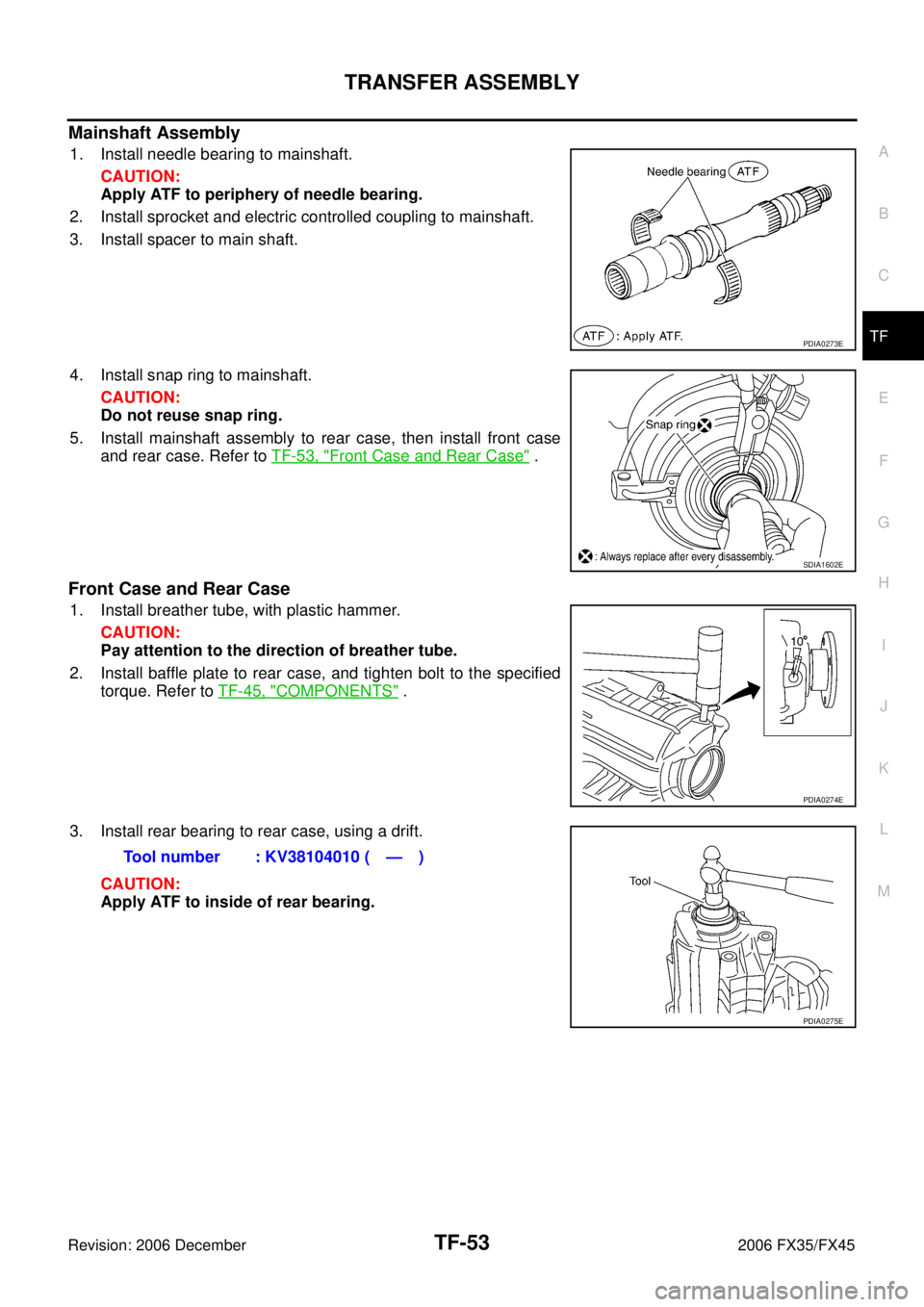

INFINITI FX35 2006 Service Manual TRANSFER ASSEMBLY TF-53 C E F G H I J K L M A B TF Revision: 2006 December 2006 FX35/FX45 Mainshaft Assembly 1. Install needle bearing to mainshaft. CAUTION: Apply ATF to periphery of nee

Page 4356 of 4462

INFINITI FX35 2006 Service Manual TF-54 TRANSFER ASSEMBLY Revision: 2006 December 2006 FX35/FX45 4. Install snap ring to rear case. CAUTION: Do not reuse snap ring. 5. Install mainshaft assembly to rear case, using a drift. CAUTION

Page 4357 of 4462

INFINITI FX35 2006 Service Manual TRANSFER ASSEMBLY TF-55 C E F G H I J K L M A B TF Revision: 2006 December 2006 FX35/FX45 11. Install oil gutter to rear case. CAUTION: The tip of oil gutter should be put into rear case

Page 4358 of 4462

INFINITI FX35 2006 Service Manual TF-56 TRANSFER ASSEMBLY Revision: 2006 December 2006 FX35/FX45 16. Apply liquid gasket to mating surface of rear case. Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, " Recomme

Page 4359 of 4462

INFINITI FX35 2006 Service Manual TRANSFER ASSEMBLY TF-57 C E F G H I J K L M A B TF Revision: 2006 December 2006 FX35/FX45 20. Install rear oil seal to rear case, using a drift. CAUTION: Do not reuse rear oil seal. Appl

Page 4360 of 4462

INFINITI FX35 2006 Service Manual TF-58 TRANSFER ASSEMBLY Revision: 2006 December 2006 FX35/FX45 Use Genuine Silicone RTV or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants" . CAUTION: Remove old sealant an
