PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT

PRECAUTIONS TF-3
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NDS0009M
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
PrecautionsNDS0009N

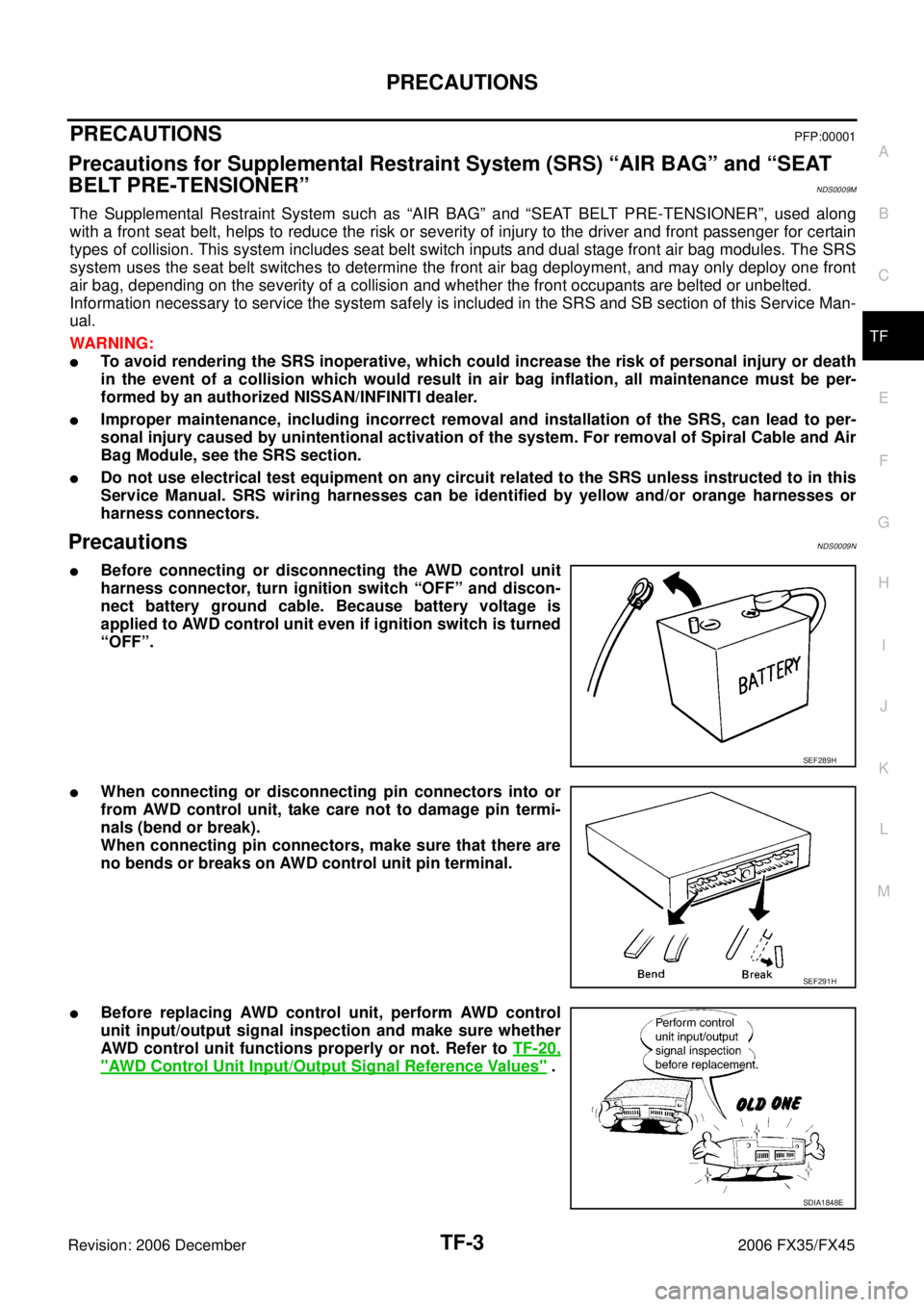

Before connecting or disconnecting the AWD control unit
harness connector, turn ignition switch “OFF” and discon-
nect battery ground cable. Because battery voltage is
applied to AWD control unit even if ignition switch is turned
“OFF”.
When connecting or disconnecting pin connectors into or
from AWD control unit, take care not to damage pin termi-
nals (bend or break).
When connecting pin connectors, make sure that there are
no bends or breaks on AWD control unit pin terminal.
Before replacing AWD control unit, perform AWD control
unit input/output signal inspection and make sure whether
AWD control unit functions properly or not. Refer to TF-20,
"AWD Control Unit Input/Output Signal Reference Values" .
SEF289H
SEF291H
SDIA1848E

Page 4306 of 4462

INFINITI FX35 2006 Service Manual TF-4
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
Service Notice or PrecautionsNDS0009O
Do not reuse transfer fluid, once it has been drained.
Check the fluid level or replace the fluid only w

Page 4307 of 4462

INFINITI FX35 2006 Service Manual PREPARATION TF-5
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNDS0009P
The actual shapes of Kent-Moore tools may differ from t

Page 4308 of 4462

INFINITI FX35 2006 Service Manual TF-6
PREPARATION
Revision: 2006 December 2006 FX35/FX45

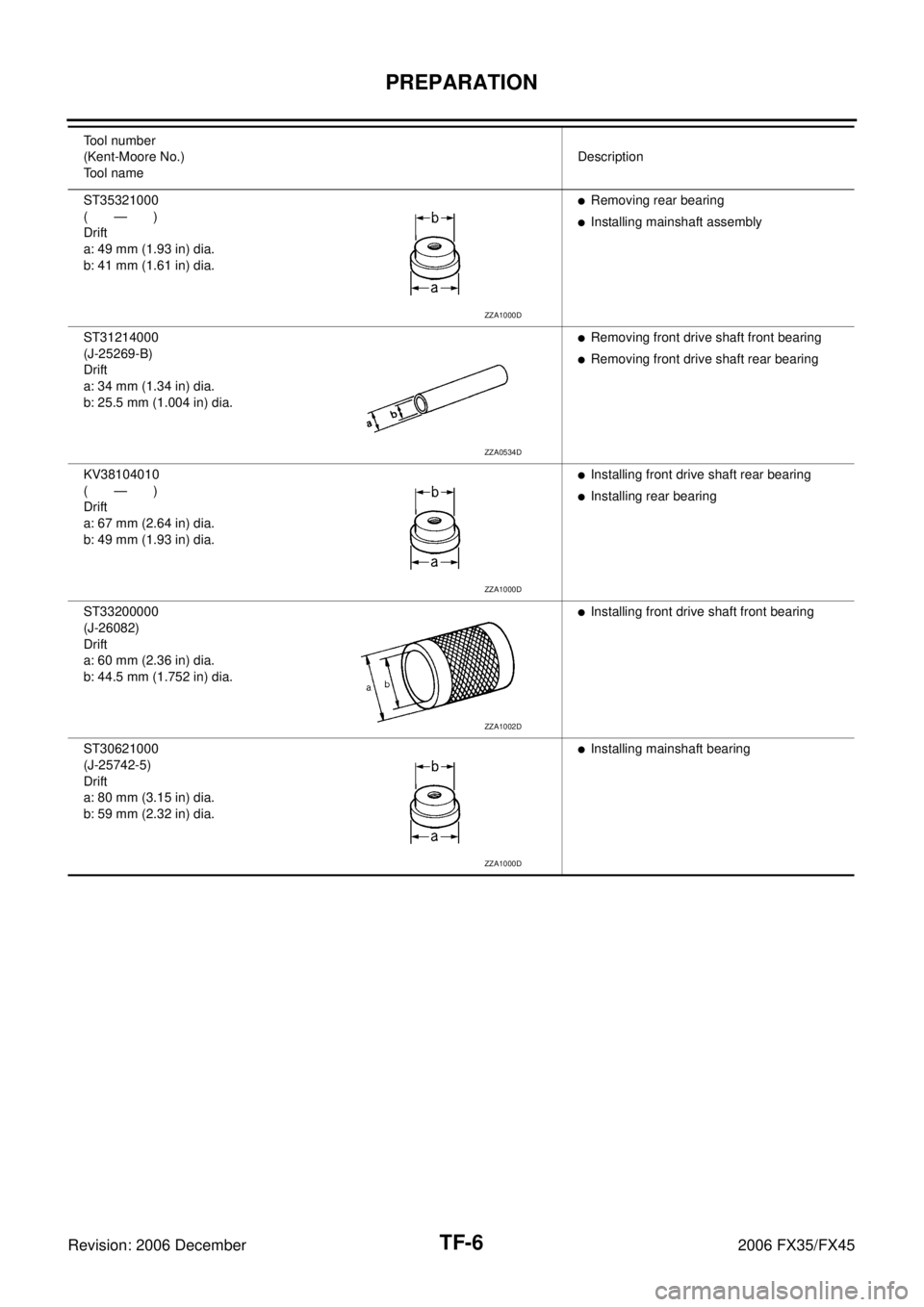

ST35321000
(—)
Drift
a: 49 mm (1.93 in) dia.
b: 41 mm (1.61 in) dia.Removing rear bearing
Installing mainshaft assembly
ST31214000
(J-2

Page 4309 of 4462

INFINITI FX35 2006 Service Manual PREPARATION TF-7
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 December 2006 FX35/FX45
Commercial Service ToolsNDS0009Q
Tool name Description

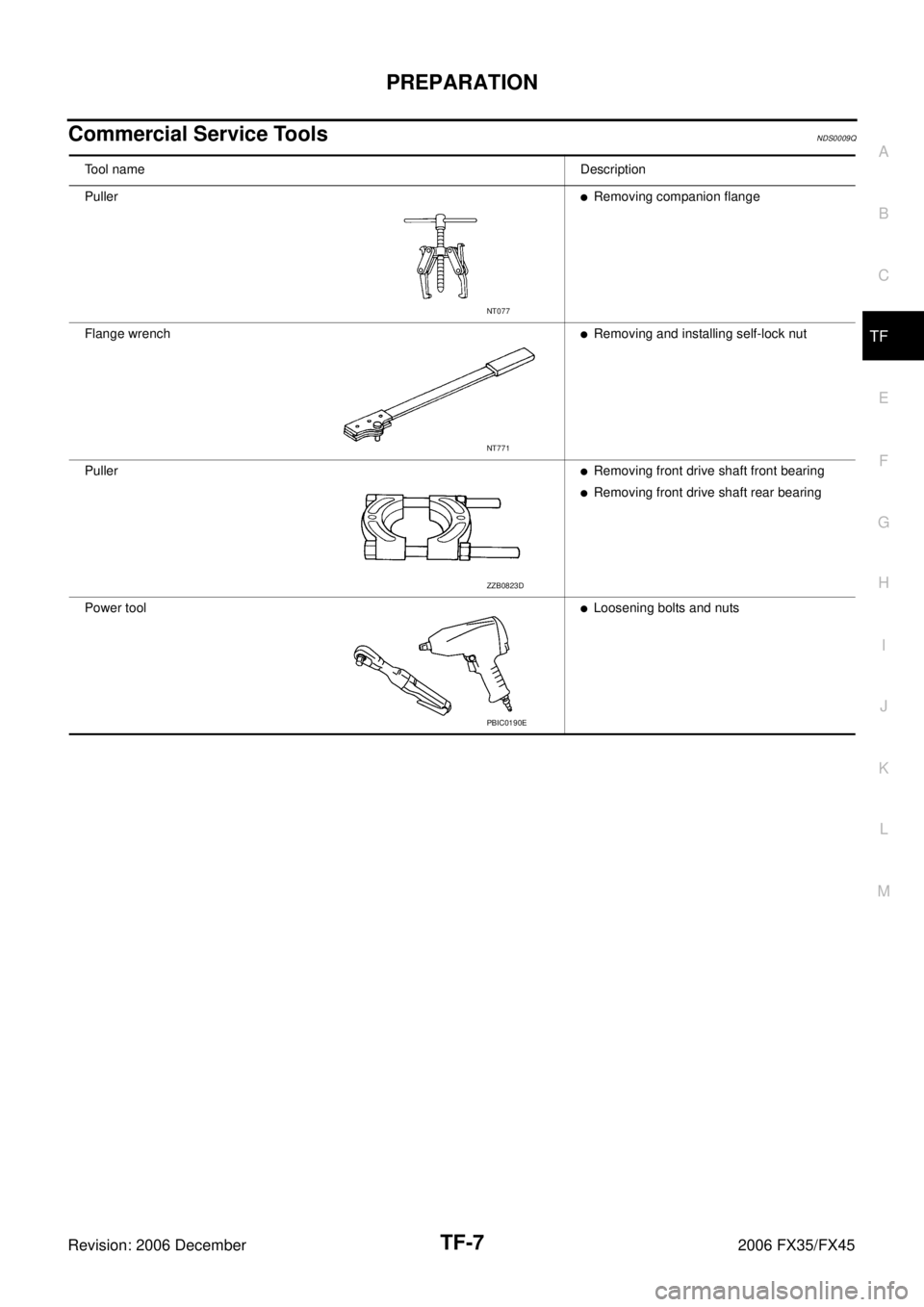

Puller
Removing companion flange
Flange wrench

Page 4310 of 4462

INFINITI FX35 2006 Service Manual TF-8
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2006 December 2006 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartNDS0009R
Use the

Page 4311 of 4462

INFINITI FX35 2006 Service Manual TRANSFER FLUID TF-9
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 December 2006 FX35/FX45
TRANSFER FLUIDPFP:31001
ReplacementNDS0009S
DRAINING

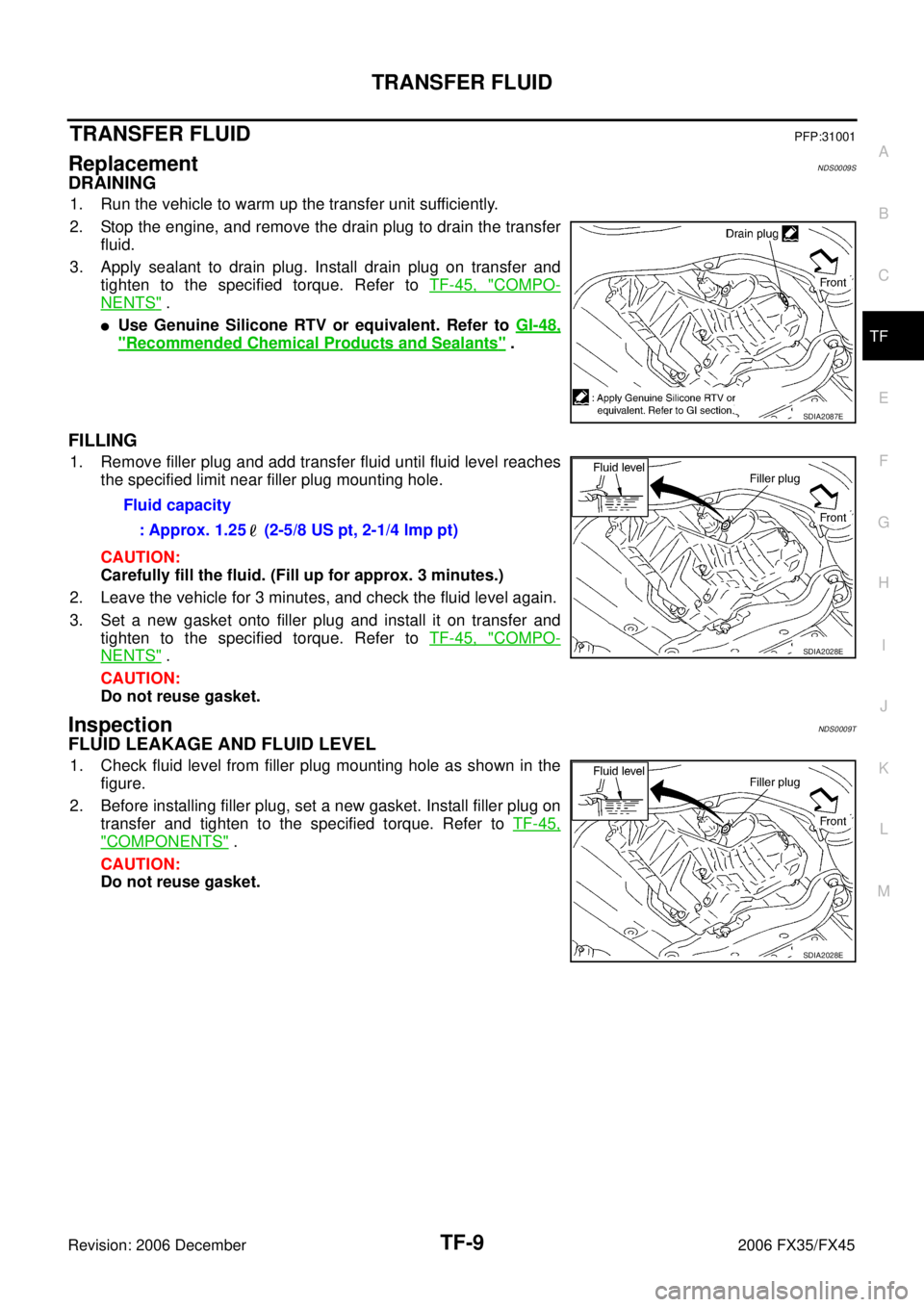

1. Run the vehicle to warm up the transfer unit su

Page 4312 of 4462

INFINITI FX35 2006 Service Manual TF-10
AWD SYSTEM
Revision: 2006 December 2006 FX35/FX45
AWD SYSTEMPFP:41650
Power Transfer DiagramNDS0009U
System DescriptionNDS0009V
DESCRIPTION
Electronic control allows optimal distribution of tor
