INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-183
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
4. CHECK IGNITION KEY HOLE ILLUMINATION BULB
1. Disconnect ignition key hole illumination conne

Page 3746 of 4462

INFINITI FX35 2006 Service Manual LT-184
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
All Step Lamps Do Not OperateNKS002YY

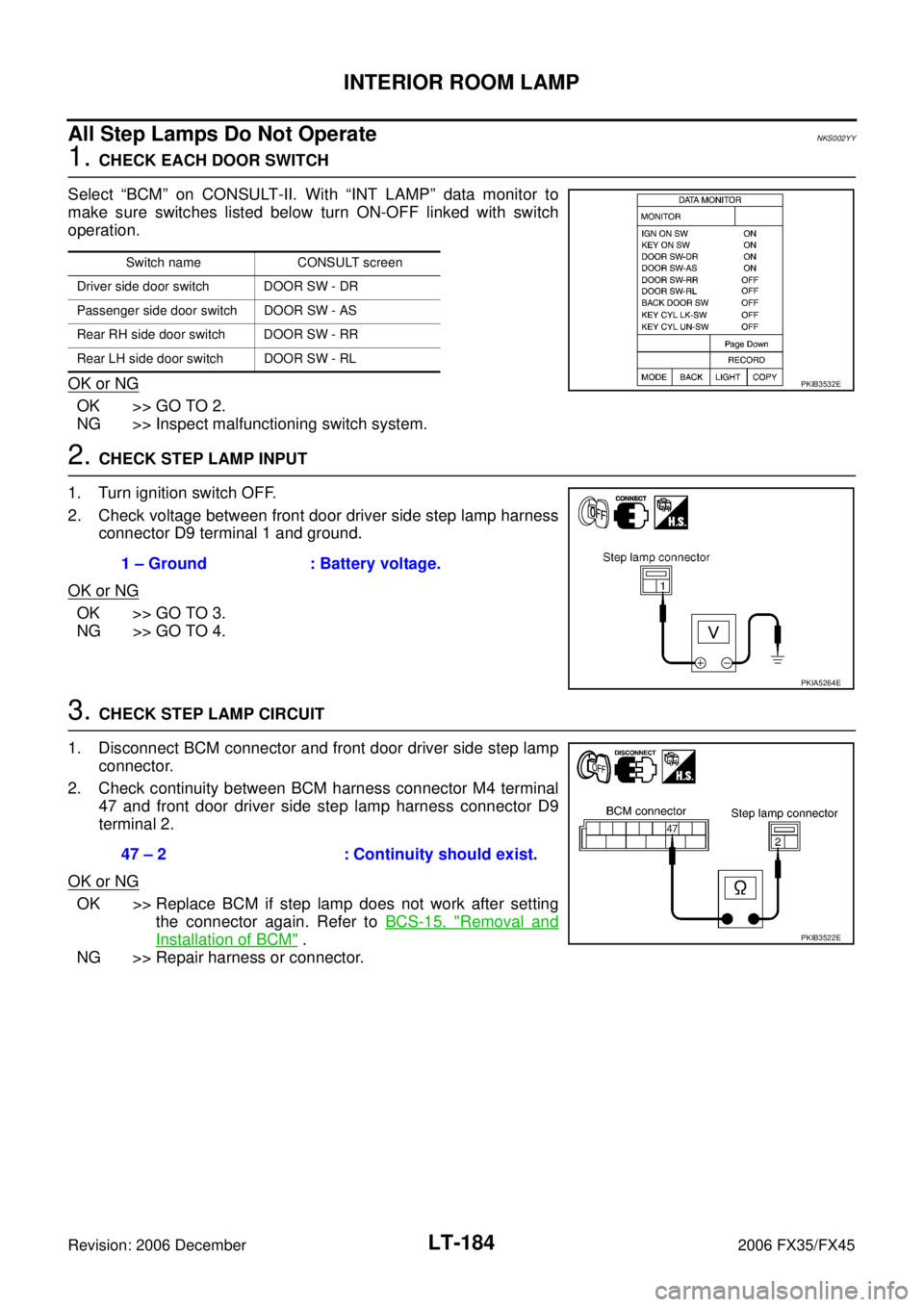

1. CHECK EACH DOOR SWITCH
Select “BCM” on CONSULT-II. With “INT LAMP” data monitor to
m

Page 3747 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-185
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
4. CHECK STEP LAMP CIRCUIT
1. Disconnect BCM connector and front door driver side step lamp co

Page 3748 of 4462

INFINITI FX35 2006 Service Manual LT-186
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
FRONT STEP LAMP
1. Remove door finisher. Refer to EI-35, "Removal and Installation"
.
2. Insert a screwdriver in lens and remove lens

Page 3749 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-187
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
MAP LAMP

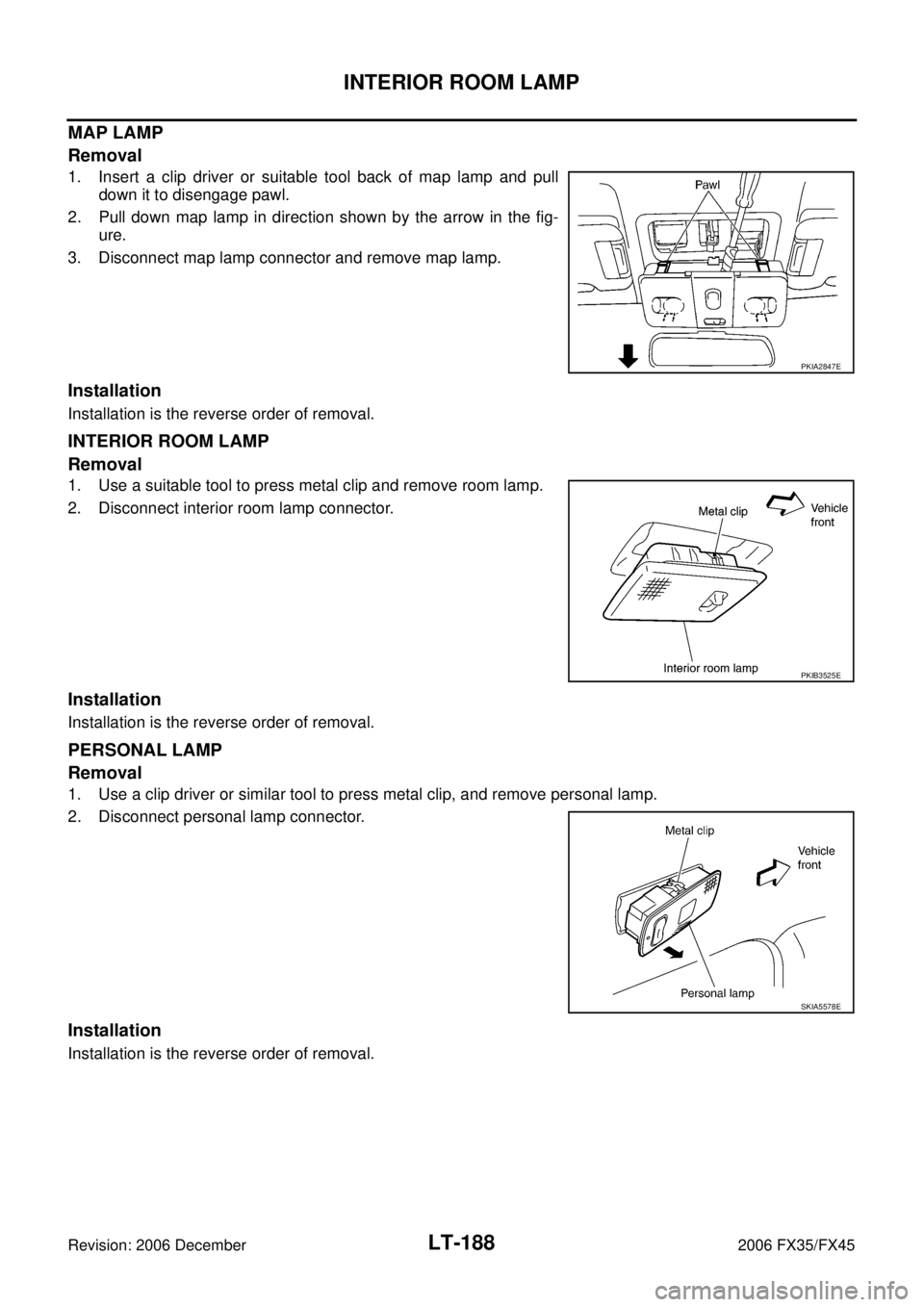

1. Remove lens using clip driver or suitable tool.
2. Remove bulb.
3. Installation is

Page 3750 of 4462

INFINITI FX35 2006 Service Manual LT-188
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
MAP LAMP
Removal
1. Insert a clip driver or suitable tool back of map lamp and pull down it to disengage pawl.
2. Pull down map lamp

Page 3751 of 4462

INFINITI FX35 2006 Service Manual ILLUMINATION LT-189
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
ILLUMINATIONPFP:27545
System DescriptionNKS002Z2
Control of illumination lamps operation is dependent

ILLUMINATION LT-189
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
ILLUMINATIONPFP:27545
System DescriptionNKS002Z2
Control of illumination lamps operation is dependent upon position of lighting switch (combination switch).
When lighting switch is placed in the 1ST or 2ND position (or if auto light system is activated), BCM (body con-
trol module) receives input signal requesting illumination lamps to illuminate. This input signal is communi-
cated to IPDM E/R (intelligent power distribution module engine room) through the CAN communication lines.
The CPU (central processing unit) located in the IPDM E/R controls tail lamp relay coil. This relay, when ener-
gized, directs power to illumination lamps, which then illuminate.
Power is supplied at all times
through 10A fuse (No. 71, located in IPDM E/R)
to tail lamp relay, located in IPDM E/R, and
to CPU located in IPDM E/R.
Power is also supplied at all times
through 50A fusible link (letter M, located in fuse, fusible link and relay box)
to BCM terminal 55,
through 15A fuse [No. 22 located in fuse block (J/B)]
to BCM terminal 42,
through 15A fuse (No. 78, located in IPDM E/R)
to CPU located in IPDM E/R,
through 10A fuse [No. 19 located in fuse block (J/B)]
to unified meter and A/C amp. terminal 21, and
to combination meter terminal 8.
With ignition switch in ON or START position, power is supplied
to ignition relay, located in IPDM E/R, from battery direct,
through 15A fuse [No. 1 located in fuse block (J/B)]
to BCM terminal 38,
through 10A fuse [No. 12, located in fuse block (J/B)]
to unified meter and A/C amp. terminal 22,
to combination meter terminal 7.
With ignition switch in ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to combination meter terminal 4 and
to BCM terminal 11.
Ground is supplied
to BCM terminals 49 and 52
to unified meter and A/C amp. terminals 29 and 30, and
to combination meter terminals 5, 6, and 15
through grounds M35, M45, and M85,
to IPDM E/R terminals 38 and 60
through grounds E21, E50, and E51.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With lighting switch in the 1ST or 2ND position (or if auto light system is activated), BCM receives input signal
requesting illumination lamps to illuminate. This input signal is communicated to IPDM E/R through the CAN
communication lines. The CPU located in the IPDM E/R controls tail lamp relay coil, which, when energized,
directs power
through IPDM E/R terminal 22
to glove box lamp terminal 1
to A/T device (illumination) terminal 11
to snow mode switch (illumination) terminal 5
to VDC off switch (illumination) terminal 3

Page 3752 of 4462

INFINITI FX35 2006 Service Manual LT-190
ILLUMINATION
Revision: 2006 December 2006 FX35/FX45
to clock (illumination) terminal 3
to hazard switch (illumination) terminal 3
to heated seat switch (driver side) (illumination) terminal

LT-190
ILLUMINATION
Revision: 2006 December 2006 FX35/FX45
to clock (illumination) terminal 3
to hazard switch (illumination) terminal 3
to heated seat switch (driver side) (illumination) terminal 5
to heated seat switch (passenger side) (illumination) terminal 5
to door mirror remote control switch (illumination) terminal 16
to LDW switch (illumination) terminal 5
to combination switch (spiral cable) terminal 26
to microphone terminal 2 (with telephone system)
to A/C and AV switch (illumination) terminal 3
to DVD player (illumination) terminal 12
to coin box illumination terminal 2
to rear power window switch LH and RH (illumination) terminals 6,
through combination switch (spiral cable) terminal 18
to audio steering switch (illumination), and
to icc steering switch (illumination) (with icc)
to ascd steering switch (illumination) (without icc)
Illumination control
through combination meter terminal 19
to A/T device (illumination) terminal 12
to snow mode switch (illumination) terminal 6
to VDC off switch (illumination) terminal 4
to clock (illumination) terminal 4
to hazard switch (illumination) terminal 4
to heated seat switch (driver side) (illumination) terminal 6
to heated seat switch (passenger side) (illumination) terminal 6
to door mirror remote control switch terminal 15
to LDW switch (illumination) terminal 4,
to combination switch (spiral cable) terminal 27
to A/C and AV switch (illumination) terminal 4
to DVD player (illumination) terminal 10,
through combination switch (spiral cable) terminal 21
to audio steering switch (illumination), and
to icc steering switch (illumination) (with icc)
to ascd steering switch (illumination) (without icc)
Ground is supplied at all times
to glove box lamp terminal 2, and
to coin box illumination terminal 3
through grounds M35, M45 and M85,
to rear power window switch LH and RH (illumination) terminals 7
through grounds B15 and B45.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the lighting switch is in the 1ST or 2ND position (or if auto light system is activated), and ignition switch
is turned from ON or ACC to OFF, battery saver control function is activated.
Under this condition, illumination lamps remain illuminated for 5 minutes, then illumination lamps are turned
off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by battery saver control, and illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
