Page 3529 of 4462

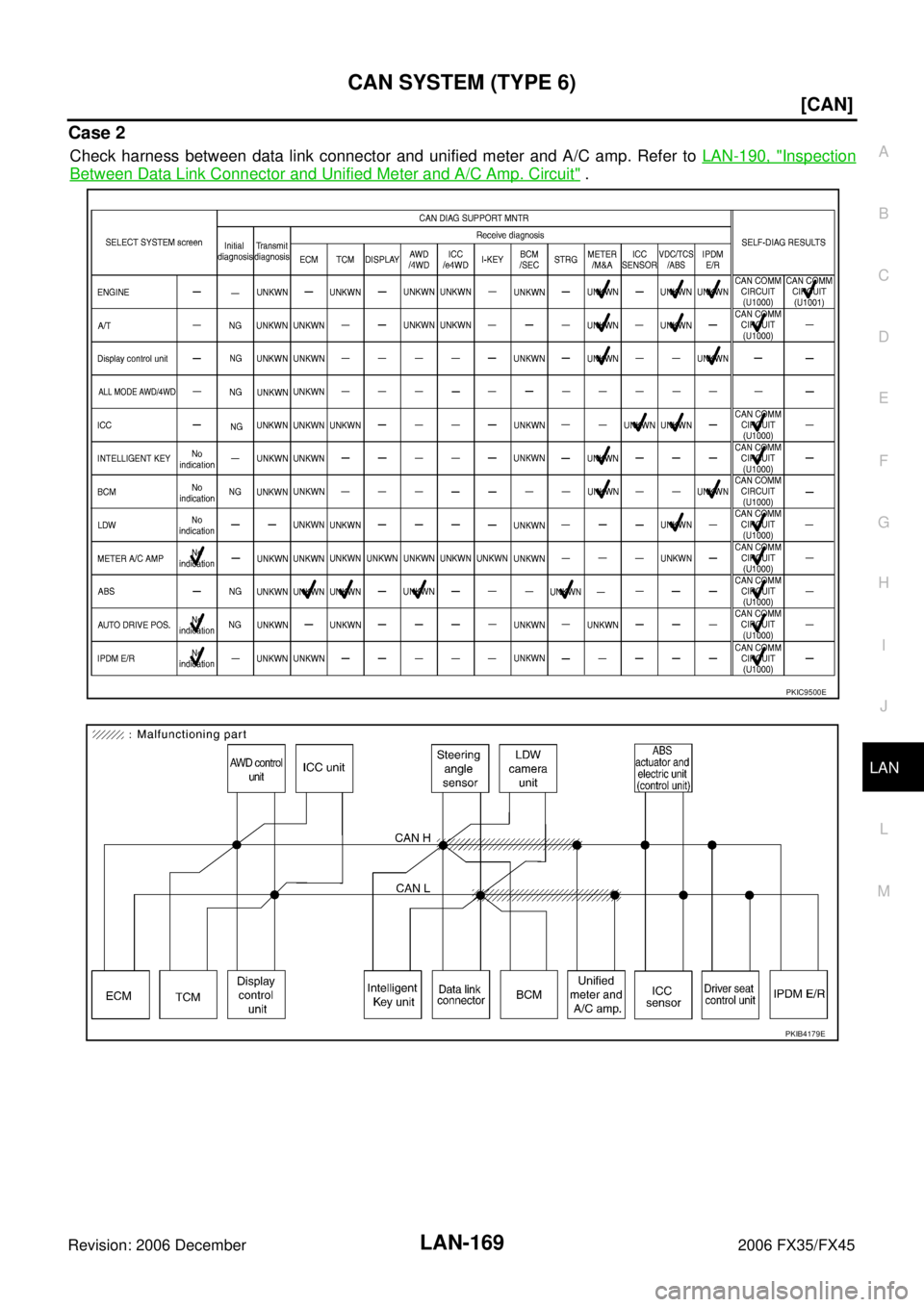

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-169 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer t

Page 3530 of 4462

INFINITI FX35 2006 Service Manual LAN-170 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-190, "

Page 3531 of 4462

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-171 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver s

Page 3532 of 4462

INFINITI FX35 2006 Service Manual LAN-172 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" . PKIC9503E PKIB4182E

Page 3533 of 4462

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-173 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" . PKIC9504E PKIB

Page 3534 of 4462

INFINITI FX35 2006 Service Manual LAN-174 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 7 Check display control unit circuit. Refer to LAN-193, "Display Control Unit Circuit Inspection" . PKIC9505E PKIB4184E

Page 3535 of 4462

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 6) LAN-175 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 8 Check AWD control unit circuit. Refer to LAN-194, "AWD Control Unit Circuit In

Page 3536 of 4462

INFINITI FX35 2006 Service Manual LAN-176 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 December 2006 FX35/FX45 Case 9 Check ICC unit circuit. Refer to LAN-198, "ICC Sensor Circuit Inspection" . PKIC9507E PKIB4186E
