Page 4393 of 4462

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS WT-31
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
2. REPLACE TRANSMITTER
1. Check low tire pressure warning condition again, replace malfunctioning transmitter.
2. Perform ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> GO TO 3.
NO >> GO TO the inspection 1. Refer to WT-30, "
Inspection 1: Transmitter or Control Unit (BCM)" .
3. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” displayed tire pressure as normal without any warning lamp?
YES >> INSPECTION END.
NO >> Replace malfunctioning transmitter, and perform “Step 3” again.
Inspection 3: Transmitter - 2NES000H3
MALFUNCTION CODE NO. 35, 36, 37 OR 38
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-39, "Tire" .
Are there any tires whose pressure is
“64 psi” or more?
YES >> Adjust tire pressure to specified value.
NO >> GO TO 2.
2. VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping. Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
become 17 km/h (11 MPH).
>> Replace transmitter with new one if “DATA MONITOR ITEM” displayed 64 psi or more. Then GO TO 3.
3. ID REGISTRATION AND VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO the inspection applicable to DTC.
Page 4394 of 4462
WT-32
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 December 2006 FX35/FX45
Inspection 4: Vehicle Speed SignalNES000H4
MALFUNCTION CODE NO. 52
1. CHECK SELF-DIAGNOSIS RESULTS
1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link con- nector, then turn the ignition switch ON.
2. Select “START (NISSAN BASED VHCL)”.
3. Select “BCM” on “SELECT SYSTEM” screen. NOTE:
If “BCM” is not indicated, go to GI-39, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. Select “BCM C/U” on “SELECT SYSTEM” screen.
5. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
6. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-3, "Precautions When Using CON-
SULT-II" .
NO >> No malfunction. Check combination meter refer to DI-5, "
System Description" .
Page 4395 of 4462

TROUBLE DIAGNOSIS FOR SYMPTOMS WT-33
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Inspection 1: Warning Lamp Does Not Come On When Ignition Switch Is Turned
On
NES000H5
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link con- nector, then turn the ignition switch ON.
2. Select “START (NISSAN BASED VHCL)”.
3. Select “BCM” on “SELECT SYSTEM” screen. NOTE:
If the “BCM” is not indicated, go to GI-39, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. Select “BCM C/U” on “SELECT WORK ITEM” screen, and select “SELF-DIAG RESULTS”.
5. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
6. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-3, "Precautions When Using CON-
SULT-II" .
NO >> No malfunction. GO TO 2.
2. CHECK COMBINATION METER
Check combination meter function.
OK or NG
OK >> GO TO 3.
NG >> Check combination meter. Refer to DI-5, "
System Description" .
3. CHECK LOW TIRE PRESSURE WARNING LAMP
Disconnect BCM harness connectors M3 and M4.
Does the warning lamp activate?
YES >> Replace BCM. Refer to BCS-15, "Removal and Installation of BCM" .
NO >> Check combination meter and repair or replace.
Inspection 2: Warning Lamp Stays On When Ignition Switch Is Turned OnNES000H6
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Disconnect BCM harness connectors M3 and M4.
2. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
Page 4396 of 4462

WT-34
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
2. CHECK POWER SUPPLY CIRCUIT (BATTERY)
Make sure voltage between BCM harness connector M4 terminals 42 (GY), 55 (R) and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK POWER SUPPLY CIRCUIT (IGN)
1. Turn ignition switch ON.
2. Make sure voltage between BCM harness connector M3 terminal 38 (W/L) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check BCM power supply circuit for open or short.
4. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector M4 terminal 49(B), 52 (B) and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Repair or replace BCM ground circuit. Te r m i n a l
Vo l ta g e
(+) (–)
Connector Te r m i n a l
(Wire color) Ground 12V
M4 42 (L/R),
55 (G)
SEIA0435E
Te r m i n a l Vo l ta g e
(+) (–)
Connector Te r m i n a l
(Wire color) Ground 12V
M3 38 (W/L)
SEIA0436E
Te r m i n a l Continuity
(+) (–)
Connector Te r m i n a l
(Wire color) Ground Should exist.
M4 49 (B), 52 (B)
SEIA0610E
Page 4397 of 4462
TROUBLE DIAGNOSIS FOR SYMPTOMS WT-35
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
Inspection 3: Warning Lamp Blinks When Ignition Switch Is Turned OnNES000H7
NOTE:
If warning lamp blink below, the system is normal.
Blink Mode A
This mode shows transmitter status is OFF-mode.
Perform transmitter wake up operation. Refer to WT-20, "
Trans-
mitter Wake Up Operation" .
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Disconnect BCM harness connector M3.
2. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
2. CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT
Check continuity between BCM harness connector M3 terminal 15 (G) and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Repair or replace harness connector.
SEIA0347E
Te r m i n a l Continuity
(+) (–)
Connector Te r m i n a l
(Wire color) Ground Should not exist.
M3 15 (G)
SEIA0438E
Page 4398 of 4462
WT-36
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
Inspection 4: Turn Signal Lamp Blinks When Ignition Switch Is Turned OnNES000H8
DIAGNOSTIC PROCEDURE
1. CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT
Check continuity between BCM harness connector M3 terminal 15 (G) and ground.
OK or NG
OK >> Check turn signal lamp operation. Refer to LT- 9 0 , "Sys-
tem Description" .
NG >> Repair or replace harness connector.
Inspection 5: ID Registration Can Not Be CompletedNES000H9
DIAGNOSTIC PROCEDURE
1. ID REGISTRATION (ALL)
Perform ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> INSPECTION END
NO >> GO TO WT-30, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
Te r m i n a l
Continuity
(+) (–)
Connector Te r m i n a l
(Wire color) Ground Should not exist.
M3 15 (G)
SEIA0438E
Page 4399 of 4462
REMOVAL AND INSTALLATION WT-37
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45

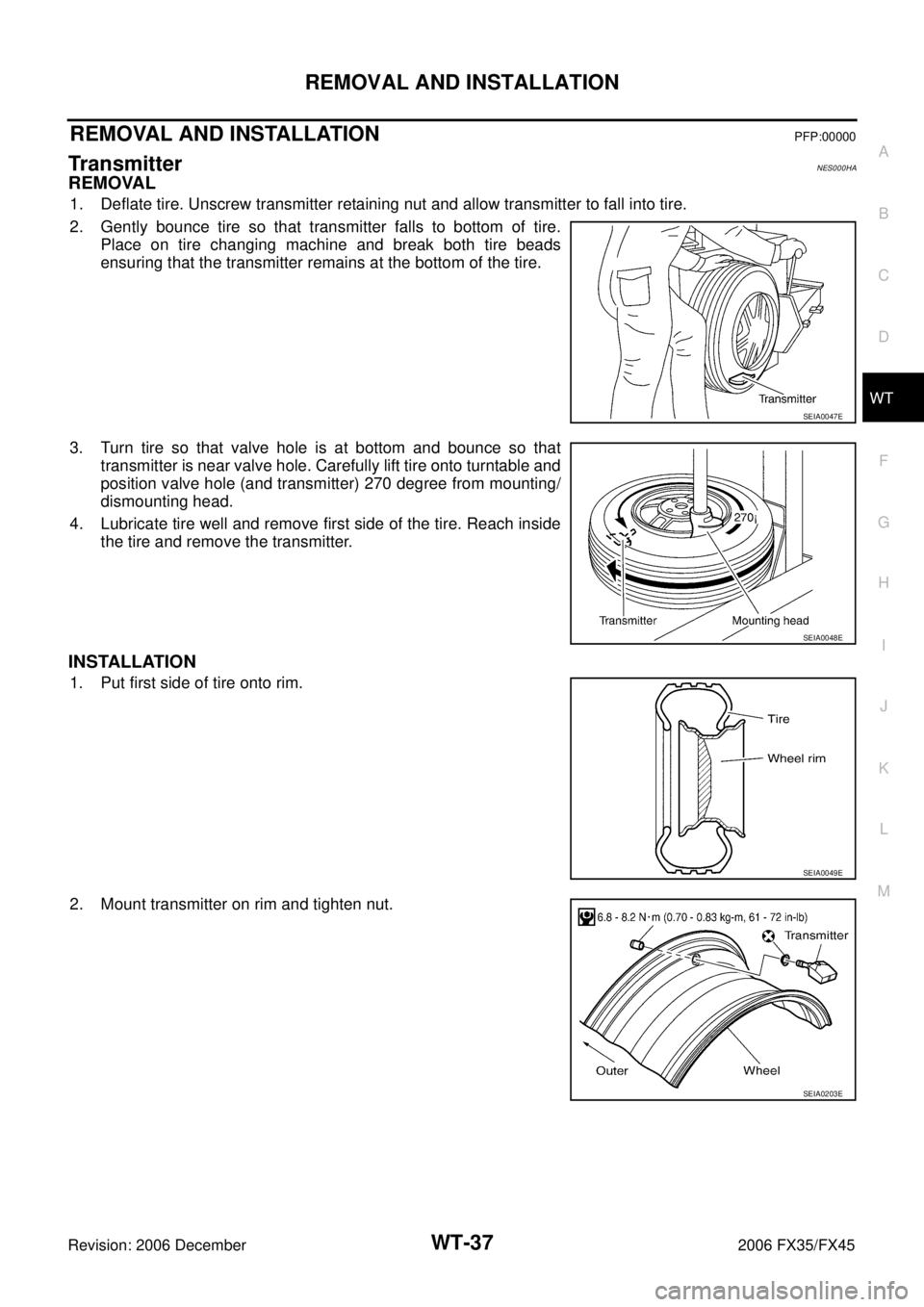

REMOVAL AND INSTALLATIONPFP:00000
TransmitterNES000HA
REMOVAL
1. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
2. Gently bounce tire so that transmitter falls to bottom of tire. Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.
3. Turn tire so that valve hole is at bottom and bounce so that transmitter is near valve hole. Carefully lift tire onto turntable and
position valve hole (and transmitter) 270 degree from mounting/
dismounting head.
4. Lubricate tire well and remove first side of the tire. Reach inside the tire and remove the transmitter.
INSTALLATION
1. Put first side of tire onto rim.
2. Mount transmitter on rim and tighten nut.
SEIA0047E
SEIA0048E
SEIA0049E
SEIA0203E
Page 4400 of 4462
WT-38
REMOVAL AND INSTALLATION
Revision: 2006 December 2006 FX35/FX45
3. Place wheel on turntable of tire machine. Ensure that transmitter is 270 degree from mounting head when second side of tire is
fitted.
NOTE:
Do not touch transmitter at mounting head.
4. Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
5. Inflate tire and fit to appropriate wheel position.
SEIA0048E
