INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-129
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
*: DTC P1442 and P1456 does not apply to S50 models but appears in DTC Work Support Mode

TROUBLE DIAGNOSIS EC-129
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
*: DTC P1442 and P1456 does not apply to S50 models but appears in DTC Work Support Mode screens.
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description

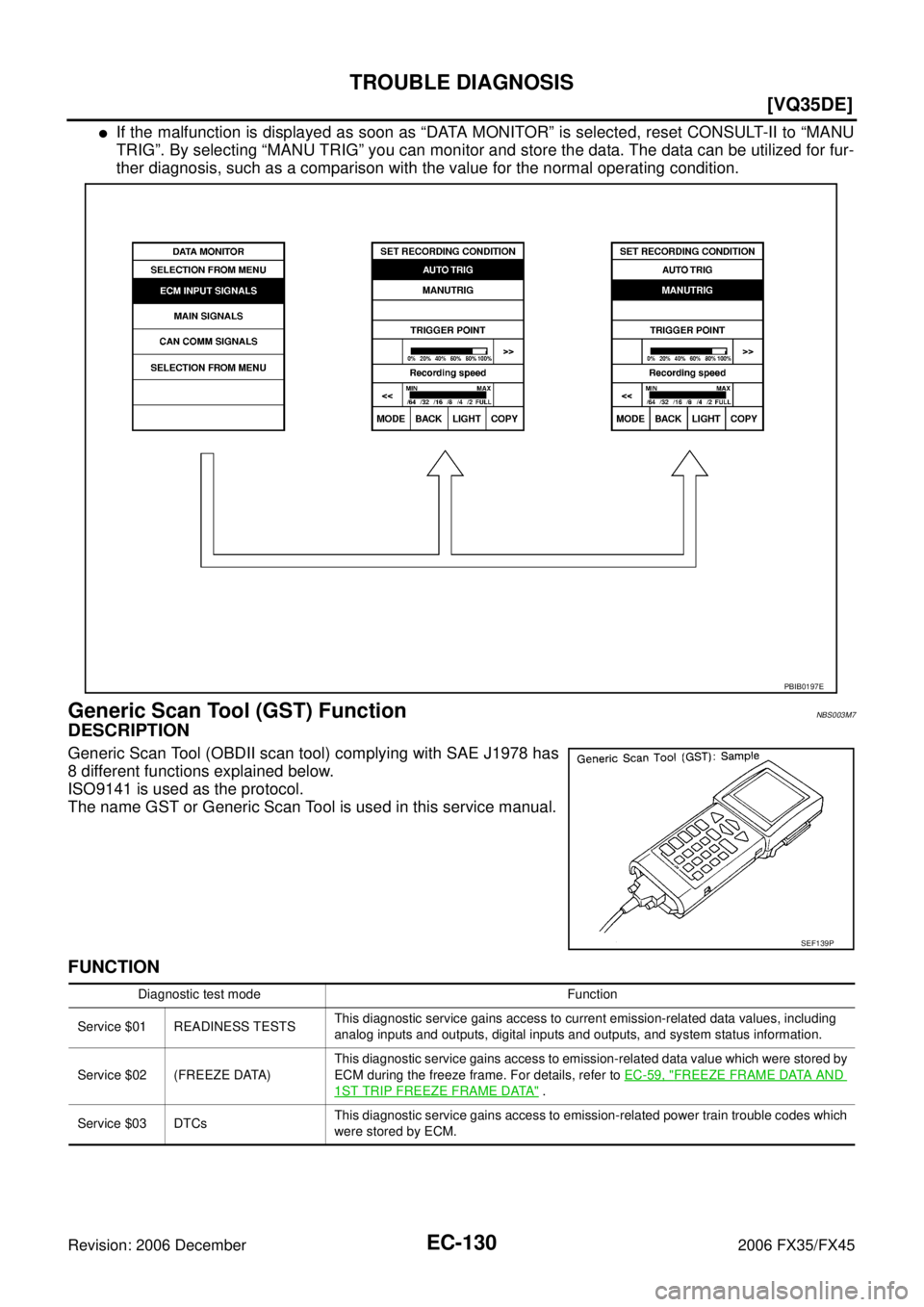

CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
The malfunction will be identified on the CONSULT-II screen
in real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONI-
TOR” in “DATA MONITOR” screen is changed to “Recording
Data ... xx%” as shown at right, and the data after the mal-
function detection is recorded. Then when the percentage
reached 100%, “REAL-TIME DIAG” screen is displayed. If
“STOP” is touched on the screen during “Recording Data ...
xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the
recording speed can be changed by “TRIGGER POINT” and
“Recording Speed”. Refer to CONSULT-II Operation Manual.
2. “MANU TRIG” (Manual trigger):
DTC/1st trip DTC and malfunction item will not be displayed
automatically on CONSULT-II screen even though a malfunc-
tion is detected by ECM.
DATA MONITOR can be performed continuously even though
a malfunction is detected.
Operation
1. “AUTO TRIG”
While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure, be sure to
select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.
While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the DTC Confirmation Procedure, the moment a malfunction is found the DTC/1st
trip DTC will be displayed. (Refer to “INCIDENT SIMULATION TESTS” in GI-28, "
How to Perform Effi-
cient Diagnosis for an Electrical Incident" .)
2. “MANU TRIG”
A/F SEN1 A/F SEN1 (B1) P1276 P0130
EC-230A/F SEN1 (B1) P1278/1279 P0133EC-258
A/F SEN1 (B2) P1286 P0150EC-230
A/F SEN1 (B2) P1288/1289 P0153EC-258
HO2S2 HO2S2 (B1) P0139 P0139
EC-294
HO2S2 (B1) P1146 P0138EC-281
HO2S2 (B1) P1147 P0137EC-270
HO2S2 (B2) P0159 P0159EC-294
HO2S2 (B2) P1166 P0158EC-281
HO2S2 (B2) P1167 P0157EC-270
Test mode Test item Corresponding DTC No. Reference page
PBIB1593E
SEF707X

Page 1514 of 4462

INFINITI FX35 2006 Service Manual EC-130
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting

Page 1515 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-131
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect GST to data link connector

Page 1516 of 4462

INFINITI FX35 2006 Service Manual EC-132
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
5. Perform each diagnostic mode according to each service proce- dure.
For further information, see the GST Operation Manual of

Page 1517 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-133
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Reference Value in Data MonitorNBS003M8
Remarks:
Specification data are

TROUBLE DIAGNOSIS EC-133
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Reference Value in Data MonitorNBS003M8
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification da ta in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indica-
tion. Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-138, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-138, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2 See
EC-138, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70 °C (158 °F)
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming up Maintaining engine speed at 2,000
rpm Fluctuates around 1.5 V
HO2S2 (B1)
HO2S2 (B2)
Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1minute under no load 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S2 MNTR (B1)
HO2S2 MNTR (B2) LEAN
←→ RICH
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as the
speedometer indication
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.) ON
P/N POSI SW
Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engine Steering wheel: Not being turned OFF
Steering wheel: Being turned ON
LOAD SIGNAL
Ignition switch: ON Rear window defogger switch is ON
and/or lighting switch is in 2nd ON
Rear window defogger switch is OFF
and lighting switch is OFF OFF
SNOW MODE SW
Ignition switch: ON Snow mode switch: ON ON
Snow mode switch: OFF OFF
IGNITION SW
Ignition switch: ON → OFF → ON ON → OFF → ON

Page 1518 of 4462

INFINITI FX35 2006 Service Manual EC-134
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
HEATER FAN SWEngine: After warming up, idle
the engine Heater fan: Operating. ON
Heater fan: Not operating OFF
BRAKE SW

Page 1519 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS EC-135
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFF E

TROUBLE DIAGNOSIS EC-135
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFF Engine coolant temperature is 97
°C
(207 °F) or less OFF
Engine coolant temperature is
between 98 °C (208 °F) and 99 °C
(210 °F) LOW
Engine coolant temperature is
between 100 °C (212 °F) and 104 °C
(219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON
Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as the
speedometer indication
VEHICLE SPEED
Turn drive wheels and compare the CONSULT-II value with speedometer
indication. Almost the same speed as the
speedometer indication
TRVL AFTER MIL
Ignition switch: ON Vehicle has traveled after MIL has
turned ON. 0 - 65,535 km
(0 - 40,723 mile)
A/F S1 HTR (B1)
A/F S1 HTR (B2)
Engine: After warming up, idle the engine 0 - 100%
AC PRESS SEN
Engine: Idle
Both A/C switch and blower fan switch: ON
(Compressor operates) 1.0 - 4.0V
VHCL SPEED SE
Turn drive wheels and compare speedometer indication with the CON-
SULT-II value. Almost the same speed as the
CONSULT-II value
SET VHCL SPD
Engine: Running ASCD: Operating. The preset vehicle speed is
displayed.
MAIN SW
Ignition switch: ON MAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ON CANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ON RESUME/ACCELERATE switch:
Pressed ON
RESUME/ACCELERATE switch:
Released OFF
SET SW
Ignition switch: ON SET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DIST SW
Ignition switch: ON DISTANCE switch: Depressed ON
DISTANCE switch: Released OFF
CRUISE LAMP
Ignition switch: ON MAIN switch: pressed at the 1st time
→ at the 2nd time ON
→ OFF
MONITOR ITEM CONDITION SPECIFICATION

Page 1520 of 4462

INFINITI FX35 2006 Service Manual EC-136
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they
