DTC P0550 PSP SENSOR EC-1137
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0550 PSP SENSORPFP:49763
Component DescriptionNBS0049W
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeNBS0049X
Specification data are reference values.
On Board Diagnosis LogicNBS0049Y
The MIL will not light up for this diagnosis.
NOTE:
If DTC P0550 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-1149, "
DTC P0643 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureNBS0049Z
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1139, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1484E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL
Engine: After warming up, idle
the engine Steering wheel: Not being turned OFF
Steering wheel: Being turned ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550 Power steering pres-
sure sensor circuit An excessively low or high voltage from the
sensor is sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted)
Power steering pressure sensor
SEF058Y
Page 2522 of 4462
EC-1138
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2006 December 2006 FX35/FX45

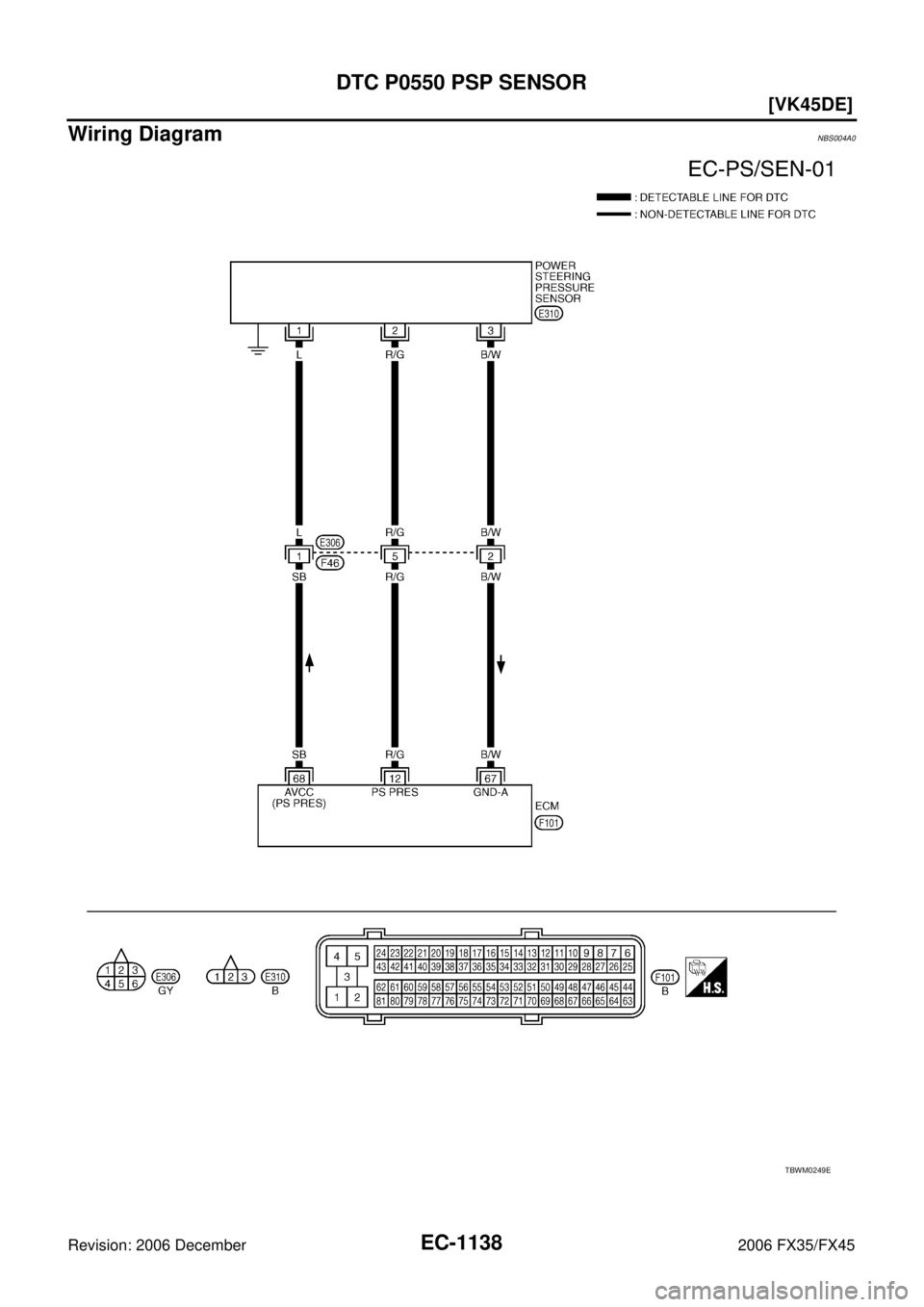

Wiring DiagramNBS004A0
TBWM0249E
Page 2523 of 4462
![INFINITI FX35 2006 Service Manual DTC P0550 PSP SENSOR EC-1139
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and g INFINITI FX35 2006 Service Manual DTC P0550 PSP SENSOR EC-1139
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and g](/manual-img/42/57019/w960_57019-2522.png)
DTC P0550 PSP SENSOR EC-1139
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS004A1
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-818, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
12 R/G Power steering pressure
sensor [Engine is running]
Steering wheel: Being turned
0.5 - 4.5V
[Engine is running]
Steering wheel: Not being turned 0.4 - 0.8V
67 B/W Sensor ground [Engine is running]
Warm-up condition
Idle speed Approximately 0V
68 SB Sensor power supply
(Power steering pressure
sensor) [Ignition switch: ON]
Approximately 5V
PBIB2195E
Page 2524 of 4462
![INFINITI FX35 2006 Service Manual EC-1140
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2006 December 2006 FX35/FX45
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch ON.
3. Chec INFINITI FX35 2006 Service Manual EC-1140
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2006 December 2006 FX35/FX45
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch ON.
3. Chec](/manual-img/42/57019/w960_57019-2523.png)
EC-1140
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2006 December 2006 FX35/FX45
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E306, F46
Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E306, F46
Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground short to power in harness or connectors.
PBIB1484E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.
Page 2525 of 4462
![INFINITI FX35 2006 Service Manual DTC P0550 PSP SENSOR EC-1141
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
6. CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness contin INFINITI FX35 2006 Service Manual DTC P0550 PSP SENSOR EC-1141
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
6. CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness contin](/manual-img/42/57019/w960_57019-2524.png)
DTC P0550 PSP SENSOR EC-1141
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
6. CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E306, F46
Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK PSP SENSOR
Refer to EC-1141, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace PSP sensor.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-811, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionNBS004A2
POWER STEERING PRESSURE SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and let it idle.
3. Check voltage between ECM terminal 12 and ground under the following conditions.
Removal and InstallationNBS004A3
POWER STEERING PRESSURE SENSOR
Refer to PS-39, "HYDRAULIC LINE" .
Continuity should exist.
Condition Voltage
Steering wheel: Being turned 0.5 - 4.5V
Steering wheel: Not being turned 0.4 - 0.8V
MBIB0126E
Page 2526 of 4462
![INFINITI FX35 2006 Service Manual EC-1142
[VK45DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS004A8
Battery voltage is supplied to the ECM even when th INFINITI FX35 2006 Service Manual EC-1142
[VK45DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS004A8
Battery voltage is supplied to the ECM even when th](/manual-img/42/57019/w960_57019-2525.png)
EC-1142
[VK45DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS004A8
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicNBS004A9
DTC Confirmation ProcedureNBS004AA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
5. Repeat steps 3 and 4 for four times.
6. If 1st trip DTC is detected, go to EC-1144, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0603
0603 ECM power supply cir-
cuit ECM back-up RAM system does not function
properly.
Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]
ECM
SEF058Y
Page 2527 of 4462
DTC P0603 ECM POWER SUPPLY EC-1143
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

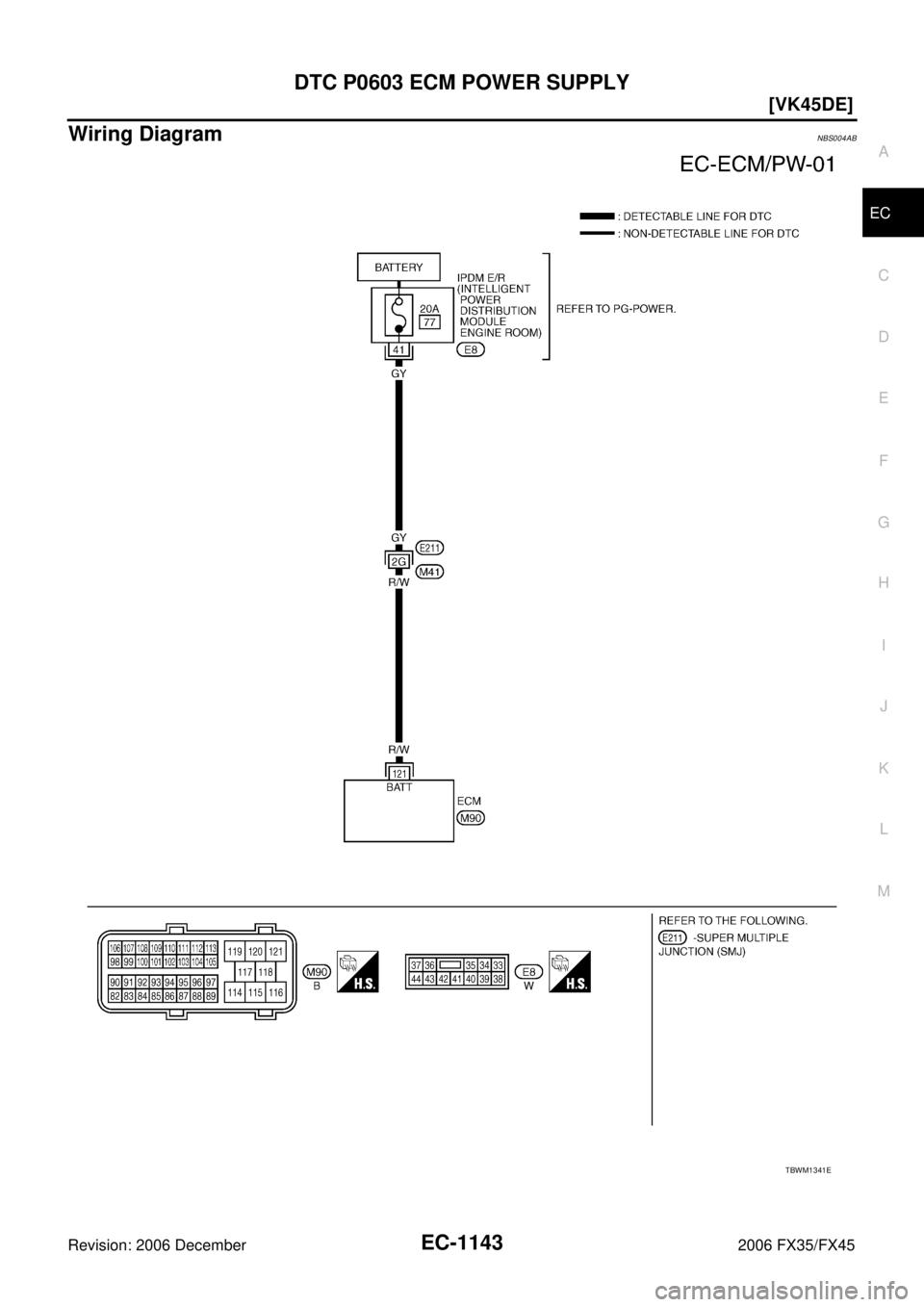

Wiring DiagramNBS004AB
TBWM1341E
Page 2528 of 4462
![INFINITI FX35 2006 Service Manual EC-1144
[VK45DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM INFINITI FX35 2006 Service Manual EC-1144
[VK45DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM](/manual-img/42/57019/w960_57019-2527.png)
EC-1144
[VK45DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS004AC
1. CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.

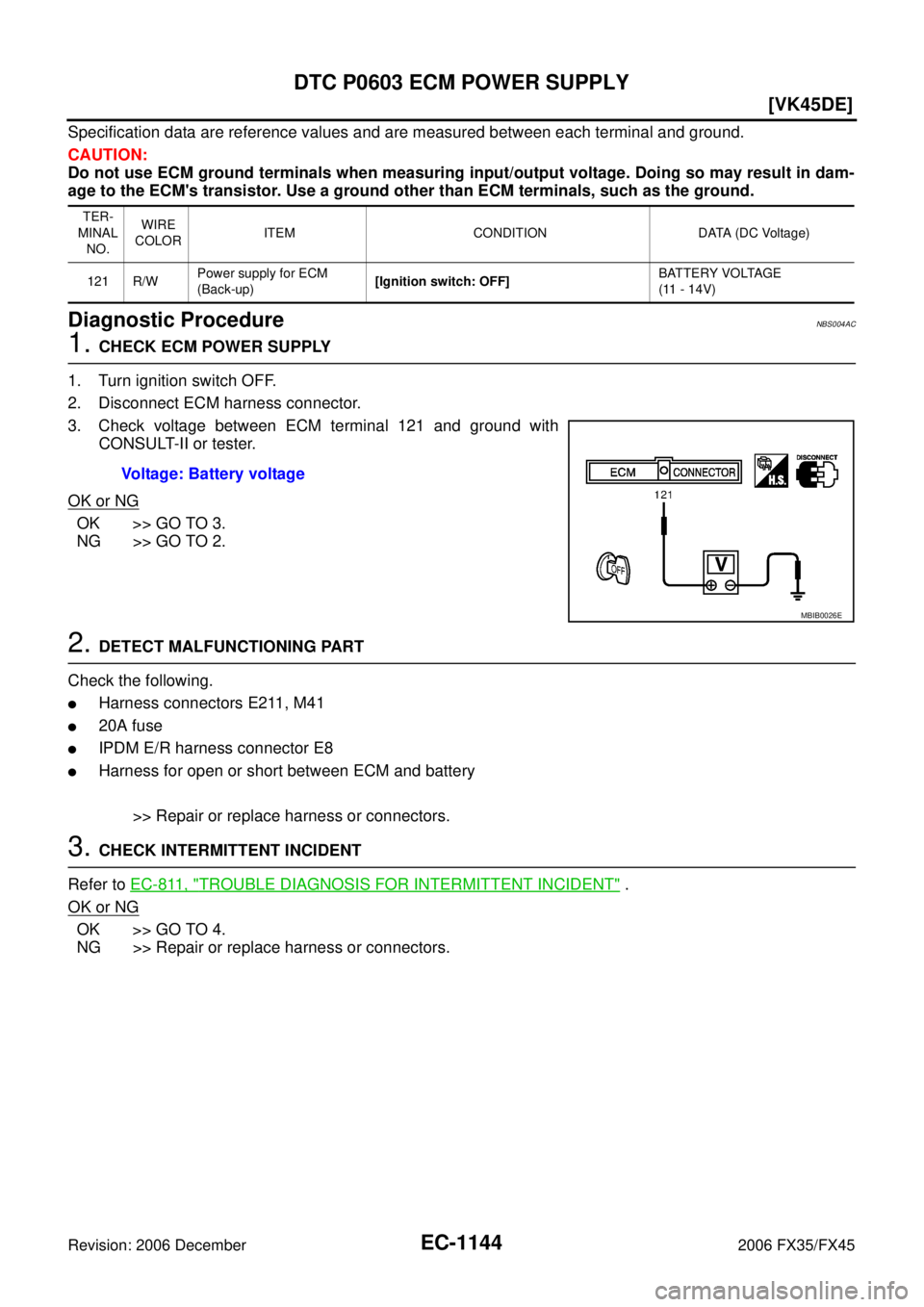

3. Check voltage between ECM terminal 121 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
20A fuse
IPDM E/R harness connector E8
Harness for open or short between ECM and battery
>> Repair or replace harness or connectors.
3. CHECK INTERMITTENT INCIDENT
Refer to EC-811, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
121 R/W Power supply for ECM
(Back-up) [Ignition switch: OFF] BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0026E
