Page 4137 of 4462

INFINITI FX35 2006 Service Manual CHARGING SYSTEM SC-31
C
D E
F
G H
I
J
L
M A
B
SC
Revision: 2006 December 2006 FX35/FX45
VQ35DE ENGINE MODELS

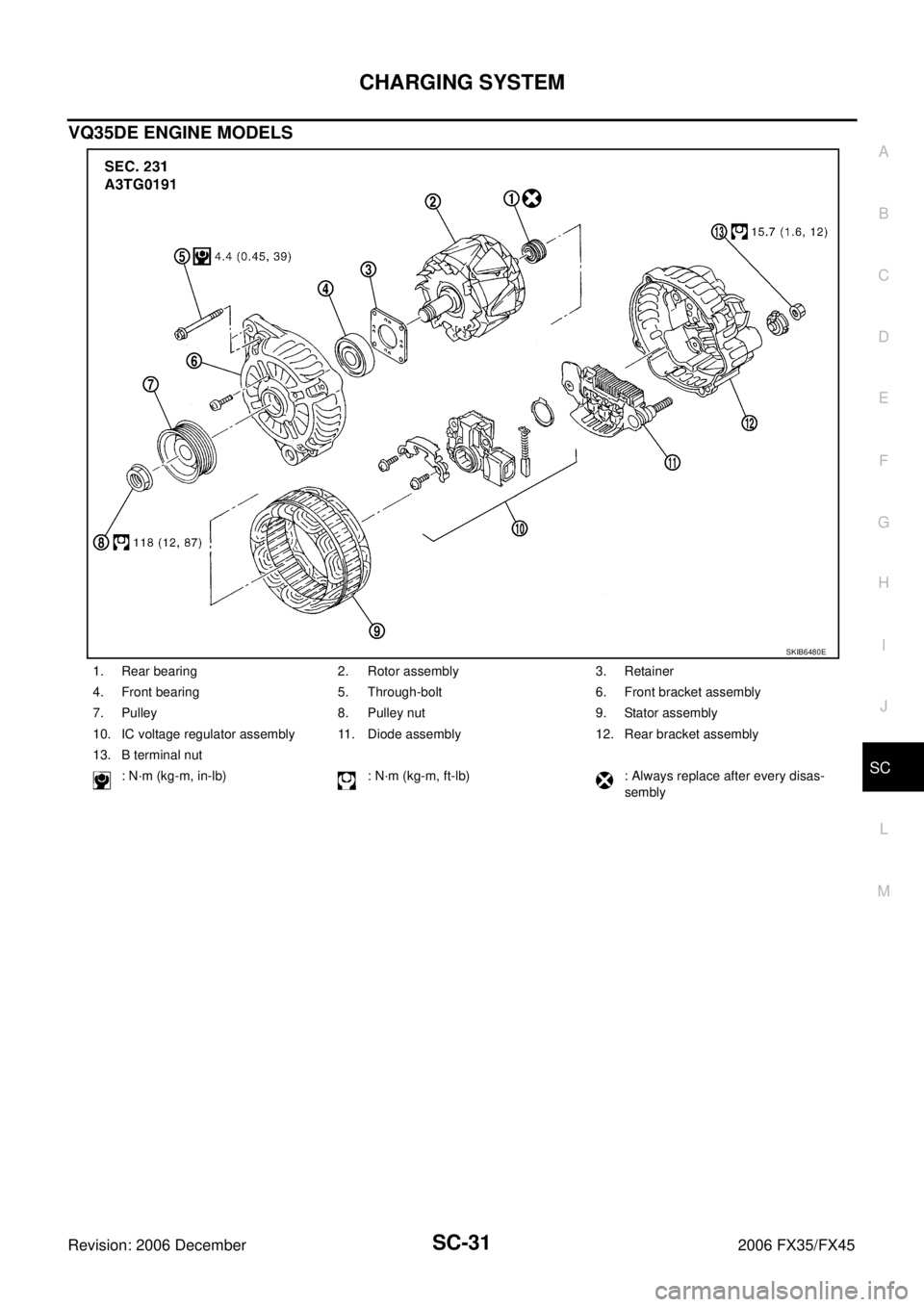

1. Rear bearing 2. Rotor assembly 3. Retainer
4. Front bearing 5. Through-bolt

Page 4138 of 4462

INFINITI FX35 2006 Service Manual SC-32
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 December 2006 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
BatteryNKS002V0
StarterNKS002V1
AlternatorNKS002V2
Ty p e 110D26L
Cap

Page 4139 of 4462

INFINITI FX35 2006 Service Manual SE-1
SEAT
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION SE
A
B
SE
Revision: 2006 December 2006 FX35/FX45
SEAT
PRECAUTIONS ..................................................... ..... 3
Prec

SE-1
SEAT
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION SE
A
B
SE
Revision: 2006 December 2006 FX35/FX45
SEAT
PRECAUTIONS ..................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Service Notice ..................................................... ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tools .......................................... ..... 4
Commercial Service Tools ................................... ..... 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ........................................................... ..... 5
CUSTOMER INTERVIEW ................................ ..... 5
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 6
CHECK RELATED SERVICE BULLETINS ...... ..... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 6
REPAIR THE CAUSE ...................................... ..... 6
CONFIRM THE REPAIR .................................. ..... 7
Generic Squeak and Rattle Troubleshooting ...... ..... 7
INSTRUMENT PANEL ..................................... ..... 7
CENTER CONSOLE ........................................ ..... 7
DOORS ............................................................ ..... 7
TRUNK ............................................................. ..... 8
SUNROOF/HEADLINING ................................ ..... 8
SEATS .............................................................. ..... 8
UNDERHOOD .................................................. ..... 8
Diagnostic Worksheet ......................................... ..... 9
AUTOMATIC DRIVE POSITIONER ....................... ....11
System Description ............................................. .... 11
MANUAL OPERATION .................................... .... 11
AUTOMATIC OPERATION .............................. .... 11
MEMORY STORING AND KEYFOB INTER-
LOCK STORING .............................................. ... 12
MEMORY SWITCH OPERATION .................... ... 13
ENTRY OPERATION ....................................... ... 13
EXITING OPERATION ..................................... ... 13
KEYFOB INTERLOCK OPERATION ............... ... 14
FAIL- SAFE MODE .......................................... ... 14
CANCEL OF FAIL-SAFE MODE ...................... ... 14
Component Parts and Harness Connector Location ... 15
CAN Communication System Description ........... ... 16 CAN Communication Unit ....................................
... 16
Schematic ............................................................ ... 17
Wiring Diagram — AUT/DP — ............................ ... 19
Terminals and Reference Values for BCM ........... ... 31
Terminals and Reference Values for Automatic
Drive Positioner Control Unit ............................... ... 31
Terminals and Reference Values for Driver Seat
Control Unit .......................................................... ... 33
Work Flow ............................................................ ... 36
Preliminary Check ............................................... ... 36
SETTING CHANGE FUNCTION ...................... ... 36
CHECK POWER SUPPLY AND GROUND ...... ... 37
CONSULT-II Function (AUTO DRIVE POS.) ....... ... 39
CONSULT-II OPERATION ................................ ... 39
SELF-DIAGNOSIS RESULTS .......................... ... 39
DATA MONITOR .............................................. ... 40
ACTIVE TEST .................................................. ... 41
Check CAN Communication System ................... ... 42
Symptom Chart .................................................... ... 42
Check Sliding Motor Circuit ................................. ... 43
Check Reclining Motor Circuit ............................. ... 45
Check Front Lifting Motor Circuit ......................... ... 46
Check Rear Lifting Motor Circuit .......................... ... 47
Check Telescopic Motor Circuit ........................... ... 49
Check Tilt Motor Circuit ....................................... ... 50
Check Driver Side Mirror Motor Circuit ................ ... 51
Check Passenger Side Mirror Motor Circuit ........ ... 53
Check Sliding Sensor Circuit ............................... ... 55
Check Reclining Sensor Circuit ........................... ... 56
Check Front Lifting Sensor Circuit ....................... ... 57
Check Rear Lifting Sensor Circuit ....................... ... 58
Check Telescopic Sensor Circuit ......................... ... 59
Check Tilt Sensor Circuit ..................................... ... 60
Check Driver Side Mirror Sensor Circuit .............. ... 61
Check Passenger Side Mirror Sensor Circuit ...... ... 62
Check Steering and Door Mirror Sensor Power Sup-
ply and Ground Circuit ......................................... ... 64
Check Front Door Switch (Driver Side) Circuit .... ... 65
Check Sliding Switch Circuit ................................ ... 67
Check Reclining Switch ....................................... ... 68

Page 4140 of 4462

INFINITI FX35 2006 Service Manual SE-2Revision: 2006 December 2006 FX35/FX45 Check Front Lifting Switch Circuit ........................
... 70
Check Rear Lifting Switch Circuit ........................ ... 71
Check Power Seat S

SE-2Revision: 2006 December 2006 FX35/FX45 Check Front Lifting Switch Circuit ........................
... 70
Check Rear Lifting Switch Circuit ........................ ... 71
Check Power Seat Switch Ground Circuit ........... ... 72
Check Telescopic Switch Circuit .......................... ... 73
Check Tilt Switch Circuit ...................................... ... 75
Check Door Mirror Remote Control Switch
(Changeover Switch) Circuit ................................ ... 77
Check Door Mirror Remote Control Switch (Mirror
Switch) Circuit ...................................................... ... 79
Check Detention Switch (P Range Switch) Circuit ... 81
Check Key Switch Circuit (With Intelligent Key) .. ... 82
Check Key Switch Circuit (Without Intelligent Key) ... 84
Check Seat Memory Switch Circuit ..................... ... 85
Check Seat Memory Indicator Lamp Circuit ........ ... 87
Check UART Communication Line Circuit ........... ... 88
Check Lumbar Support Circuit ............................ ... 90
POWER SEAT ........................................................ ... 92
Wiring Diagram — SEAT — ................................. ... 92
HEATED SEAT ....................................................... ... 94
Description ........................................................... ... 94
Wiring Diagram — HSEAT — .............................. ... 95 FRONT SEAT .........................................................
... 97
Removal and Installation ...................................... ... 97
REMOVAL ......................................................... .100
INSTALLATION ................................................. .102
REMOVAL OF SEATBACK TRIM AND PAD .... .102
INSTALLATION OF SEATBACK TRIM AND PAD .103
REMOVAL OF SEAT CUSHION TRIM AND PAD .103
INSTALLATION OF SEAT CUSHION TRIM AND
PAD ................................................................... .104
REAR SEAT ............................................................ .105
Removal and Installation ...................................... .105
REMOVAL ......................................................... .107
INSTALLATION ................................................. .107
REMOVAL OF SEAT CUSHION TRIM AND PAD .107
INSTALLATION OF SEAT CUSHION TRIM AND
PAD ................................................................... .108
REMOVAL OF SEATBACK TRIM AND PAD .... .108
INSTALLATION OF SEATBACK TRIM AND PAD .108
REMOVAL OF REMOTE CONTROL LEVER ... .109
INSTALLATION OF REMOTE CONTROL
LEVER .............................................................. .109

Page 4141 of 4462

INFINITI FX35 2006 Service Manual PRECAUTIONS SE-3
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT

PRECAUTIONS SE-3
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NIS001UH
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Service NoticeNIS001UI
When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.
Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or
damage them.
Apply sealing compound where necessary when installing parts.
When applying sealing compound, be careful that the sealing compound does not protrude from parts.
When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.

Page 4142 of 4462

INFINITI FX35 2006 Service Manual SE-4
PREPARATION
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNIS001UJ
The actual shapes of Kent-Moore tools may differ from those of special service tools illustra

Page 4143 of 4462

INFINITI FX35 2006 Service Manual SQUEAK AND RATTLE TROUBLE DIAGNOSES SE-5
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowNIS0028M
CUSTOMER INTERVIEW

SQUEAK AND RATTLE TROUBLE DIAGNOSES SE-5
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowNIS0028M
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to SE-9, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.
The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).
If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.
After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.
Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping
Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.
Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.
Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.
Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.
Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.
Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.
Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

Page 4144 of 4462

INFINITI FX35 2006 Service Manual SE-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note

SE-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool (Chassis Ear: J-39570,Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.
tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.
feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.
placing a piece of paper between components that you suspect are causing the noise.
looking for loose components and contact marks.
Refer to SE-7, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE
If the cause is a loose component, tighten the component securely.
If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60 × 85 mm (2.36 × 3.35 in)/76884-71L02:15 ×
25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick, 50
× 50 mm (1.97 × 1.97 in)

Load next 8 pages
