POWER DOOR LOCK SYSTEM BL-39
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Check BCM Power Supply and Ground CircuitNIS001M7
1. CHECK FUSE AND FUSIBLE LINK

Check 50A fusible link (letter M, located in the fuse and fusible link box).

Check 15A fuse [No. 22, located in the fuse block (J/B)].
NOTE:
Refer to BL-21, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM connectors M4 terminals 42, 55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace BCM power supply circuit.
3. CHECK GROUND CIRCUIT
Check continuity between BCM connectors M4 terminals 49, 52 and
ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair or replace BCM ground circuit. 42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6374E
49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA6375E

GI-18
HOW TO USE THIS MANUAL
Revision: 2006 December 2006 FX35/FX45
Optional Splice
DESCRIPTION
SGI942
Num- ber Item Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3 Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8 Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

GW-32
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
Check BCM Power Supply and Ground CircuitNIS001R7
1. CHECK FUSE

Check 15A fuse [No. 1, located in fuse block (J/B)]

Check 15A fuse [No. 22, located in fuse block (J/B)]

Check 50A fusible link (letter M , located in the fuse and fusible link box).
NOTE:
Refer to GW-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 49, 52 and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open or short.
Connector Terminal (Wire color)
Condition of
ignition switch Voltage [V]
(Approx.)
(+) (–)
M3 38 (W/L) Ground ON
Battery
voltage
M4 42 (L/R)
OFF
55 (G)
PIIB1383E
49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA6161E

REAR WINDOW DEFOGGER GW-67
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationNIS001S0
System DescriptionNIS001S1
The rear window defogger system is controlled by BCM (Body Control Module) and IPDM E/R (Intelligent
Power Distribution Module Engine Room).
The rear window defogger operates only for approximately 15 minutes.
Power is at all times supplied

through 20A fuse [No. 75, located in the IPDM E/R]

to rear window defogger relay terminals 3,

through 20A fuse [No. 80, located in the IPDM E/R]

to rear window defogger relay terminals 6,

through 15A fuse [No. 32, located in the fuse block (J/B)]

to A/C and AV switch terminal 1,

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55,

through 15A fuse [No. 22, located in the fuse block (J/B)]

to BCM terminal 42.
With the ignition switch turned to ON or START position,
Power is supplied

through 15A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

through 10A fuse [No. 12, located in the fuse block]
1. a: Fusible link 50A letter M
b: Fuse 15A No.32 2. a: Fuse block (J/B) M1, M2, E201
b: BCM M3, M4 3. IPDM E/R E4, E8, E9
4. Rear window defogger relay E13 5. A/C and AV switch M64 (Rear window defogger switch) 6. a: Rear window defogger D104
b: Rear window defogger D114
PIIB8568E

REAR WINDOW DEFOGGER GW-77
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45

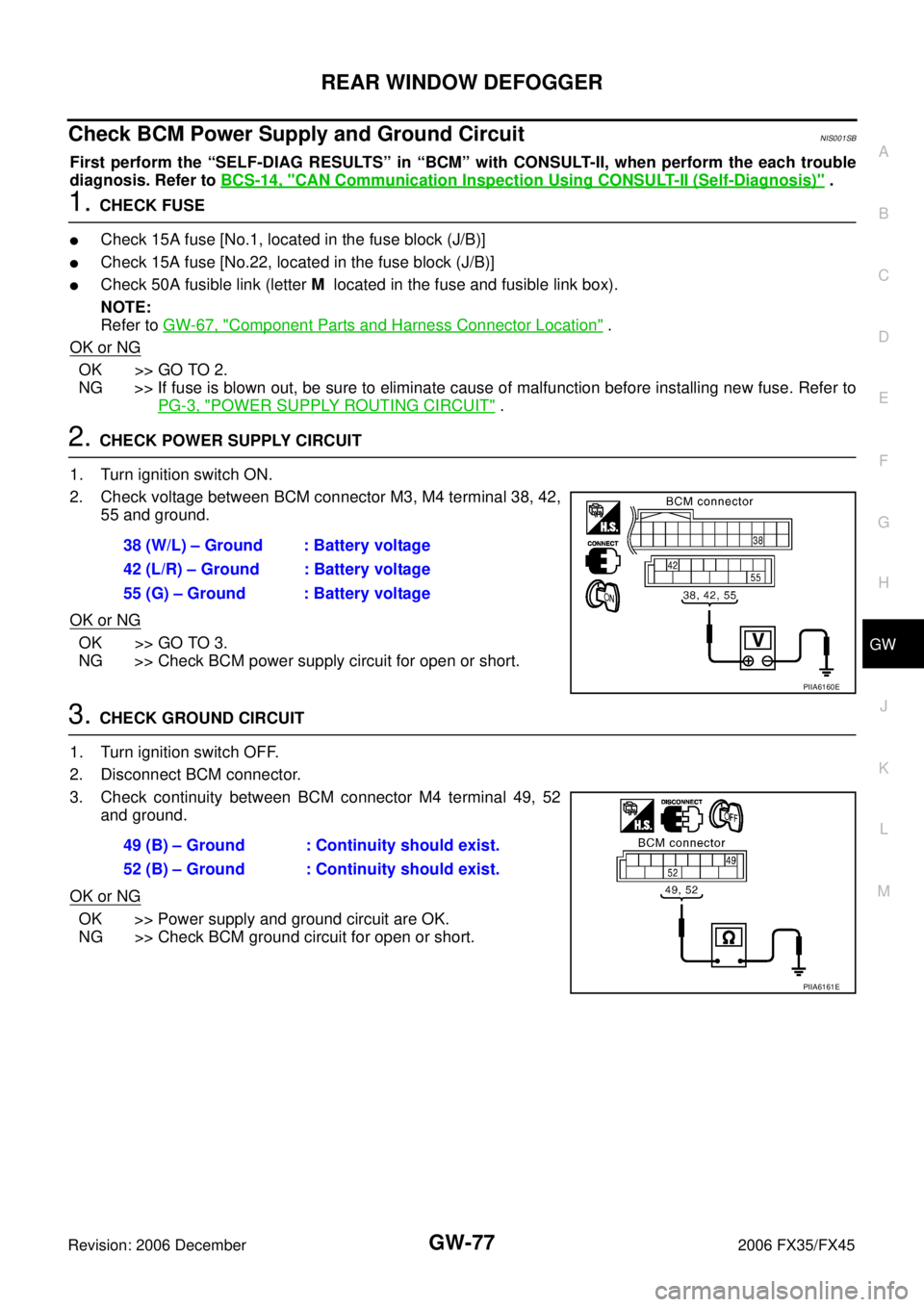

Check BCM Power Supply and Ground Circuit NIS001SB
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, when perform the each trouble
diagnosis. Refer to BCS-14, "
CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)" .
1. CHECK FUSE

Check 15A fuse [No.1, located in the fuse block (J/B)]

Check 15A fuse [No.22, located in the fuse block (J/B)]

Check 50A fusible link (letter M located in the fuse and fusible link box).
NOTE:
Refer to GW-67, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42, 55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 49, 52 and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open or short. 38 (W/L) – Ground : Battery voltage
42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6160E
49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA6161E

IDX-4
ALPHABETICAL INDEX
Electrical load signal circuit .............. EC-626, EC-1305
Electrical unit ..................................................... PG-75
Electrical units location ...................................... PG-68
Electronic ignition (EI) system ............. EC-33, EC-693
Engine control circuit diagram ......................... EC-108
Engine control component parts location ......... EC-101
Engine control module (ECM) .......... EC-481, EC-1146
Engine control system diagram ........... EC-30, EC-690
Engine coolant temperature sensor (ECTS) ... EC-210,
EC-222
, EC-879, EC-892
Engine coolant(VK45DE) .................................. CO-38
Engine coolant(VQ35DE) ................................. CO-11
Engine fail-safe system ...................................... EC-96
Engine oil filter replacement ............................. MA-26
Engine oil filter replacement(VQ35DE) ............. MA-19
Engine oil precautions .......................................... GI-8
Engine oil replacement(VQ35DE) ..................... MA-18
Engine oil(VK45DE) ........................................... LU-25
Engine oil(VQ35DE) ............................................ LU-7
Engine removal(VK45DE) ............................... EM-243
Engine removal(VQ35DE) .............................. EM-113
Engine room cover(VK45DE) ......................... EM-173
ETC1 - Wiring diagram .................... EC-563, EC-1241
ETC2 - Wiring diagram .................... EC-558, EC-1236
ETC3 - Wiring diagram .................... EC-569, EC-1248
EVAP canister ...................................... EC-42, EC-702
EVAP canister purge volume control solenoid valve ....
EC-397
, EC-405, EC-1063, EC-1071
EVAP canister vent control valve ...... EC-412, EC-419,
EC-1078
, EC-1085
EVAP control system (small leak) diagnosis .. EC-388,
EC-450
, EC-1054, EC-1116
EVAP control system pressure sensor ........... EC-425,
EC-428
, EC-434, EC-1091, EC-1094, EC-1100
EVAP control system purge flow monitoring diagnosis
EC-383
, EC-1049
EVAP vapor lines inspection ................. MA-21, MA-28
Evaporative emission (EVAP) system . EC-39, EC-699
Evaporator ..................................................... ATC-154
Exhaust manifold(VK45DE) ............................ EM-183
Exhaust manifold(VQ35DE) .............................. EM-26
Exhaust system ................................................... EX-3
Exhaust system inspection ..................... EX-3, MA-29
Expansion valve ............................................. ATC-155
F
F/PUMP - Wiring diagram ................ EC-636
, EC-1315
Final drive pre-inspection .................. FFD-20, RFD-19
Final drive removal and installation .. FFD-13, FFD-15,
RFD-16
Floor trim ............................................................. EI-40
Flow charts ......................................................... GI-28
Fluid temperature sensor (A/T) ........................ AT-134
Fluorescent leak detector .............................. ATC-156
Freeze frame data ............................... EC-59, EC-720
Front axle ................................ FAX-4, FAX-10, RAX-5
Front brake solenoid valve ................. AT-150, AT-152
Front bumper ...................................................... EI-14
Front door ............................. BL-148, BL-152, GW-58
Front passenger air bag .................................. SRS-42
Front seat belt ...................................................... SB-4
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-48
Front suspension .............................................. FSU-6
FTS - Wiring diagram ....................................... AT-135
FTTS - Wiring diagram ...... EC-330, EC-335, EC-999,
EC-1004
Fuel cut control (at no load high engine speed) EC-34,
EC-694
Fuel filter replacement ......................................... FL-4
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) ......... EC-305, EC-317,
EC-975
, EC-986
Fuel injection system (Bank 2) ......... EC-305, EC-317,
EC-975
, EC-986
Fuel injector ..................................................... EC-628
Fuel injector and fuel tube(VK45DE) .............. EM-194
Fuel injector and fuel tube(VQ35DE) ................ EM-45
Fuel level sensor EC-460, EC-462, EC-464, EC-1125,
EC-1127
, EC-1129
Fuel line inspection .................................. FL-3, MA-25
Fuel line inspection(VQ35DE) .......................... MA-17
Fuel precautions .......................................... GI-6, GI-7
Fuel pressure check ........................... EC-86, EC-746
Fuel pressure release ......................... EC-86, EC-746
Fuel pump ....................................... EC-635, EC-1314
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor .......... EC-328, EC-334,
EC-997
, EC-1003
Fuel tank vacuum relief valve ............. EC-42, EC-702
FUELB1 - Wiring diagram .. EC-307, EC-319, EC-977,
EC-988
FUELB2 - Wiring diagram .. EC-309, EC-321, EC-979,
EC-990
Fuse .................................................................. PG-16
Fuse and fusible link box .................................. PG-82
Fusible link ........................................................ PG-16
G
Gauges ................................................................. DI-5
Generic scan tool (GST) .................................. EC-130
Glass ...................................... GW-11, GW-58, GW-62
Grille - See Exterior ............................................ EI-22
Ground distribution ........................................... PG-29
H
Harness connector ............................................ PG-72
Harness layout .................................................. PG-44
Headlining - See Roof trim .................................. EI-42
Heated oxygen sensor 2 (bank 1) .... EC-270, EC-281,
EC-294
, EC-940, EC-951, EC-964
Heated oxygen sensor 2 (bank 2) .... EC-270, EC-281,
EC-294
, EC-940, EC-951, EC-964
Heated oxygen sensor 2 heater (bank 1) ....... EC-173,

HEADLAMP - XENON TYPE - LT-7
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
HEADLAMP - XENON TYPE -PFP:26010

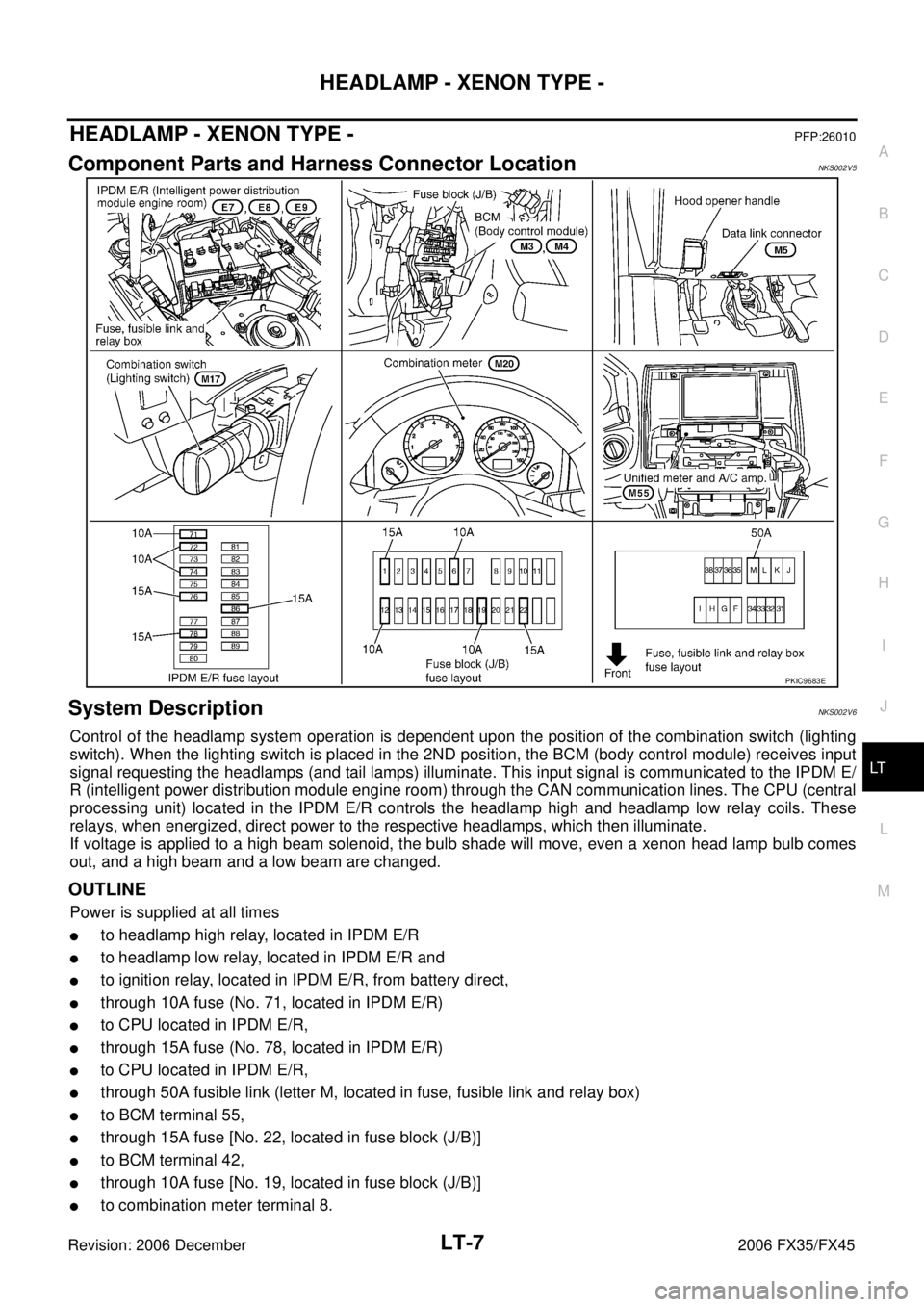

Component Parts and Harness Connector LocationNKS002V5
System DescriptionNKS002V6
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) through the CAN communication lines. The CPU (central
processing unit) located in the IPDM E/R controls the headlamp high and headlamp low relay coils. These
relays, when energized, direct power to the respective headlamps, which then illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R

to headlamp low relay, located in IPDM E/R and

to ignition relay, located in IPDM E/R, from battery direct,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
PKIC9683E

DAYTIME LIGHT SYSTEM LT-39
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
DAYTIME LIGHT SYSTEMPFP:284B2
Component Parts and Harness Connector LocationNKS002VW
System DescriptionNKS002VX
Daytime light system turns ON daytime light lamps while driving. Daytime light lamps are not turned ON if
engine is activated with parking brake ON. Release parking brake to turn ON daytime light lamps. The lamps
turn OFF when the lighting switch is in the 2ND position or AUTO position (headlamp is ON) and when the
lighting switch is in the PASSING position (daytime light lamps are not turned OFF only by parking brake
itself).
The parking brake signal and engine run or stop signal are sent to BCM (body control module) by CAN com-
munication line, and control daytime light system.
OUTLINE
Power is supplied at all times

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)
PKIC9686E
