FRONT FOG LAMP
Revision: 2006 December 2006 FX35/FX45
FRONT FOG LAMPPFP:26150

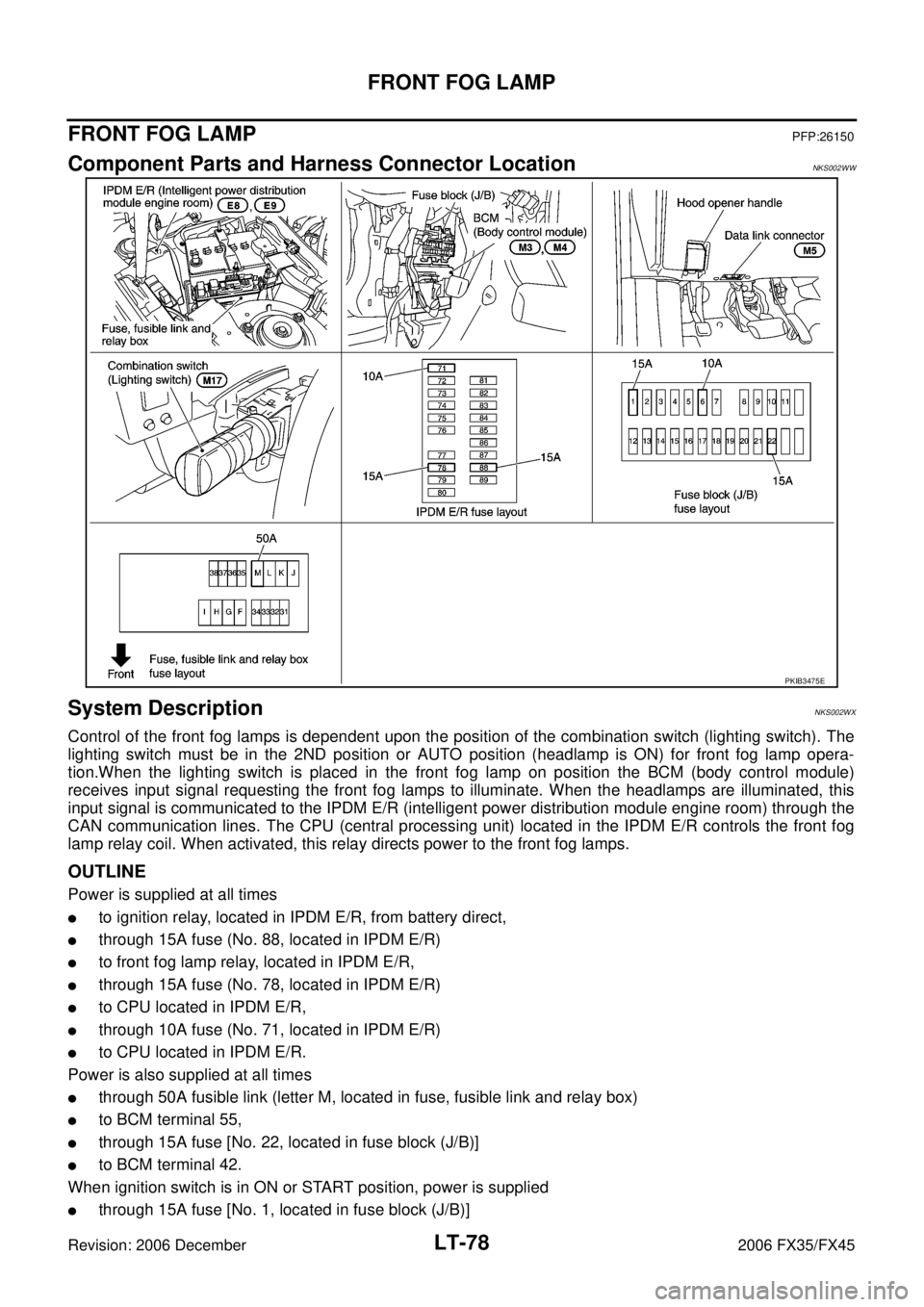

Component Parts and Harness Connector LocationNKS002WW
System DescriptionNKS002WX
Control of the front fog lamps is dependent upon the position of the combination switch (lighting switch). The
lighting switch must be in the 2ND position or AUTO position (headlamp is ON) for front fog lamp opera-
tion.When the lighting switch is placed in the front fog lamp on position the BCM (body control module)
receives input signal requesting the front fog lamps to illuminate. When the headlamps are illuminated, this
input signal is communicated to the IPDM E/R (intelligent power distribution module engine room) through the
CAN communication lines. The CPU (central processing unit) located in the IPDM E/R controls the front fog
lamp relay coil. When activated, this relay directs power to the front fog lamps.
OUTLINE
Power is supplied at all times

to ignition relay, located in IPDM E/R, from battery direct,

through 15A fuse (No. 88, located in IPDM E/R)

to front fog lamp relay, located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R.
Power is also supplied at all times

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42.
When ignition switch is in ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]
PKIB3475E

RF-16
SUNROOF
Revision: 2006 December 2006 FX35/FX45
Trouble Diagnosis Chart by SymptomNIS001T6
Check BCM Power Supply and Ground CircuitNIS001T7
1. CHECK FUSE

Check 15A fuse [No.1, located in the fuse block (J/B)]

Check 15A fuse [No.22, located in the fuse block (J/B)]

Check 50A fusible link (letter M, located in the fuse and fusible link box).
NOTE:
Refer to RF-10, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
RF-10, "
Component Parts and Harness Connector Location" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42, 55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
Symptom Diagnostic procedure and repair order Refer to page
Sunroof does not operate. 1. Check BCM power supply and ground circuit.
RF-16
2. Check sunroof motor assembly power supply and ground circuit.RF-17
3. Check sunroof switch system. RF-18
4. Replace sunroof motor assembly.RF-27
Motor does not stop at the sunroof fully -open
or fully- closed position. 1. Check initialization procedure.
RF-12
2. Replace sunroof motor assembly.RF-27
Retained power operation does not operate
properly. 1. Check the retained power operation mode setting.
RF-152. Check door switch.RF-20
3. Replace sunroof motor assembly.RF-27
Sunroof does not operate the interruption
detection function. 1. Replace sunroof motor assembly.
RF-27
38 (W/L) – Ground : Battery voltage
42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6160E

AUTOMATIC DRIVE POSITIONER SE-37
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
CHECK POWER SUPPLY AND GROUND
1. CHECK FUSE
Check if any of the following fuses in the BCM are blown.

Check 50A fusible link (letter M , located in the fuse and fusible link box.)

Check 15A fuse [No.22, located in the fuse block (J/B)]

Check 10A fuse [No.1, located in the fuse block (J/B)]

Check 10A fuse [No.6, located in the fuse block (J/B)]
NOTE:
Refer to SE-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
SE-15, "
Component Parts and Harness Connector Location" .
2. CHECK POWER SUPPLY CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open and short between BCM and fuse or fusible link.
3. CHECK GROUND CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Check continuity between BCM connector M4 terminal 49, 52 and ground.
OK or NG
OK >> BCM circuit is OK. Check the driver seat control unit. GO TO 4.
NG >> Repair or replace the harness between BCM and ground.
Connector Terminals (Wire color)
Ignition
switch Voltage (V)
(Approx.)
(+) (–)
M3 11 (LG)
Ground ACC
Battery voltage
38 (W/L) ON
M4 42 (L/R)
OFF
55 (G)
PIIA5083E
49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA5084E

WW-4
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
FRONT WIPER AND WASHER SYSTEMPFP:28810

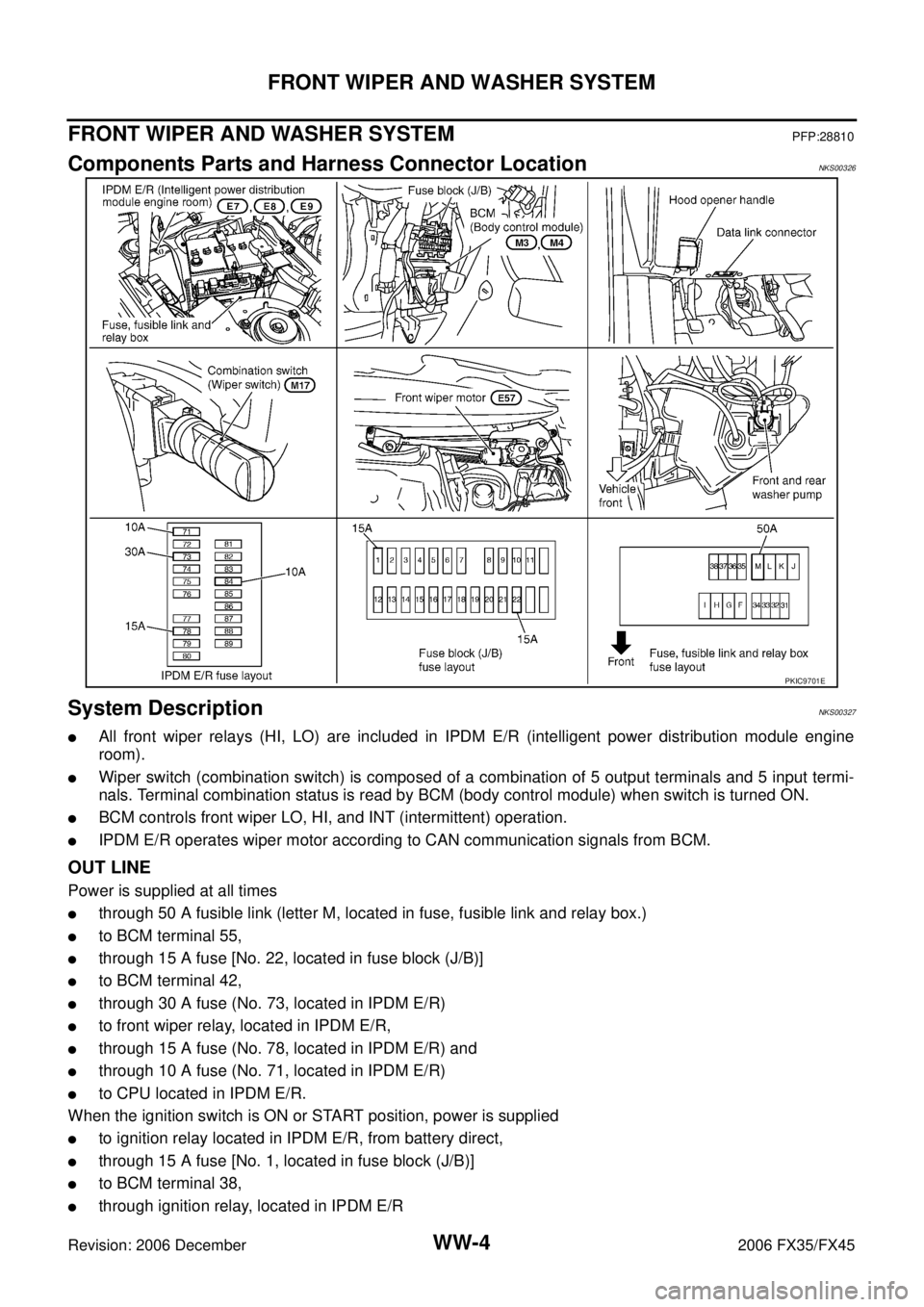

Components Parts and Harness Connector LocationNKS00326
System DescriptionNKS00327

All front wiper relays (HI, LO) are included in IPDM E/R (intelligent power distribution module engine
room).

Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM (body control module) when switch is turned ON.

BCM controls front wiper LO, HI, and INT (intermittent) operation.

IPDM E/R operates wiper motor according to CAN communication signals from BCM.
OUT LINE
Power is supplied at all times

through 50 A fusible link (letter M, located in fuse, fusible link and relay box.)

to BCM terminal 55,

through 15 A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 30 A fuse (No. 73, located in IPDM E/R)

to front wiper relay, located in IPDM E/R,

through 15 A fuse (No. 78, located in IPDM E/R) and

through 10 A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R.
When the ignition switch is ON or START position, power is supplied

to ignition relay located in IPDM E/R, from battery direct,

through 15 A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through ignition relay, located in IPDM E/R
PKIC9701E

REAR WIPER AND WASHER SYSTEM WW-39
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
REAR WIPER AND WASHER SYSTEMPFP:28710

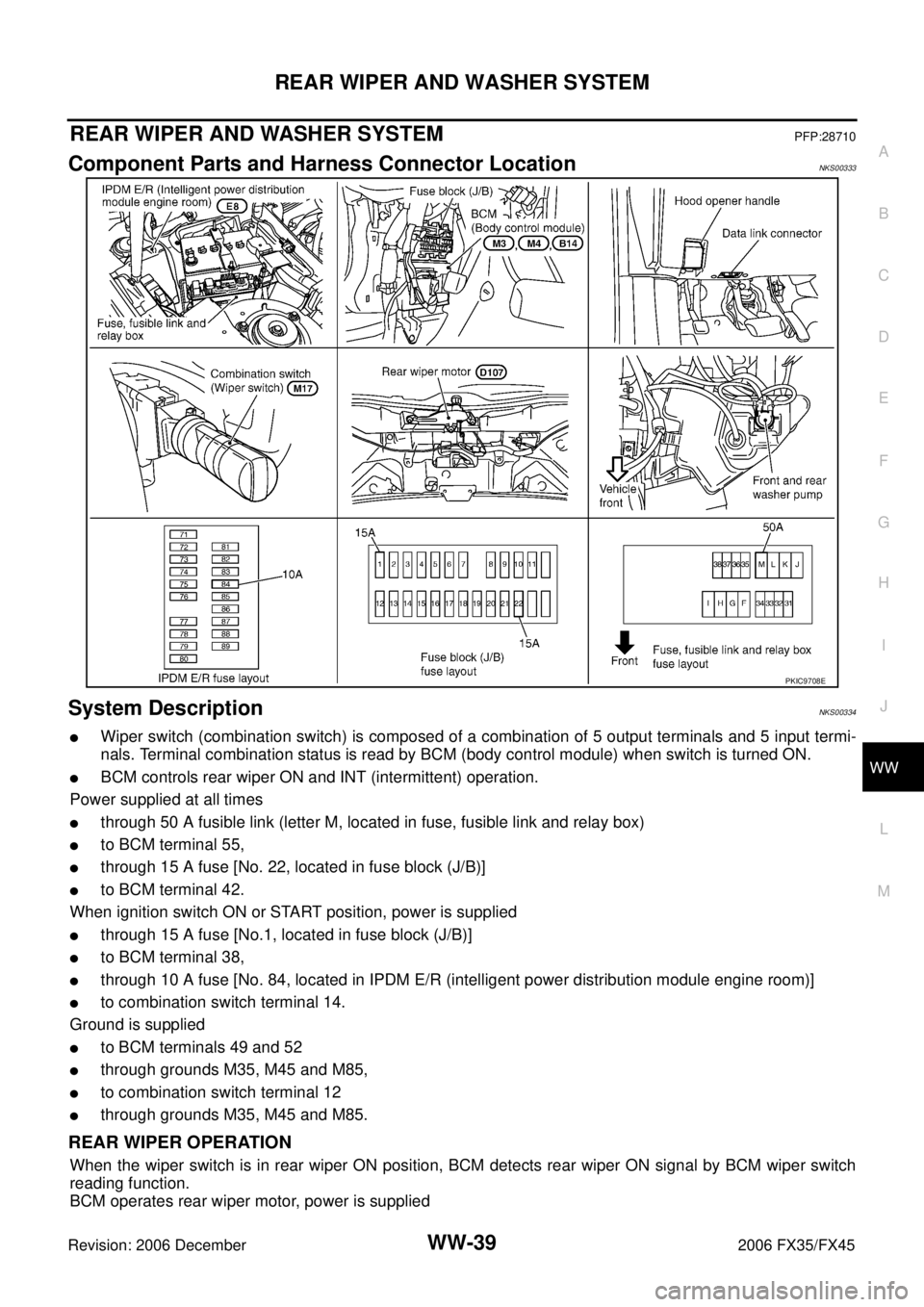

Component Parts and Harness Connector LocationNKS00333
System DescriptionNKS00334

Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM (body control module) when switch is turned ON.

BCM controls rear wiper ON and INT (intermittent) operation.
Power supplied at all times

through 50 A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15 A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42.
When ignition switch ON or START position, power is supplied

through 15 A fuse [No.1, located in fuse block (J/B)]

to BCM terminal 38,

through 10 A fuse [No. 84, located in IPDM E/R (intelligent power distribution module engine room)]

to combination switch terminal 14.
Ground is supplied

to BCM terminals 49 and 52

through grounds M35, M45 and M85,

to combination switch terminal 12

through grounds M35, M45 and M85.
REAR WIPER OPERATION
When the wiper switch is in rear wiper ON position, BCM detects rear wiper ON signal by BCM wiper switch
reading function.
BCM operates rear wiper motor, power is supplied
PKIC9708E
