Page 4153 of 4462
AUTOMATIC DRIVE POSITIONER SE-15
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

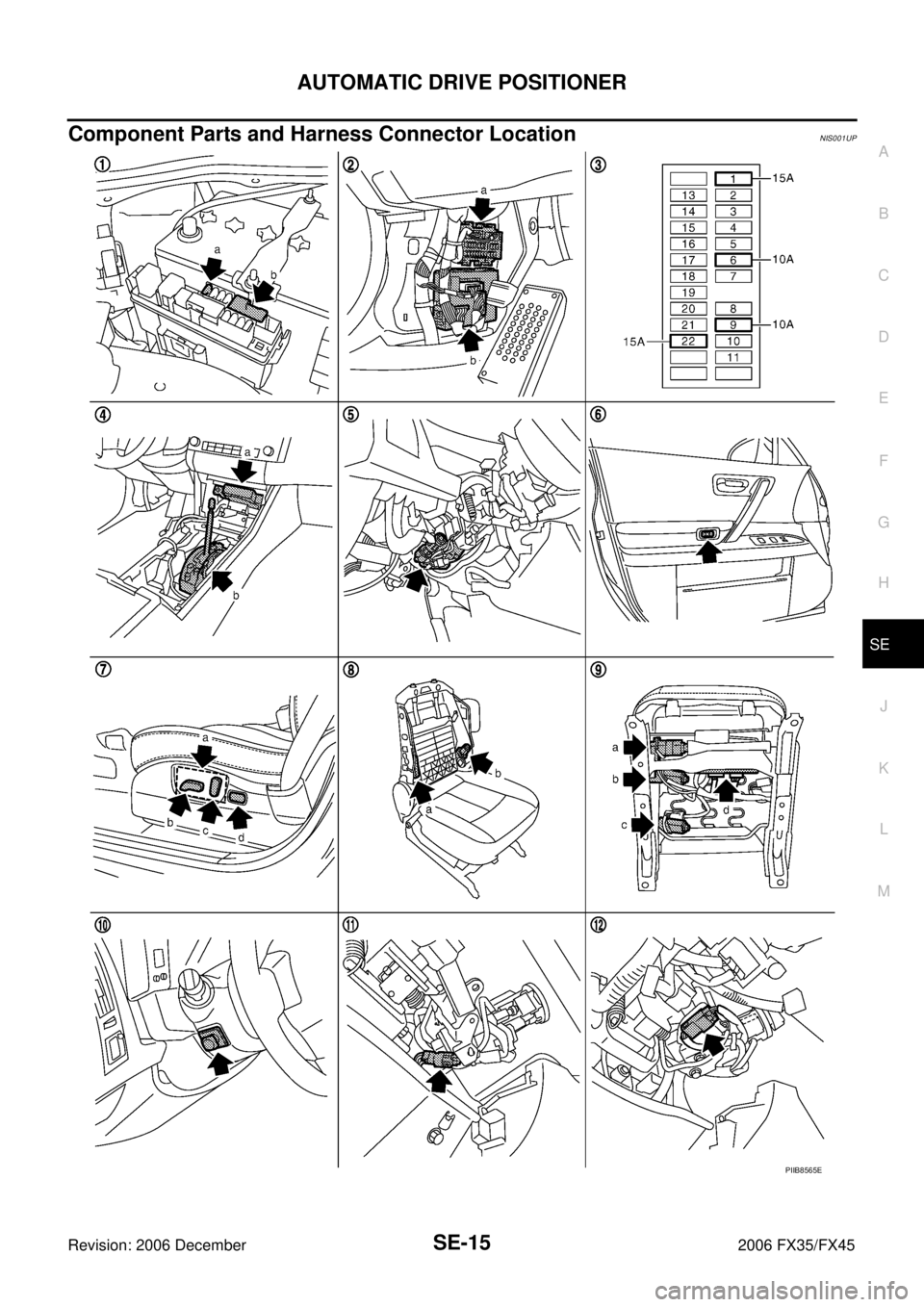

Component Parts and Harness Connector LocationNIS001UP
PIIB8565E
Page 4154 of 4462

SE-16
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45
CAN Communication System DescriptionNIS001UQ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS001UR
Refer to LAN-32, "CAN Communication Unit" .
1. a: 10A 38 fuse (With Intelligent Key)
b: 50A M fusible link 2. a: Fuse block (J/B) M1, M2
b: BCM M3, M4, B14
(View with the dash side LH
removed) 3. Fuse block (J/B) fuse layout
4. a: Automatic drive positioner control unit M49, M50
b: A/T device (detention switch) M67
(View with the center console
removed) 5. Tilt motor and telescopic motor M27
Tilt sensor and telescopic sensor M28
(View with the instrument driver lower
panel removed) 6. Seat memory switch D22
7. a: Power seat switch B175 b: Sliding switch & Lifting switch
(front & rear)
c: Reclining switch
d: Lumbar support switch B158 8. a: Lumbar support motor B172
b: Reclining motor B166 9. a: Sliding motor B161
b: Lifting motor (front) B164
c: Lifting motor (rear) B162
d: Driver seat control unit B152,
B153
10. ADP steering switch M13 11. Key switch connector M23 (Without Intelligent Key) 12. Key switch and ignition knob switch
connector M22
(With Intelligent Key)

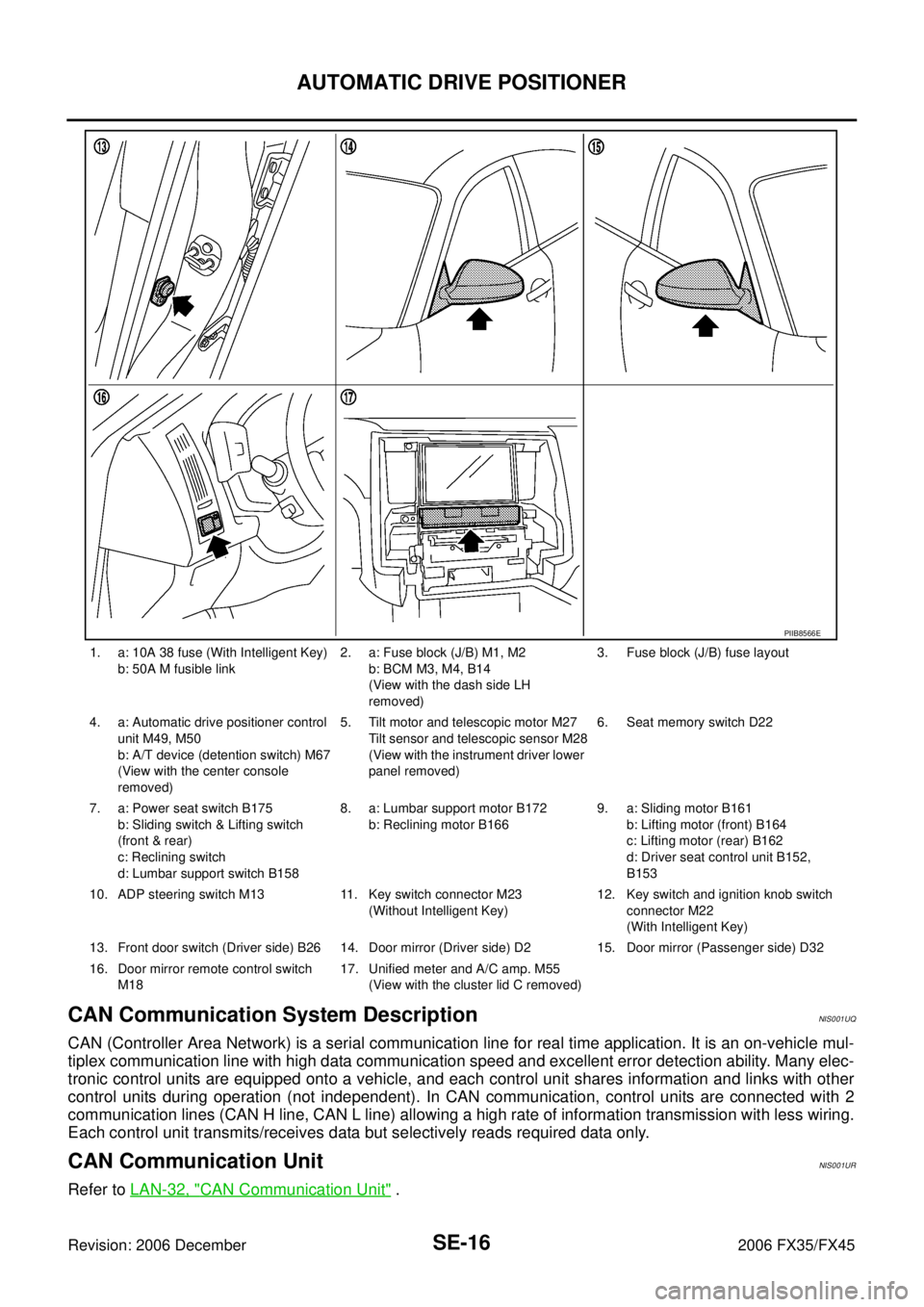

13. Front door switch (Driver side) B26 14. Door mirror (Driver side) D2 15. Door mirror (Passenger side) D32
16. Door mirror remote control switch M18 17. Unified meter and A/C amp. M55
(View with the cluster lid C removed)
PIIB8566E
Page 4155 of 4462
AUTOMATIC DRIVE POSITIONER SE-17
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

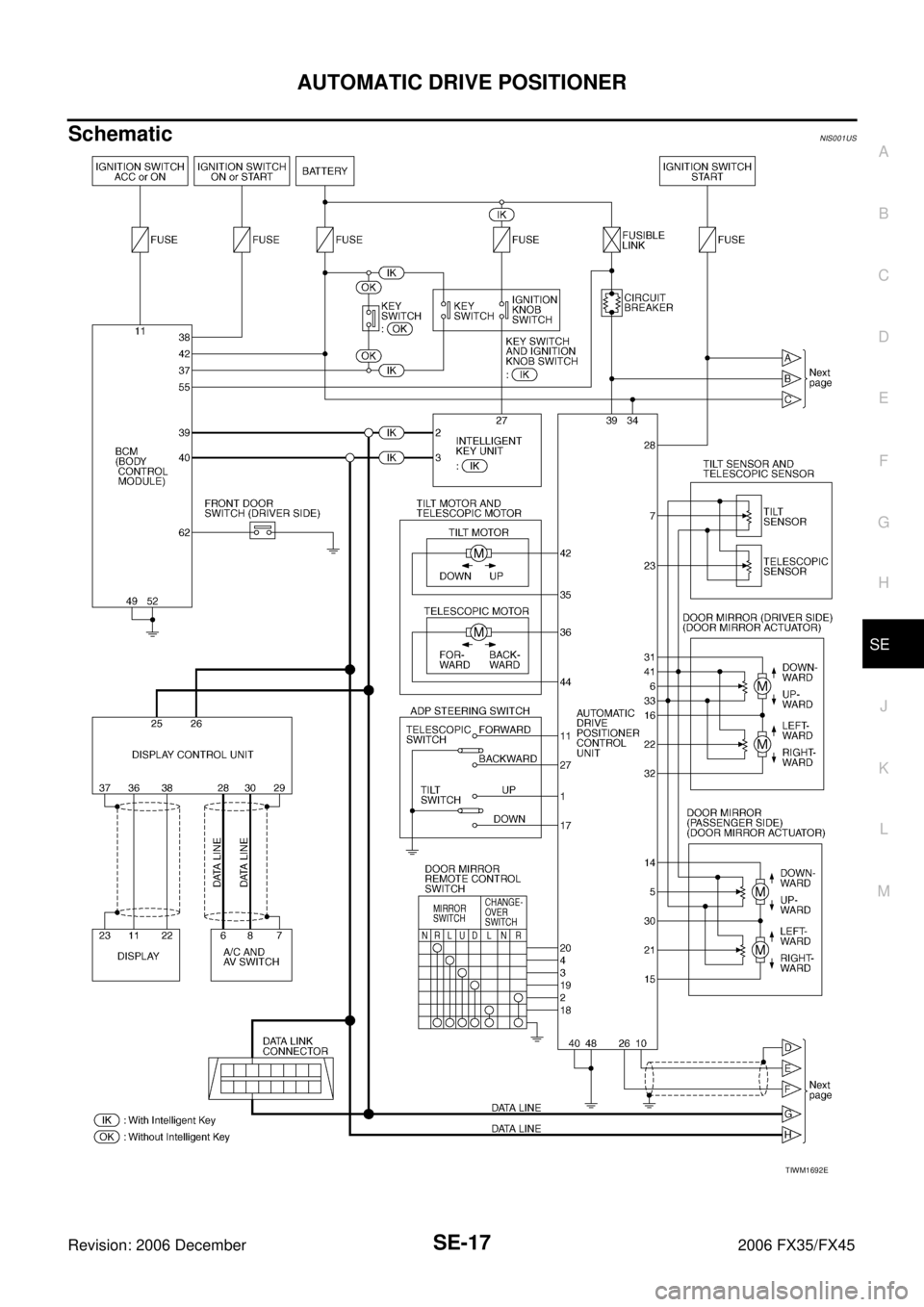

SchematicNIS001US
TIWM1692E
Page 4156 of 4462
SE-18
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45

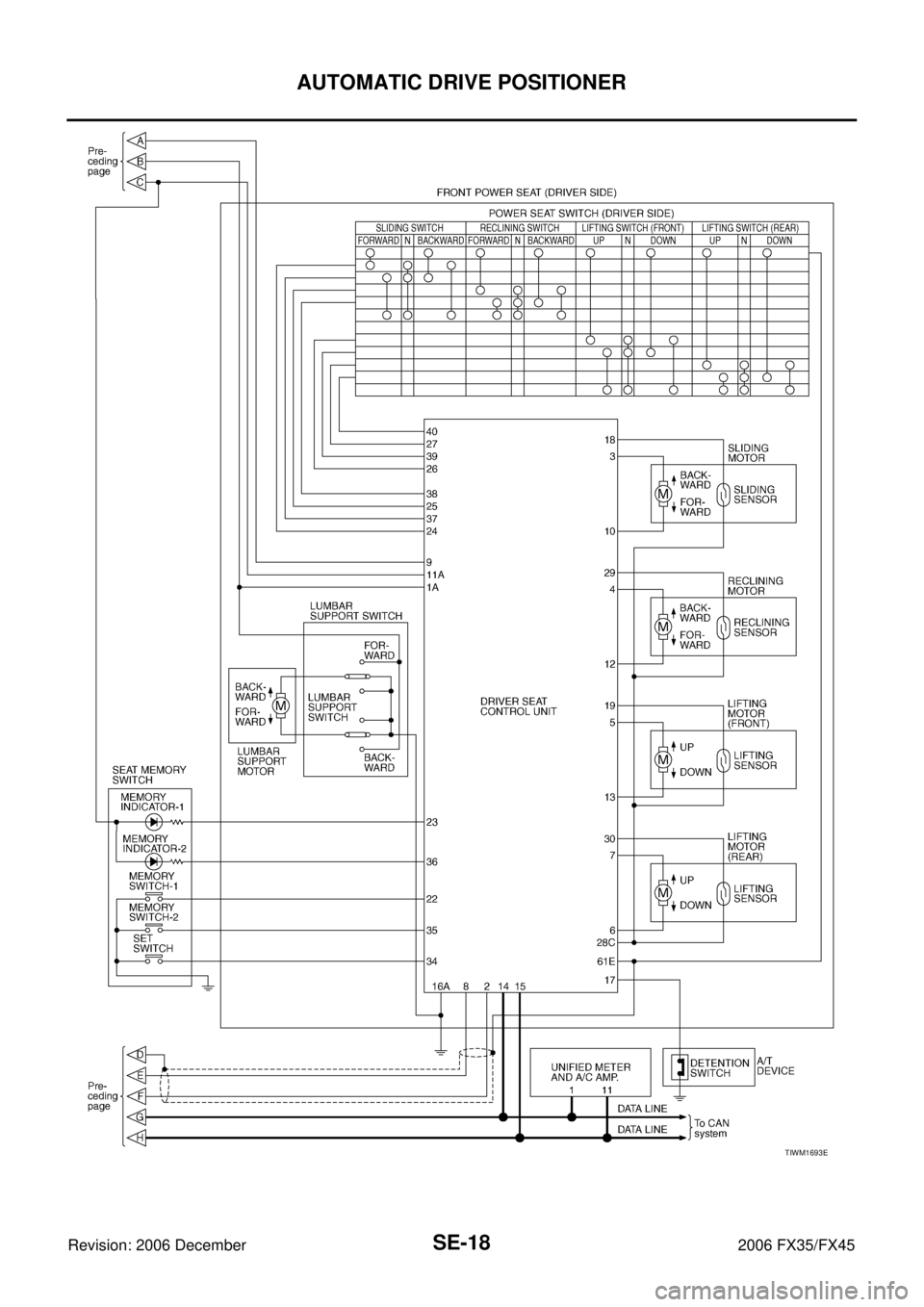

TIWM1693E
Page 4157 of 4462
AUTOMATIC DRIVE POSITIONER SE-19
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

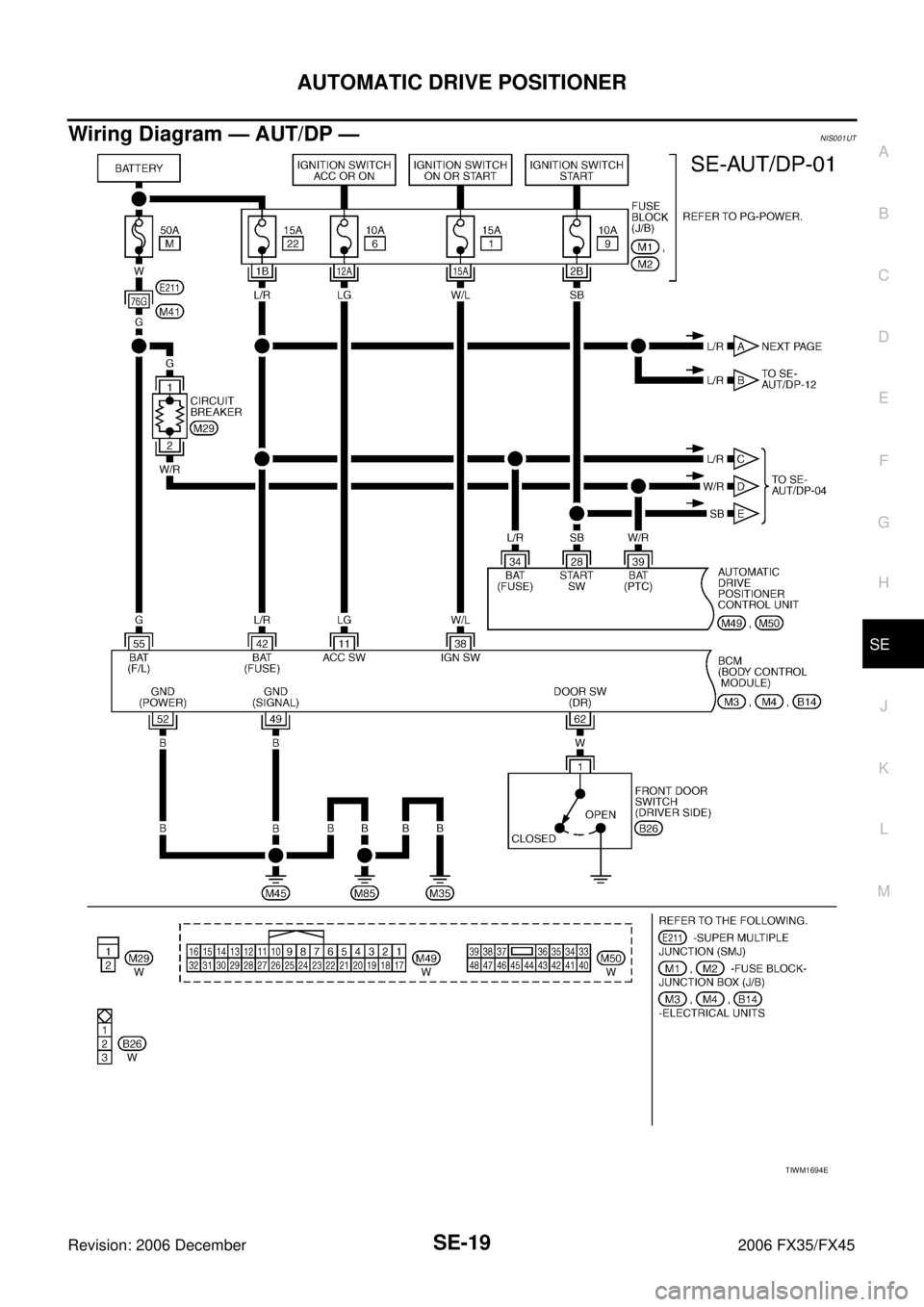

Wiring Diagram — AUT/DP —NIS001UT

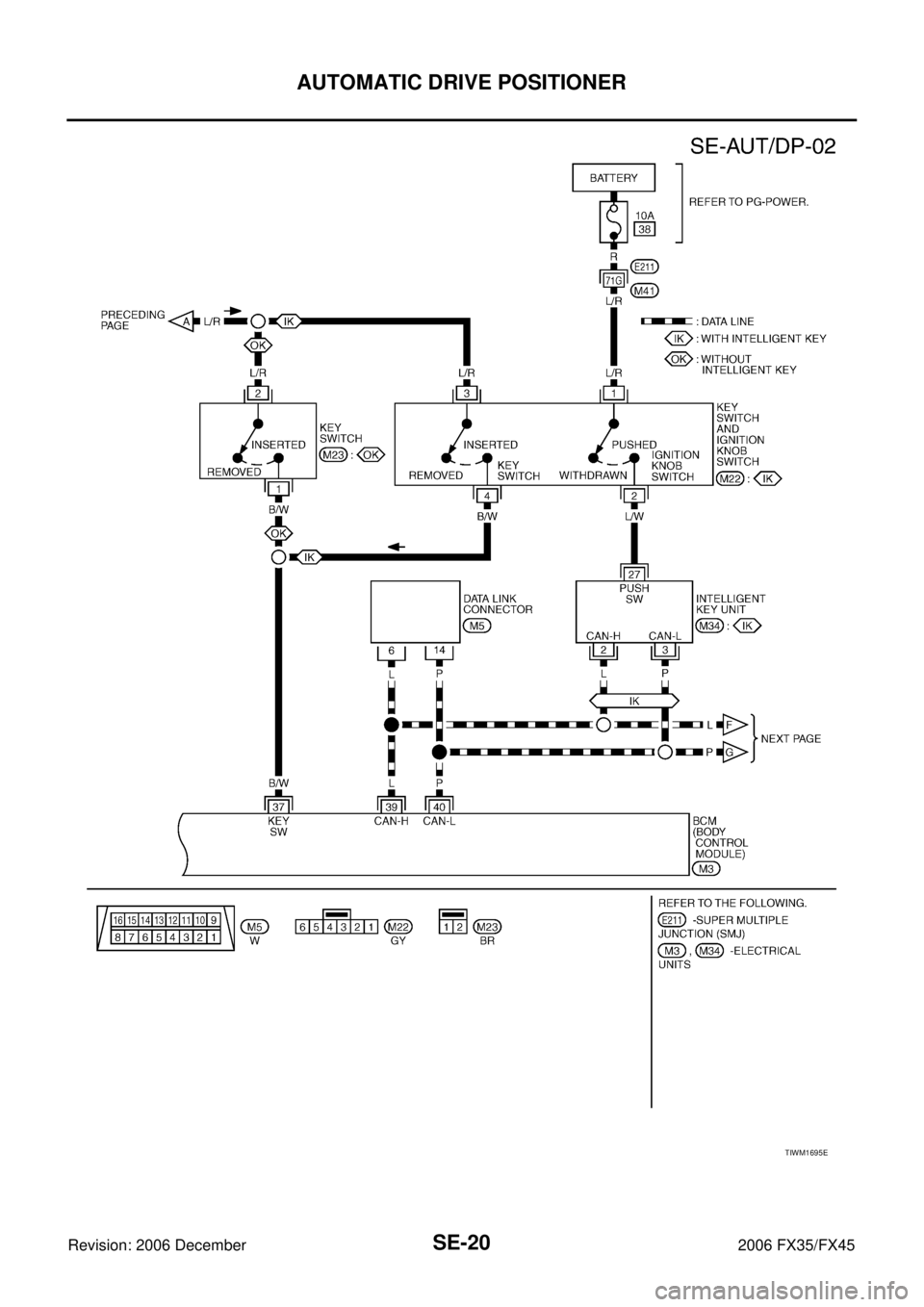

TIWM1694E
Page 4158 of 4462
SE-20
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45

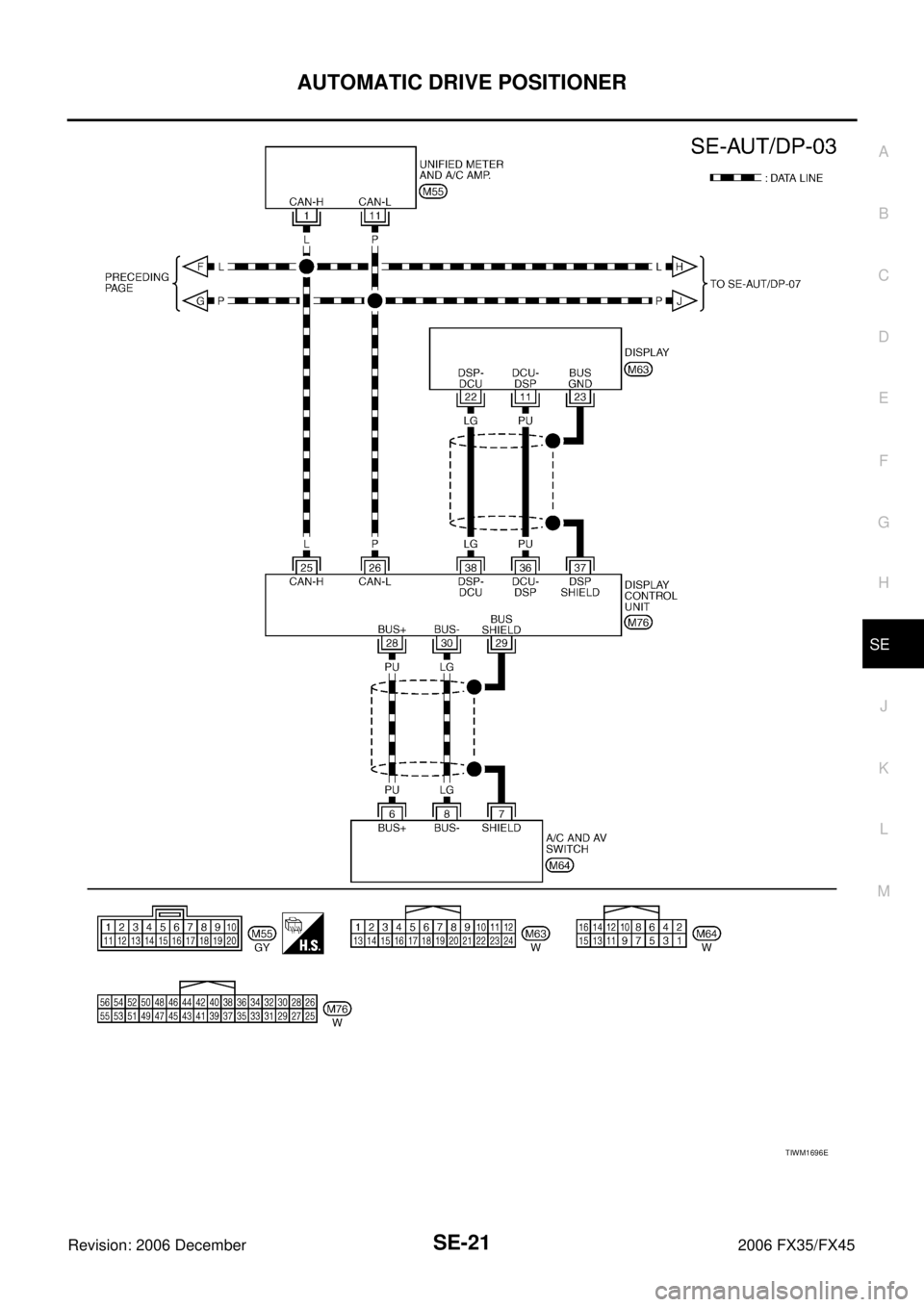

TIWM1695E
Page 4159 of 4462
AUTOMATIC DRIVE POSITIONER SE-21
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

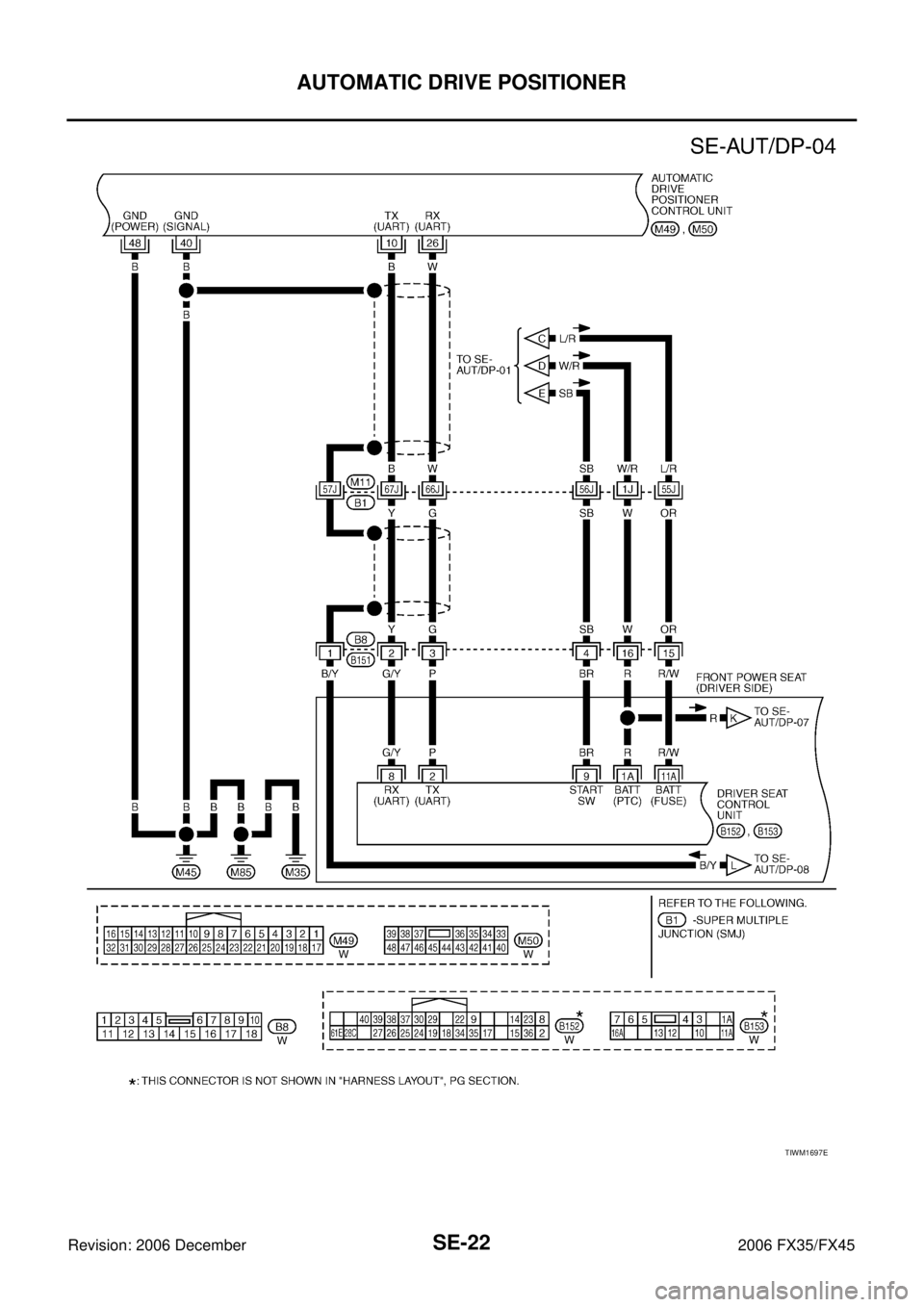

TIWM1696E
Page 4160 of 4462
SE-22
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45
TIWM1697E
