LU-12
[VQ35DE]
OIL FILTER BRACKET (AWD)
Revision: 2006 December 2006 FX35/FX45
OIL FILTER BRACKET (AWD)PFP:15238
ComponentsNBS003J3
Removal and InstallationNBS003J4
REMOVAL
WARNING:
Be careful not to get burn yourself, as engine oil may be hot.
1. Remove front engine undercover with power tool.
2. Using the oil filter wrench [SST: KV10115801 (J38956)], remove oil filter. Refer to LU-10, "
OIL FILTER" .
CAUTION:
Do not spill engine oil on drive belt.
3. Remove oil cooler connector bolt, and then oil cooler with water hoses connected.
4. Disconnect oil temperature sensor and oil pressure switch harness connectors.
5. Remove oil filter bracket from oil pan (upper).
6. Remove oil temperature sensor and oil pressure switch from oil filter bracket.
INSTALLATION
Note the following, and install in the reverse order of removal.
Install oil pressure switch and oil temperature sensor as follows:
–Remove old liquid gasket adhering to oil pressure switch and oil filter bracket.
–Apply liquid gasket and install oil pressure switch, and then oil temperature sensor with a new washer.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
Align cutout on oil cooler with protrusion on oil filter bracket. Refer to LU-16, "INSTALLATION" .

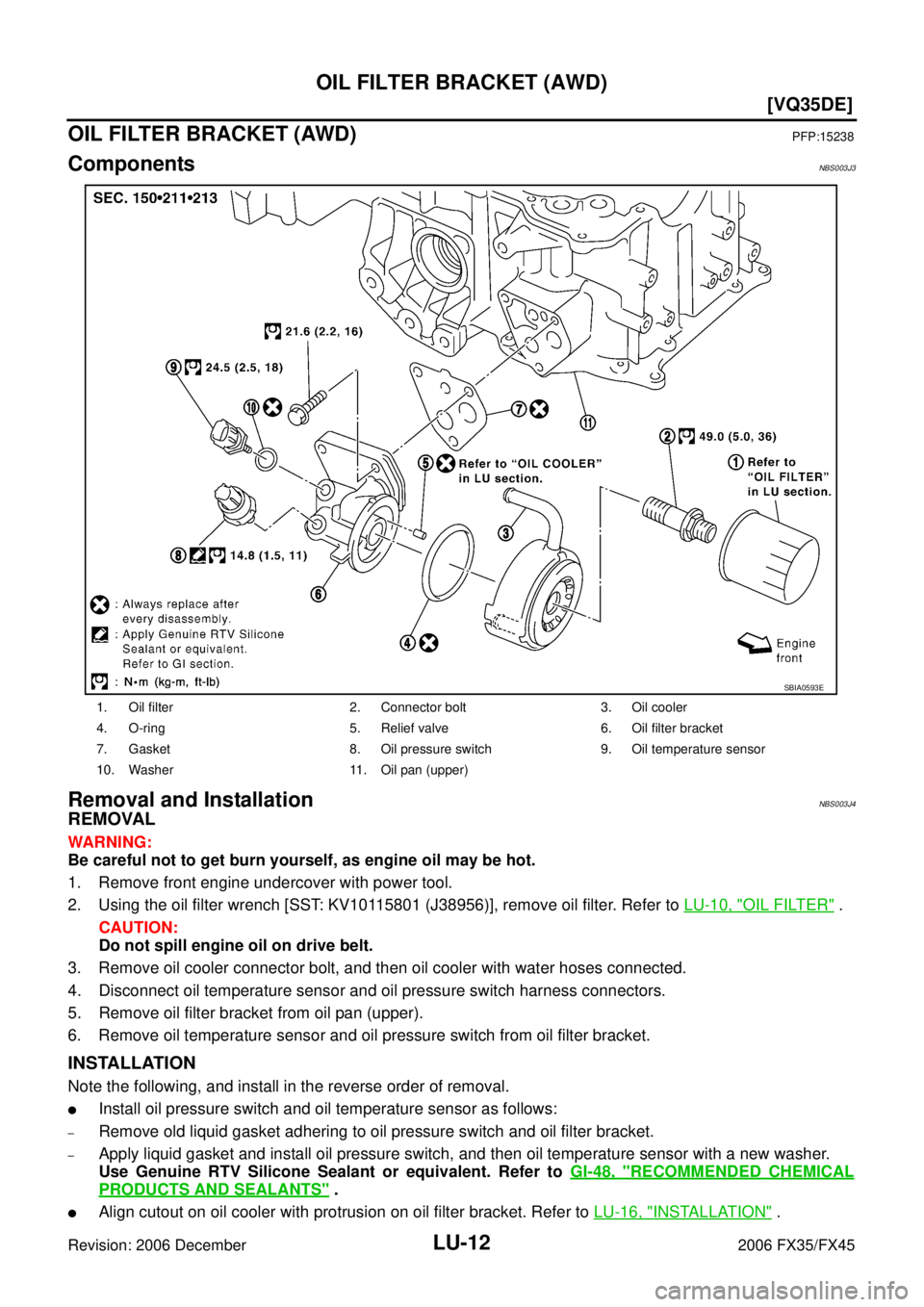

1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil filter bracket
7. Gasket 8. Oil pressure switch 9. Oil temperature sensor
10. Washer 11. Oil pan (upper)
SBIA0593E
Page 3779 of 4462
OIL FILTER BRACKET (AWD) LU-13
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and add engine oil. Refer to LU-7, "ENGINE OIL" .
2. Start the engine, and check there is no leak of engine oil.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level again. Refer to LU-7, "
ENGINE OIL" .
Page 3780 of 4462
LU-14
[VQ35DE]
OIL COOLER
Revision: 2006 December 2006 FX35/FX45
OIL COOLERPFP:21305
ComponentsNBS003J5
2WD models
PBIC2403E

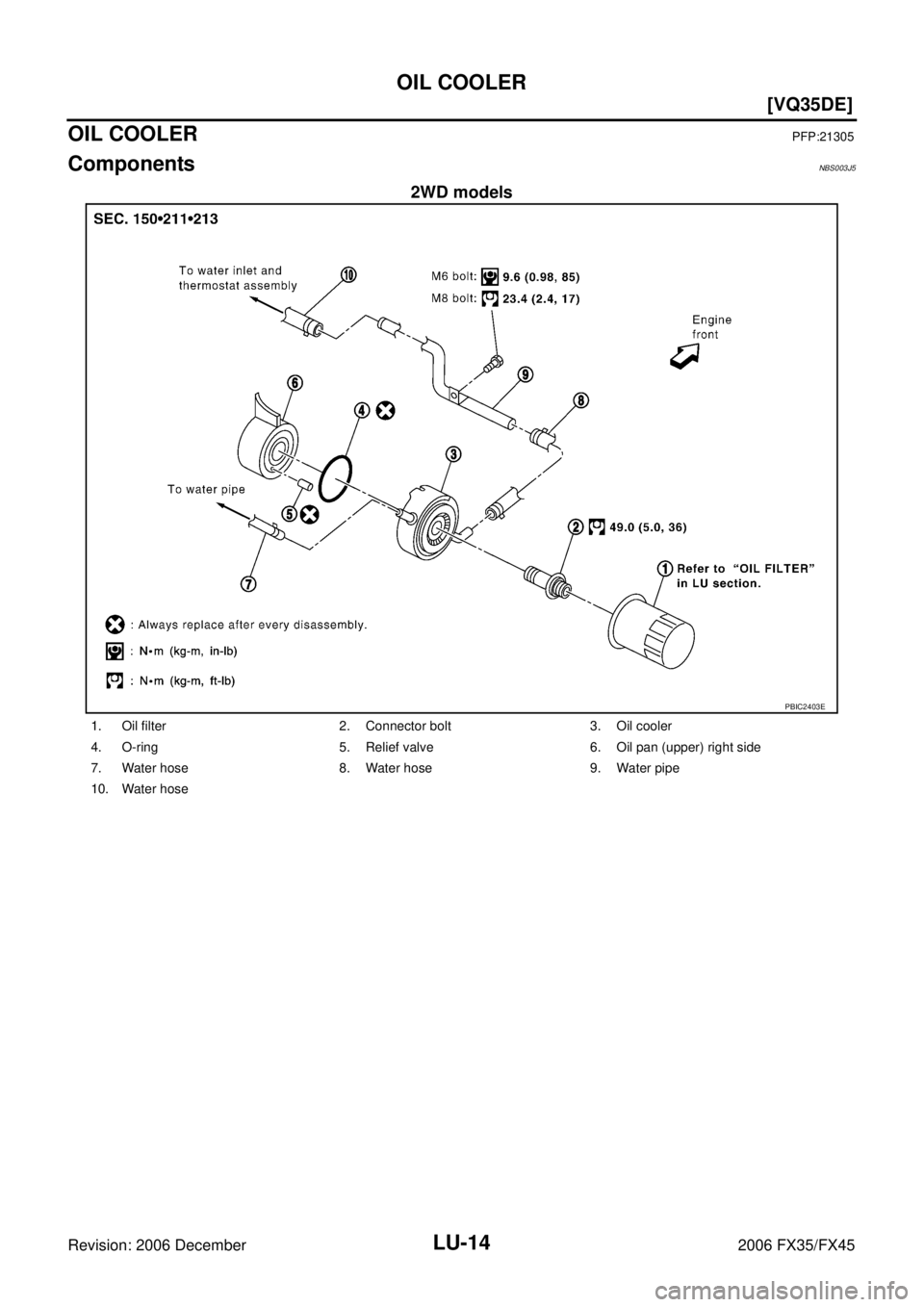

1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil pan (upper) right side
7. Water hose 8. Water hose 9. Water pipe
10. Water hose
Page 3781 of 4462
![INFINITI FX35 2006 Service Manual OIL COOLER LU-15
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
AWD models
Removal and InstallationNBS003J6
REMOVAL
WARNING:
Be careful not to get burn yoursel INFINITI FX35 2006 Service Manual OIL COOLER LU-15
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
AWD models
Removal and InstallationNBS003J6
REMOVAL
WARNING:
Be careful not to get burn yoursel](/manual-img/42/57019/w960_57019-3780.png)
OIL COOLER LU-15
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
AWD models
Removal and InstallationNBS003J6
REMOVAL
WARNING:
Be careful not to get burn yourself, as engine oil and engine coolant may be hot.
NOTE:
When removing oil cooler only, step 2 is unnecessary.
1. Remove front engine undercover with power tool.
2. Drain engine coolant from radiator and cylinder block. Refer to CO-11, "
Changing Engine Coolant" and
EM-124, "
DISASSEMBLY" .
NOTE:
Perform this step when removing water pipes.
3. Disconnect water hoses from oil cooler.
When removing oil cooler only, pinching water hoses near oil cooler to prevent engine coolant from
spilling out.
Remaining engine coolant in piping will come out. Use a tray to collect it.
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
4. Using oil filter wrench [SST: KV10115801 (J38956)], remove oil filter. Refer to LU-10, "
OIL FILTER" .
CAUTION:
Do not spill engine oil on drive belts.
5. Remove connector bolt, and remove oil cooler.
SBIA0584E
1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil filter bracket
7. Water hose 8. Water hose 9. Water pipe
10. Water hose
Page 3782 of 4462
![INFINITI FX35 2006 Service Manual LU-16
[VQ35DE]
OIL COOLER
Revision: 2006 December 2006 FX35/FX45
CAUTION:
Do not spill engine oil to rubber parts such as drive belts and engine mounting insulator.
6. Remove water pipes, as necessa INFINITI FX35 2006 Service Manual LU-16
[VQ35DE]
OIL COOLER
Revision: 2006 December 2006 FX35/FX45
CAUTION:
Do not spill engine oil to rubber parts such as drive belts and engine mounting insulator.
6. Remove water pipes, as necessa](/manual-img/42/57019/w960_57019-3781.png)
LU-16
[VQ35DE]
OIL COOLER
Revision: 2006 December 2006 FX35/FX45
CAUTION:
Do not spill engine oil to rubber parts such as drive belts and engine mounting insulator.
6. Remove water pipes, as necessary.
INSPECTION AFTER REMOVAL
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler.
Relief Valve
Inspect relief valve for movement, cracks and breaks by pushing ball. If replacement is necessary, remove
relief valve by prying it out with a suitable tool. Install a new relief valve in place by tapping it.
INSTALLATION
Note the following, and install in the reverse order of removal.
Make sure that no foreign objects are adhering to the installation planes of oil cooler, oil pan (upper) (2WD
models) or oil cooler bracket (AWD models).
2WD Models

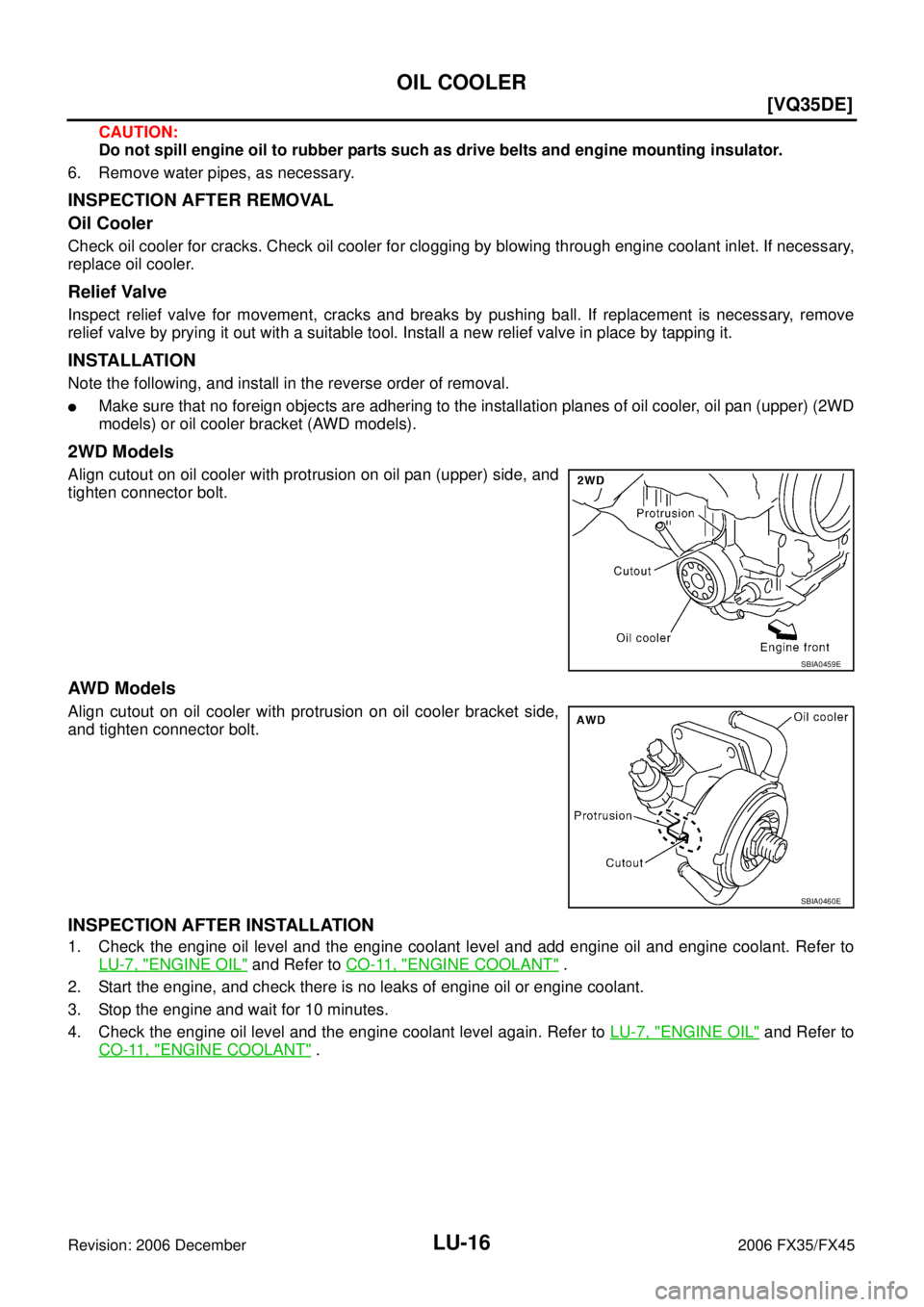

Align cutout on oil cooler with protrusion on oil pan (upper) side, and
tighten connector bolt.
AW D M od e ls
Align cutout on oil cooler with protrusion on oil cooler bracket side,
and tighten connector bolt.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to LU-7, "
ENGINE OIL" and Refer to CO-11, "ENGINE COOLANT" .
2. Start the engine, and check there is no leaks of engine oil or engine coolant.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and the engine coolant level again. Refer to LU-7, "
ENGINE OIL" and Refer to
CO-11, "
ENGINE COOLANT" .
SBIA0459E
SBIA0460E
Page 3783 of 4462
![INFINITI FX35 2006 Service Manual OIL PUMP LU-17
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
OIL PUMPPFP:15010
ComponentsNBS003J7
Removal and InstallationNBS003J8
REMOVAL
1. Remove oil pans ( INFINITI FX35 2006 Service Manual OIL PUMP LU-17
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
OIL PUMPPFP:15010
ComponentsNBS003J7
Removal and InstallationNBS003J8
REMOVAL
1. Remove oil pans (](/manual-img/42/57019/w960_57019-3782.png)
OIL PUMP LU-17
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
OIL PUMPPFP:15010
ComponentsNBS003J7
Removal and InstallationNBS003J8
REMOVAL
1. Remove oil pans (lower and upper) and oil strainer. Refer to EM-30, "OIL PAN AND OIL STRAINER" .
2. Remove front timing chain case and timing chain (primary). Refer to EM-64, "
TIMING CHAIN" .
3. Remove oil pump assembly.
INSTALLATION
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
Note the following, and install in the reverse order of removal.
When installing, align crankshaft flat faces with oil pump inner rotor flat faces.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-7, "ENGINE OIL" .
2. Start the engine, and check there is no leaks of engine oil.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and adjust the level. Refer to LU-7, "
ENGINE OIL" .
Disassembly and AssemblyNBS003J9
DISASSEMBLY
1. Remove oil pump cover.
2. Remove oil pump inner rotor and oil pump outer rotor from oil pump body.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.

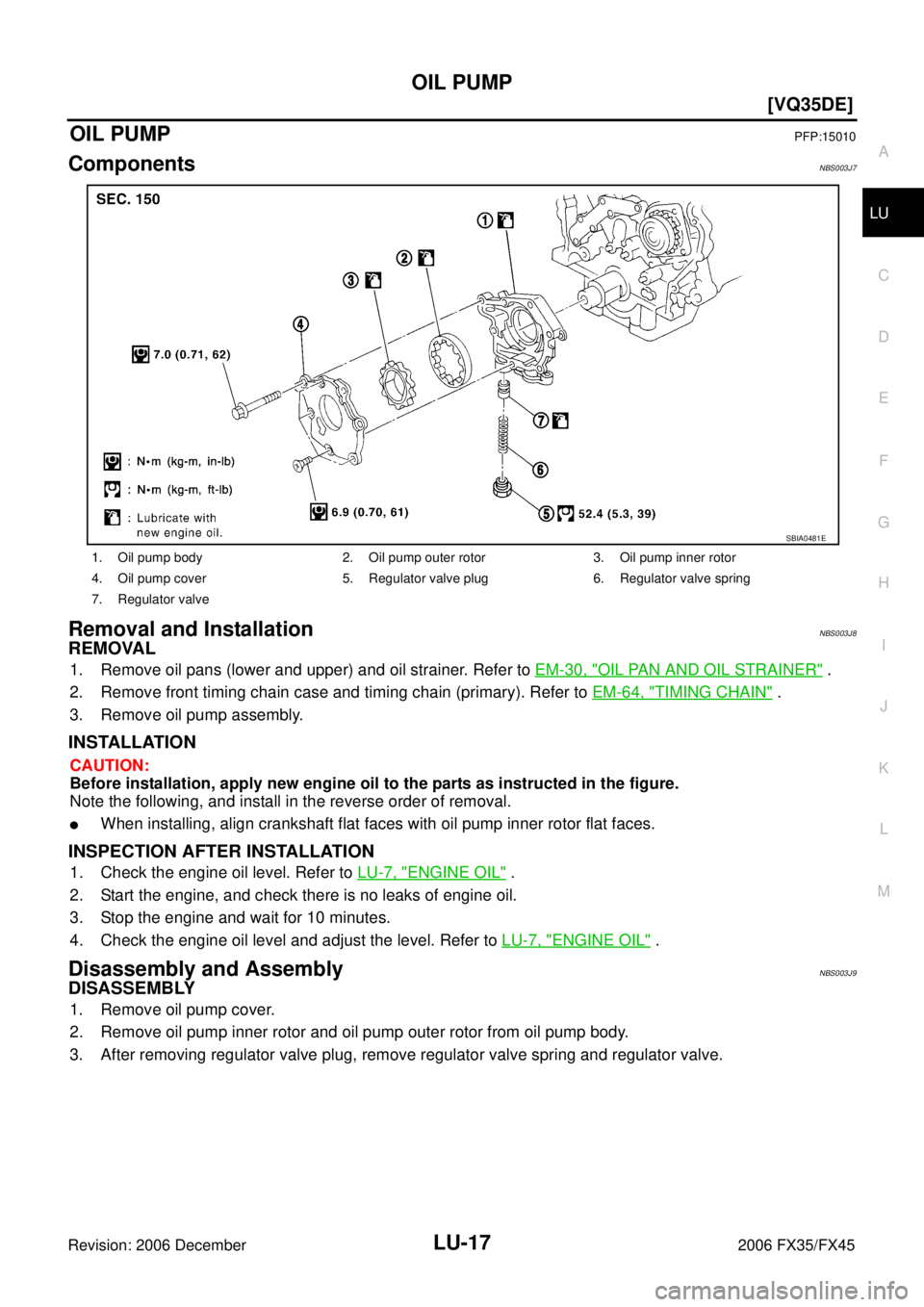

1. Oil pump body 2. Oil pump outer rotor 3. Oil pump inner rotor
4. Oil pump cover 5. Regulator valve plug 6. Regulator valve spring
7. Regulator valve
SBIA0481E
Page 3784 of 4462
![INFINITI FX35 2006 Service Manual LU-18
[VQ35DE]
OIL PUMP
Revision: 2006 December 2006 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and INFINITI FX35 2006 Service Manual LU-18
[VQ35DE]
OIL PUMP
Revision: 2006 December 2006 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and](/manual-img/42/57019/w960_57019-3783.png)
LU-18
[VQ35DE]
OIL PUMP
Revision: 2006 December 2006 FX35/FX45
INSPECTION AFTER DISASSEMBLY

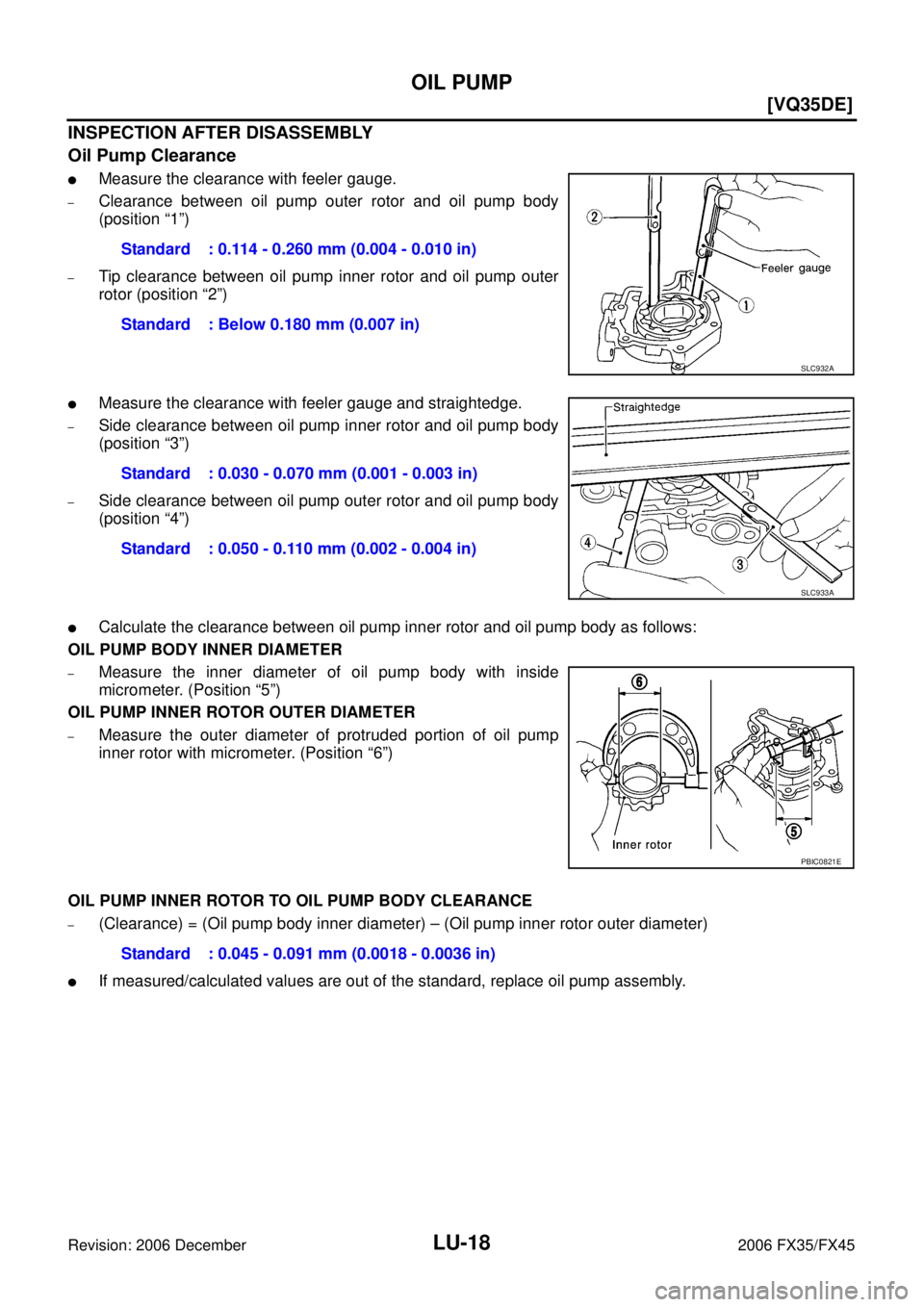

Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and oil pump body
(position “1”)
–Tip clearance between oil pump inner rotor and oil pump outer
rotor (position “2”)
Measure the clearance with feeler gauge and straightedge.
–Side clearance between oil pump inner rotor and oil pump body
(position “3”)
–Side clearance between oil pump outer rotor and oil pump body
(position “4”)
Calculate the clearance between oil pump inner rotor and oil pump body as follows:
OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position “5”)
OIL PUMP INNER ROTOR OUTER DIAMETER
–Measure the outer diameter of protruded portion of oil pump
inner rotor with micrometer. (Position “6”)
OIL PUMP INNER ROTOR TO OIL PUMP BODY CLEARANCE
–(Clearance) = (Oil pump body inner diameter) – (Oil pump inner rotor outer diameter)
If measured/calculated values are out of the standard, replace oil pump assembly. Standard : 0.114 - 0.260 mm (0.004 - 0.010 in)
Standard : Below 0.180 mm (0.007 in)
SLC932A
Standard : 0.030 - 0.070 mm (0.001 - 0.003 in)
Standard : 0.050 - 0.110 mm (0.002 - 0.004 in)
SLC933A
PBIC0821E
Standard : 0.045 - 0.091 mm (0.0018 - 0.0036 in)
