Page 1001 of 4462

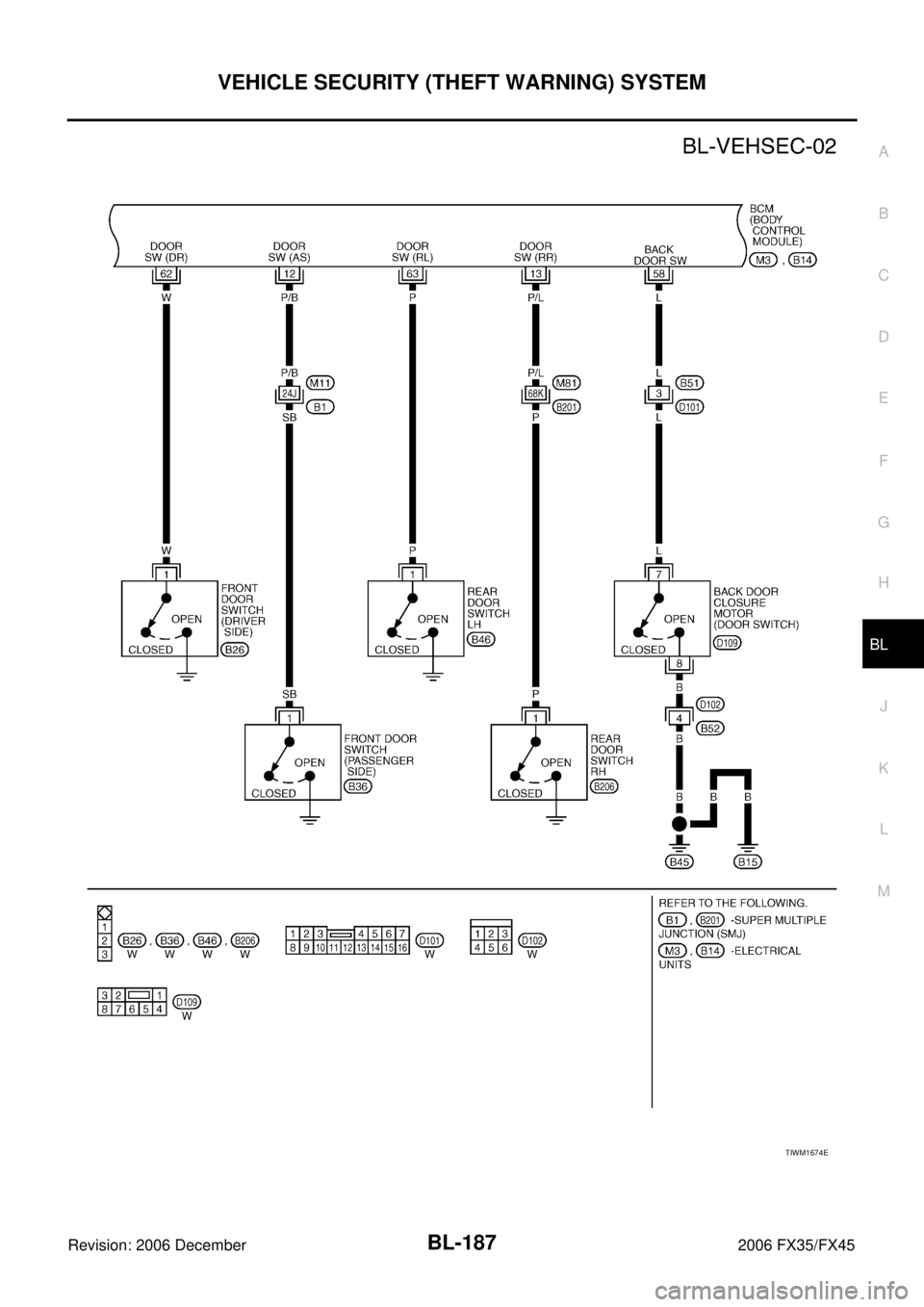

INFINITI FX35 2006 Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM BL-187
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
TIWM1674E

Page 1002 of 4462

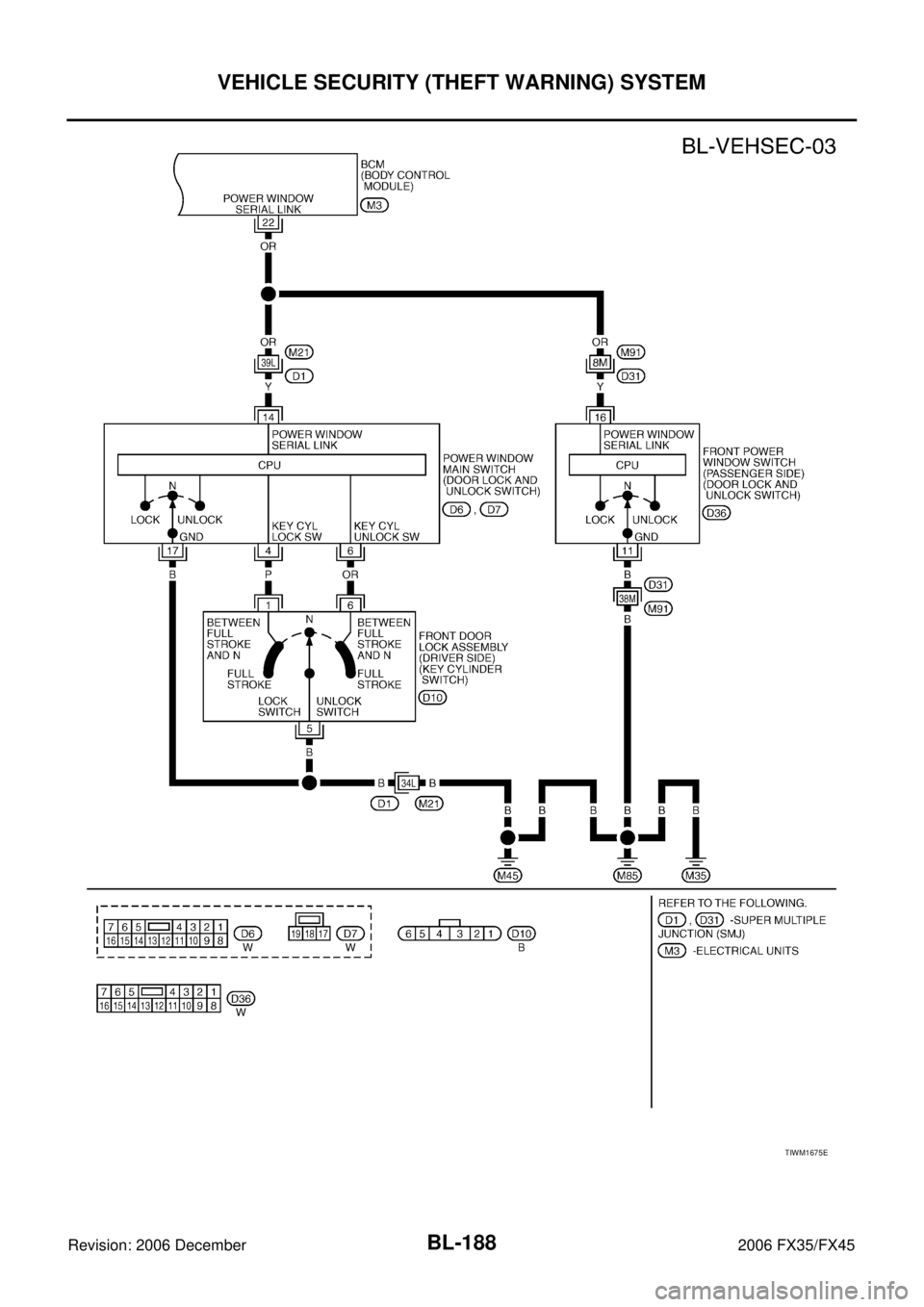

INFINITI FX35 2006 Service Manual BL-188
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 December 2006 FX35/FX45
TIWM1675E

Page 1003 of 4462

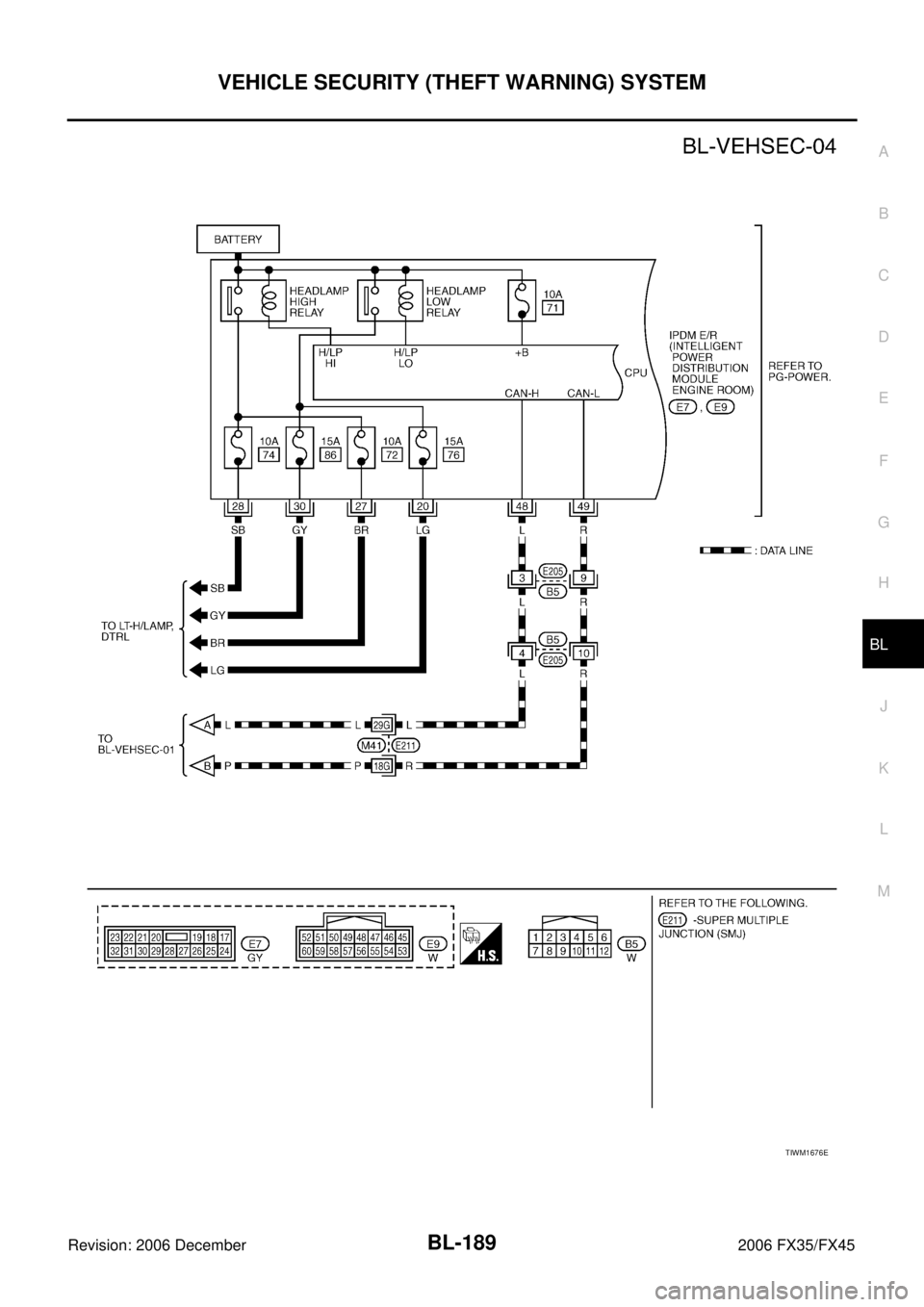

INFINITI FX35 2006 Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM BL-189
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
TIWM1676E

Page 1004 of 4462

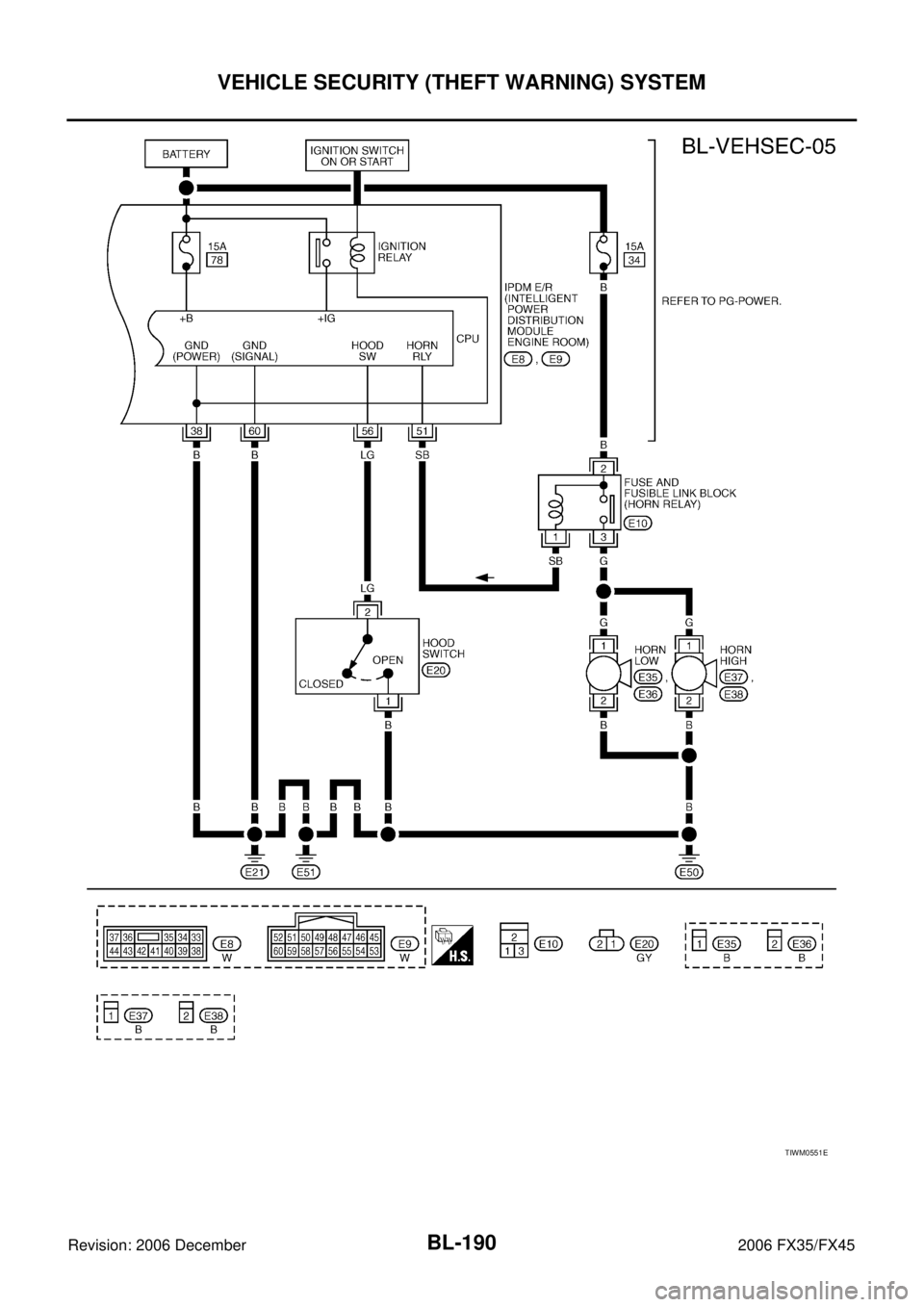

INFINITI FX35 2006 Service Manual BL-190
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 December 2006 FX35/FX45
TIWM0551E

Page 1005 of 4462

INFINITI FX35 2006 Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM BL-191
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for BCMNIS001P8
Terminal Wire color Item Sig

Page 1006 of 4462

INFINITI FX35 2006 Service Manual BL-192
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for IPDM E/RNIS001P9
CONSULT-II Function (BCM)NIS001PA
CAUTION:
CONSULT-II is used

BL-192
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for IPDM E/RNIS001P9
CONSULT-II Function (BCM)NIS001PA
CAUTION:
CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected in
self-diagnosis depending on control unit with carry out CAN communication.
CONSULT-II can display each diagnostic item using the diagnostic test modes shown.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEM
Work Support
62 W Front door switch
driver side signal Input ON (Open)
→ OFF (Closed) 0 → Battery voltage
63 P Rear door (LH) switch sig-
nal Input ON (Open)
→ OFF (Closed) 0 → Battery voltage
Terminal Wire color Item
Signal
Input/
output Condition
Voltage (V)
(Approx.)
Terminal Wire color Item Signal
Input/
output Condition
Voltage (V)
(Approx.)
20 LG Headlamp low (RH) Output Lighting switch 2ND position
ON → OFF Battery voltage
→ 0
27 BR Headlamp high (RH) Output Lighting switch HIGH or PASS
position
ON → OFF Battery voltage
→ 0
28 SB Headlamp high (LH) Output Lighting switch HIGH or PASS
position
ON → OFF Battery voltage
→ 0
30 GY Headlamp low (LH) Output Lighting switch 2ND position
ON → OFF Battery voltage
→ 0
38 B Ground (power) — — 0
48 L CAN-H Input/
Output ——
49 R CAN-L Input/
Output ——
51 SB Horn relay control signal Output Panic alarm is operating 0
Other than above Battery voltage
56 LG Hood switch signal Input ON (Open) → OFF (closed) 0 → Battery voltage
60 B Ground (signal) — — 0
BCM diagnosis test item Check item diagnosis test mode Content
Theft alm WORK SUPPORT Change setting of each function.
DATA MONITOR Displays the input data of BCM real time. ACTIVE TEST Gives a drive signal to a load to check the operation.
Test Item Description
SECURITY ALARM SET This mode is able to confirm and change security alarm ON-OFF setting.
THEFT ALM TRG The switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR”
on CONSULT-II screen.

Page 1007 of 4462

INFINITI FX35 2006 Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM BL-193
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Data Monitor
Active Test
Monitored Item Description
IGN ON SW Indicates [

VEHICLE SECURITY (THEFT WARNING) SYSTEM BL-193
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Data Monitor
Active Test
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
TRUNK OPNR SW This is displayed even when it is not equipped.
TRUNK CYL SW This is displayed even when it is not equipped.
TRUNK OPN MNTR This is displayed even when it is not equipped.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from key fob.
KEYLESS TRUNK Indicates [ON/OFF] condition of trunk opener signal from key fob.
HOOD SW Indicates [ON/OFF] condition of hood switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
KEY CYL LK SW Indicates [ON/OFF] condition of lock signal from key cylinder switch.
KEY CYL UN SW Indicates [ON/OFF] condition of unlock signal from key cylinder switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock/unlock switch LH and RH.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock/unlock switch LH and RH.
Test Item Description
THEFT IND This test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-II screen is touched.
ANTI THEFT HORN This test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-II screen is touched.
HEADLAMP(HI) This test is able to check vehicle security lamp operation. The headlamps will be activated for 0.5
seconds after “ON” on CONSULT-II screen is touched.

Page 1008 of 4462

INFINITI FX35 2006 Service Manual BL-194
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 December 2006 FX35/FX45
Trouble DiagnosisNIS001PB

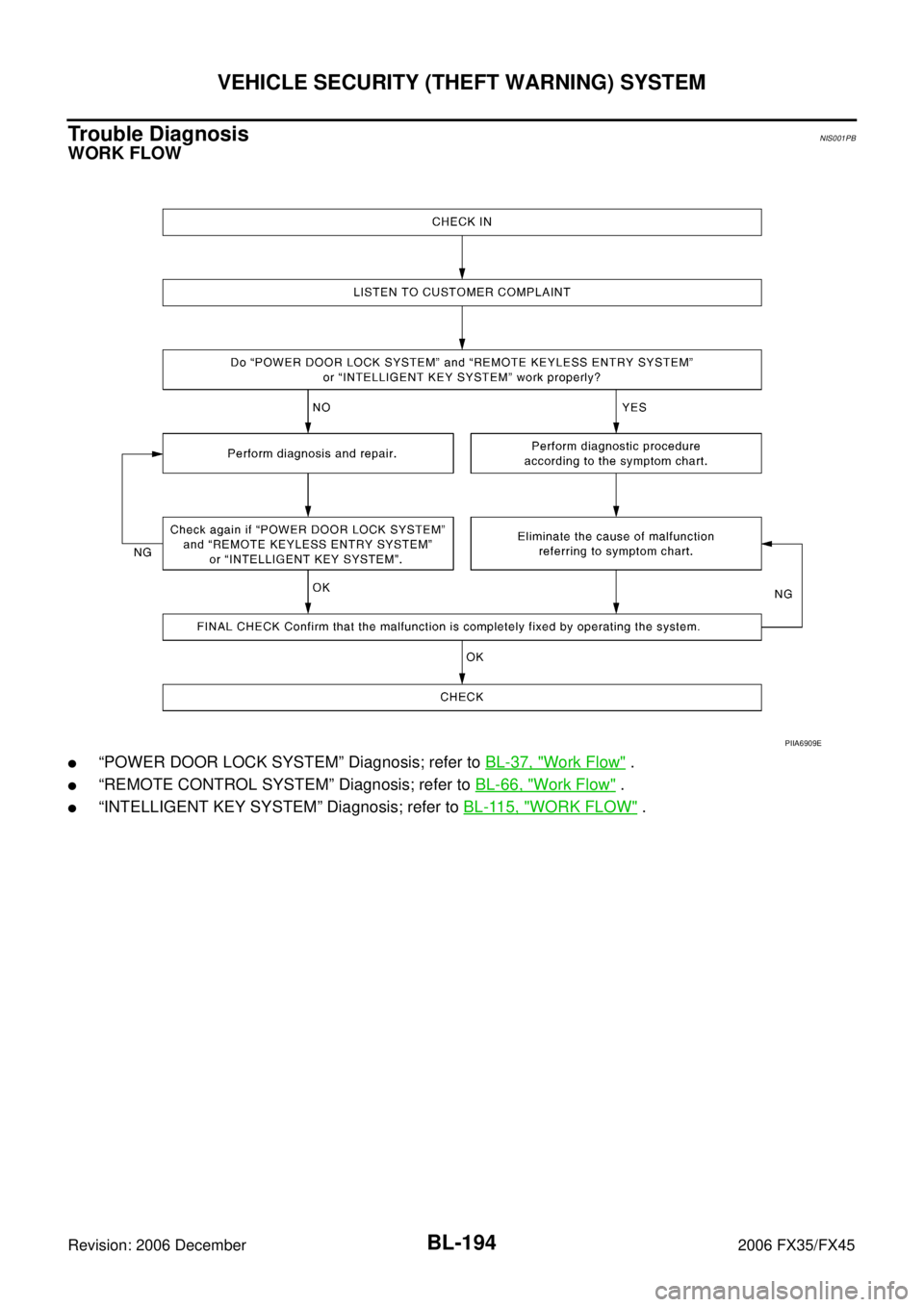

WORK FLOW
“POWER DOOR LOCK SYSTEM” Diagnosis; refer to BL-37, "Work Flow" .
“RE
