Page 1369 of 4462
REAR VIEW MONITOR DI-119
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45

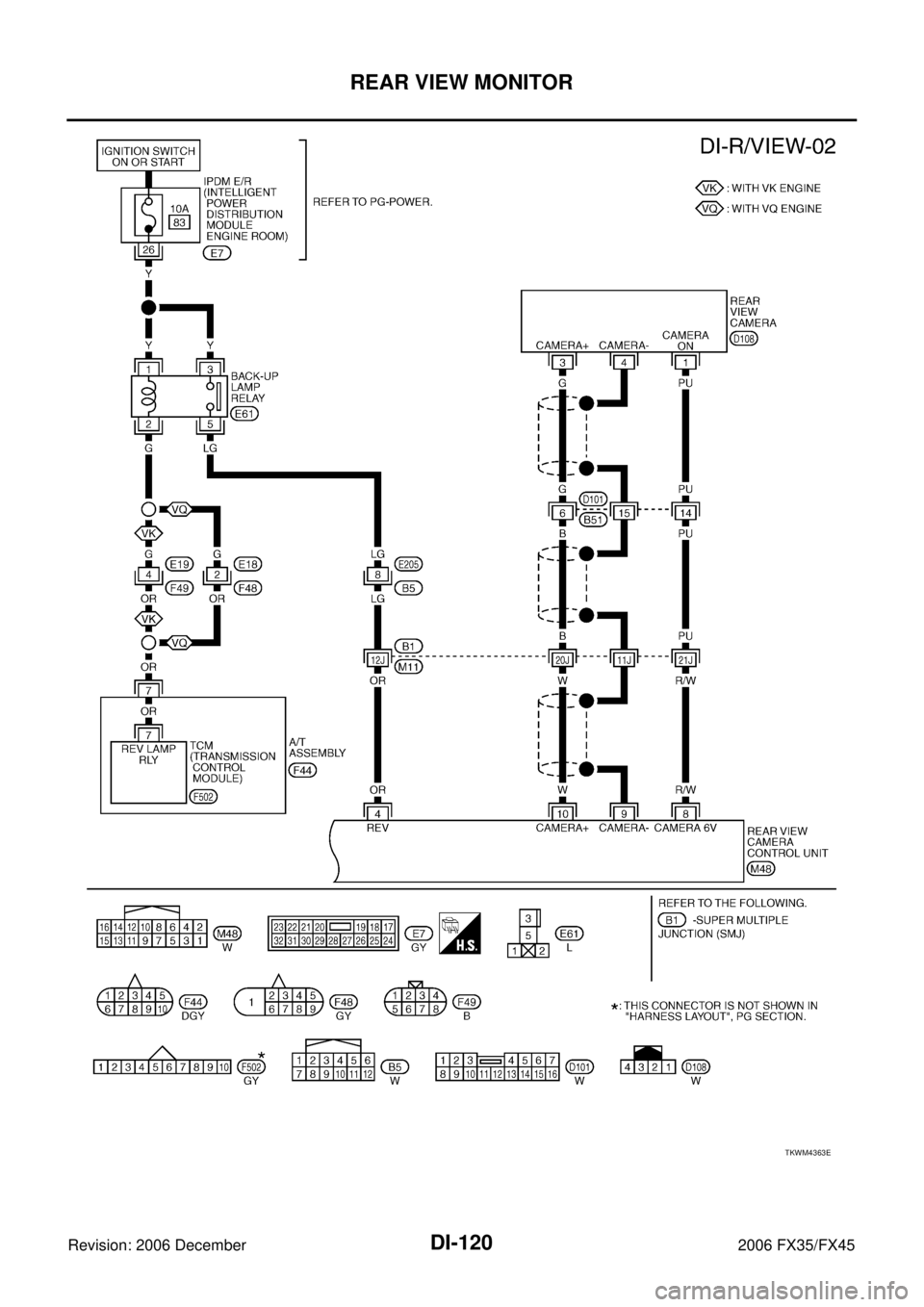

Wiring Diagram — R/VIEW —NKS0031W
TKWM4362E

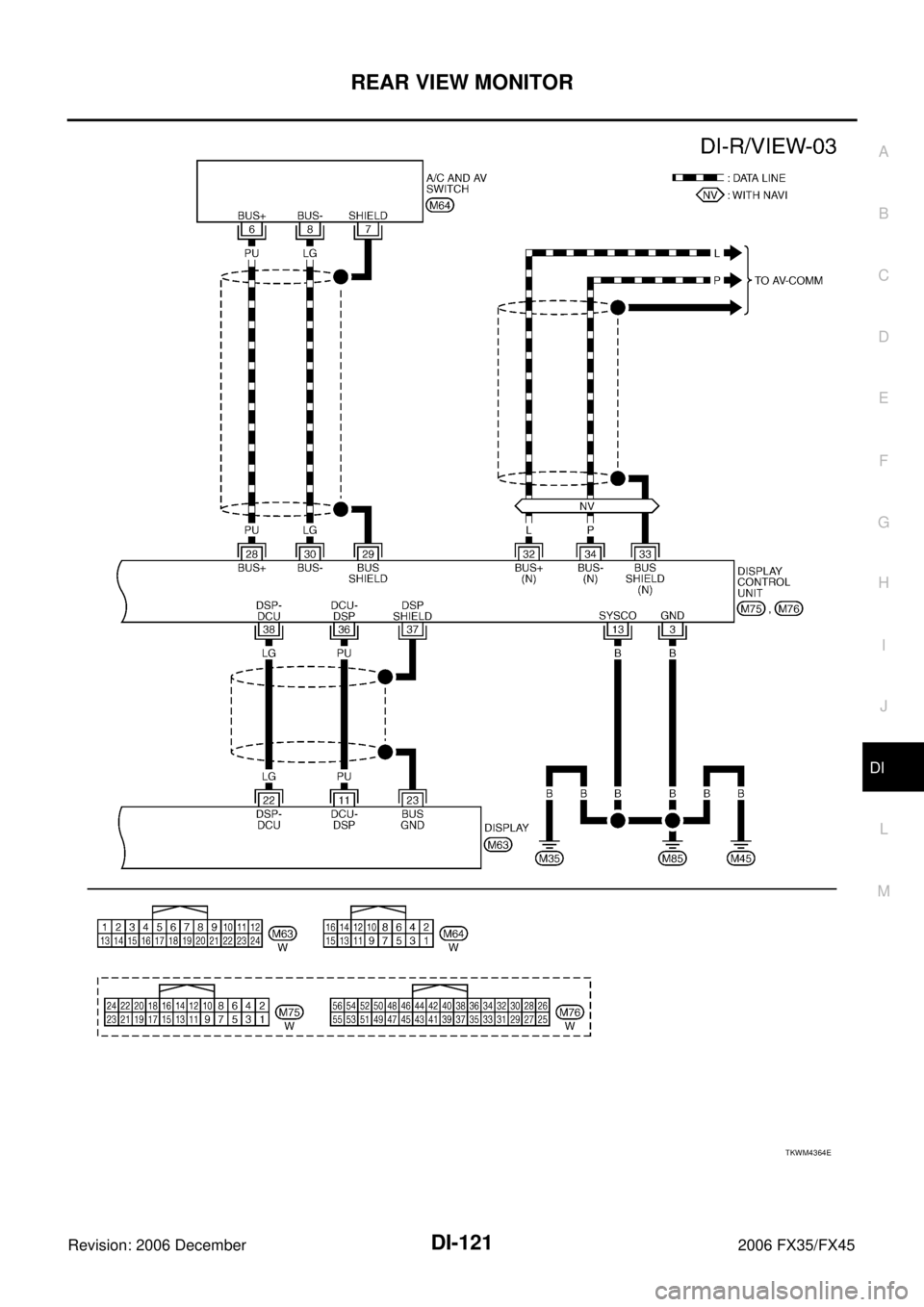

Page 1370 of 4462
DI-120
REAR VIEW MONITOR
Revision: 2006 December 2006 FX35/FX45
TKWM4363E
Page 1371 of 4462
REAR VIEW MONITOR DI-121
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
TKWM4364E
Page 1372 of 4462
DI-122
REAR VIEW MONITOR
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for Rear View Camera Control UnitNKS0031X
Terminals Item Condition
Reference value
Te r m i n a l
No. Wire
color Ignition
switch Operation
1 R/W Battery power supply OFF — Battery voltage
2 LG Ignition power supply ACC — Battery voltage
3 B Ground ON — Approx. 0 V
4 OR Reverse signal input ON A/T selector lever R range
position Battery voltage
A/T selector lever in other than
R range position Approx. 0 V
5 G/Y CONTROL 1 ON — Approx. 0 V
6 PU DDL — — —
8 R/W Camera power output ON A/T selector lever R range
position Approx. 6 V
9 — Camera image input (–) ON — Approx. 0 V
10 W Camera image input (+) ON A/T selector lever R range
position
11 — Shield ground — — —
12 L Composite image output ON A/T selector lever R range
position
14 R Composite image synchroni-
zation signal output ON A/T selector lever R range
position
SKIA4894E
SKIA4896E
SKIA5896E
Page 1373 of 4462

REAR VIEW MONITOR DI-123
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Function (REARVIEW CAMERA)NKS0031Y
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “SELCT GUIDELINE PATTERN” or “ADJ GUIDELINE POSITION” on the “WORK SUP- PORT” screen.
Refer to DI-124, "
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE" for detail.
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
3. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG- NALS” is selected, all items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
Display Item List
System Diagnosis mode Description Reference
page
REARVIEW CAMERA WORK SUPPORT
It can adjust the side distance guidelines which overlap the
rear view monitor image. DI-123
DATA MONITOR Displays rear view camera control unit input data in real
time. DI-123
ECU PART NUMBER Displays part number of rear view camera control unit. —
SELCT GUIDELINE PATTERN Side distance guideline is optional from two patterns.
ADJ GUIDELINE POSITION Side distance guideline is adjustable toward up and down, right and left.
ALL SIGNALS Monitors all signals.
SELECTION FROM MENU Selects and monitors individual signal.
Display item [Unit] ALL
SIGNALS SELECTION
FROM MENU Contents
R POSI SIG [ON/OFF] X X Indicates [ON/OFF] condition of R range position signal input.
Page 1374 of 4462

DI-124
REAR VIEW MONITOR
Revision: 2006 December 2006 FX35/FX45

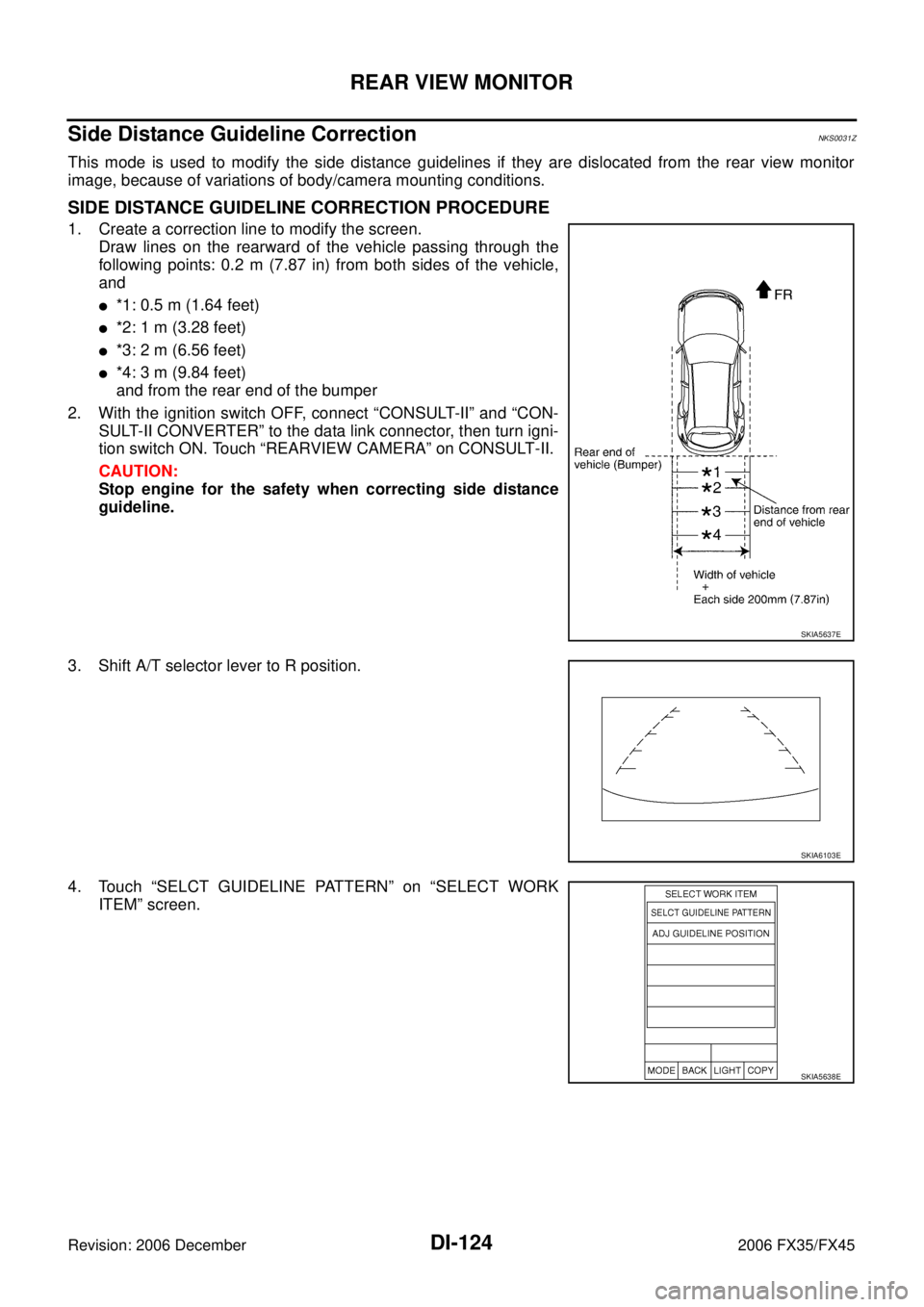

Side Distance Guideline CorrectionNKS0031Z
This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor
image, because of variations of body/camera mounting conditions.
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE
1. Create a correction line to modify the screen.
Draw lines on the rearward of the vehicle passing through the
following points: 0.2 m (7.87 in) from both sides of the vehicle,
and
*1: 0.5 m (1.64 feet)
*2: 1 m (3.28 feet)
*3: 2 m (6.56 feet)
*4: 3 m (9.84 feet)
and from the rear end of the bumper
2. With the ignition switch OFF, connect “CONSULT-II” and “CON- SULT-II CONVERTER” to the data link connector, then turn igni-
tion switch ON. Touch “REARVIEW CAMERA” on CONSULT-II.
CAUTION:
Stop engine for the safety when correcting side distance
guideline.
3. Shift A/T selector lever to R position.
4. Touch “SELCT GUIDELINE PATTERN” on “SELECT WORK ITEM” screen.
SKIA5637E
SKIA6103E
SKIA5638E
Page 1375 of 4462
REAR VIEW MONITOR DI-125
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
5. Touch “UP” or “DOWN”, and select the guide line, “PATTERN NO. 0” or “PATTERN NO. 1”, which is the closest to the cor-
rected line.
6. Touch “SAVE”, and confirm the guide line.
7. Touch “END”.
8. Touch “ADJ GUIDELINE POSITION” on “SELECT WORK ITEM” screen.
9. Adjust the guide line touching “X UP”, “X DOWN”, “Y UP” or “Y DOWN” so that the corrected line can fit the guide line.
10. Touch “SAVE”, and confirm the guide line.
11. Touch “END” to finish correcting.
PKIB2264E
SKIA5638E
PKIB2265E
Page 1376 of 4462

DI-126
REAR VIEW MONITOR
Revision: 2006 December 2006 FX35/FX45

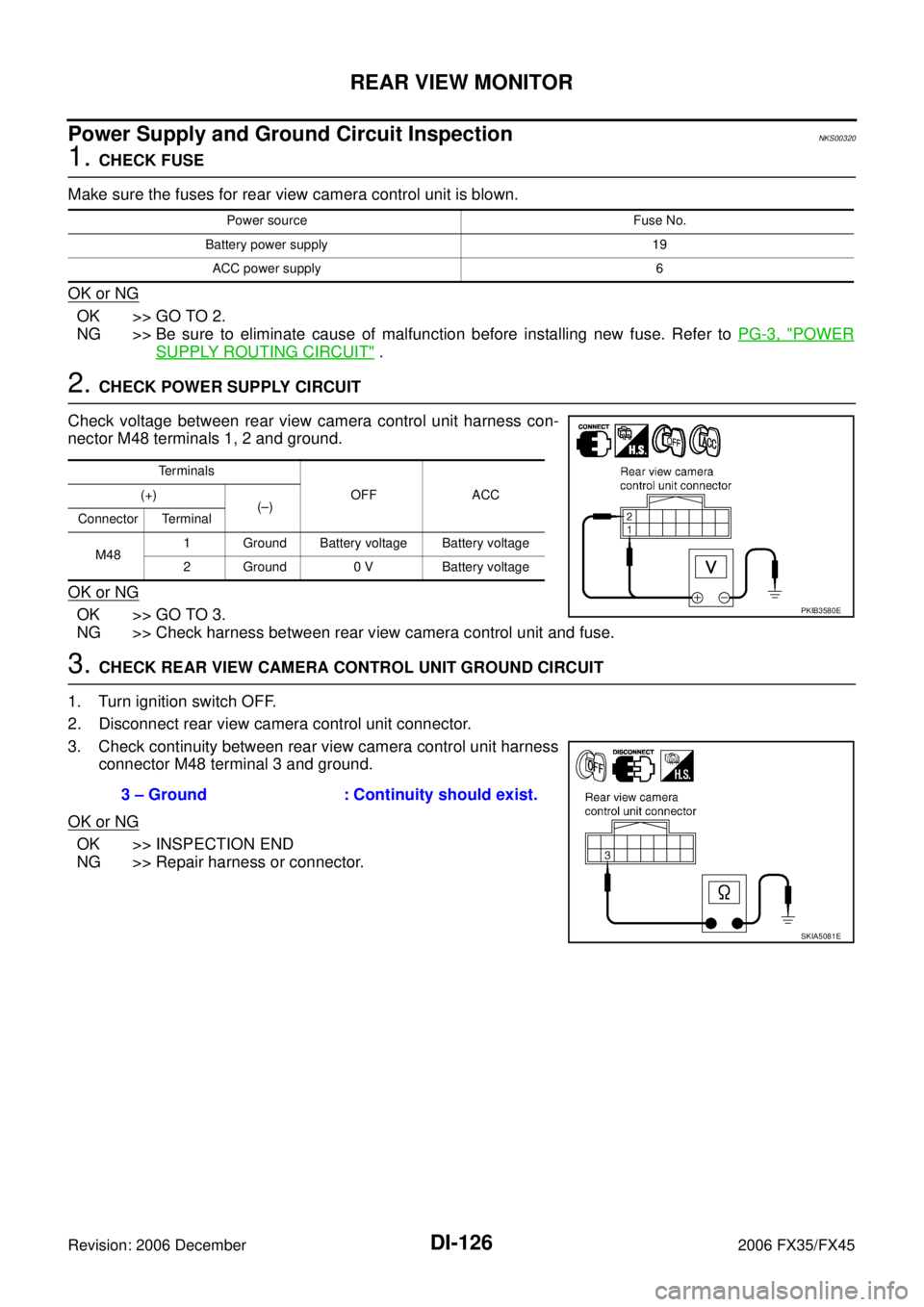

Power Supply and Ground Circuit InspectionNKS00320
1. CHECK FUSE
Make sure the fuses for rear view camera control unit is blown.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER
SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between rear view camera control unit harness con-
nector M48 terminals 1, 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between rear view camera control unit and fuse.
3. CHECK REAR VIEW CAMERA CONTROL UNIT GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector.
3. Check continuity between rear view camera control unit harness connector M48 terminal 3 and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Power source Fuse No.
Battery power supply 19 ACC power supply 6
Te r m i n a l s OFF ACC
(+)
(–)
Connector Terminal
M48 1 Ground Battery voltage Battery voltage
2 Ground 0 V Battery voltage
PKIB3580E
3 – Ground : Continuity should exist.
SKIA5081E
