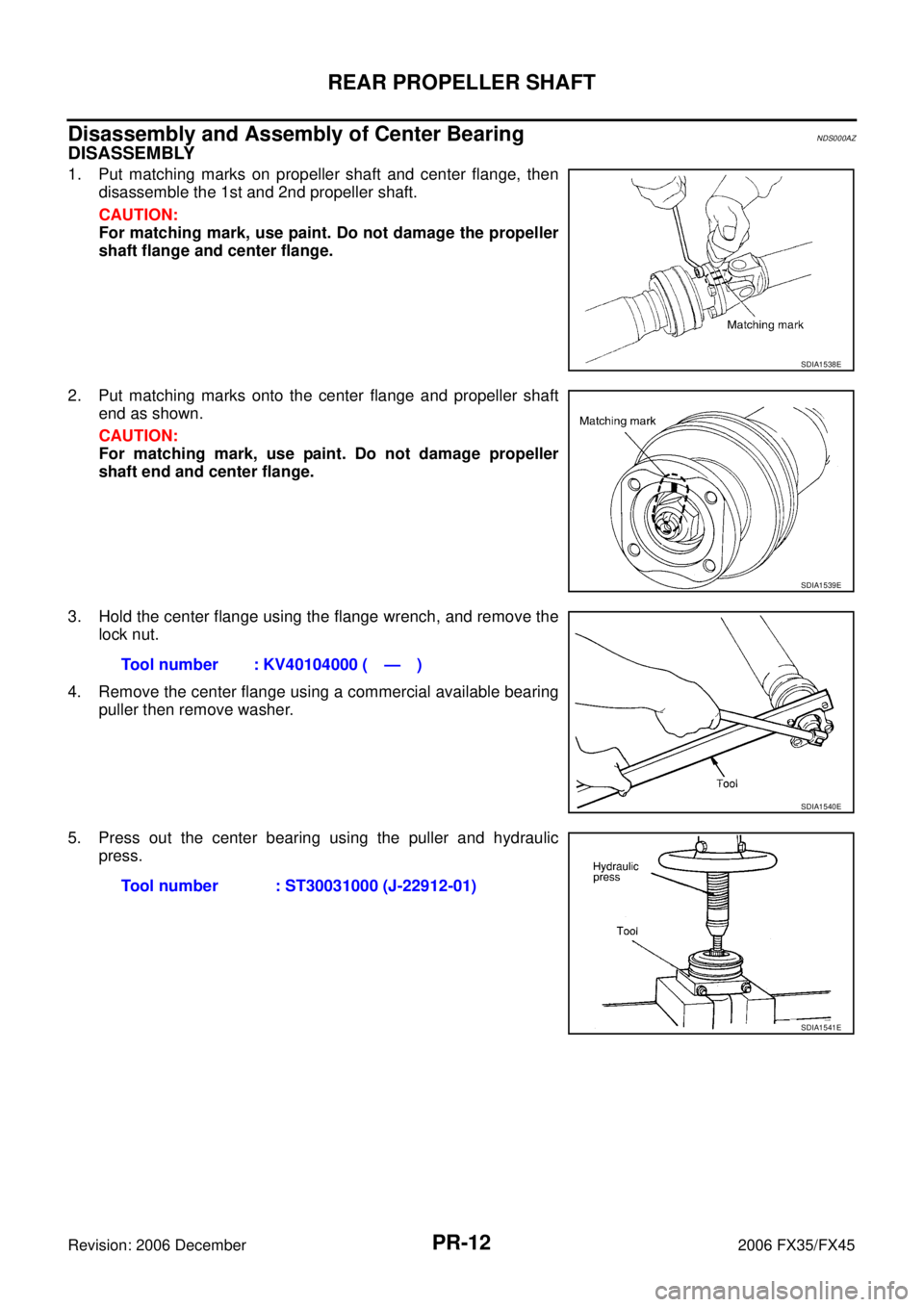

INFINITI FX35 2006 Service Manual REAR PROPELLER SHAFT PR-11
C E F
G H
I
J
K L
M A
B
PR
Revision: 2006 December 2006 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Avoid d

Page 3946 of 4462

INFINITI FX35 2006 Service Manual PR-12
REAR PROPELLER SHAFT
Revision: 2006 December 2006 FX35/FX45
Disassembly and Assembly of Center BearingNDS000AZ
DISASSEMBLY
1. Put matching marks on propeller shaft and center flange, then disass

Page 3947 of 4462

INFINITI FX35 2006 Service Manual REAR PROPELLER SHAFT PR-13
C E F
G H
I
J
K L
M A
B
PR
Revision: 2006 December 2006 FX35/FX45
ASSEMBLY
1. For the 3S80A-1VL107 (VQ35DE/2WD) and 3F80A-1VL107
(VK45DE/AWD) type
Install the

Page 3948 of 4462

INFINITI FX35 2006 Service Manual PR-14
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 December 2006 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsNDS000B0
2WD MODELS
AW D M OD E LS
Journal Axa

Page 3949 of 4462

INFINITI FX35 2006 Service Manual PS-1
POWER STEERING SYSTEM
G STEERING
CONTENTS
C
D E
F
H I
J
K L
M
SECTION PS
A
B
PS
Revision: 2006 December 2006 FX35/FX45
POWER STEERING SYSTEM
PRECAUTIONS ..............................

PS-1
POWER STEERING SYSTEM
G STEERING
CONTENTS
C
D E
F
H I
J
K L
M
SECTION PS
A
B
PS
Revision: 2006 December 2006 FX35/FX45
POWER STEERING SYSTEM
PRECAUTIONS ..................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ..................................... ..... 3
OPERATION PROCEDURE ............................ ..... 3
Precautions for Steering System ......................... ..... 3
PREPARATION ...................................................... ..... 5
Special Service Tools (SST) ................................ ..... 5
Commercial Service Tools ................................... ..... 6
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 7
NVH Troubleshooting Chart ................................ ..... 7
POWER STEERING FLUID ................................... ..... 8
Checking Fluid Level ........................................... ..... 8
Checking Fluid Leakage ...................................... ..... 8
Air Bleeding Hydraulic System ............................ ..... 8
STEERING WHEEL ............................................... ... 10
On-Vehicle Inspection and Service ..................... ... 10
CHECKING CONDITION OF INSTALLATION . ... 10
CHECKING STEERING WHEEL PLAY ........... ... 10
CHECKING NEUTRAL POSITION ON STEER-
ING WHEEL ..................................................... ... 10
CHECKING STEERING WHEEL TURNING
FORCE ............................................................. ... 10
CHECKING FRONT WHEEL TURNING ANGLE .... 11
Removal and Installation ..................................... .... 11
STEERING COLUMN ............................................ ... 12
Removal and Installation ..................................... ... 12
COMPONENTS ............................................... ... 12
REMOVAL ........................................................ ... 12
INSPECTION AFTER REMOVAL .................... ... 14
INSTALLATION ................................................ ... 14
INSPECTION AFTER INSTALLATION ............ ... 14
Disassembly and Assembly ................................ ... 15
COMPONENTS ............................................... ... 15
DISASSEMBLY ................................................ ... 16
ASSEMBLY ...................................................... ... 16
POWER STEERING GEAR AND LINKAGE ......... ... 17 Removal and Installation .....................................
... 17
REMOVAL ........................................................ ... 17
INSTALLATION ................................................ ... 18
INSPECTION AFTER INSTALLATION ............. ... 19
Disassembly and Assembly ................................. ... 20
DISASSEMBLY ................................................ ... 21
INSPECTION AFTER DISASSEMBLY ............. ... 23
ASSEMBLY ...................................................... ... 24
POWER STEERING OIL PUMP ............................ ... 29
On-Vehicle Inspection and Service ...................... ... 29
CHECKING RELIEF OIL PRESSURE (VQ35DE
MODELS) ......................................................... ... 29
CHECKING RELIEF OIL PRESSURE (VK45DE
MODELS) ......................................................... ... 29
Removal and Installation (VQ35DE Models) ....... ... 30
REMOVAL ........................................................ ... 30
INSTALLATION ................................................ ... 31
Removal and Installation (VK45DE Models) ....... ... 31
REMOVAL ........................................................ ... 31
INSTALLATION ................................................ ... 31
Disassembly and Assembly (VQ35DE Models) .. ... 31
INSPECTION BEFORE DISASSEMBLY .......... ... 31
DISASSEMBLY ................................................ ... 32
INSPECTION AFTER DISASSEMBLY ............. ... 32
ASSEMBLY ...................................................... ... 32
Disassembly and Assembly (VK45DE Models) ... ... 35
INSPECTION BEFORE DISASSEMBLY .......... ... 35
DISASSEMBLY ................................................ ... 35
INSPECTION AFTER DISASSEMBLY ............. ... 36
ASSEMBLY ...................................................... ... 36
HYDRAULIC LINE ................................................. ... 39
Components ........................................................ ... 39
Removal and Installation ..................................... ... 41
Component .......................................................... ... 42
Removal and Installation ..................................... ... 43
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 44
Steering Wheel .................................................... ... 44
Steering Angle ..................................................... ... 44
Steering Column .................................................. ... 44
Steering Outer Socket and Inner Socket ............. ... 44

Page 3950 of 4462

INFINITI FX35 2006 Service Manual PS-2Revision: 2006 December 2006 FX35/FX45 Steering Gear ......................................................
... 45 Oil Pump .............................................................. ... 45

Page 3951 of 4462

INFINITI FX35 2006 Service Manual PRECAUTIONS PS-3
C
D E
F
H I
J
K L
M A
B
PS
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT

PRECAUTIONS PS-3
C
D E
F
H I
J
K L
M A
B
PS
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NGS000BN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectNGS000BO
NOTE:
This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).
Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″ LOCK ″ position.
Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Steering SystemNGS000BP
Before disassembly, thoroughly clean the outside of the unit.
Disassembly should be done in a clean work area. It is important to prevent the internal parts from becom-
ing contaminated by dirt or other foreign matter.
For easier and proper assembly, place disassembled parts in order on a parts rack.

Page 3952 of 4462

INFINITI FX35 2006 Service Manual PS-4
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
Use nylon cloth or paper towels to clean the parts; common shop rags can leave lint that might interfere
with their operation.
Before inspec
