Page 3417 of 4462

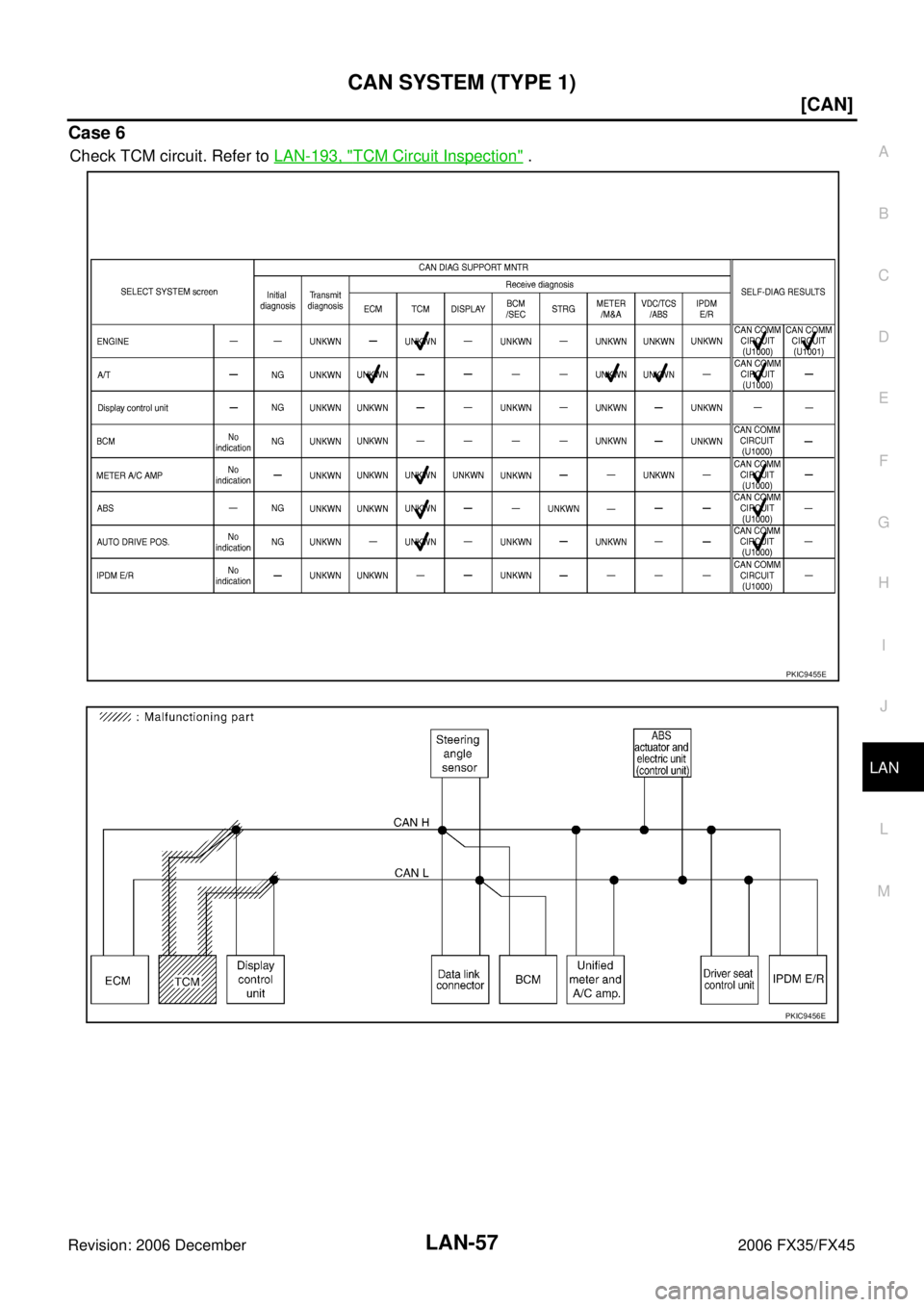

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-57 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" . PKIC9455E PKIC9

Page 3418 of 4462

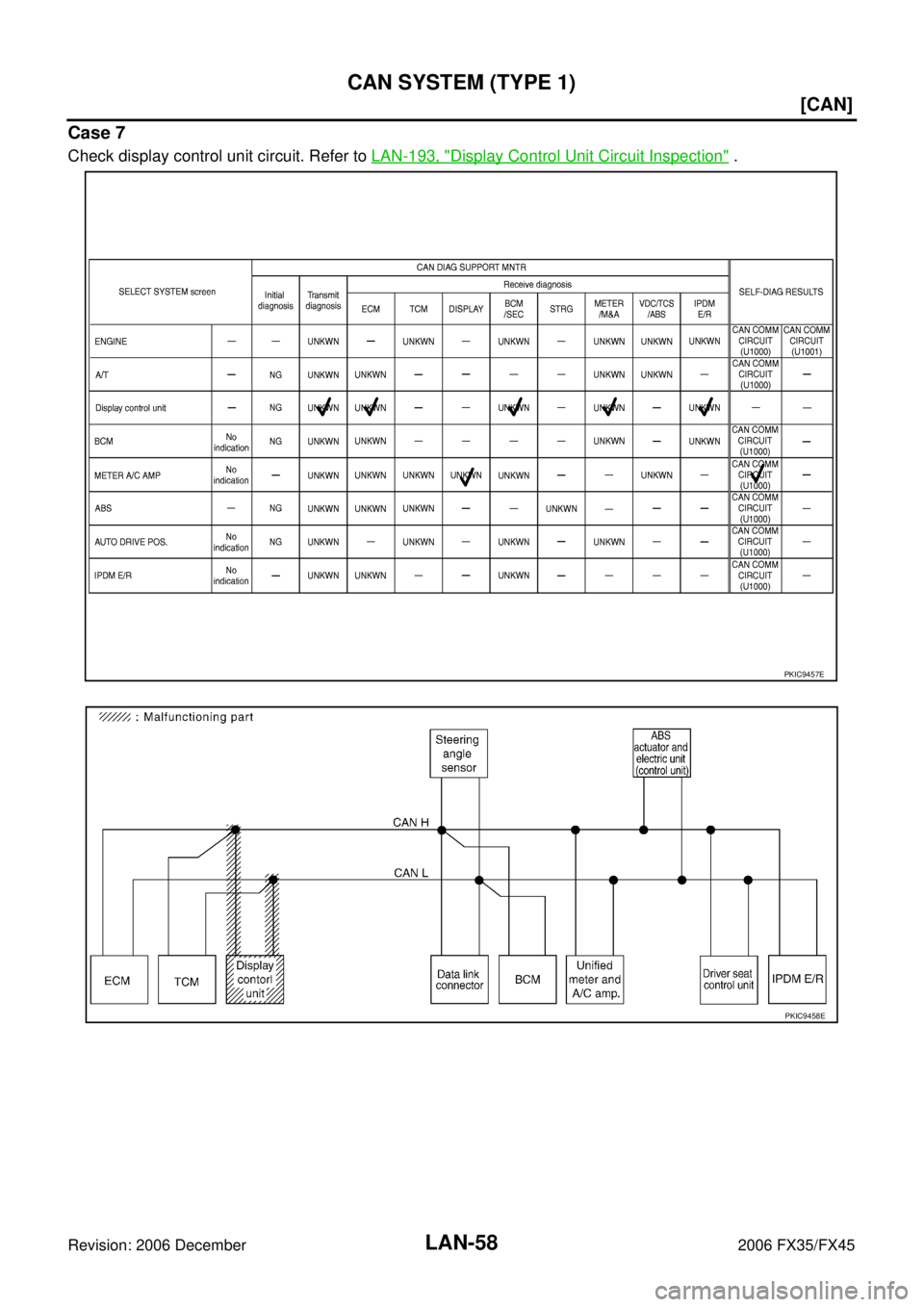

INFINITI FX35 2006 Service Manual LAN-58 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 Case 7 Check display control unit circuit. Refer to LAN-193, "Display Control Unit Circuit Inspection" . PKIC9457E PKIC9458E

Page 3419 of 4462

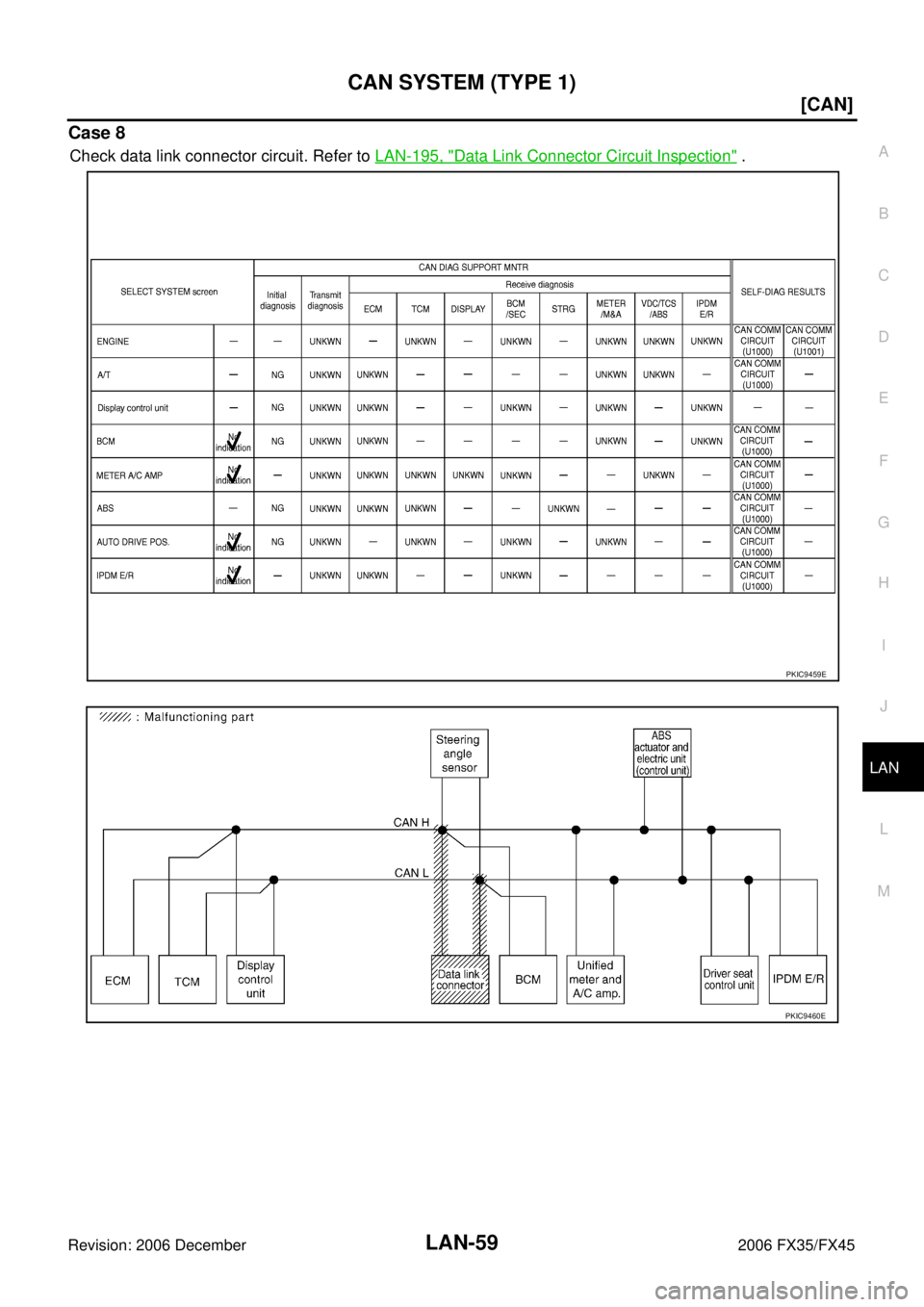

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-59 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 8 Check data link connector circuit. Refer to LAN-195, "Data Link Connector Circu

Page 3420 of 4462

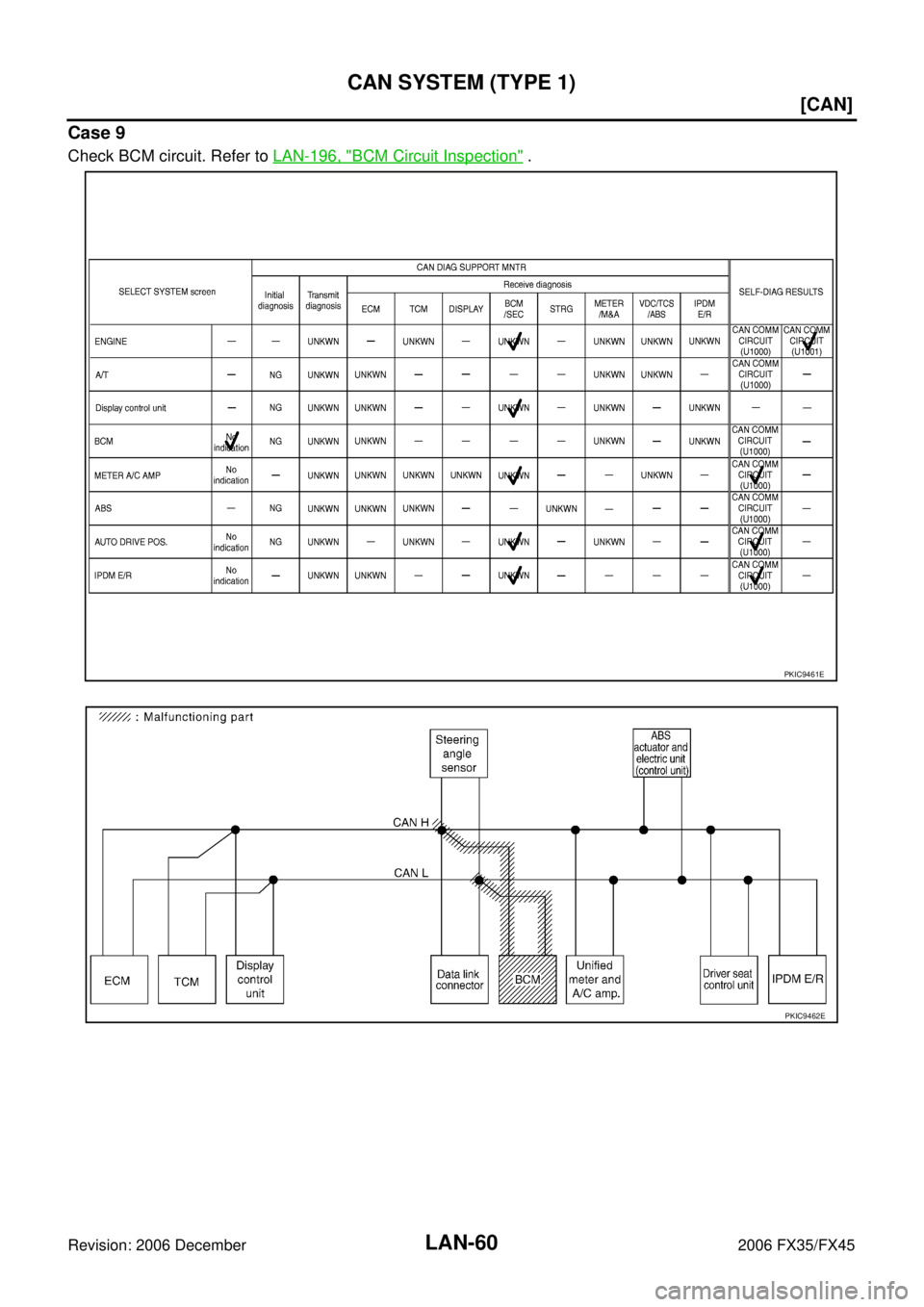

INFINITI FX35 2006 Service Manual LAN-60 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 Case 9 Check BCM circuit. Refer to LAN-196, "BCM Circuit Inspection" . PKIC9461E PKIC9462E

Page 3421 of 4462

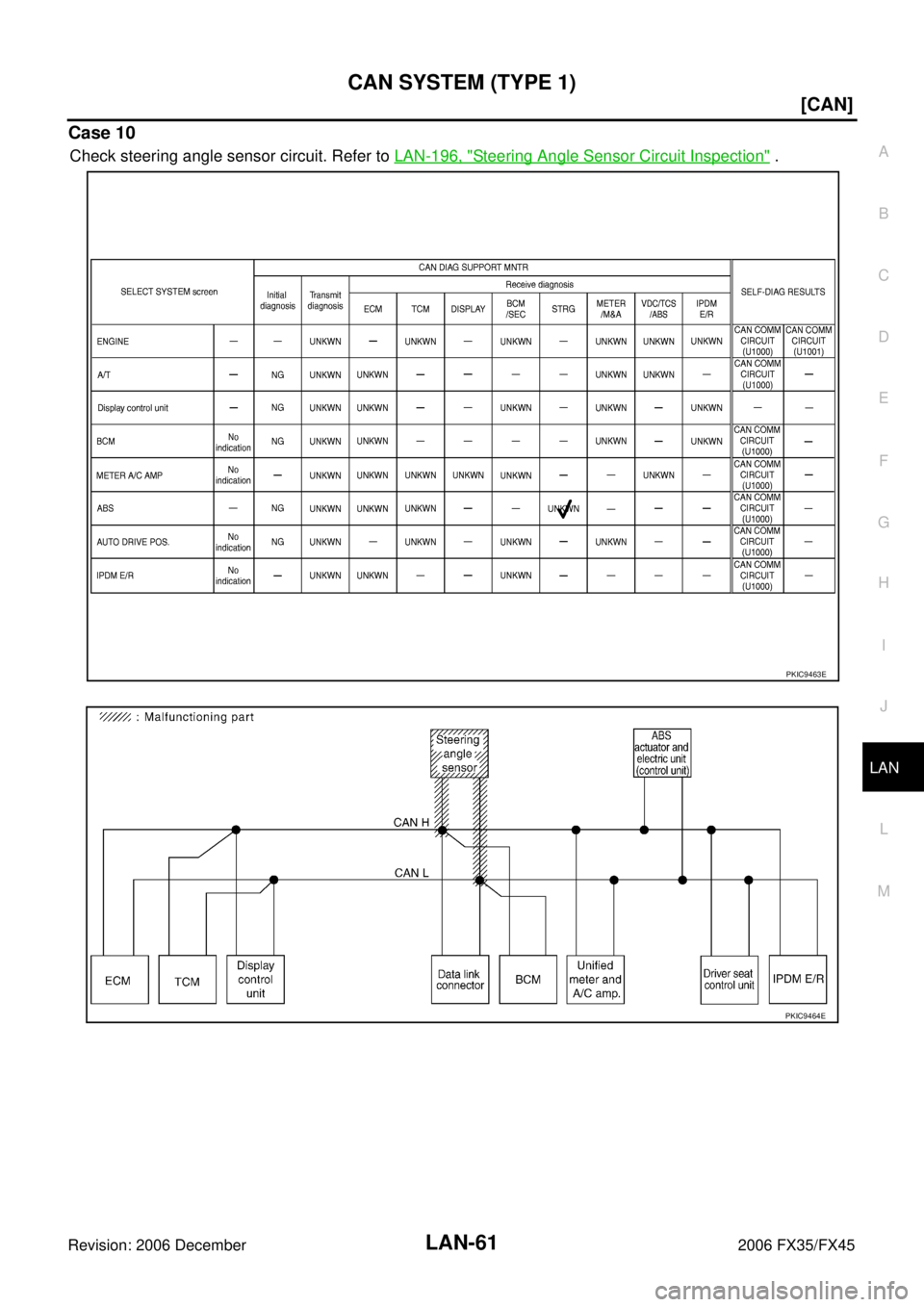

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-61 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 10 Check steering angle sensor circuit. Refer to LAN-196, "Steering Angle Sensor

Page 3422 of 4462

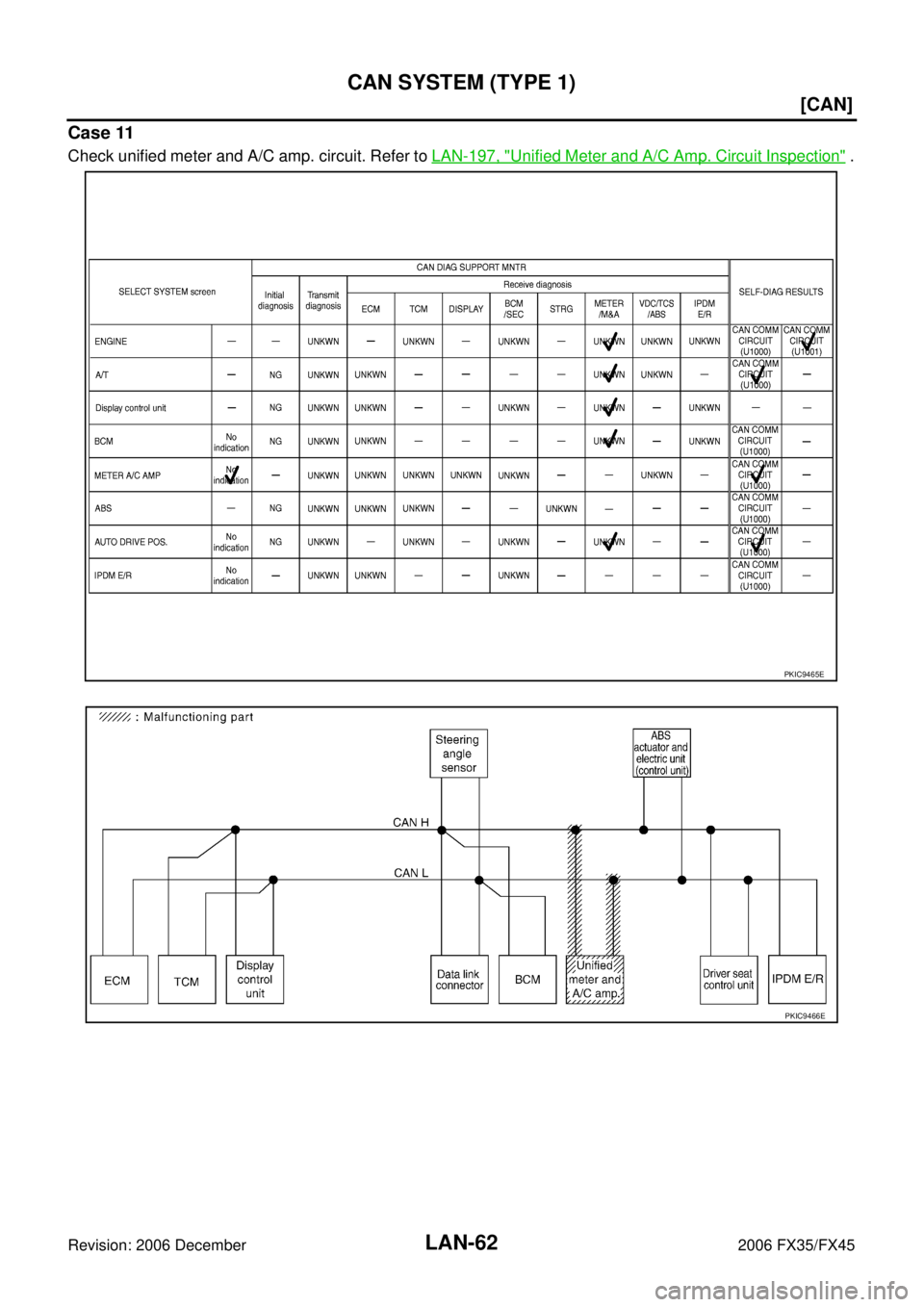

INFINITI FX35 2006 Service Manual LAN-62 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 Case 11 Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" . PKIC9465E

Page 3423 of 4462

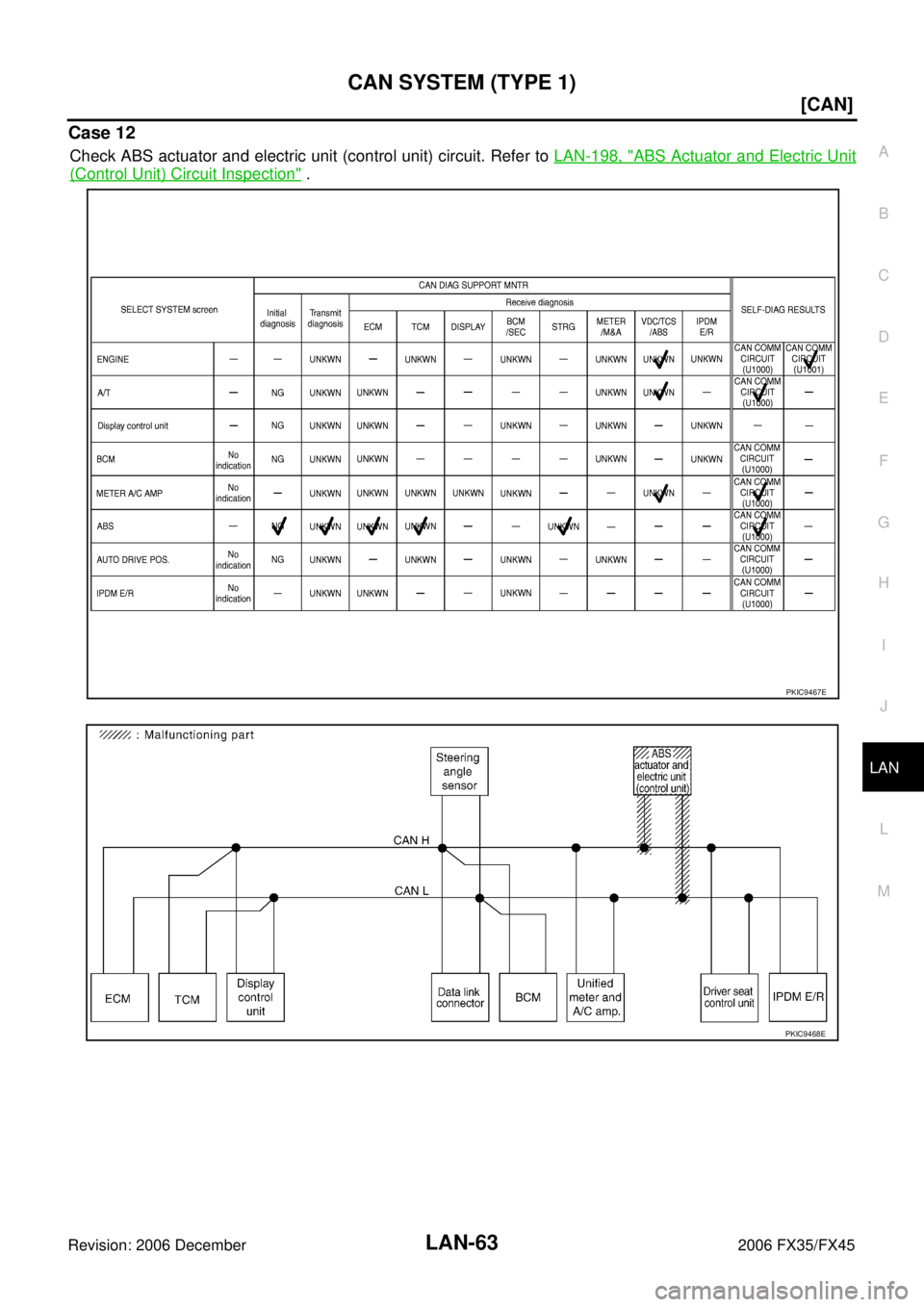

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-63 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 12 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-198,

Page 3424 of 4462

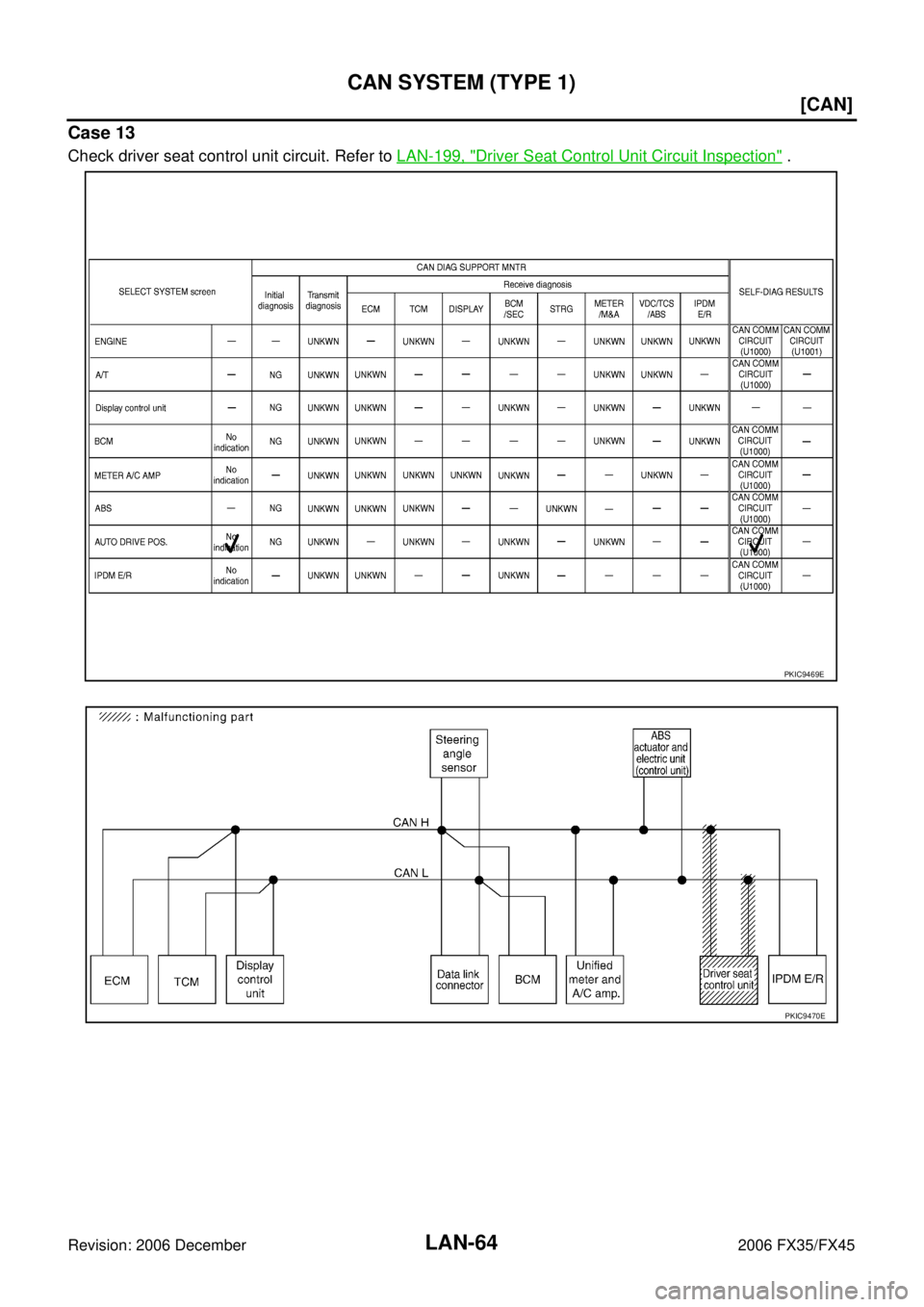

INFINITI FX35 2006 Service Manual LAN-64 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 Case 13 Check driver seat control unit circuit. Refer to LAN-199, "Driver Seat Control Unit Circuit Inspection" . PKIC9469E PKI
