Page 3457 of 4462

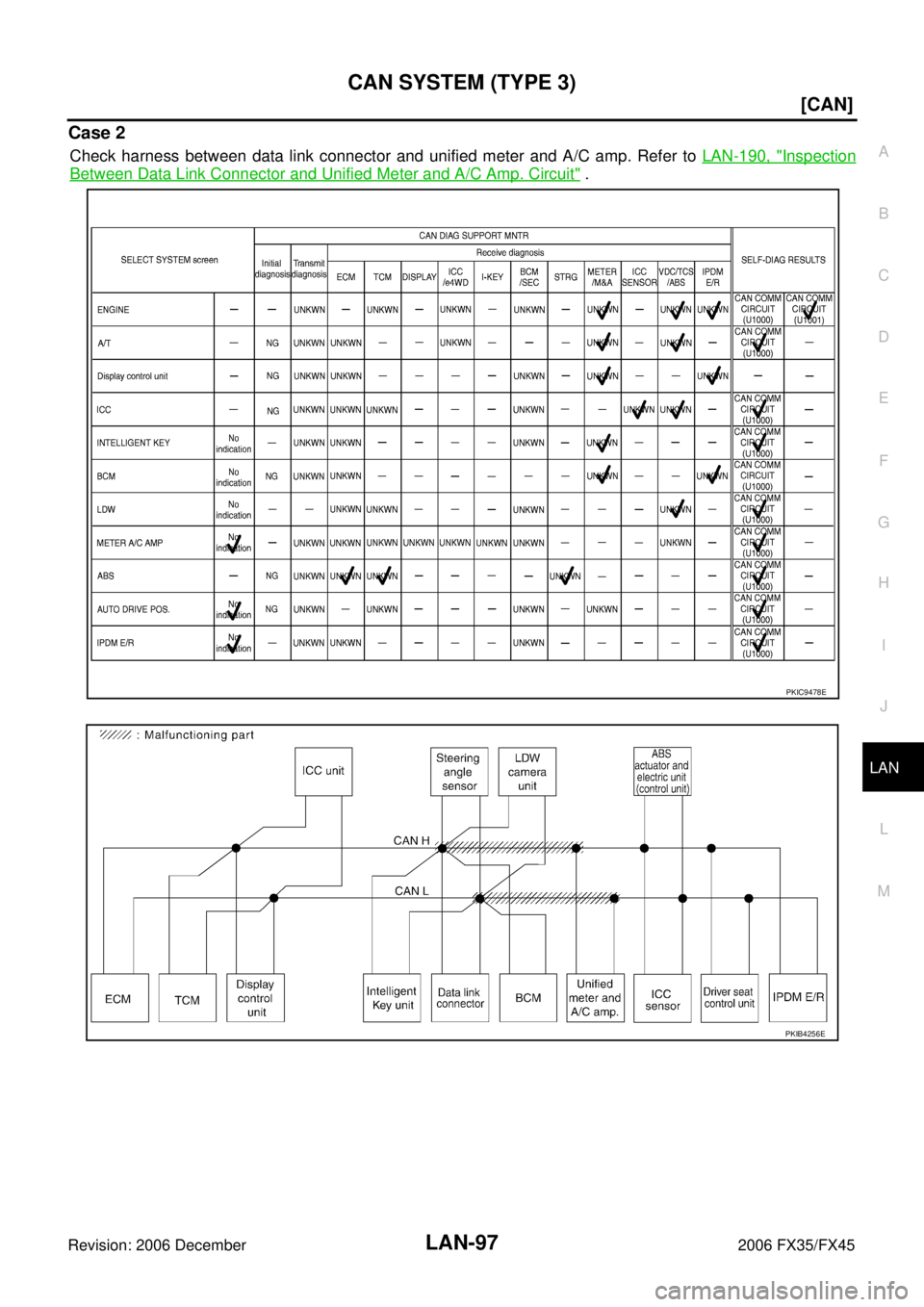

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 3) LAN-97 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to

Page 3458 of 4462

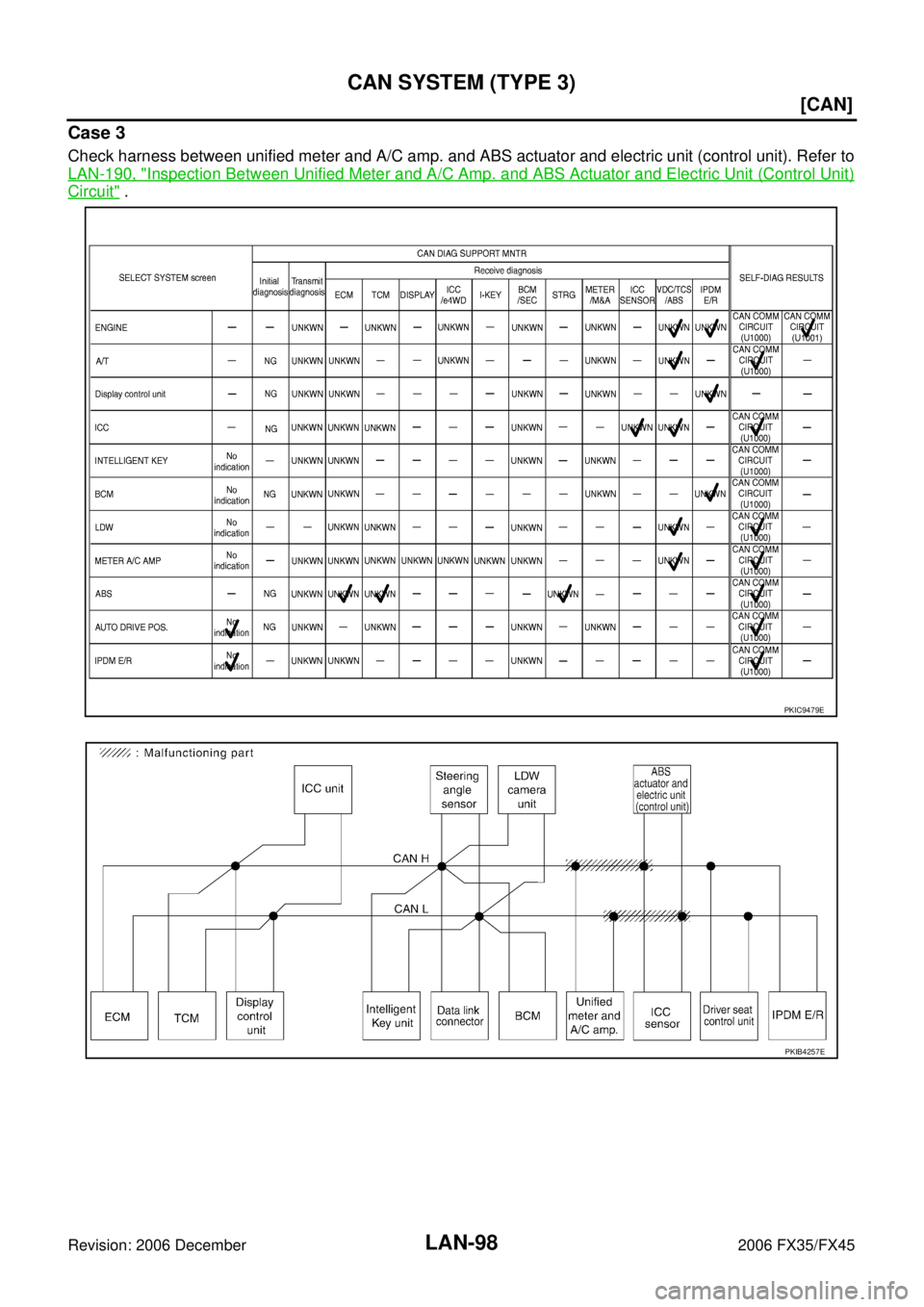

INFINITI FX35 2006 Service Manual LAN-98 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 December 2006 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-190, "

Page 3459 of 4462

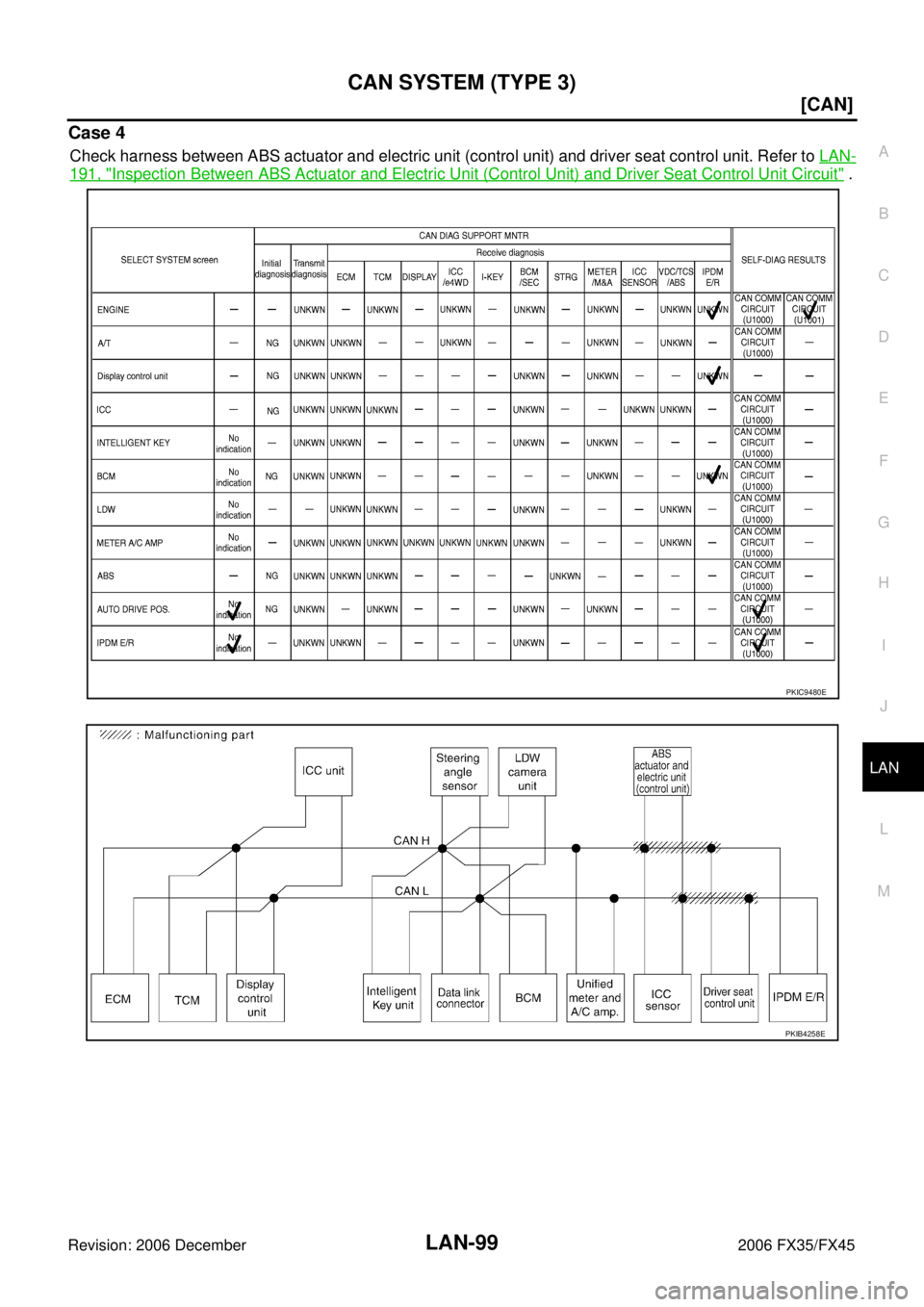

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 3) LAN-99 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver se

Page 3460 of 4462

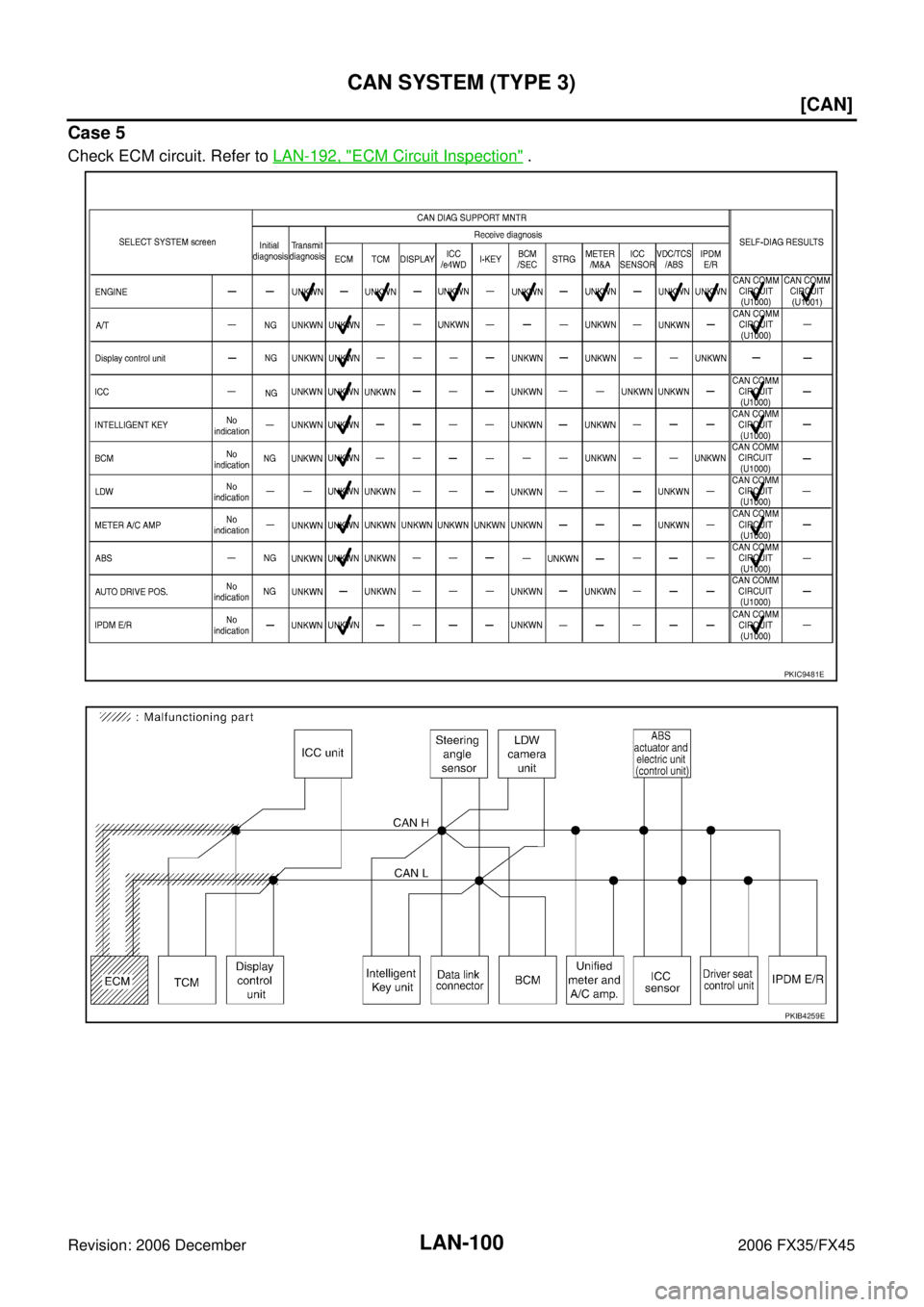

INFINITI FX35 2006 Service Manual LAN-100 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 December 2006 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" . PKIC9481E PKIB4259E

Page 3461 of 4462

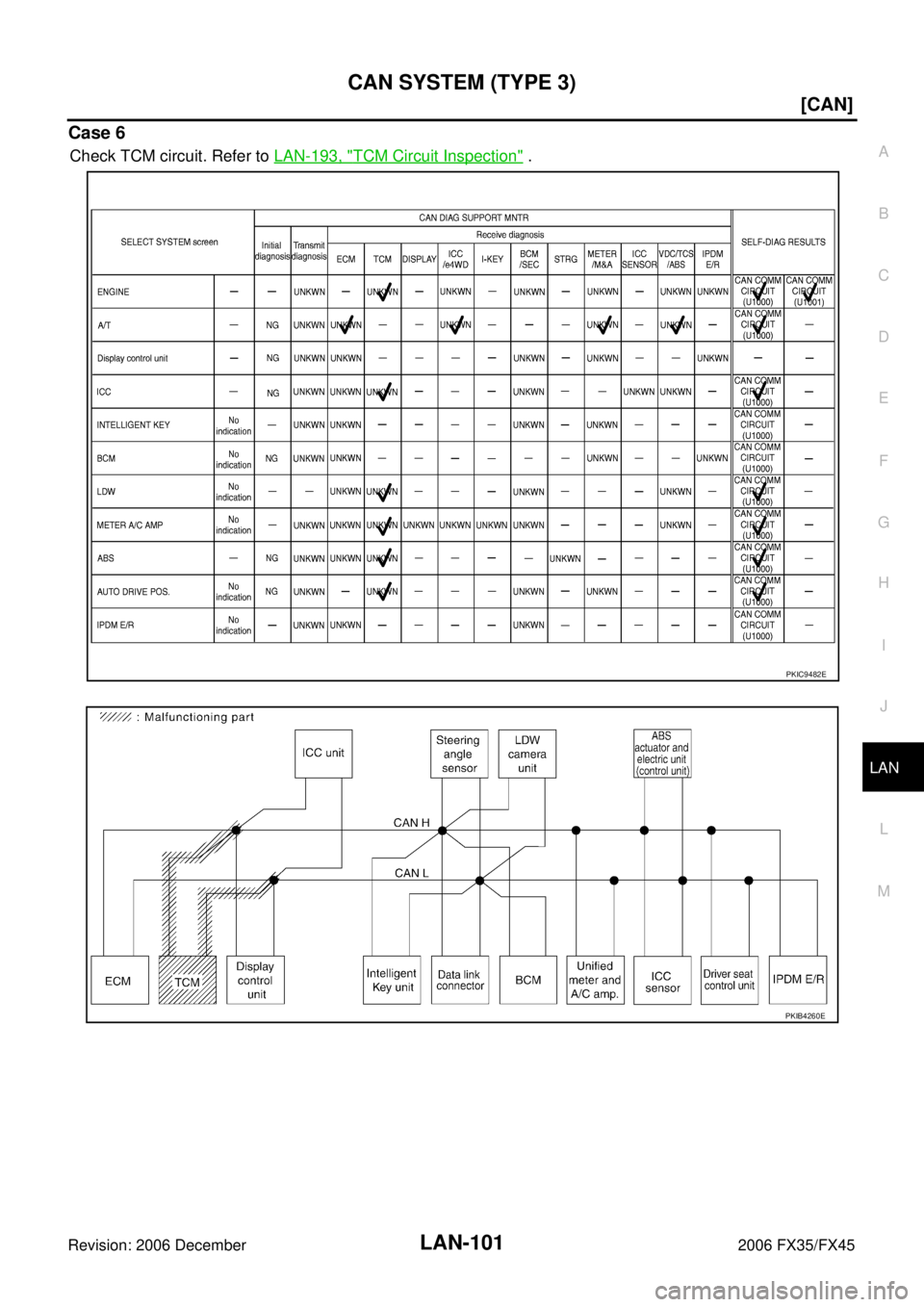

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 3) LAN-101 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" . PKIC9482E PKIB

Page 3462 of 4462

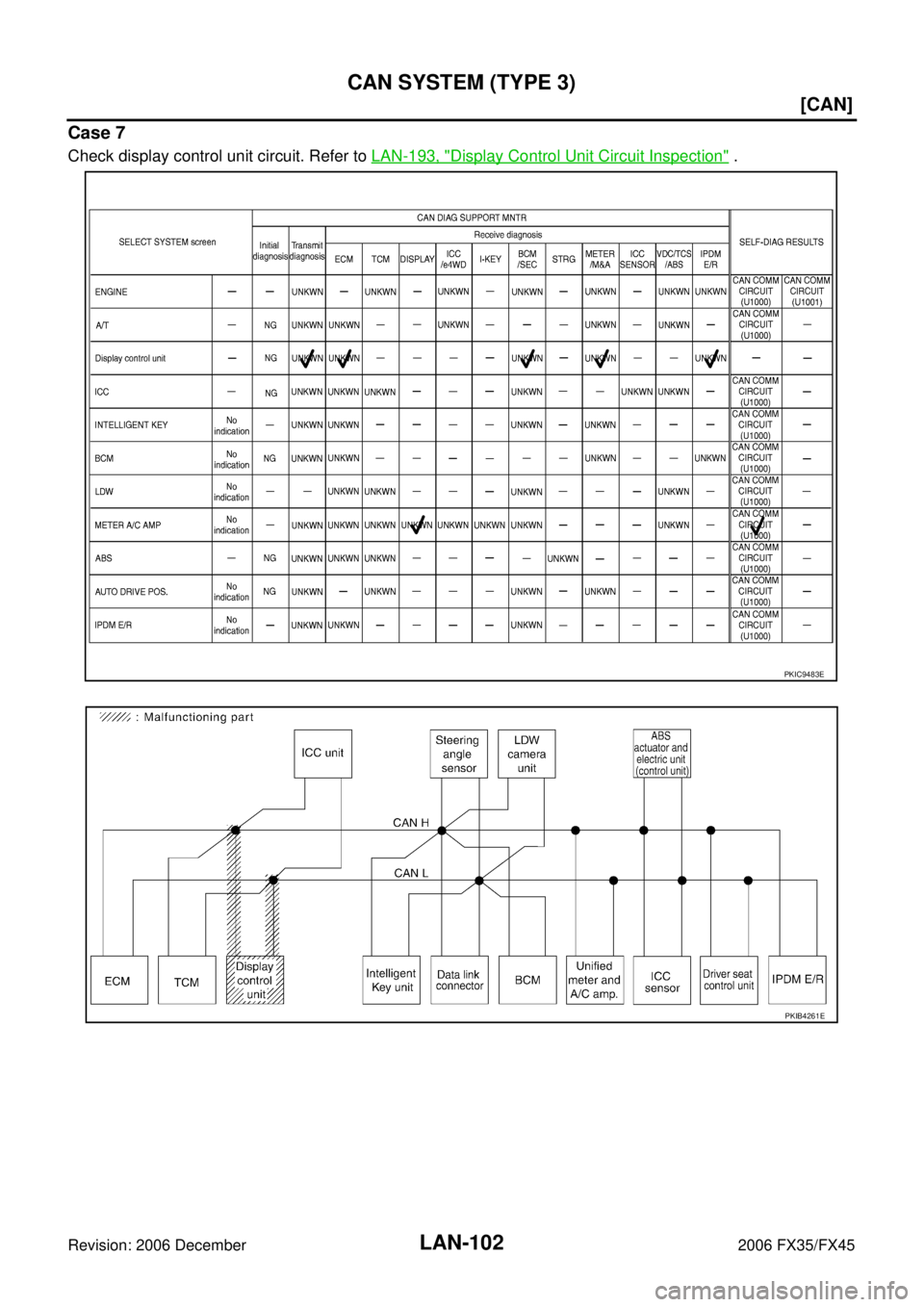

INFINITI FX35 2006 Service Manual LAN-102 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 December 2006 FX35/FX45 Case 7 Check display control unit circuit. Refer to LAN-193, "Display Control Unit Circuit Inspection" . PKIC9483E PKIB4261E

Page 3463 of 4462

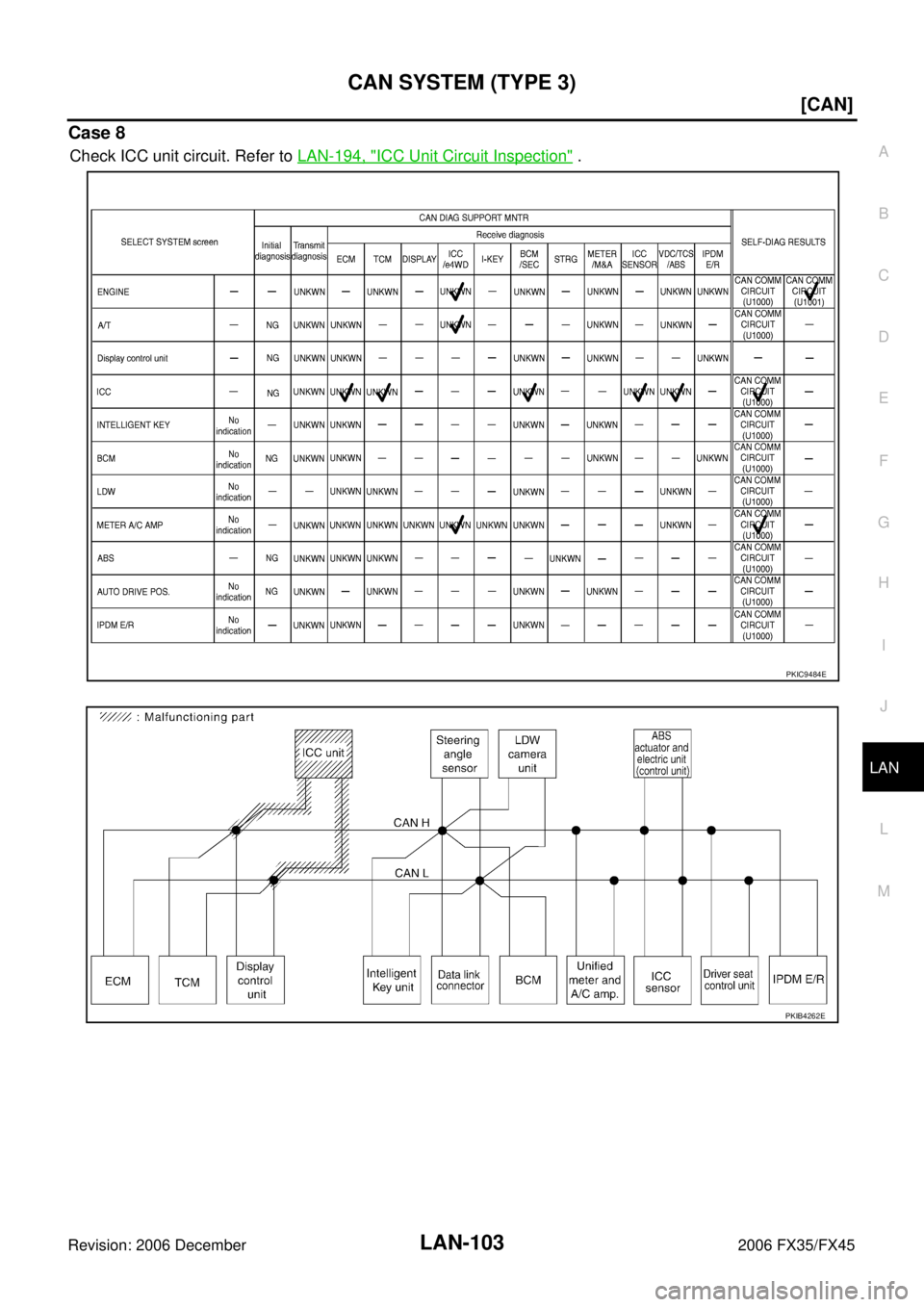

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 3) LAN-103 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 8 Check ICC unit circuit. Refer to LAN-194, "ICC Unit Circuit Inspection" . PKIC

Page 3464 of 4462

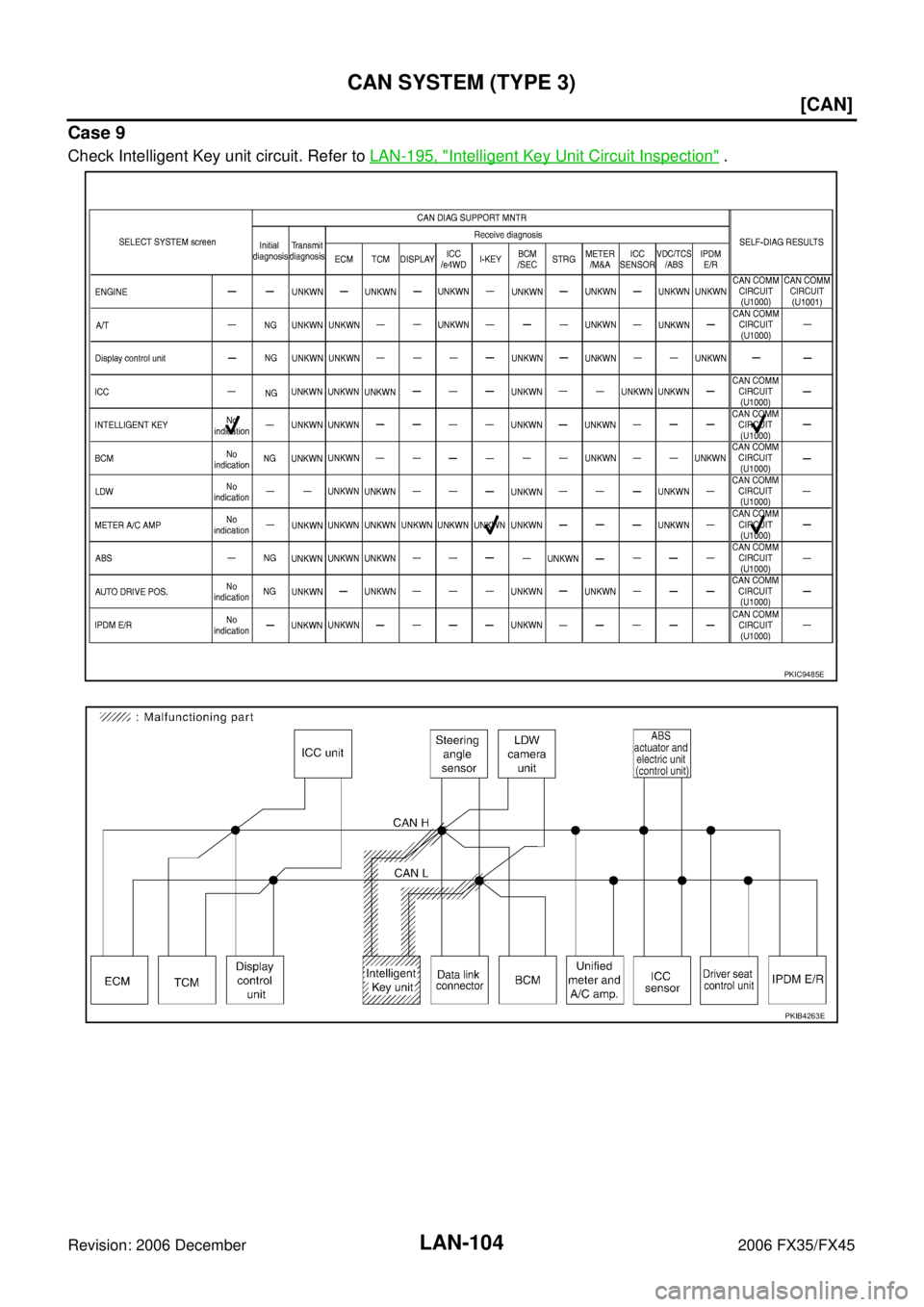

INFINITI FX35 2006 Service Manual LAN-104 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 December 2006 FX35/FX45 Case 9 Check Intelligent Key unit circuit. Refer to LAN-195, "Intelligent Key Unit Circuit Inspection" . PKIC9485E PKIB4263E
