Page 2593 of 4462

INFINITI FX35 2006 Service Manual DTC P1572 ICC BRAKE SWITCH EC-1209
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.

Page 2594 of 4462

INFINITI FX35 2006 Service Manual EC-1210
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
16. CHECK STOP LAMP SWITCH
Refer to EC-1210, "
Component Inspection"
OK or NG
OK >> GO TO 17.
NG >> Replace st

Page 2595 of 4462

INFINITI FX35 2006 Service Manual DTC P1572 ASCD BRAKE SWITCH EC-1211
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionNBS004EH
When the b

DTC P1572 ASCD BRAKE SWITCH EC-1211
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

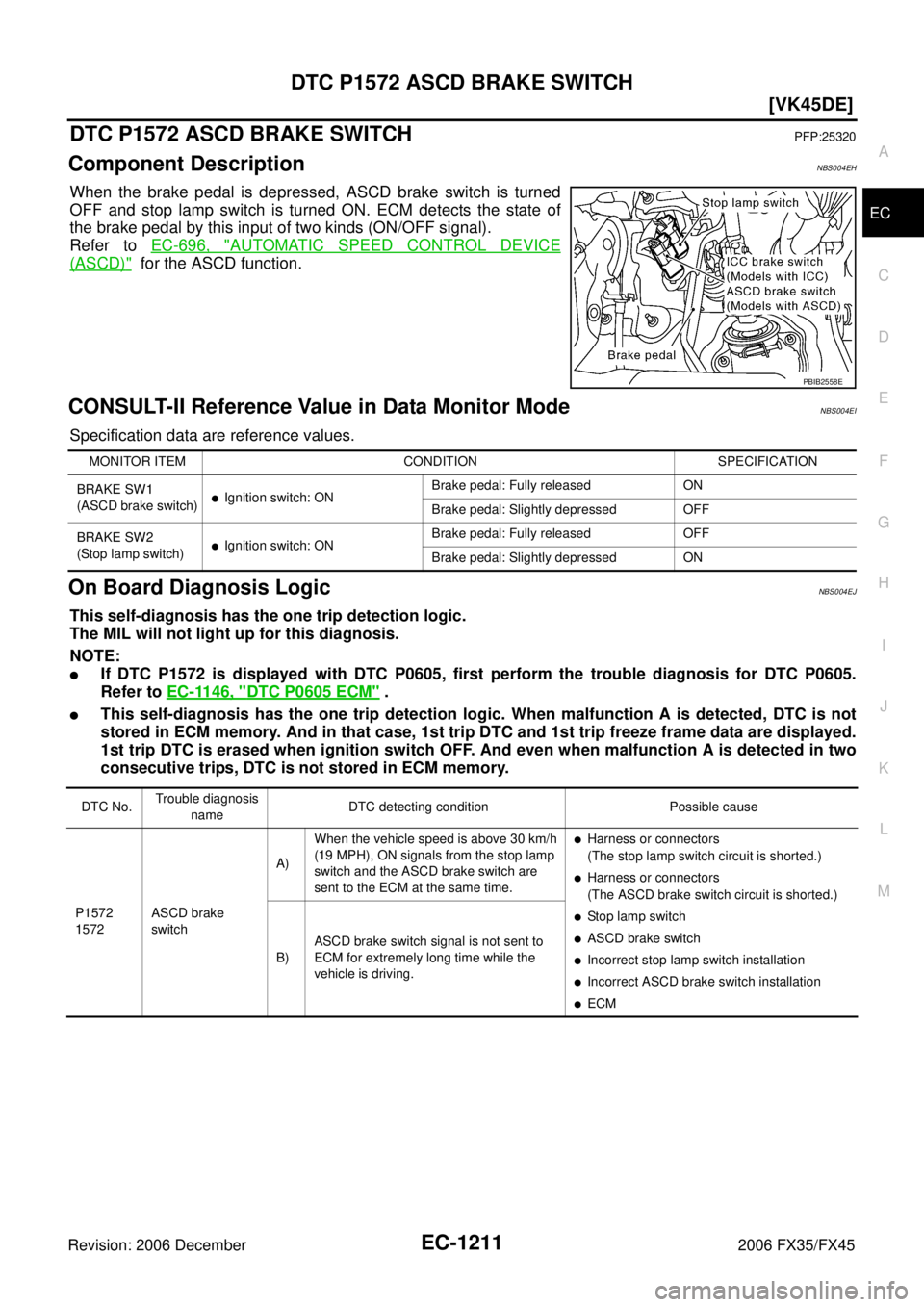

DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionNBS004EH
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-696, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeNBS004EI
Specification data are reference values.
On Board Diagnosis LogicNBS004EJ
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1146, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2558E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch)
Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P1572
1572 ASCD brake
switch A)
When the vehicle speed is above 30 km/h
(19 MPH), ON signals from the stop lamp
switch and the ASCD brake switch are
sent to the ECM at the same time.
Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ASCD brake switch circuit is shorted.)
Stop lamp switch
ASCD brake switch
Incorrect stop lamp switch installation
Incorrect ASCD brake switch installation
ECM
B)
ASCD brake switch signal is not sent to
ECM for extremely long time while the
vehicle is driving.

Page 2596 of 4462

INFINITI FX35 2006 Service Manual EC-1212
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45

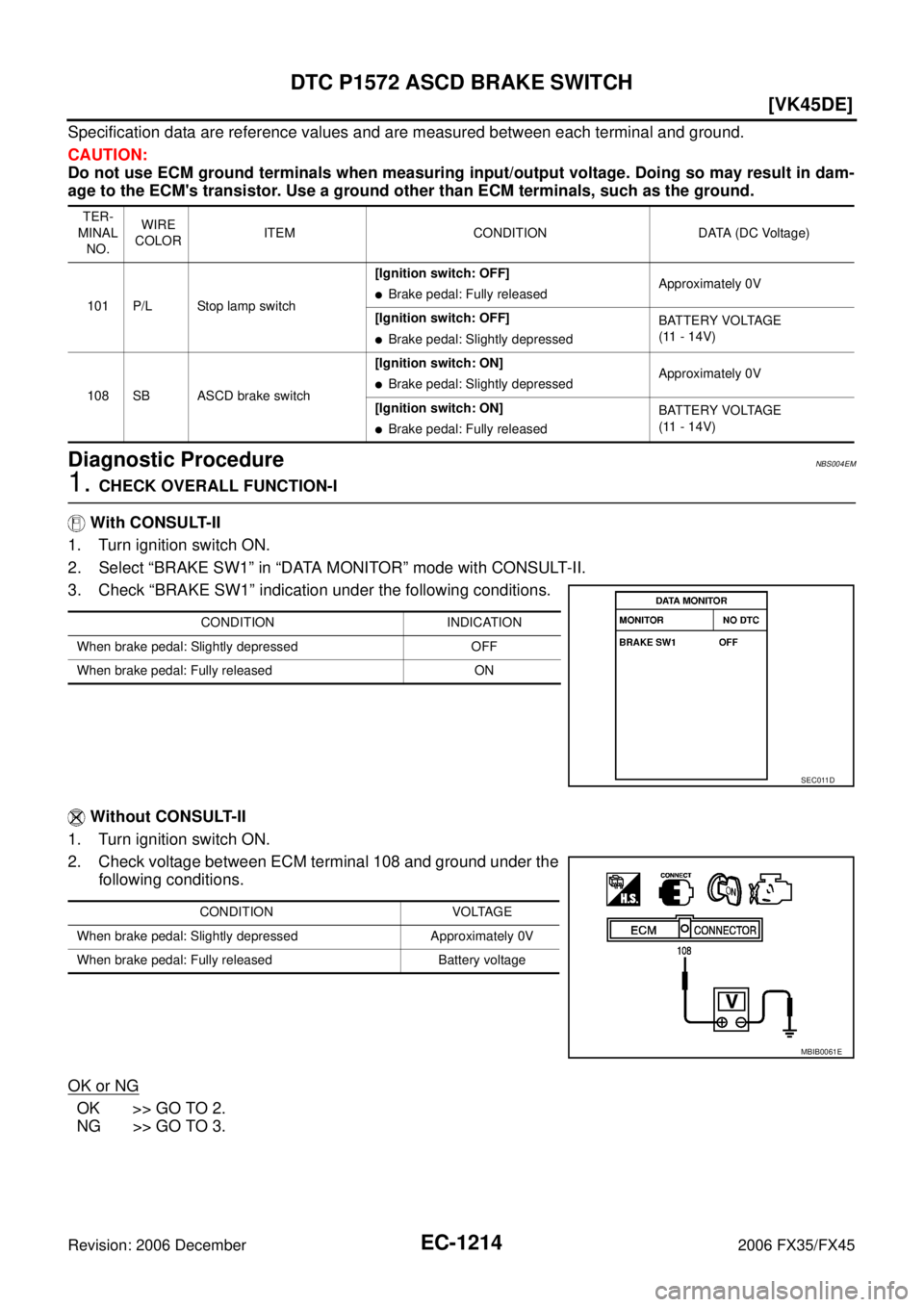

DTC Confirmation ProcedureNBS004EK
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Proce

Page 2597 of 4462

INFINITI FX35 2006 Service Manual DTC P1572 ASCD BRAKE SWITCH EC-1213
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

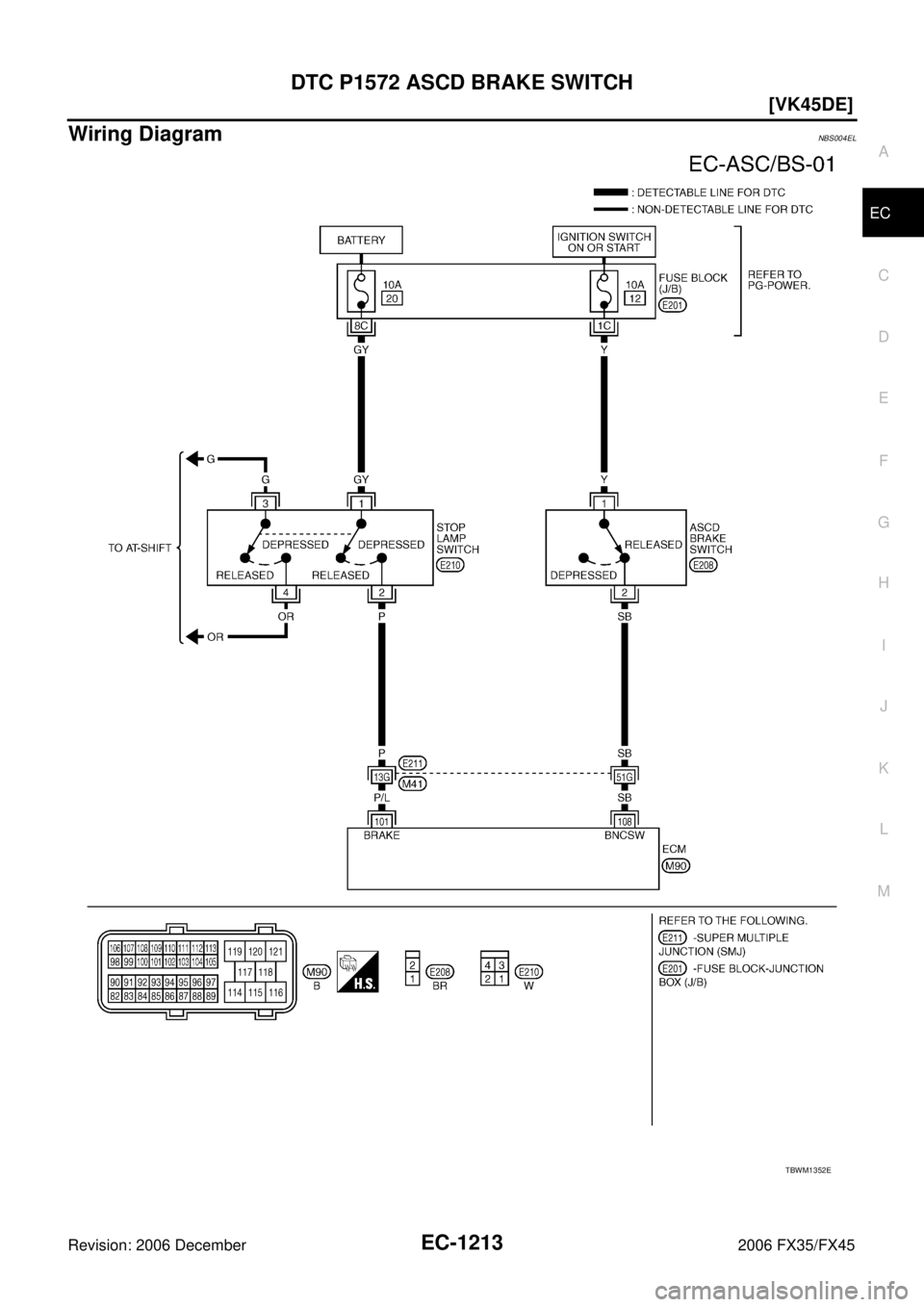

Wiring Diagram NBS004EL
TBWM1352E

Page 2598 of 4462

INFINITI FX35 2006 Service Manual EC-1214
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM

Page 2599 of 4462

INFINITI FX35 2006 Service Manual DTC P1572 ASCD BRAKE SWITCH EC-1215
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

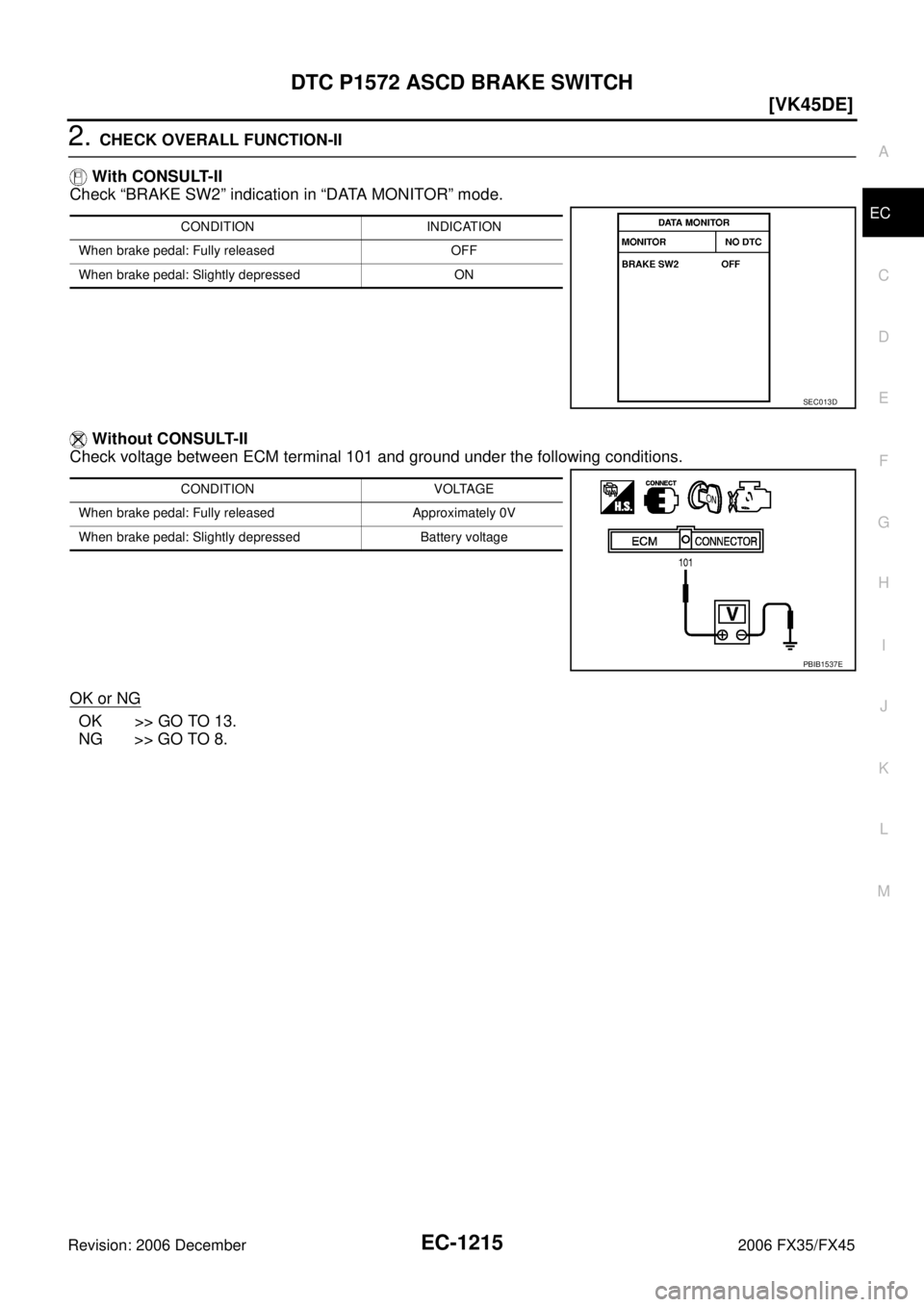

2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indicat

Page 2600 of 4462

INFINITI FX35 2006 Service Manual EC-1216
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45

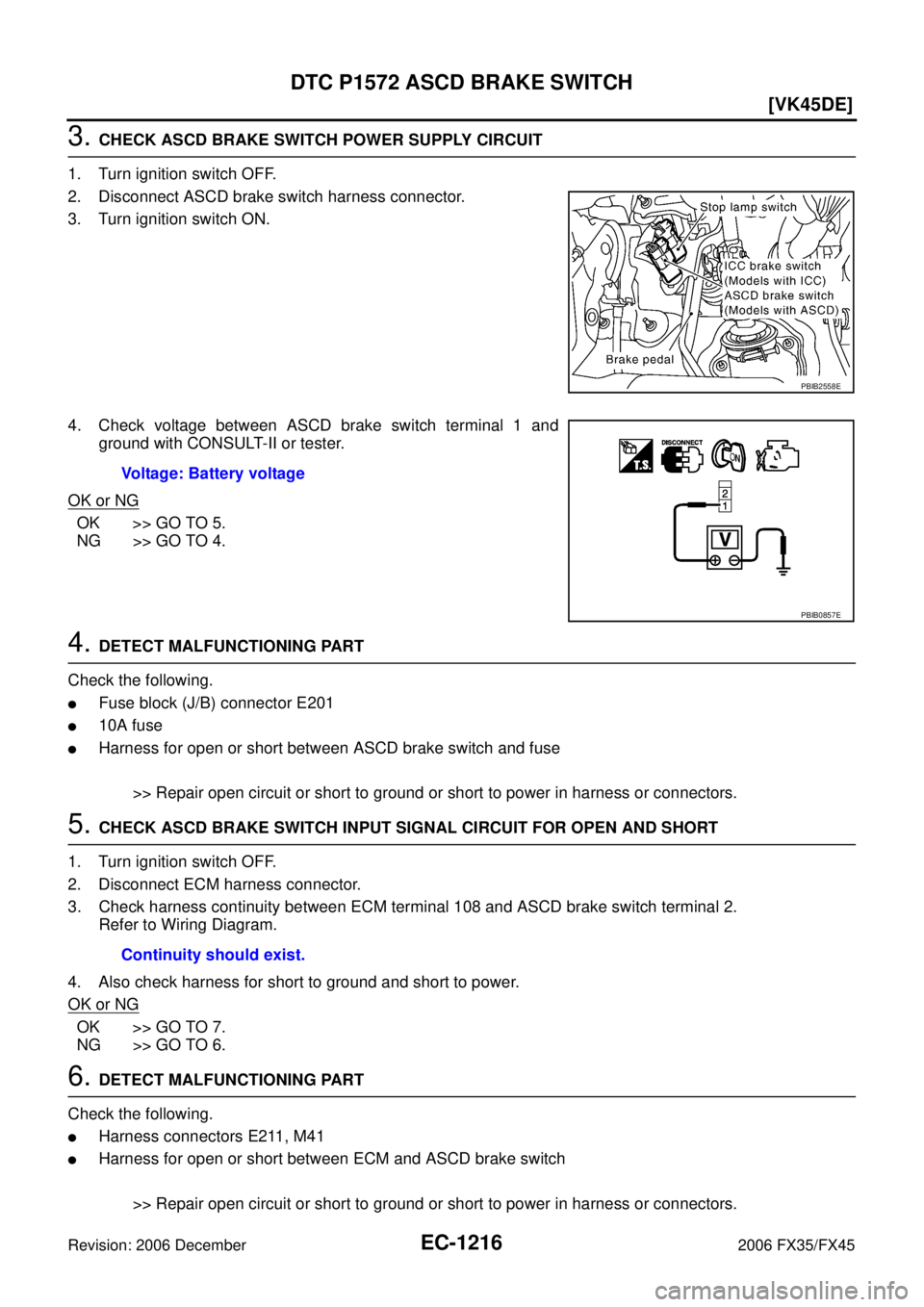

3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harne

Load next 8 pages

Page: < prev 1-10 ... 2561-2568 2569-2576 2577-2584 2585-2592 2593-2600 2601-2608 2609-2616 2617-2624 2625-2632 ... 4464 next >
