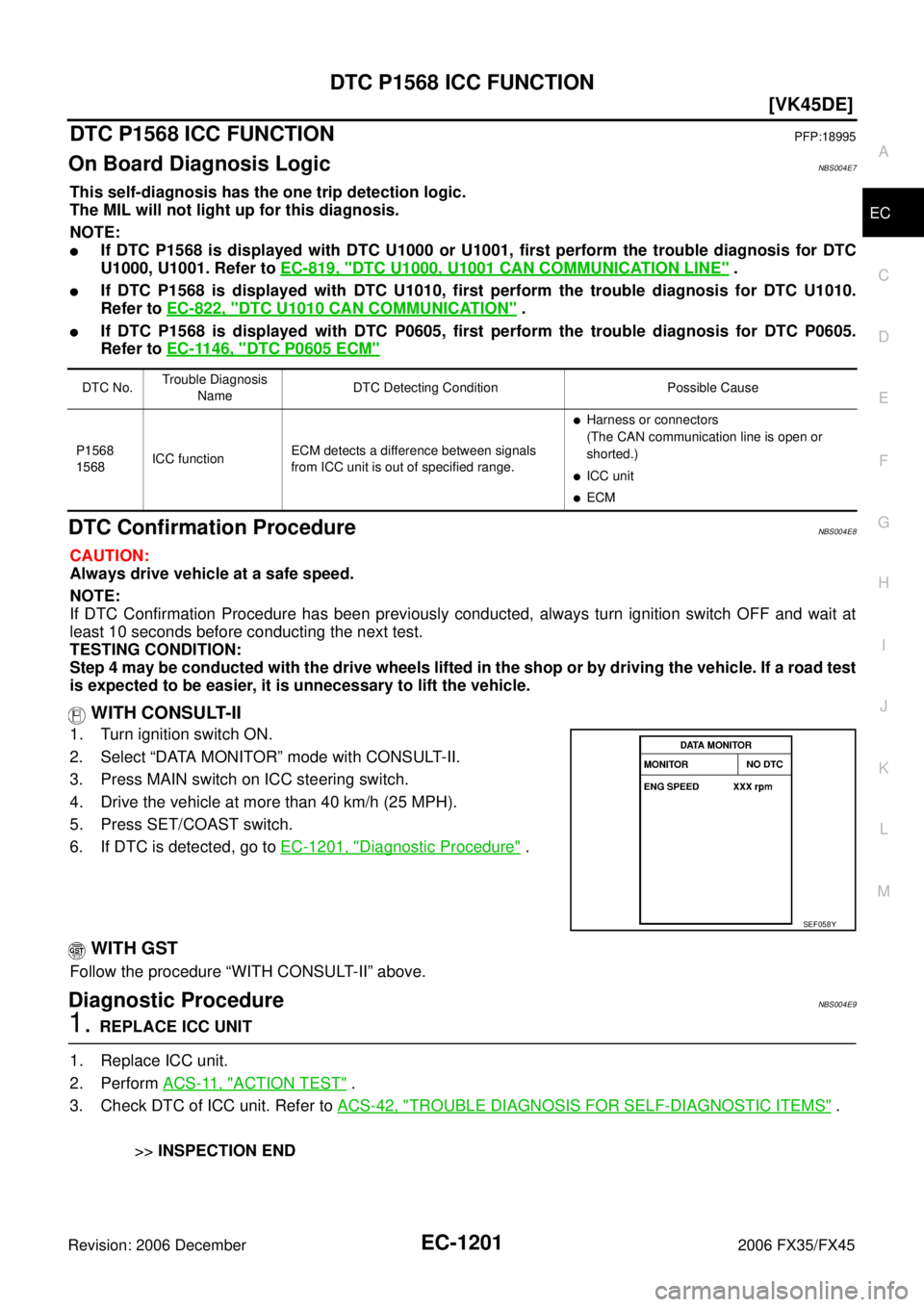

DTC P1568 ICC FUNCTION EC-1201
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS004E7
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1568 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-819, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1568 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-822, "
DTC U1010 CAN COMMUNICATION" .
If DTC P1568 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1146, "
DTC P0605 ECM"
DTC Confirmation ProcedureNBS004E8
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch on ICC steering switch.
4. Drive the vehicle at more than 40 km/h (25 MPH).
5. Press SET/COAST switch.
6. If DTC is detected, go to EC-1201, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS004E9
1. REPLACE ICC UNIT
1. Replace ICC unit.
2. Perform ACS-11, "
ACTION TEST" .
3. Check DTC of ICC unit. Refer to ACS-42, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
>> INSPECTION END
DTC No. Trouble Diagnosis
Name DTC Detecting Condition Possible Cause
P1568
1568 ICC function ECM detects a difference between signals
from ICC unit is out of specified range.
Harness or connectors
(The CAN communication line is open or
shorted.)
ICC unit
ECM
SEF058Y
Page 2586 of 4462
![INFINITI FX35 2006 Service Manual EC-1202
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS004EA
When the brake pedal is depressed, ICC brake switch INFINITI FX35 2006 Service Manual EC-1202
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS004EA
When the brake pedal is depressed, ICC brake switch](/manual-img/42/57019/w960_57019-2585.png)
EC-1202
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS004EA
When the brake pedal is depressed, ICC brake switch is turned OFF
and stop lamp switch is turned ON. ECM detects the state of the
brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeNBS004EB
Specification data are reference values.
On Board Diagnosis LogicNBS004EC
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1146, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2558E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)
Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P1572
1572 ICC brake switch A)
When the vehicle speed is above 30 km/h
(19 MPH), ON signals from the stop lamp
switch and the ICC brake switch are sent
to ECM at the same time.
Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ICC brake switch circuit is shorted.)
Stop lamp switch
ICC brake switch
ICC brake hold relay
Incorrect stop lamp switch installation
Incorrect ICC brake switch installation
ECM
B)
ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving
Page 2587 of 4462
![INFINITI FX35 2006 Service Manual DTC P1572 ICC BRAKE SWITCH EC-1203
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS004ED
CAUTION:
Always drive vehicle at a safe sp INFINITI FX35 2006 Service Manual DTC P1572 ICC BRAKE SWITCH EC-1203
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS004ED
CAUTION:
Always drive vehicle at a safe sp](/manual-img/42/57019/w960_57019-2586.png)
DTC P1572 ICC BRAKE SWITCH EC-1203
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS004ED
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch and make sure that CRUISE lamp lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
If 1st trip DTC is detected, go to EC-1205, "
Diagnostic Proce-
dure" .
If 1st trip DTC is not detected, go to the following step.
5. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
6. If 1st trip DTC is detected, go to EC-1205, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
PBIB2386E
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
Driving location Depress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
Page 2588 of 4462
EC-1204
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45

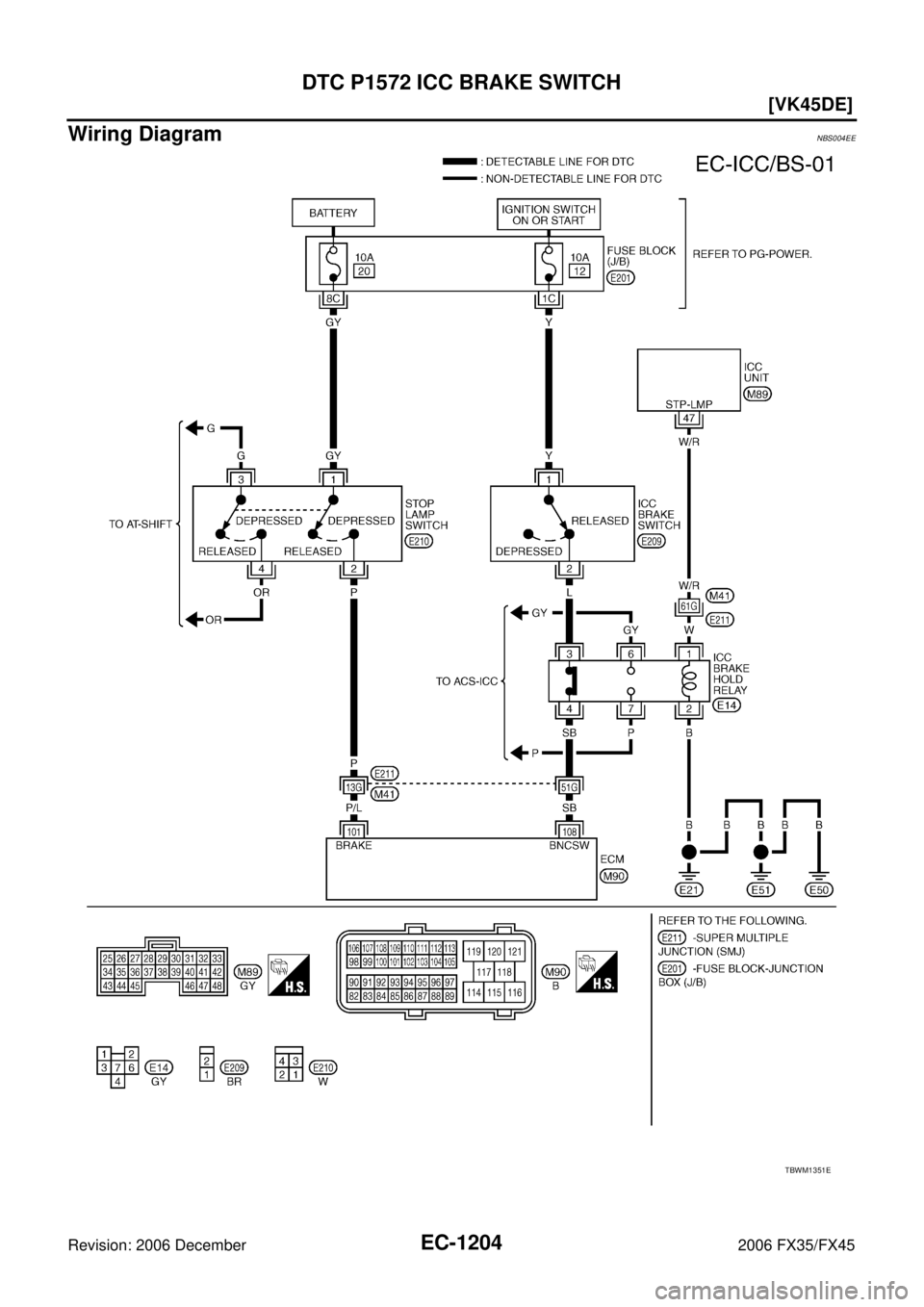

Wiring Diagram NBS004EE
TBWM1351E
Page 2589 of 4462
![INFINITI FX35 2006 Service Manual DTC P1572 ICC BRAKE SWITCH EC-1205
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal INFINITI FX35 2006 Service Manual DTC P1572 ICC BRAKE SWITCH EC-1205
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal](/manual-img/42/57019/w960_57019-2588.png)
DTC P1572 ICC BRAKE SWITCH EC-1205
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS004EF
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CON- SULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
101 P/L Stop lamp switch [Ignition switch: OFF]
Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
108 SB ICC brake switch [Ignition switch: ON]
Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]
Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
When brake pedal: Slightly depressed OFF
When brake pedal: Fully released ON
SEC011D
CONDITION VOLTAGE
When brake pedal: Slightly depressed Approximately 0V
When brake pedal: Fully released Battery voltage
MBIB0061E
Page 2590 of 4462
EC-1206
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
Check voltage between ECM terminal 101 and ground under the fol-
lowing conditions.
OK or NG
OK >> GO TO 17.
NG >> GO TO 12.
3. CHECK DTC WITH ICC UNIT
Refer to ACS-42, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
CONDITION INDICATION
When brake pedal: Fully released OFF
When brake pedal: Slightly depressed ON
SEC013D
CONDITION VOLTAGE
When brake pedal: Fully released Approximately 0V
When brake pedal: Slightly depressed Battery voltage
PBIB1537E
Page 2591 of 4462
DTC P1572 ICC BRAKE SWITCH EC-1207
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
4. CHECK ICC BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake hold relay.
3. Turn ignition switch ON.
4. Check voltage between ICC brake hold relay terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 5.
5. CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ICC brake switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
PBIB1531E
Voltage: Battery voltage
PBIB1538E
PBIB2558E
Voltage: Battery voltage
PBIB0857E
Page 2592 of 4462
![INFINITI FX35 2006 Service Manual EC-1208
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Harness for open or s INFINITI FX35 2006 Service Manual EC-1208
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Harness for open or s](/manual-img/42/57019/w960_57019-2591.png)
EC-1208
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Harness for open or short between ICC brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harness continuity between ICC brake hold relay terminal 3 and ICC brake switch terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK ICC BRAKE SWITCH
Refer to EC-1210, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ICC brake switch.
9. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brake hold relay terminal 4 and ECM terminal 108. Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ICC brake hold relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ICC BRAKE HOLD RELAY
Refer to EC-1210, "
Component Inspection" .
OK >> GO TO 17.
NG >> Replace ICC brake hold relay. Continuity should exist.
Continuity should exist.
