SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
Standard and LimitNBS003KB
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
RADIATOR
Unit: kPa (kg/cm2 , psi)
THERMOSTAT
Engine coolant capacity [With reservoir tank (“MAX” level)] 8.6 (9-1/8, 7- 5/8)
Reservoir tank engine coolant capacity (At “MAX” level) 0.8 (7/8, 3/4)
Cap relief pressure Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage testing pressure 157 (1.6, 23)
Valve opening temperature 76 - 79 °C (169 - 174 °F)
Maximum valve lift 8.6 mm / 90 °C (0.339 in / 194 °F)
Valve closing temperature 71 °C (160 °F)
Page 1226 of 4462
![INFINITI FX35 2006 Service Manual CO-32
[VK45DE]
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NBS INFINITI FX35 2006 Service Manual CO-32
[VK45DE]
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NBS](/manual-img/42/57019/w960_57019-1225.png)
CO-32
[VK45DE]
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NBS003KC
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Page 1227 of 4462
PREPARATION CO-33
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002

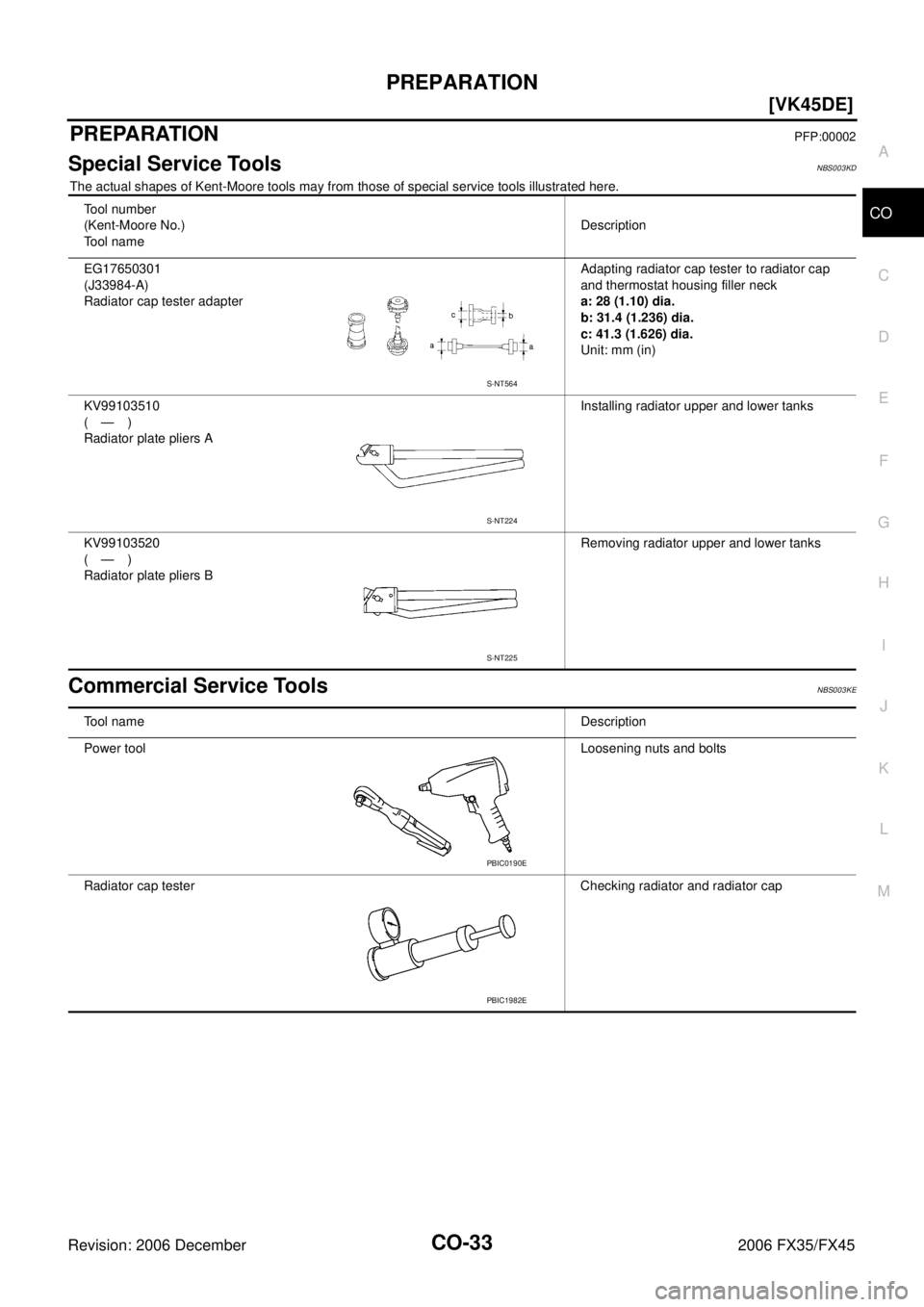

Special Service ToolsNBS003KD
The actual shapes of Kent-Moore tools may from those of special service tools illustrated here.
Commercial Service ToolsNBS003KE
Tool number
(Kent-Moore No.)
Tool name Description
EG17650301
(J33984-A)
Radiator cap tester adapter Adapting radiator cap tester to radiator cap
and thermostat housing filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
(—)
Radiator plate pliers A Installing radiator upper and lower tanks
KV99103520
(—)
Radiator plate pliers B Removing radiator upper and lower tanks
S-NT564
S-NT224
S-NT225
Tool name
Description
Power tool Loosening nuts and bolts
Radiator cap tester Checking radiator and radiator cap
PBIC0190E
PBIC1982E
Page 1228 of 4462
![INFINITI FX35 2006 Service Manual CO-34
[VK45DE]
OVERHEATING CAUSE ANALYSIS
Revision: 2006 December 2006 FX35/FX45
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartNBS003KF
Symptom Check items
Cooling sys-
tem parts
malfun INFINITI FX35 2006 Service Manual CO-34
[VK45DE]
OVERHEATING CAUSE ANALYSIS
Revision: 2006 December 2006 FX35/FX45
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartNBS003KF
Symptom Check items
Cooling sys-
tem parts
malfun](/manual-img/42/57019/w960_57019-1227.png)
CO-34
[VK45DE]
OVERHEATING CAUSE ANALYSIS
Revision: 2006 December 2006 FX35/FX45
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartNBS003KF
Symptom Check items
Cooling sys-
tem parts
malfunction Poor heat transfer
Water pump malfunction Worn or loose drive belt
—
Thermostat and water con-
trol valve stuck closed —
Damaged fins Dust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tube Excess foreign material
(rust, dirt, sand, etc.)
Reduced air flow Cooling fan does not oper-
ate
Fan assembly —
High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio —— —
Poor engine coolant quality — Engine coolant density —
Insufficient engine coolant Engine coolant leaks Cooling hose
Loose clamp
Cracked hose
Water pump Poor sealing
Radiator cap Loose
Poor sealing
Radiator O-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tank Exhaust gas leaks into
cooling system Cylinder head deterioration
Cylinder head gasket dete-
rioration
Page 1229 of 4462
OVERHEATING CAUSE ANALYSIS CO-35
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
Except cool-
ing system
parts mal-
function — Overload on engine
Abusive driving
High engine rpm under no
load
Driving in low gear for
extended time
Driving at extremely high
speed
Powertrain system mal-
function
—
Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flow Blocked bumper —
—
Blocked radiator grille
Installed car brassiere
Mud contamination or
paper clogging
Blocked radiator —
Blocked condenser Blocked air flow
Installed large fog lamp
Symptom Check items
Page 1230 of 4462
CO-36
[VK45DE]
COOLING SYSTEM
Revision: 2006 December 2006 FX35/FX45
COOLING SYSTEMPFP:21020

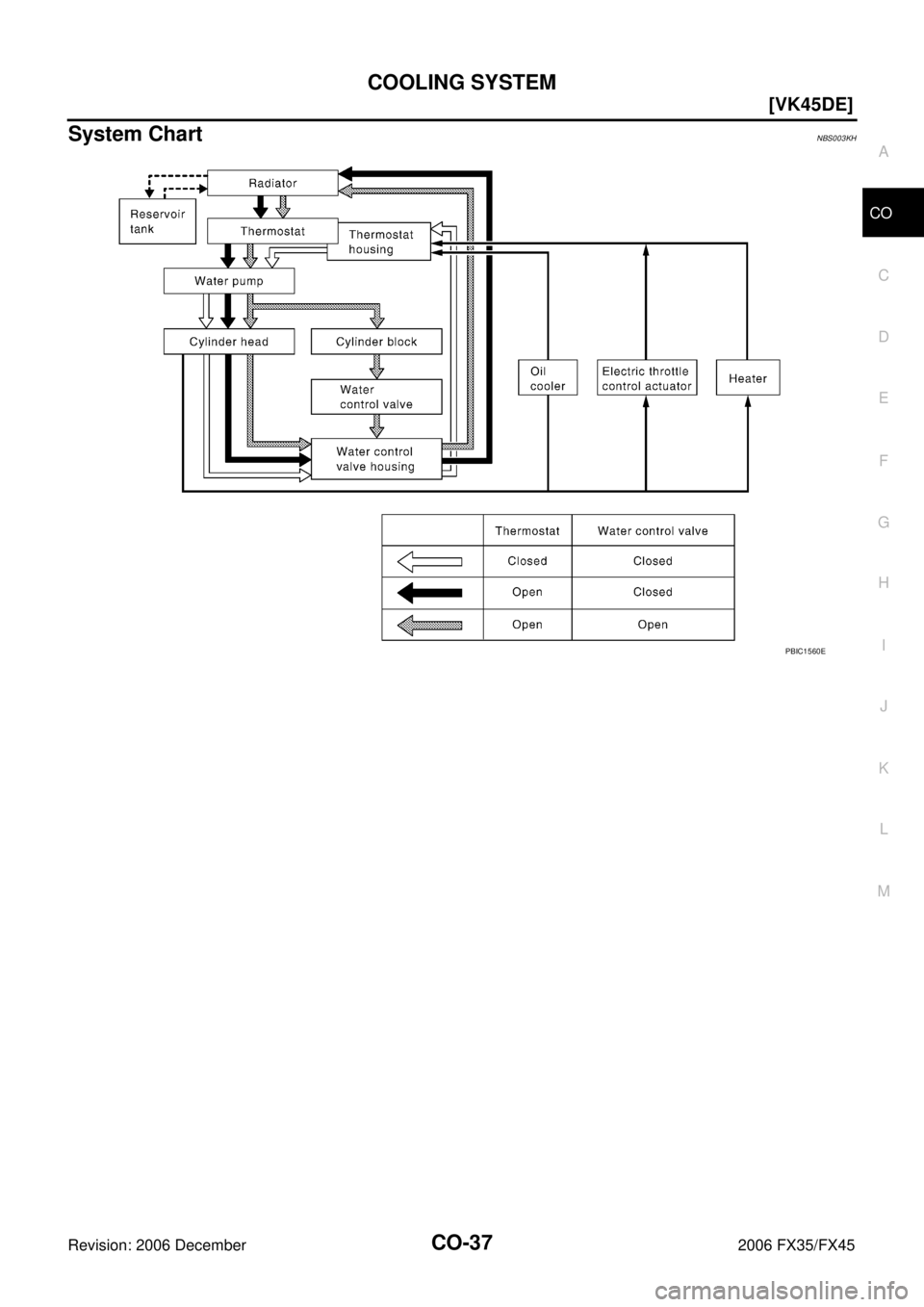

Cooling CircuitNBS003KG
